109.04.00 - TIMING CHAIN

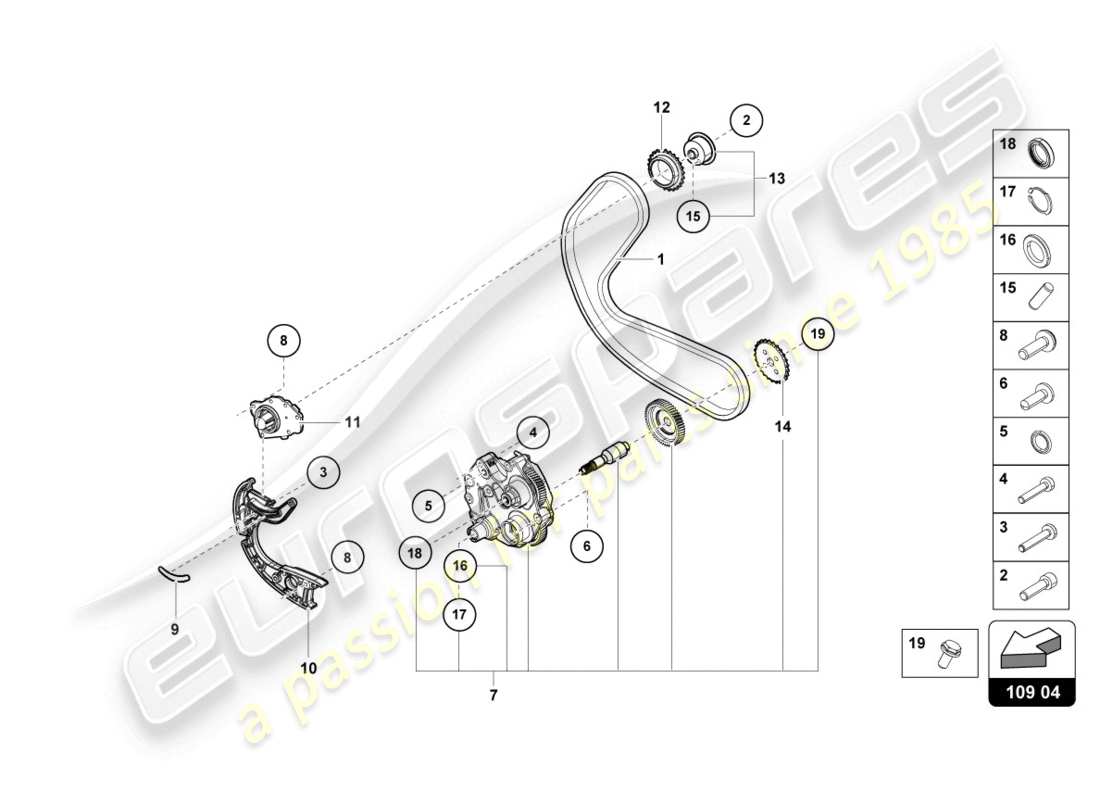

Lamborghini LP610-4 Coupe (2015) TIMING CHAIN Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 06E109465BA
TIMING CHAIN
LOWER CENTRE
Supersession
Supersession
# 002
MPN: N10660901
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
M10X40
from £4.28
from £4.28
# 003
MPN: N10554005
ROUND HD. SCREW
M6X35
from £1.85
from £1.85
# 004
MPN: N91119601
SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD
M8X45
from £2.81
from £2.81
# 005
MPN: N90740801
O-RING
7,65X1,78
from £2.33
from £2.33
# 006
MPN: N91046302
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)
M8X28
from £1.36
from £1.36
# 007
MPN: 07L109359T
PLATE
from £721.11
from £721.11
# 008
MPN: N10124304
OVAL HEXAGON SOCKET HEAD BOLT
M6X20
from £0.97
from £0.97
# 009
MPN: 079109139M
SEAL
LOWER CENTRE
from £6.19
from £6.19
# 010
MPN: 079109507AF
CHAIN TENSIONER
from £123.22
from £123.22
# 011
MPN: 079103337G
BRACKET
from £29.14
from £29.14
# 012
MPN: 079109570AT
CHAIN SPROCKET
Z=25
from £58.37
from £58.37
# 013
MPN: 06E109220A
BEARING PIN
from £53.79
from £53.79
# 014
MPN: 079109570AP
CHAIN SPROCKET
Z=25
from £58.37
from £58.37
# 015
MPN: N10478301
CYLINDER PIN
5X14
from £0.89
from £0.89
# 016
MPN: 079109135E
SPACER BUSH
from £9.08
from £9.08
# 017
MPN: N0124161
SECURING RING
16X1
from £0.53
from £0.53
# 018
MPN: 079103051E
SHAFT OIL SEAL
from £25.73
from £25.73
# 019
MPN: N90893202
FITTED BOLT, HEXAGON HEAD
M10X20
from £2.05
from £2.05
