115.01.00 - HYDRAULIC SYSTEM AND FLUID CONTAINER WITH CONNECT. PIECES

Lamborghini LP610-4 Coupe (2015) HYDRAULIC SYSTEM AND FLUID CONTAINER WITH CONNECT. PIECES Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 001
                          MPN: 4S0115373A
                          OIL CONTAINER
                          from £853.63
                          from £853.63
                          # 002
                          MPN: 420103485E
                          END CAP
                          from £10.25
                          from £10.25
                          # 003
                          MPN: 079907660

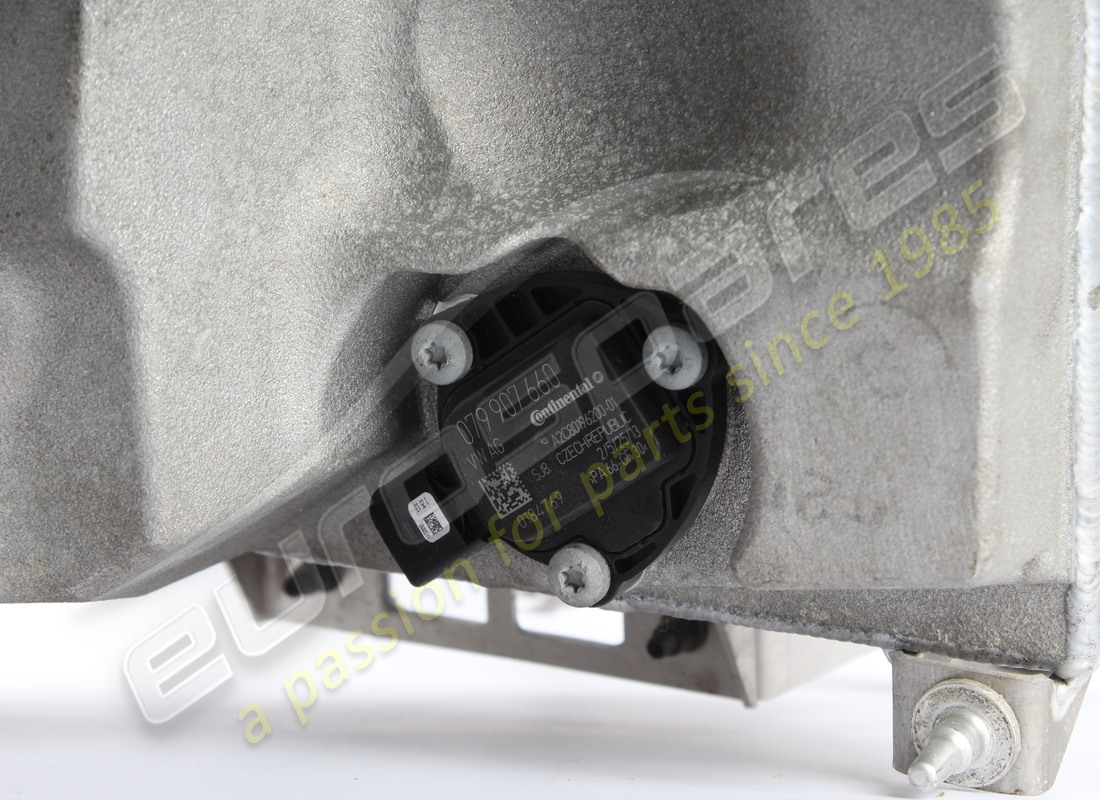

                          OIL LEVEL SENSOR
                          Supersession
                          Supersession
                          # 004
                          MPN: N91185901
                          HEXAGON SOCKET FLAT HEAD BOLT
                          M6X28
                          from £0.63
                          from £0.63
                          # 005
                          MPN: 8K0129669C
                          GROMMET
                          from £2.77
                          from £2.77
                          # 006
                          MPN: 8K0129697
                          COVER CAP
                          from £0.54
                          from £0.54
                          # 007
                          MPN: 8K0129669C
                          GROMMET
                          from £2.77
                          from £2.77
                          # 008
                          MPN: 8K0129734C
                          BUSH
                          from £4.85
                          from £4.85
                          # 009
                          MPN: 4S0115689A

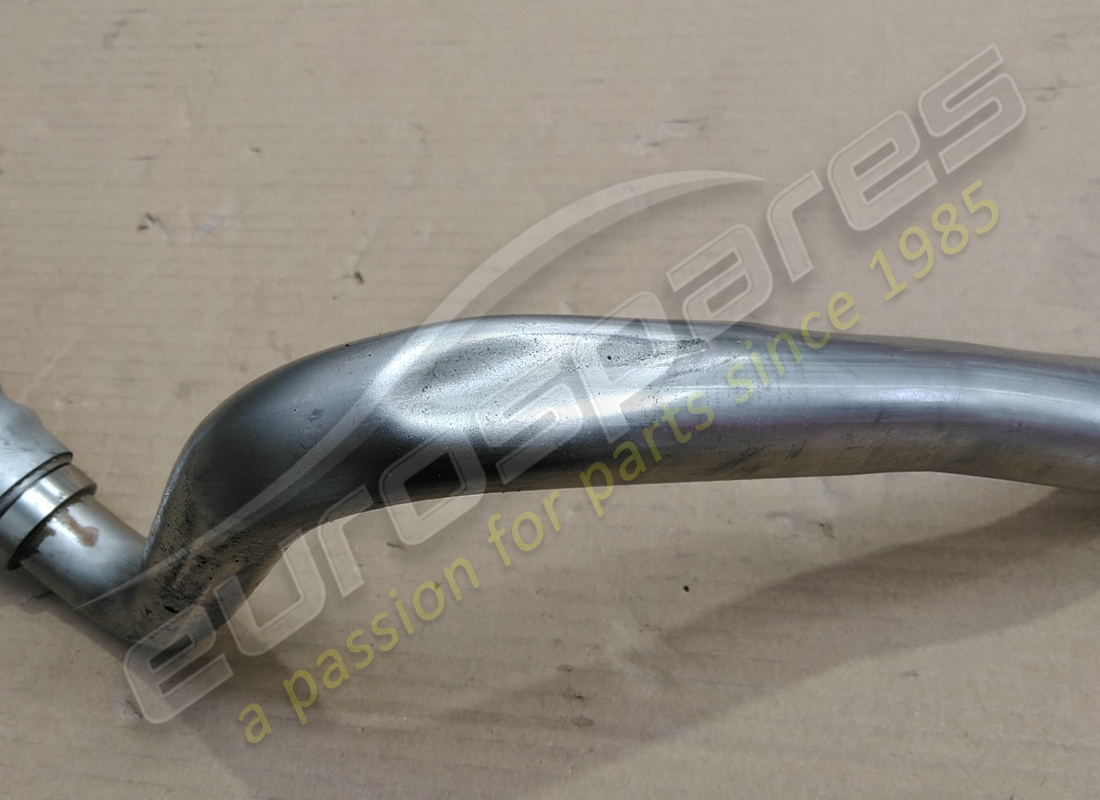

                          OIL PIPE
                          from £193.55
                          from £193.55
                          # 010
                          MPN: 4S0115687C
                          OIL HOSE
                          from £154.08
                          from £154.08
                          # 011
                          MPN: 4S0115223A
                          OIL HOSE
                          from £42.23
                          from £42.23
                          # 013
                          MPN: N91054201
                          HEXAGON SOCKET HEAD BOLT, SELF-LOCKING
                          M6X28
                          from £0.92
                          from £0.92
                          # 014
                          MPN: N10124306
                          OVAL HEXAGON SOCKET HEAD BOLT
                          NOT AVAILABLE-M6X20
                          from £0.89
                          from £0.89
                          # 015
                          MPN: WHT007432
                          O-RING
                          30X2
                          from £0.96
                          from £0.96
                          This part replaces part number N90969401
                          # 016
                          MPN: 4T0317025
                          AIR GUIDE
                          RIGHT
                          from £8.44
                          from £8.44
                          # 017
                          MPN: 4S0117015A
                          OIL COOLER
                          Supersession
                          Supersession
                          # 018
                          MPN: 4T0117335A
                          AIR GUIDE
                          LEFT
                          from £6.72
                          from £6.72
                          # 019
                          MPN: N01167026
                          WASHER
                          8,4X24X2
                          from £0.76
                          from £0.76
                          # 020
                          MPN: N90958101
                          O-RING
                          26X3
                          from £16.30
                          from £16.30
                          # 021
                          MPN: N91042302
                          OVAL HEXAGON SOCKET HEAD BOLT
                          M6X16
                          from £0.63
                          from £0.63
                          # 022
                          MPN: N90295401
                          O-RING
                          29,2X3
                          from £3.72
                          from £3.72
                          # 023
                          MPN: N0138128
                          SEAL RING
                          12X15,5X1,5
                          from £2.18
                          from £2.18
                          # 024
                          MPN: N10637901
                          SEALING PLUG
                          M12X1,5X12
                          from £3.90
                          from £3.90
                          # 025
                          MPN: N0138157

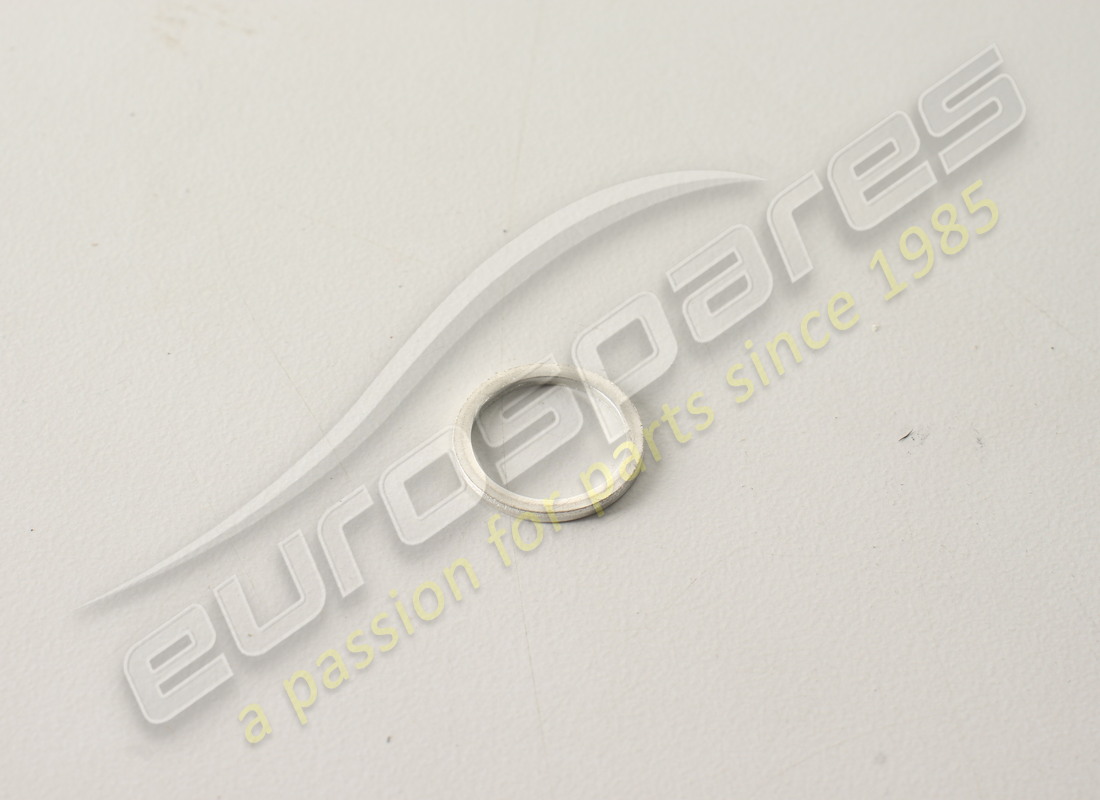

                          SEAL RING
                          14X20
                          from £2.33
                          from £2.33
                          # 026
                          MPN: 036103193
                          OIL DRAIN PLUG
                          M14X1,5X19
                          from £19.77
                          from £19.77
                          # 027
                          -
                          breather line
                          # 028
                          -
                          breather line
                          # 029
                          -
                          CABLE TIES
                          # 030
                          MPN: WHT007432
                          O-RING
                          30X2 WHT 007 432
                          from £0.96
                          from £0.96
                          This part replaces part number N90969401
                          # 031
                          MPN: N91205301
                          HEXAGON FLANGE NUT, SELF-LOCKING
                          M6
                          from £1.47
                          from £1.47
                          # 032
                          MPN: N10517303
                          SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
                          M8X22
                          from £0.93
                          from £0.93
