121.01.00 - COOLER FOR COOLANT

Lamborghini LP610-4 Coupe (2015) COOLER FOR COOLANT Parts Diagram

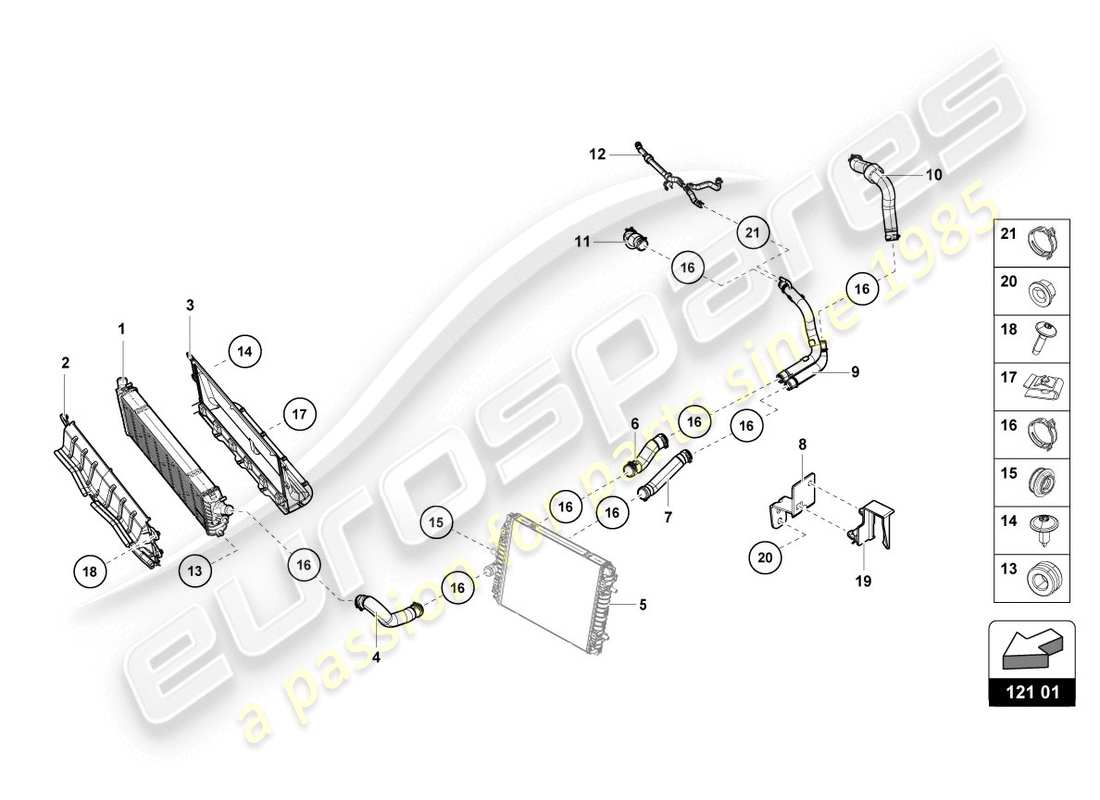

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Price
          # 001
          MPN: 4S0121254B
          COOLER FOR COOLANT
          center
          from £296.58
          from £296.58
          # 002
          MPN: 4T0121333A
          AIR GUIDE
          center
          from £24.86
          from £24.86
          # 003
          MPN: 4T0121334A
          AIR GUIDE
          REAR CENTER
          from £40.25
          from £40.25
          # 004
          MPN: 4S0121059D
          COOLANT HOSE
          LEFT
          from £12.03
          from £12.03
          # 004
          MPN: 4S0121073D
          COOLANT HOSE
          RIGHT
          from £11.98
          from £11.98
          # 005
          -
          COOLER FOR COOLANT
          SEE ILLUSTRATION : 121.02
          # 006
          MPN: 4S0121054B
          COOLANT HOSE
          RIGHT
          from £10.59
          from £10.59
          # 006
          MPN: 4S0121055B
          COOLANT HOSE
          LEFT
          from £9.77
          from £9.77
          # 007
          MPN: 4S0121057B
          COOLANT HOSE
          LEFT
          from £10.51
          from £10.51
          # 007
          MPN: 4S0121069B
          COOLANT HOSE
          RIGHT
          from £8.61
          from £8.61
          # 008
          MPN: 4S0121261
          BRACKET
          from £14.19
          from £14.19
          # 009
          MPN: 4S0121064E
          COOLANT PIPE
          RIGHT
          from £73.32
          from £73.32
          # 009
          MPN: 4S0121065E
          COOLANT PIPE
          LEFT
          from £61.40
          from £61.40
          # 010
          MPN: 4S0121063C
          COOLANT HOSE
          LEFT
          from £12.23
          from £12.23
          # 010
          MPN: 4S0121088C
          COOLANT HOSE
          RIGHT
          from £14.36
          from £14.36
          # 011
          MPN: 4S0121053C
          COOLANT HOSE
          LEFT
          from £11.81
          from £11.81
          # 011
          MPN: 4S0121104C
          COOLANT HOSE
          RIGHT
          from £6.51
          from £6.51
          # 012
          MPN: 4S0122447B
          VENT HOSE
          from £13.05
          from £13.05
          # 013
          MPN: 4D0317867A
          RUBBER BUSH
          from £5.07
          from £5.07
          # 014
          MPN: N90918702
          HEXAGON SOCKET HEAD PANEL BOLT
          4X12
          from £0.47
          from £0.47
          # 015
          -
          RUBBER BUSH
          SEE ILLUSTRATION : 121.02-CENTRE INNER
          # 016
          MPN: N90687201
          SPRING BAND CLAMP
          40X12
          from £1.93
          from £1.93
          # 017
          MPN: N90688703
          SPEED NUT
          M6X24X16
          from £0.74
          from £0.74
          # 018
          MPN: N90732103
          HEXAGON SOCKET OVAL HEAD BOLT
          4X16
          from £0.47
          from £0.47
          # 019
          MPN: 1J0971830R
          BRACKET FOR CONNECTOR HOUSING
          from £3.03
          from £3.03
          # 020
          MPN: N90488004
          HEX. NUT WITH WASHER
          M6
          from £0.47
          from £0.47
          # 021
          MPN: N90770201
          SPRING BAND CLAMP
          17X12
          from £2.33
          from £2.33
