lamborghini lp610-4 coupe (2015) injection valve parts diagram

133.04.00 - INJECTION VALVE

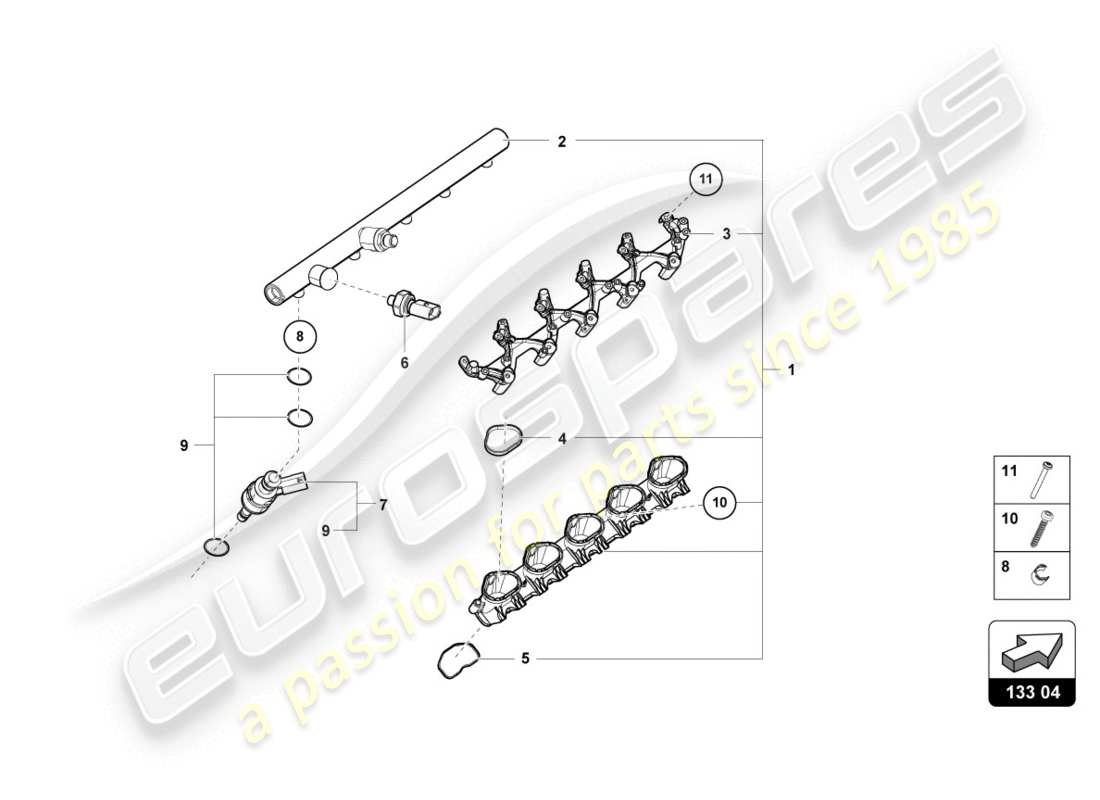

Lamborghini LP610-4 Coupe (2015) INJECTION VALVE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Price
            # 001
            MPN: 07L133109AS
            INTAKE MANIFOLD - LOWER PART
            LEFT
            Supersession
            Supersession
            # 001
            MPN: 07L133110AS
            INTAKE MANIFOLD - LOWER PART
            RIGHT
            Supersession
            Supersession
            # 002
            -
            Fuel Rail
            CANNOT BE SOLD SEPARATELY - IT IS PART OF REF. 1- 1
            # 003
            MPN: 07L133340A
            BRACKET
            from £151.75
            from £151.75
            # 004
            MPN: 07L129717G
            SEAL
            UPPER
            from £15.57
            from £15.57
            # 005
            MPN: 079129717B
            SEAL
            LOWER
            from £10.81
            from £10.81
            # 006
            MPN: 06J906051F
            PRESSURE SENSOR
            from £59.15
            from £59.15
            # 007
            MPN: 07L906036G
            INJECTION VALVE
            Supersession
            Supersession
            # 008
            MPN: 07L133036B
            SUPPORT ELEMENT
            from £2.00
            from £2.00
            # 009
            MPN: 07L998907
            REPAIR KIT FOR VALVE UNIT
            from £11.46
            from £11.46
            # 010
            MPN: N10535603
            SELF-TAPPING SCREW
            3X16
            from £0.53
            from £0.53
            # 011
            MPN: N10470703
            ROUND HD. SCREW
            M6X50-M6X50
            from £1.15
            from £1.15
            This part replaces part number N10470701
