201.03.00 - FUEL DELIVERY MODULE

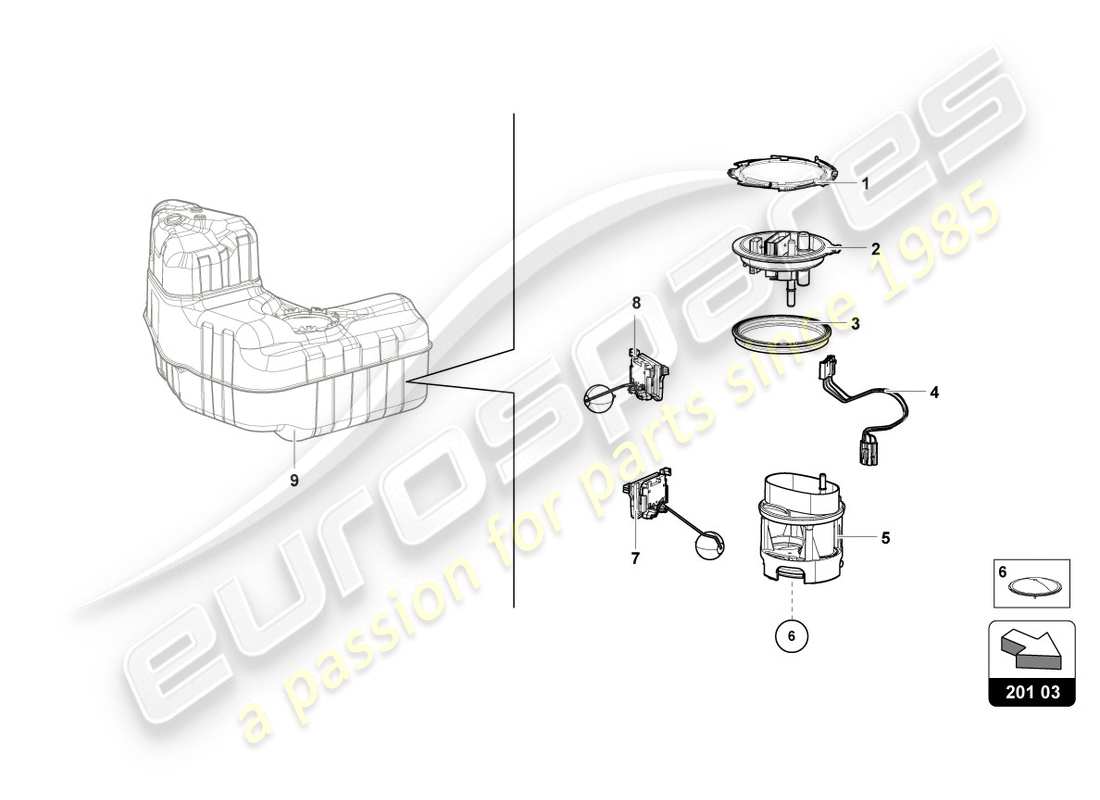

Lamborghini LP610-4 Coupe (2015) FUEL DELIVERY MODULE Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 4E0201375
UNION NUT
from £10.70
from £10.70
# 002
MPN: 4S0201319B
SEALING FLANGE
RIGHT
from £50.17
from £50.17
# 003
MPN: 8E0919133G
SEAL RING
from £66.67
from £66.67
# 004
MPN: 4S0919119
WIRE SET
from £26.68
from £26.68
# 005
MPN: 4S0919088B
FUEL DELIVERY MODULE
from £613.04
from £613.04
# 006
-
BUNGS
OREDER REF 5
# 007
MPN: 4S0919673A
SENDER FOR FUEL GAUGE
RIGHT UPPER
from £115.00
from £115.00
# 008
MPN: 4S0919673
SENDER FOR FUEL GAUGE
RIGHT LOWER
from £115.00
from £115.00
# 009
-
FUEL TANK
SEE ILLUSTRATION : 201.07-RIGHT
