lamborghini lp610-4 coupe (2015) exhaust manifolds parts diagram

253.02.00 - EXHAUST MANIFOLDS

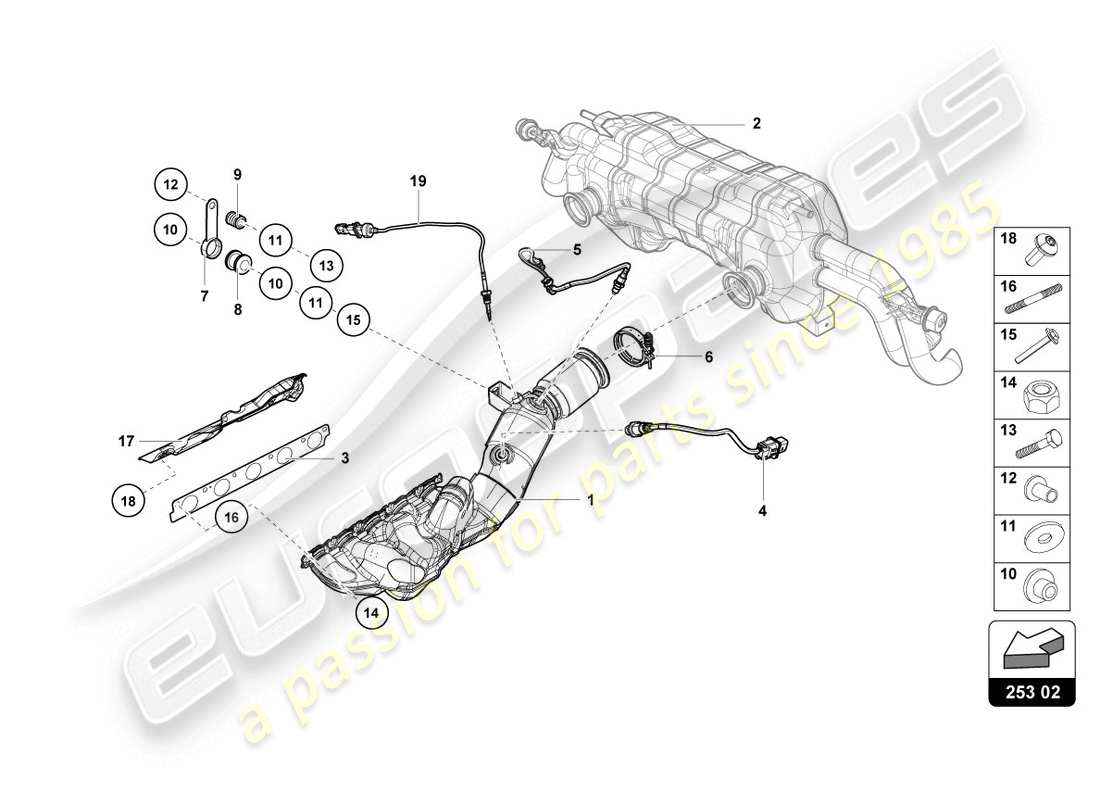

Lamborghini LP610-4 Coupe (2015) EXHAUST MANIFOLDS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Price
              # 001
              MPN: 420251211H

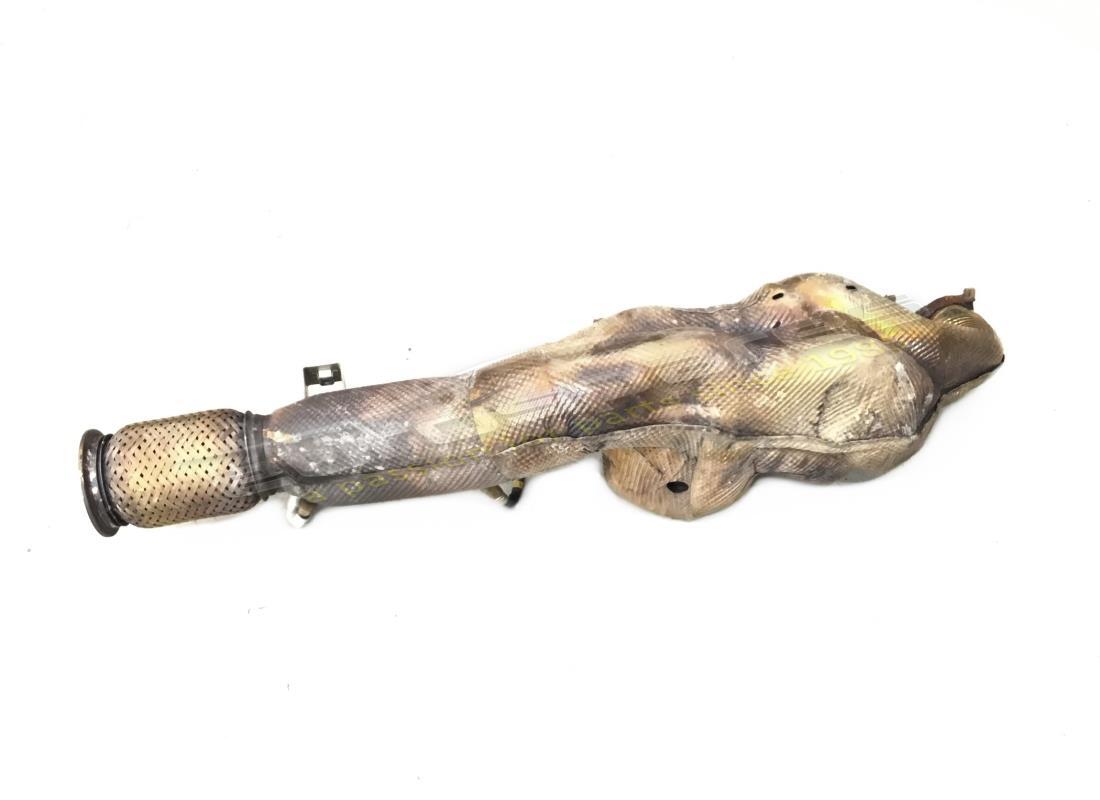

              EXHAUST MANIFOLD WITH CATALYTIC CONVERTER
              LEFT
              from £1,545.55
              from £1,545.55
              # 001
              MPN: 420251212H
              EXHAUST MANIFOLD WITH CATALYTIC CONVERTER
              RIGHT
              from £1,521.77
              from £1,521.77
              # 002
              -
              REAR SILENCER
              # 003
              MPN: 07L253039P
              SEAL
              Supersession
              Supersession
              # 004
              MPN: 4S0906262F
              LAMBDA PROBE
              6 PIN BLACK RIGHT
              from £199.74
              from £199.74
              # 004
              MPN: 4S0906262G
              LAMBDA PROBE
              6 PIN BLACK LEFT
              from £199.74
              from £199.74
              # 005
              MPN: 4S0906262H
              LAMBDA PROBE
              4 PIN BLACK
              from £109.86
              from £109.86
              # 006
              MPN: 420251143
              CLIP
              from £55.00
              from £55.00
              # 007
              MPN: 4A0253295R
              STRAP
              RIGHT
              from £11.34
              from £11.34
              # 007
              MPN: 8K0253295
              STRAP
              LEFT
              from £2.79
              from £2.79
              # 008
              MPN: 3B0253149
              RUBBER BUSH
              from £7.53
              from £7.53
              # 009
              MPN: 893253353
              PRESSURE SPRING
              from £8.51
              from £8.51
              # 010
              MPN: 4B0253205D
              SPACER PIPE
              LEFT
              from £6.83
              from £6.83
              # 010
              MPN: 4B0253205G
              SPACER PIPE
              RIGHT
              from £4.80
              from £4.80
              # 011
              MPN: N01167026
              WASHER
              8,4X24X2
              from £0.75
              from £0.75
              # 012
              MPN: 4B0253205C
              SPACER SLEEVE
              from £2.02
              from £2.02
              # 013
              MPN: N0403016
              HEXAGON BOLT
              M8X48
              from £1.84
              from £1.84
              # 014
              MPN: N90894601
              HEXAGON NUT, SELF-LOCKING
              M8
              from £1.47
              from £1.47
              # 016
              MPN: N91021502
              ROUND HD. SCREW
              M8X25
              from £1.34
              from £1.34
              # 017
              MPN: 420199455
              GUARD PLATE
              LEFT
              from £53.62
              from £53.62
              # 017
              MPN: 420199456
              GUARD PLATE
              RIGHT
              from £29.49
              from £29.49
              # 018
              MPN: N90780901
              OVAL HEXAGON SOCKET HEAD BOLT
              M6X16
              from £0.52
              from £0.52
              # 019
              -
              TEMPERATURE SENSOR
              # 020
              MPN: 4S0906303
              BRACKET
              from £5.97
              from £5.97
