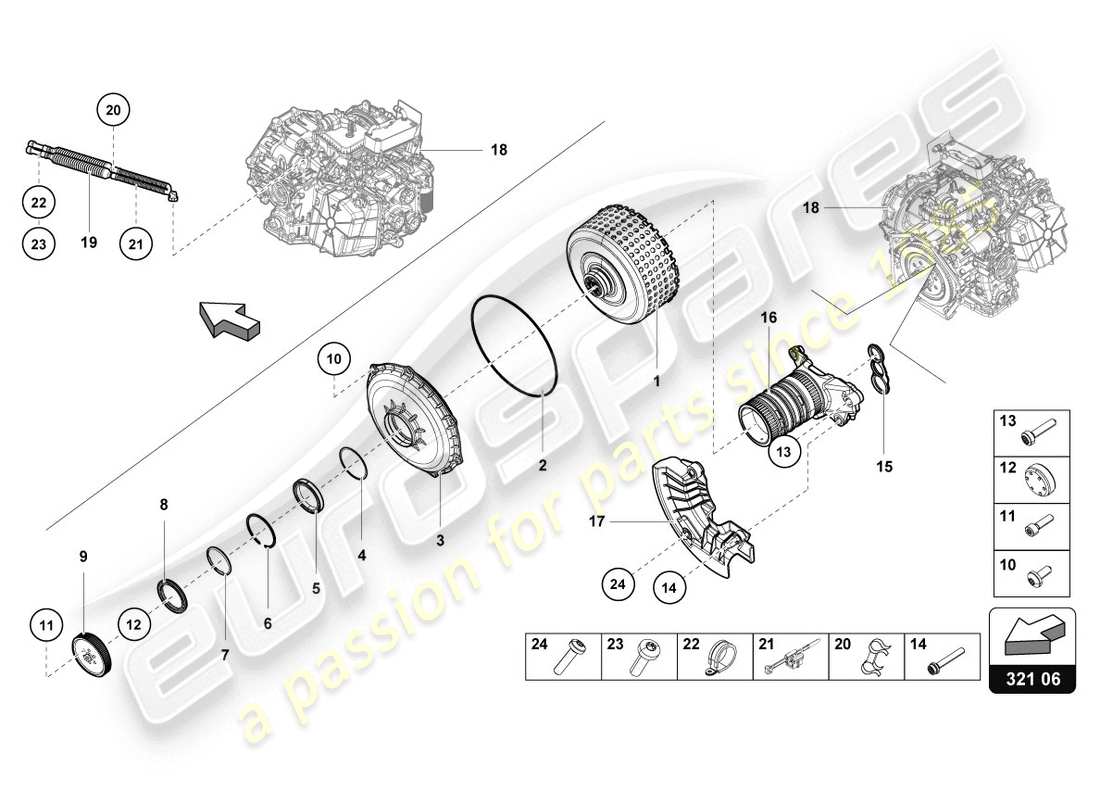

Lamborghini LP610-4 Coupe (2015) MULTI Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 001
                            MPN: 0BZ141029C
                            MULTI-PLATE CLUTCH FOR DUAL CLUTCH GEARBOX
                            from £2,494.50
                            from £2,494.50
                            # 002
                            MPN: 0BZ323525B
                            O-RING
                            from £6.79
                            from £6.79
                            # 003
                            MPN: 0BZ301205C
                            COVER
                            from £125.37
                            from £125.37
                            # 004
                            MPN: WHT000375
                            THRUST WASHER
                            72 X 72 X 0,5
                            from £3.38
                            from £3.38
                            # 005
                            MPN: 0B5323263G
                            GROOVED BALL BEARING
                            from £38.43
                            from £38.43
                            # 006
                            MPN: 0B5323157B
                            SECURING RING
                            72X1,5
                            from £1.85
                            from £1.85
                            # 007
                            MPN: 0B5323369D
                            SECURING RING
                            55X1,5
                            from £1.85
                            from £1.85
                            # 008
                            MPN: 0B5311113F
                            SHAFT OIL SEAL
                            from £10.94
                            from £10.94
                            # 009
                            MPN: 0BZ141192J
                            FOLLOWER
                            from £1,137.01
                            from £1,137.01
                            # 010
                            MPN: N91096701
                            OVAL HEXAGON SOCKET HEAD BOLT
                            M6X16
                            from £1.05
                            from £1.05
                            # 011
                            MPN: WHT003121
                            SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD
                            M6X20
                            from £1.64
                            from £1.64
                            # 012
                            MPN: 0BZ141059
                            SEAL
                            from £6.40
                            from £6.40
                            # 013
                            MPN: N10744301
                            FLAT HEAD MULTI-POINT SOCKET BOLT
                            from £2.13
                            from £2.13
                            # 014
                            MPN: N91187502
                            SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
                            M8X50
                            from £1.28
                            from £1.28
                            # 015
                            MPN: 0BZ301580
                            SEAL
                            from £17.82
                            from £17.82
                            # 016
                            MPN: 0BZ141041C
                            CLUTCH CARRIER
                            from £593.15
                            from £593.15
                            # 017
                            MPN: 0BZ301325A
                            COVER
                            from £27.33
                            from £27.33
                            # 018
                            -
                            AUTOMATIC GEARBOX
                            # 019
                            MPN: 0BZ301469A
                            breather line
                            from £8.99
                            from £8.99
                            # 020
                            MPN: N10315001
                            BRACKET FOR SUCTION HOSE
                            from £1.21
                            from £1.21
                            # 021
                            MPN: WHT001999
                            CABLE TIE WITH TERMINAL SOCKET
                            4,6X200 3,0-6,0MM OUTER
                            from £1.56
                            from £1.56
                            # 022
                            MPN: N91123701
                            CLAMP
                            1-40X15
                            from £2.90
                            from £2.90
                            # 023
                            MPN: N91069601
                            HEXAGON SOCKET FLAT HEAD BOLT
                            M6X22
                            from £0.54
                            from £0.54
                            # 024
                            MPN: N10413409
                            HEXALOBULAR FLANGE SCREW
                            M6X25
                            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
