lamborghini lp610-4 coupe (2015) rear axle parts diagram

505.01.00 - rear axle

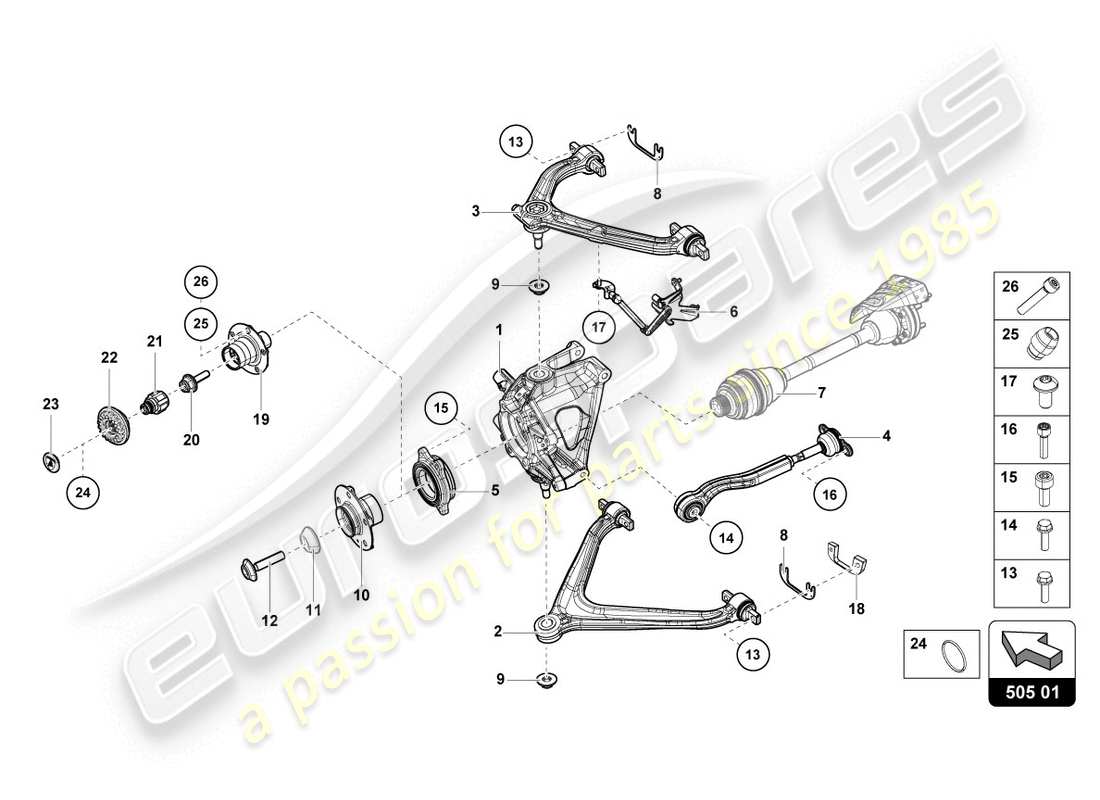

Lamborghini LP610-4 Coupe (2015) REAR AXLE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Price
            # 001
            MPN: 4T0505433E
            WHEEL BEARING HOUSING
            LEFT REAR
            from £477.93
            from £477.93
            # 001
            MPN: 4T0505434E
            WHEEL BEARING HOUSING
            RIGHT REAR
            from £868.97
            from £868.97
            # 002
            MPN: 4T0505311A
            WISHBONE
            CONTACT YOUR AREA MANAGER-LEFT LOWER
            from £386.50
            from £386.50
            # 002
            MPN: 4T0505312A
            WISHBONE
            CONTACT YOUR AREA MANAGER-RIGHT LOWER
            from £386.50
            from £386.50
            # 003
            MPN: 4T0505323
            WISHBONE
            CONTACT YOUR AREA MANAGER-LEFT UPPER
            from £369.20
            from £369.20
            # 003
            MPN: 4T0505324
            WISHBONE
            CONTACT YOUR AREA MANAGER-RIGHT UPPER
            from £732.35
            from £732.35
            # 004
            MPN: 4T0501529A
            TRACK ROD
            Supersession
            Supersession
            # 005
            MPN: 8K0407625N
            DUOBLE BALL BEARING
            Supersession
            Supersession
            # 006
            MPN: 4S0941273D
            LEVEL SENSOR WITH POLES
            LEFT
            from £138.78
            from £138.78
            # 006
            MPN: 4S0941274D
            LEVEL SENSOR WITH POLES
            RIGHT
            from £76.33
            from £76.33
            # 007
            -
            AXLE SHAFT
            # 008
            MPN: 4S0407203C
            BALANCING PLATE
            1,0 MM-1MM
            from £4.88
            from £4.88
            # 008
            MPN: 4S0407203D
            BALANCING PLATE
            2,0 MM-2MM
            from £4.88
            from £4.88
            # 008
            MPN: 4S0407203E
            BALANCING PLATE
            3,0 MM-3MM
            from £4.88
            from £4.88
            # 008
            MPN: 4S0407203G
            BALANCING PLATE
            0,5 MM-0,5MM
            from £4.88
            from £4.88
            # 009
            MPN: WHT004898
            HEXAGON COLLAR NUT SELF-LOCKING
            M14X1,5-M14X1,5
            from £3.77
            from £3.77
            # 011
            -
            LENGTH-MEASURING DEVICE
            # 012
            MPN: 8E0407643A
            SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
            M16X72-M16X1,5X72
            from £4.61
            from £4.61
            # 013
            MPN: N10706902
            HEXAGON FLANGE SCREW
            M10X40-M10X55
            from £2.32
            from £2.32
            # 013
            MPN: WHT007142
            HEXAGON BOLT
            M10X40-M10X40
            from £5.10
            from £5.10
            # 014
            MPN: WHT002059
            BOLT,HEX.HD.WITH SHOUL.(COMBI)
            AM12X1,5X80-M12X1,5X80
            from £3.16
            from £3.16
            # 015
            MPN: WHT000237
            BALL SCREW
            M12X45-M12X1,5X45
            from £3.93
            from £3.93
            # 016
            MPN: N10660901
            SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
            M10X40-M10X40
            from £4.28
            from £4.28
            # 017
            MPN: N10405604
            OVAL HEXAGON SOCKET HEAD BOLT
            M6X14-M6X14
            from £0.79
            from £0.79
            # 018
            -
            COMPENSATING PIECE
            # 019
            -
            WHEEL HUB
            # 020
            -
            SHOULDERED BOLT
            # 021
            -
            SUSPENSION BLOCKS
            # 022
            -
            NUT
            # 023
            -
            HUP CAP
            # 024
            MPN: 470698009
            O-RING
            from £5.93
            from £5.93
            # 025
            MPN: 470615315
            FOLLOWER
            from £13.05
            from £13.05
            # 026
            MPN: WHT008292
            SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD
            M6X16
            from £1.21
            from £1.21
