612.01.00 - HYDRAULIC SYSTEM FOR BRAKE SERVO

Lamborghini LP610-4 Coupe (2015) HYDRAULIC SYSTEM FOR BRAKE SERVO Parts Diagram

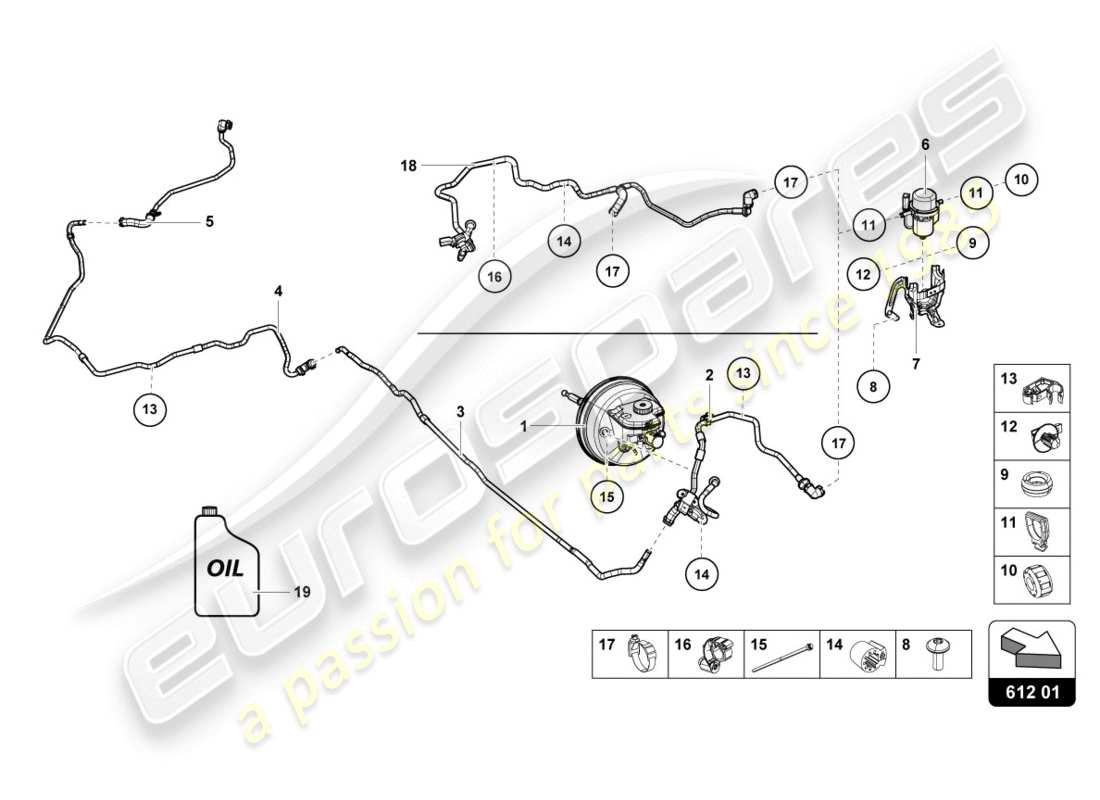

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Price
                    # 001
                    MPN: 4S0612105A
                    Brake Servo
                    from £233.50
                    from £233.50
                    # 002
                    MPN: 4S1611931D
                    VACUUM PIPE
                    LHD (EUROPE, USA spec vehicles)
                    from £52.79
                    from £52.79
                    # 003
                    MPN: 4T0611936D
                    VACUUM HOSE
                    from £25.11
                    from £25.11
                    # 004
                    MPN: 4S0611936K
                    VACUUM HOSE
                    from £176.90
                    from £176.90
                    # 005
                    MPN: 4S0611931C
                    VACUUM PIPE
                    from £19.55
                    from £19.55
                    # 006
                    MPN: 8E0927317K
                    ELECTRIC VACUUM PUMP FOR BRAKE
                    from £155.99
                    from £155.99
                    # 007
                    MPN: 4S0614709C
                    BRACKET
                    from £11.08
                    from £11.08
                    # 008
                    MPN: N10406504
                    OVAL HEXAGON SOCKET HEAD BOLT
                    M6X12
                    from £1.16
                    from £1.16
                    # 009
                    MPN: 8E0614177A
                    STOP BUFFER
                    from £2.27
                    from £2.27
                    # 010
                    MPN: 8E0614177B
                    STOP BUFFER
                    from £2.21
                    from £2.21
                    # 011
                    MPN: 4B0614145
                    CLIP
                    from £0.44
                    from £0.44
                    # 012
                    MPN: N90685101
                    BRACKET FOR CONNECTOR HOUSING
                    A6.5-6,5
                    from £2.73
                    from £2.73
                    # 013
                    MPN: 4S0611797D
                    BRACKET
                    DOUBLE
                    from £4.55
                    from £4.55
                    # 014
                    MPN: N10778401
                    TOOTHED LOCK WASHER
                    B13X23X20
                    from £3.42
                    from £3.42
                    # 015
                    MPN: WHT003382A
                    12-POINT HEAD BOLT
                    M8X205X125
                    from £8.05
                    from £8.05
                    # 016
                    MPN: N0206015
                    CLAMP
                    12X15
                    from £1.51
                    from £1.51
                    # 017
                    MPN: N10255601
                    CLAMP
                    23,5X7X0,6
                    from £1.25
                    from £1.25
                    # 018
                    MPN: 4S2611931D
                    VACUUM PIPE
                    RHD (UK spec vehicles)
                    from £63.97
                    from £63.97
