lamborghini lp610-4 coupe (2015) ceramic brake disc parts diagram

615.01.00 - CERAMIC BRAKE DISC

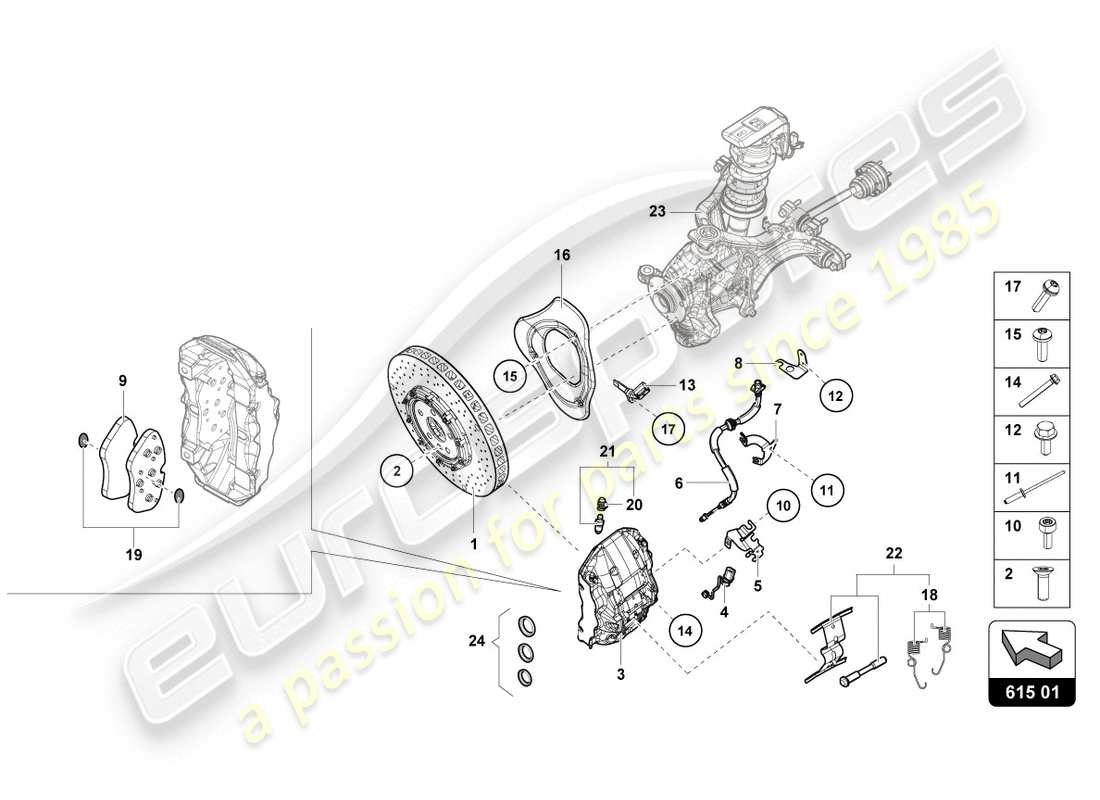

Lamborghini LP610-4 Coupe (2015) CERAMIC BRAKE DISC Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 001
            MPN: 420615301K
            CCM BRAKE DISC
            (Left front)
            from £3,385.94
            from £3,385.94
            BRAKE DISC CERAMIC CCP Genuine Lamborghini - New In stock
            BRAKE DISC CERAMIC CCP Genuine Lamborghini - Used In stock
            # 001
            MPN: 420615302G
            CCM BRAKE DISC
            (Right front)
            from £3,385.94
            from £3,385.94
            FRONT BRAKE DISC CERAMIC CCP Genuine Lamborghini - New In stock
            FRONT BRAKE DISC CERAMIC CCP Genuine Lamborghini - Used In stock
            # 001
            MPN: 4S0615301A
            CERAMIC BRAKE DISC (VENTED)
            380X38MM 5/112 LEFT FRONT
            from £4,530.73
            from £4,530.73
            BRAKE DISC CERAMIC Genuine Lamborghini - New In stock
            # 001
            MPN: 4S0615302A
            CERAMIC BRAKE DISC (VENTED)
            RIGHT FRONT
            from £4,530.73
            from £4,530.73
            BRAKE DISK CERAMIC Genuine Lamborghini - New In stock
            # 002
            MPN: N10648301
            HEX SOCKET COUNTERSUNK BOLT
            M6X16
            from £0.56
            from £0.56
            HEXALOBULAR SOCKETM6X16 Genuine Lamborghini - New In stock
            Hex socket countersunk bolt (N 10648301) Genuine Porsche Part - New In stock
            # 003
            MPN: 4T0615105
            BRAKE CALIPER HOUSING
            LEFT BLACK
            from £1,067.62
            from £1,067.62

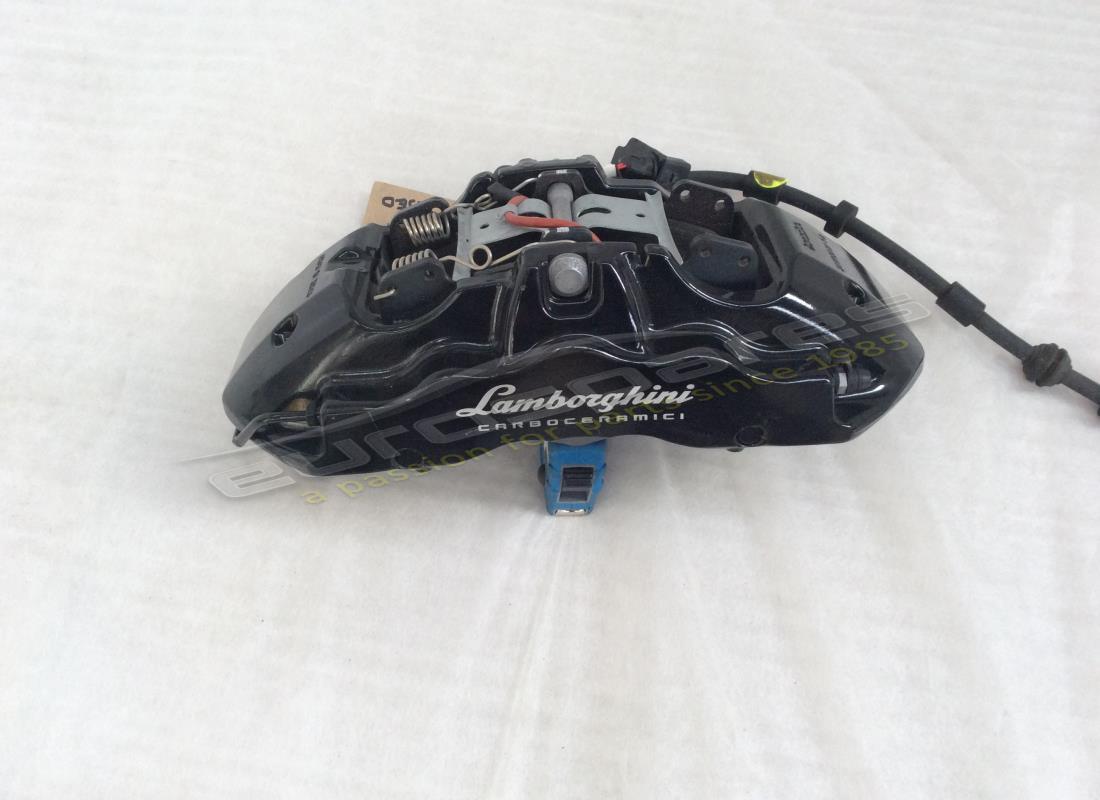

            BRAKE CALIPER CCB BLACK Genuine Lamborghini - New (to order)
            BRAKE CALIPER CCB BLACK Genuine Lamborghini - Used In stock
            # 003
            MPN: 4T0615105AL
            BRAKE CALIPER HOUSING
            UNTIL VIN ZHWEC1ZF5HLA 06214 ORDER ALSO RIGHT 4T0615106AL - FROM VIN LA07429 ALSO ORDER REF. 9-LEFT YELLOW
            from £2,040.56
            from £2,040.56
            BRAKE CALIPER GRAU Genuine Lamborghini - New (to order)
            # 003
            MPN: 4T0615105B
            BRAKE CALIPER HOUSING
            LEFT GREY
            from £1,129.45
            from £1,129.45

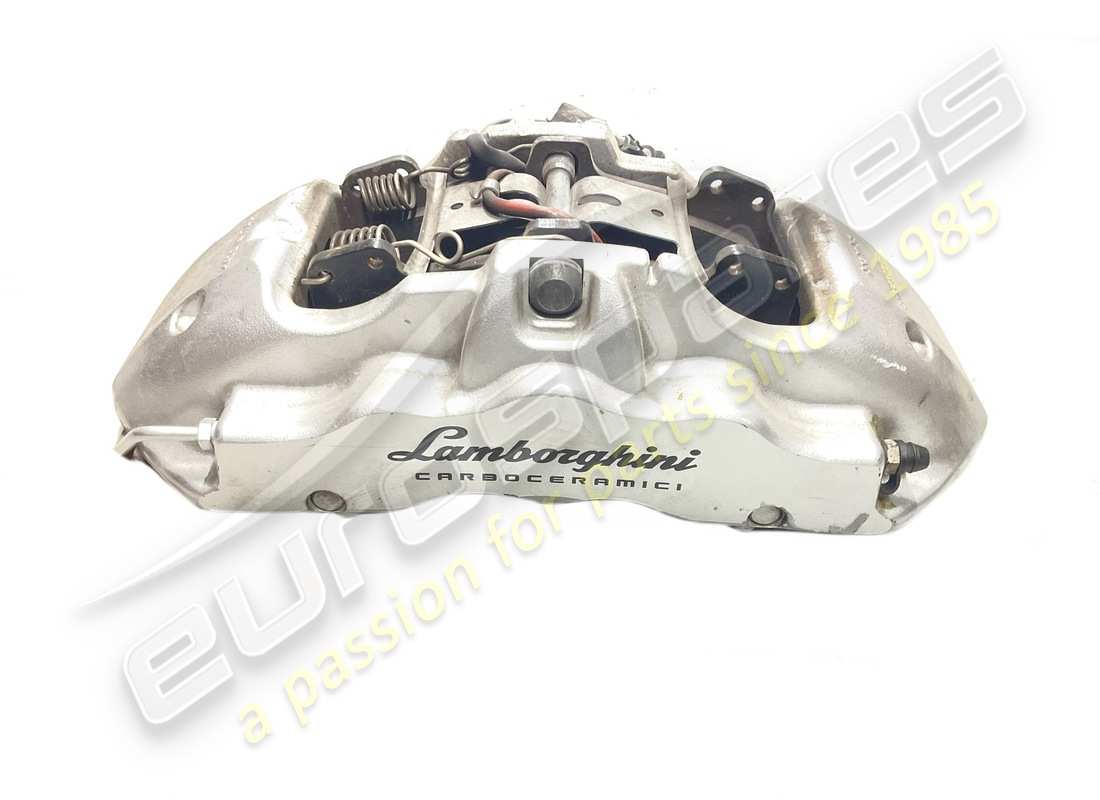

            BRAKE CALIPER CCB GREY Genuine Lamborghini - New (to order)
            BRAKE CALIPER CCB GREY Genuine Lamborghini - Used In stock
            # 003
            MPN: 4T0615105CE
            BRAKE CALIPER HOUSING
            UNTIL VIN ZHWEC1ZF6HLA 07422 ORDER ALSO RIGHT 4T0615106CE-LEFT RED
            from £2,057.85
            from £2,057.85
            BRAKE CALIPER CERAMIC ROT Genuine Lamborghini - New In stock
            # 003
            MPN: 4T0615105DG
            BRAKE CALIPER HOUSING
            UNTIL VIN LA13951 ORDER ALSO RIGHT 4T0615106DG - FROM VIN LA13951 ALSO ORDER REF.9-LEFT 'VERDE MANTIS'
            from £2,204.84
            from £2,204.84
            FRONT CALIPER IN GREEN Genuine Lamborghini - New In stock
            # 003
            MPN: 4T0615105DH
            BRAKE CALIPER HOUSING
            AD PERSONAM-LEFT 'VERDE SCANDAL'
            from £3,778.49
            from £3,778.49
            PCCB FRONT BRAKE CALIPER GREEN ADP Genuine Lamborghini - New (to order)
            # 003
            MPN: 4T0615105DJ
            BRAKE CALIPER HOUSING
            AD PERSONAM-LEFT BLUE
            from £3,138.66
            from £3,138.66
            PCCB FRONT BRAKE CALIPER BLU ADP Genuine Lamborghini - New (to order)
            # 003
            MPN: 4T0615105T
            BRAKE CALIPER HOUSING
            UNTIL VIN ZHWUC1ZF2GLA 03717 ORDER ALSO RIGHT 4T0615106T-LEFT ORANGE
            from £2,049.21
            from £2,049.21
            CCB BRAKE CALIPER, FRONT LH, ORANGE Genuine Lamborghini - New (to order)
            # 003
            MPN: 4T0615106
            BRAKE CALIPER HOUSING
            RIGHT BLACK
            from £1,067.62
            from £1,067.62

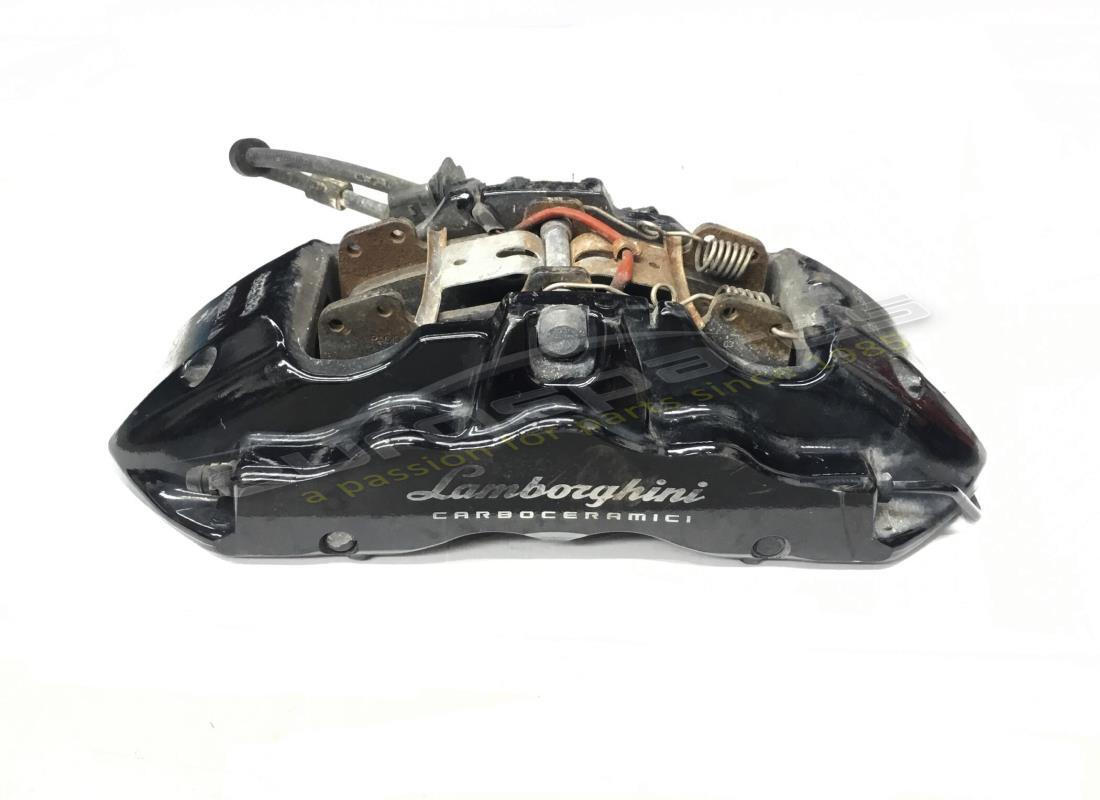

            BRAKE CALIPER CCB BLACK Genuine Lamborghini - New (to order)
            BRAKE CALIPER CCB BLACK Genuine Lamborghini - Used In stock
            # 003
            MPN: 4T0615106AL
            BRAKE CALIPER HOUSING
            UNTIL VIN ZHWEC1ZF5HLA 06214 ORDER ALSO LEFT 4T0615105AL-RIGHT YELLOW
            from £2,040.56
            from £2,040.56
            BRAKE CALIPER KERAMIK Genuine Lamborghini - New (to order)
            # 003
            MPN: 4T0615106B
            BRAKE CALIPER HOUSING
            RIGHT GREY
            from £1,129.45
            from £1,129.45
            BRAKE CALIPER CCB GREY Genuine Lamborghini - New (to order)
            BRAKE CALIPER CCB GREY Genuine Lamborghini - Used In stock
            # 003
            MPN: 4T0615106CE
            BRAKE CALIPER HOUSING
            UNTIL VIN ZHWEC1ZF6HLA 07422 ORDER ALSO LEFT 4T0615105CE-RIGHT RED
            from £2,057.85
            from £2,057.85
            FRONT CALIPER IN RED Genuine Lamborghini - New In stock
            # 003
            MPN: 4T0615106CF
            BRAKE CALIPER HOUSING
            UNTIL VIN ZHWER1ZF9HLA 07459 ORDER ALSO LEFT 4T0615105CF-RIGHT 'VERDE MANTIS'
            from £1,153.22
            from £1,153.22
            FRONT CALIPER IN GREEN Genuine Lamborghini - New In stock
            FRONT CALIPER IN GREEN Genuine Lamborghini - Used In stock
            # 003
            MPN: 4T0615106DH
            BRAKE CALIPER HOUSING
            AD PERSONAM-RIGHT 'VERDE SCANDAL'
            from £3,778.49
            from £3,778.49
            PCCB FRONT BRAKE CALIPER GREEN ADP Genuine Lamborghini - New (to order)
            # 003
            MPN: 4T0615106DJ
            BRAKE CALIPER HOUSING
            AD PERSONAM-RIGHT BLUE
            from £3,138.66
            from £3,138.66
            PCCB FRONT BRAKE CALIPER BLU ADP Genuine Lamborghini - New (to order)
            # 003
            MPN: 4T0615106T
            BRAKE CALIPER HOUSING
            UNTIL VIN ZHWUC1ZF2GLA 03717 ORDER ALSO LEFT 4T0615105T-RIGHT ORANGE
            from £2,049.21
            from £2,049.21
            CCB BRAKE CALIPER, FRONT RH, ORANGE Genuine Lamborghini - New (to order)
            # 004
            MPN: 4S0615437B
            CONTACTS
            FRONT
            from £52.40
            from £52.40
            INDICATOR KERAMIK Genuine Lamborghini - New In stock
            # 005
            MPN: 4S0611845H
            BRACKET
            LEFT
            from £7.35
            from £7.35
            BRACKET,BRAKE HOSEMSS Genuine Lamborghini - New (to order)
            # 005
            MPN: 4S0611846H
            BRACKET
            RIGHT
            from £6.98
            from £6.98
            BRACKET,BRAKE HOSEMSS Genuine Lamborghini - New (to order)
            BRACKET,BRAKE HOSEMSS Genuine Lamborghini - New (other) In stock
            BRACKET
            # 006
            MPN: 4S0611707F
            BRAKE HOSE
            FRONT
            from £35.85
            from £35.85
            BRAKE HOSE MSS Genuine Lamborghini - New In stock
            BRAKE HOSE MSS Genuine Lamborghini - Used In stock
            BRAKE HOSE MSS Genuine Lamborghini - Used In stock
            # 007
            MPN: 4S0611841F
            BRACKET
            LEFT FRONT
            from £10.73
            from £10.73
            BRACKET Genuine Lamborghini - New (to order)
            # 008
            MPN: 4S0611847E
            RETAINER FOR BRAKE HOSE
            LEFT FRONT
            from £2.85
            from £2.85
            BRACKET BRAKE HOSE FWD LH Genuine Lamborghini - New (to order)
            # 008
            MPN: 4S0611848E
            RETAINER FOR BRAKE HOSE
            RIGHT FRONT
            from £28.49
            from £28.49
            BRACKET BRAKE HOSE FWD RH Genuine Lamborghini - New (to order)
            # 009
            MPN: 4E0698151G
            1 SET OF BRAKE PADS FOR DISK BRAKE
            380X38MM FRONT
            Supersession
            Supersession
            Genuine Lamborghini (no longer available to order)
            # 010
            MPN: N10572403
            SOCKET HEAD BOLT WITH MULTI- POINT INNER DRIVE, SELF-LOCK.
            M8X16
            from £1.82
            from £1.82
            TRIPLE SQUARE BOLTM8X16 Genuine Lamborghini - New In stock
            Cylinder head screw with torx (N 10572403) Genuine Porsche Part - New (to order)
            # 011
            MPN: N0902619
            HEXAGON HEAD BOLT (COMBI)
            M6X20
            from £1.31
            from £1.31
            HEXAGON HEAD BOLT WITH WASHER M6X20-S1-N Genuine Lamborghini - New In stock
            bolt, hex. hd. (combi.) (N 0902619) Genuine Porsche Part - New (to order)
            # 012
            MPN: N90692402
            POP RIVET
            4,8X10
            from £1.16
            from £1.16
            BLIND RIVET 4.8X11.3 Genuine Lamborghini - New (to order)
            # 013
            MPN: 4E0927803F
            SPEED SENSOR
            RIGHT
            from £46.41
            from £46.41
            This part replaces part number 4E0927803D which we have in stock - and 7 more. Click to view details
            SPEED SENSOR RIGHT Genuine Lamborghini - New (to order)
            SPEED SENSOR RIGHT Genuine Lamborghini - Used In stock
            speed sensor (4E0927803F) Genuine Porsche Part - New (to order)
            # 013
            MPN: 4E0927804F
            SPEED SENSOR
            LEFT
            from £46.41
            from £46.41
            This part replaces part number 4E0927804D which we have in stock - and 6 more. Click to view details
            SPEED SENSOR LEFT Genuine Lamborghini - New (to order)
            SPEED SENSOR LEFT Genuine Lamborghini - Used In stock
            speed sensor (4E0927804F) Genuine Porsche Part - New (to order)
            # 014
            MPN: WHT001330A
            SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD
            M12X1,5X77X30
            from £8.39
            from £8.39
            This part replaces part number WHT001330
            HEXAGON SOCKET M12X1.5X77X30 Genuine Lamborghini - New (to order)
            # 015
            MPN: N10406504
            OVAL HEXAGON SOCKET HEAD BOLT
            M6X12
            from £1.13
            from £1.13
            HEXALOBULAR SOCKETM6X12 Genuine Lamborghini - New In stock
            Oval hexagon socket head bolt (N 10406504) Genuine Porsche Part - New (to order)
            # 016
            MPN: 4S0615311
            COVER PLATE FOR BRAKE DISC
            LEFT
            from £15.75
            from £15.75
            COVER MSS Genuine Lamborghini - New In stock
            COVER MSS Genuine Lamborghini - Used In stock
            # 016
            MPN: 4S0615312
            COVER PLATE FOR BRAKE DISC
            RIGHT
            from £15.75
            from £15.75
            COVER MSS Genuine Lamborghini - New In stock
            COVER MSS Genuine Lamborghini - Used In stock
            # 017
            MPN: N01474011
            SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD
            M6X16
            from £1.26
            from £1.26
            PAN HEAD BOLT M6X16 Genuine Lamborghini - New In stock
            bolt, with hex. socket - hd. - M 6 X 16 - F 94-MS400 096>> - F 94-MS430 324>> (N 01474011) Genuine Porsche Part - New In stock
            # 018
            MPN: 0R1400210
            1 SET SPRINGS
            4 SPRINGS FOR KIT
            from £23.84
            from £23.84
            CALIPER SPRING SET Genuine Lamborghini - New (to order)
            # 019
            MPN: 4T0698010
            1 SET DOUBLE-SIDED ADHESIVE TAPE
            from £70.12
            from £70.12
            repair kit Genuine Lamborghini - New (to order)
            # 021
            MPN: 8A0615273
            BREATHER VALVE
            from £11.68
            from £11.68
            BLEEDER SCREW Genuine Lamborghini - New (to order)
            bleeder valve (8A0615273) Genuine Porsche Part - New (to order)
            # 022
            MPN: 4S0698269A
            1 SET ATTACHMENT PARTS
            from £65.89
            from £65.89
            1 SET OF SECURING PARTS Genuine Lamborghini - New (to order)
            # 023
            -
            AXLE SHAFT
            # 024
            MPN: 4E0698507
            SET OF GASKETS FOR BRAKE CALIPER HOUSING
            from £50.51
            from £50.51
            repair kit Genuine Lamborghini - New In stock
