lamborghini lp610-4 coupe (2015) chassis parts diagram

805.01.00 - CHASSIS

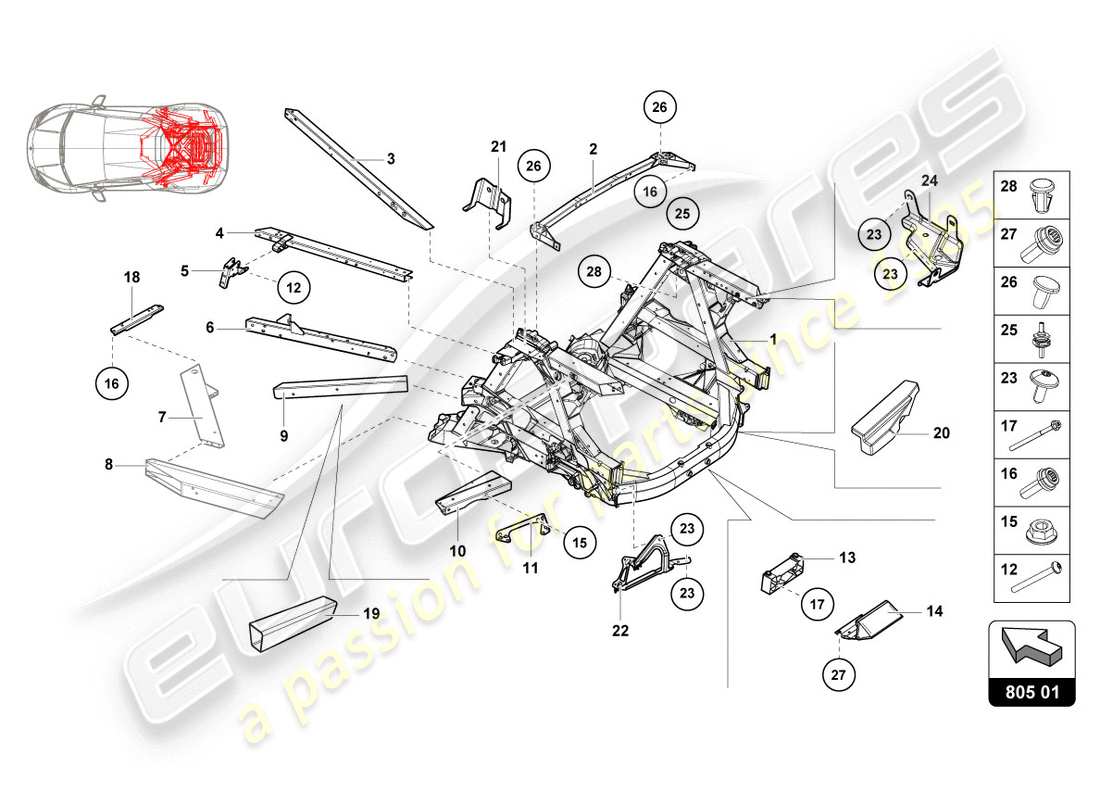

Lamborghini LP610-4 Coupe (2015) CHASSIS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      MPN: 4T8813031K
      Frame
      CONTACT YOUR AREA MANAGER-REAR ENGINE BAY
      from £9,500.00
      from £9,500.00
      # 002
      MPN: 4S0813441F
      REINFORCEMENT
      from £115.43
      from £115.43
      # 003
      MPN: 4T8817361C
      SUPPORT
      CONTACT YOUR AREA MANAGER-LEFT REAR
      from £147.42
      from £147.42
      # 003
      MPN: 4T8817362C
      SUPPORT
      CONTACT YOUR AREA MANAGER-RIGHT REAR
      from £147.42
      from £147.42
      # 004
      MPN: 4T8810243D
      SUPPORT
      CONTACT YOUR AREA MANAGER-LEFT UPPER
      from £204.75
      from £204.75
      # 004
      MPN: 4T8810244E
      SUPPORT
      CONTACT YOUR AREA MANAGER-RIGHT UPPER
      from £8.56
      from £8.56
      # 005
      MPN: 4T0813499B
      ADAPTER
      LEFT
      from £7.45
      from £7.45
      # 005
      MPN: 4T0813500B
      ADAPTER
      RIGHT
      from £5.57
      from £5.57
      # 006
      MPN: 4T8814201E
      SUPPORT
      CONTACT YOUR AREA MANAGER-LEFT LOWER
      from £74.55
      from £74.55
      # 006
      MPN: 4T8814202D
      SUPPORT
      CONTACT YOUR AREA MANAGER-RIGHT LOWER
      from £74.55
      from £74.55
      # 007
      -
      CROSS MEMBER
      CANNOT BE SOLD SEPARATELY
      # 008
      -
      CROSS MEMBER
      CANNOT BE SOLD SEPARATELY
      # 009
      MPN: 4S0813253C
      REINFORCEMENT
      CONTACT YOUR AREA MANAGER-LEFT
      from £113.27
      from £113.27
      # 009
      MPN: 4S0813254B
      REINFORCEMENT
      CONTACT YOUR AREA MANAGER-RIGHT
      from £48.16
      from £48.16
      # 010
      MPN: 4T0810251B
      CARRIER
      LEFT
      from £41.47
      from £41.47
      # 010
      MPN: 4T0810252B
      CARRIER
      RIGHT
      from £39.73
      from £39.73
      # 011
      MPN: 4T0810439B
      BRACKET
      LEFT
      from £13.54
      from £13.54
      # 011
      MPN: 4T0810440B
      BRACKET
      RIGHT
      from £7.45
      from £7.45
      # 012
      MPN: N91097301
      HEXAGON SOCKET FLAT HEAD BOLT
      M6X45
      from £1.15
      from £1.15
      # 013
      MPN: 4S0813857B
      REINFORCEMENT
      CONTACT YOUR AREA MANAGER
      from £57.75
      from £57.75
      # 014
      MPN: 4T0813483B
      SUPPORT
      CONTACT YOUR AREA MANAGER
      from £74.42
      from £74.42
      # 015
      MPN: N01508210
      HEXAGON COLLAR NUT
      M6
      from £0.47
      from £0.47
      # 016
      MPN: N91128001
      SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
      M8X25
      from £0.82
      from £0.82
      # 017
      MPN: N10683301
      HEXAGON COLLARED BOLT WITH MULTI-POINT SOCKET HEAD (DUO)
      M10X115
      from £3.90
      from £3.90
      # 018
      MPN: 4S0813239C
      BRACE
      CONTACT YOUR AREA MANAGER
      from £24.54
      from £24.54
      # 019
      MPN: 4S0813945K
      SLEEVE
      TO BE USED FOR REF. 9 - CONTACT YOUR AREA MANAGER-LEFT
      from £166.02
      from £166.02
      # 020
      -
      BRACKET
      ONLY FOR 2WD VERSION
      # 021
      -
      BRACKET
      ONLY FOR SPYDER VERSION
      # 022
      -
      ARM
      NO PART - SEE TABLE 807.04
      # 023
      -
      OVAL HEXAGON SOCKET HEAD BOLT
      NO PART - SEE TABLE 807.04
      # 024
      -
      BRACKET
      ONLY FOR PERFORMANTE MODEL
      # 025
      -
      ADJUSTING PIN
      FOR SPYDER MODEL
      # 026
      -
      CAP CLOSURE
      SEE ILLUSTRATION : 827.02 REF 11
      # 027
      MPN: N10664801
      SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD
      M8X20
      from £0.89
      from £0.89
      # 028
      MPN: 8D5827499
      STOP
      from £0.97
      from £0.97
