805.02.00 - CHASSIS

Lamborghini LP610-4 Coupe (2015) CHASSIS Parts Diagram

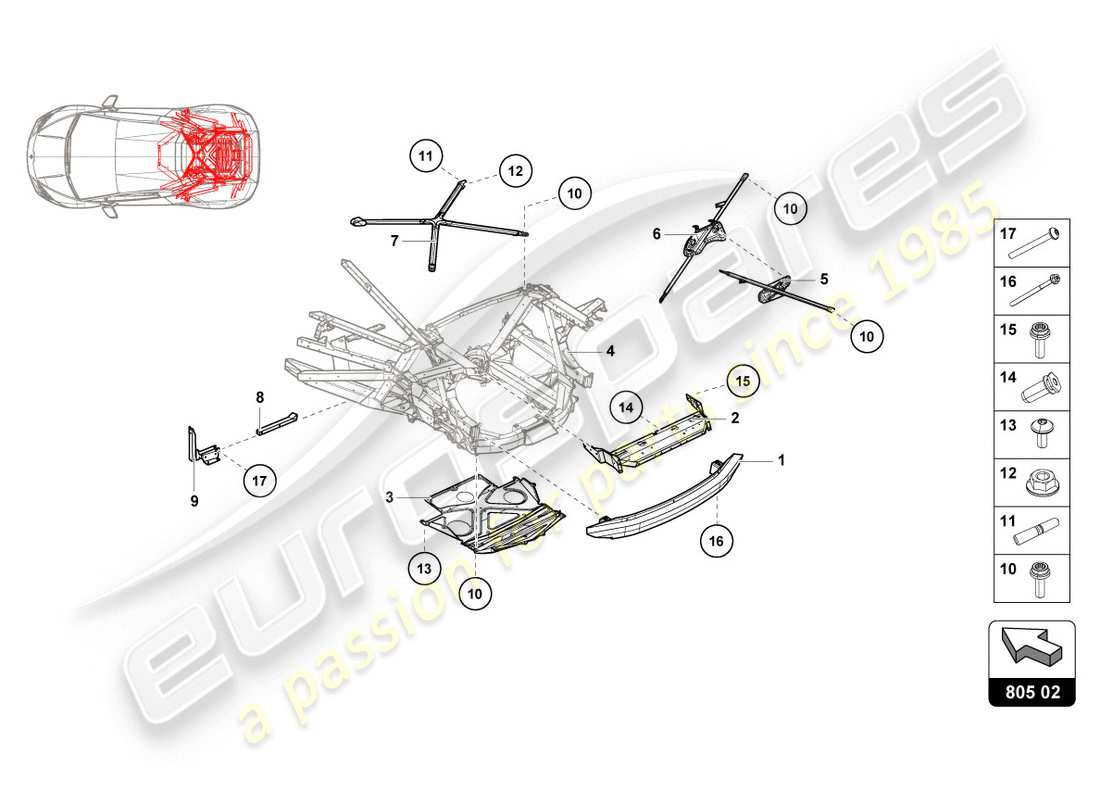

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 4T0807313B
    CROSS MEMBER
    CONTACT YOUR AREA MANAGER-REAR
    from £719.82
    from £719.82
    # 002
    MPN: 4T8813335B
    REAR CARRIER
    CONTACT YOUR AREA MANAGER
    from £1,464.75
    from £1,464.75
    # 003
    MPN: 4S0825203D
    UNDERBODY TRIM
    CONTACT YOUR AREA MANAGER
    from £126.02
    from £126.02
    # 004
    -
    Frame
    CONTACT YOUR AREA MANAGER - SEE ILLUSTRATION : 805.01-REAR ENGINE BAY
    # 005
    MPN: 4S0813905B
    BRACE
    CONTACT YOUR AREA MANAGER
    from £61.11
    from £61.11
    # 006
    MPN: 4S0813906B
    BRACE
    CONTACT YOUR AREA MANAGER
    from £68.25
    from £68.25
    # 007
    MPN: 4T8814587C
    SUPPORT ELEMENT
    CONTACT YOUR AREA MANAGER
    from £284.48
    from £284.48
    # 008
    MPN: 4T0801781B
    SUPPORT
    CONTACT YOUR AREA MANAGER-LEFT
    from £49.54
    from £49.54
    # 008
    MPN: 4T0801782B
    SUPPORT
    CONTACT YOUR AREA MANAGER-RIGHT
    from £49.54
    from £49.54
    # 009
    MPN: 4T0814541B
    BRACKET
    CONTACT YOUR AREA MANAGER-LEFT
    from £162.99
    from £162.99
    # 009
    MPN: 4T0814542B
    BRACKET
    CONTACT YOUR AREA MANAGER-RIGHT
    from £90.79
    from £90.79
    # 010
    MPN: N91128001
    SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
    M8X25
    from £0.82
    from £0.82
    # 011
    MPN: N91145002
    THREADED PIN
    M8X42
    from £2.21
    from £2.21
    # 012
    MPN: N90798808
    HEXAGON COLLAR NUT
    M8
    from £1.41
    from £1.41
    # 013
    MPN: N91042302
    OVAL HEXAGON SOCKET HEAD BOLT
    M6X16
    from £0.63
    from £0.63
    # 014
    MPN: 8H0806221
    COMPENSATING PIECE
    from £5.15
    from £5.15
    # 015
    MPN: N91176701
    INNER MULTIPOINT FITTING SCREW
    M8X8.5X22
    from £1.60
    from £1.60
    # 016
    MPN: N10714501
    SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD
    M8X90X80
    from £1.28
    from £1.28
    # 017
    MPN: N91097301
    HEXAGON SOCKET FLAT HEAD BOLT
    M6X45
    from £1.15
    from £1.15
    # 018
    -
    RETAINING BRACKET
    SEE ILLUSTRATION : 505.01 REF 6
    # 019
    MPN: N10405604
    OVAL HEXAGON SOCKET HEAD BOLT
    M6X14
    from £0.72
    from £0.72
