lamborghini lp610-4 coupe (2015) bumper, complete parts diagram

807.01.00 - BUMPER, COMPLETE

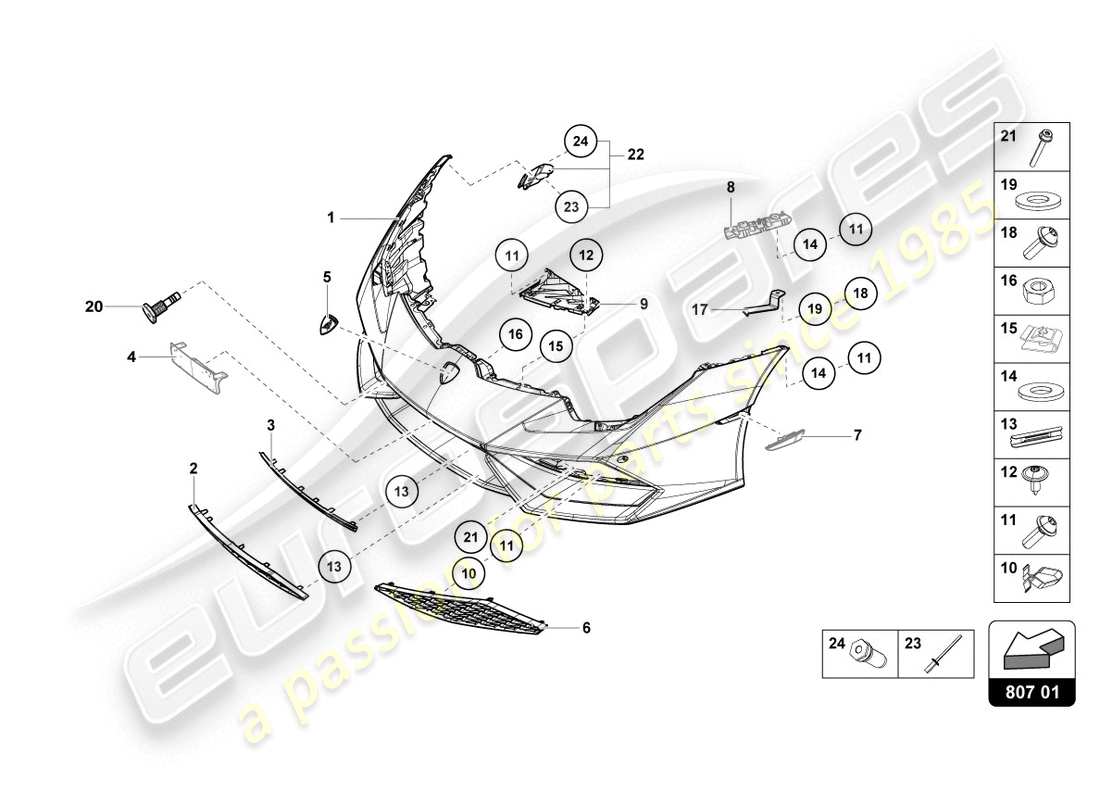

Lamborghini LP610-4 Coupe (2015) BUMPER, COMPLETE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Price
          # 001
          MPN: 4T0807103B
          BUMPER
          CONTACT YOUR AREA MANAGER-FRONT
          from £2,985.84
          from £2,985.84
          # 001
          MPN: 4T0807103C
          BUMPER
          PARCKING SENSOR - INCLUDES BRACKET FOR PARKING SENSORS - CONTACT YOUR AREA MANAGER-FRONT
          from £3,142.99
          from £3,142.99
          # 001
          MPN: 4T0807103D
          BUMPER
          CHINA MARKET - CONTACT YOUR AREA MANAGER-FRONT (EUROPE spec vehicles)
          from £3,142.99
          from £3,142.99
          # 001
          MPN: 4T0807103E
          BUMPER
          CHINA MARKET - PARCKING SENSOR - INCLUDES BRACKET FOR PARKING SENSORS - CONTACT YOUR AREA MANAGER-FRONT (EUROPE spec vehicles)
          from £3,142.99
          from £3,142.99
          # 002
          MPN: 4T0807639
          GRILLE
          center
          from £152.61
          from £152.61
          # 002
          MPN: 4T0807639A
          GRILLE
          STYLE PACKAGE-CENTER
          from £272.37
          from £272.37
          # 003
          MPN: 4T0807061
          GRILLE
          UPPER CENTRE
          from £121.49
          from £121.49
          # 003
          MPN: 4T0807061A
          GRILLE
          OPT-SHINY BLACK-UPPER CENTRE
          from £182.44
          from £182.44
          # 004
          -
          LICENCE PLATE HOLDER
          SEE ILLUSTRATION : 807.03
          # 005
          MPN: 470853745B
          Lamborghini EMBLEM
          FRONT
          Supersession
          Supersession
          # 006
          MPN: 4T0807681
          GRILLE
          LEFT FRONT
          from £301.76
          from £301.76
          # 006
          MPN: 4T0807681A
          GRILLE
          STYLE PACKAGE-LEFT FRONT
          from £313.86
          from £313.86
          # 006
          MPN: 4T0807682
          GRILLE
          RIGHT FRONT
          from £417.62
          from £417.62
          # 006
          MPN: 4T0807682A
          GRILLE
          STYLE PACKAGE-RIGHT FRONT
          from £313.86
          from £313.86
          # 007
          -
          TURN SIGNAL INDICATOR
          SEE ILLUSTRATION : 941.01-LEFT
          # 007
          -
          TURN SIGNAL INDICATOR
          SEE ILLUSTRATION : 941.01-RIGHT
          # 008
          -
          BRACKET
          SEE ILUSTRATION : 821.01-RIGHT
          # 009
          MPN: 4T0807129A
          BRACKET
          CENTRE LEFT
          from £26.42
          from £26.42
          This part replaces part number 4T0807129
          # 009
          MPN: 4T0807130A
          BRACKET
          CENTRE RIGHT
          from £26.42
          from £26.42
          This part replaces part number 4T0807130
          # 010
          MPN: 1J0858137B
          CLIP
          from £0.57
          from £0.57
          # 011
          MPN: N91042302
          OVAL HEXAGON SOCKET HEAD BOLT
          M6X16
          from £0.63
          from £0.63
          # 012
          MPN: 420807739
          SHOULDERED BOLT
          from £4.55
          from £4.55
          # 013
          MPN: 420807887
          Retaining Clip
          from £1.98
          from £1.98
          # 014
          MPN: N01166623
          WASHER
          6,4X18X1,6
          from £0.86
          from £0.86
          This part replaces part number 008400510 - and 2 more. Click to view details
          # 015
          MPN: N90688703
          SPEED NUT
          M6X24X16
          from £0.80
          from £0.80
          # 016
          MPN: N0110027
          HEXAGON NUT
          M3
          from £0.54
          from £0.54
          This part replaces part number 008200301
          # 017
          MPN: 4T0805331
          ARM
          LEFT
          from £79.46
          from £79.46
          # 017
          MPN: 4T0805332
          ARM
          RIGHT
          from £92.95
          from £92.95
          # 018
          MPN: N91032702
          ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD
          M6X20
          from £0.98
          from £0.98
          # 019
          MPN: N91187601
          WASHER
          6,4X16X0,8
          from £3.72
          from £3.72
          # 020
          MPN: 4T0807179
          CAP CLOSURE
          UNTIL VIN ZHWEC1ZF2FLA 03607
          from £18.25
          from £18.25
          # 021
          MPN: N91191201
          SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)
          M6X50
          from £2.64
          from £2.64
          # 022
          MPN: 4T0898054
          1 SET ATTACHMENT PARTS
          from £175.09
          from £175.09
          # 023
          -
          RIVET
          INCLUDED IN REF. 22
          # 024
          -
          BOLT
          INCLUDED IN REF.22
