837.01.00 - Doors

Lamborghini LP610-4 Coupe (2015) DOORS Parts Diagram

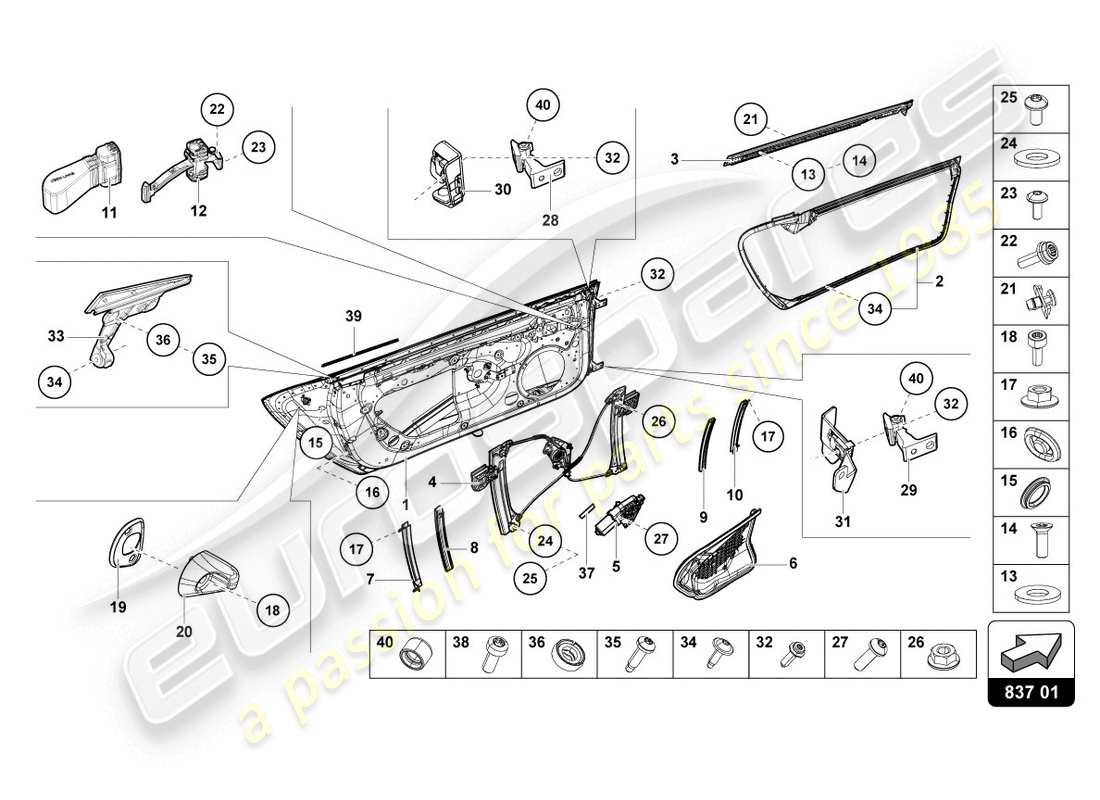

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Price
            # 001
            MPN: 4T8831051D
            DOOR
            CONTACT YOUR AREA MANAGER-LEFT
            from £4,194.75
            from £4,194.75
            # 001
            MPN: 4T8831052D
            DOOR
            CONTACT YOUR AREA MANAGER-RIGHT
            from £17,301.50
            from £17,301.50
            # 002
            MPN: 4T0837911B
            DOOR SEAL
            LEFT OUTER
            from £109.62
            from £109.62
            # 002
            MPN: 4T0837912B
            DOOR SEAL
            RIGHT OUTER
            from £109.62
            from £109.62
            # 003
            MPN: 4T0837477B
            WINDOW APERTURE SEAL
            LEFT
            from £96.30
            from £96.30
            # 003
            MPN: 4T0837478B
            WINDOW APERTURE SEAL
            RIGHT
            from £96.30
            from £96.30
            # 004
            MPN: 4T0837397C
            WINDOW REGULATOR WITHOUT MOTOR
            UNTIL VIN HLA06645 ORDER ALSO RIGHT PART-LEFT
            from £347.15
            from £347.15
            # 004
            MPN: 4T0837398C
            WINDOW REGULATOR WITHOUT MOTOR
            UNTIL VIN HLA06645 ORDER ALSO LEFT PART-RIGHT
            from £347.15
            from £347.15
            # 005
            MPN: 8K0959801B
            WINDOW REGULATOR MOTOR
            LEFT
            from £68.72
            from £68.72
            # 005
            MPN: 8K0959802B
            WINDOW REGULATOR MOTOR
            RIGHT
            from £76.80
            from £76.80
            # 006
            MPN: 4T0837917
            DOOR SEAL
            LEFT
            from £11.68
            from £11.68
            # 006
            MPN: 4T0837918
            DOOR SEAL
            RIGHT
            from £11.68
            from £11.68
            # 007
            MPN: 4T0837405
            WINDOW GUIDE
            LEFT
            from £25.35
            from £25.35
            # 007
            MPN: 4T0837406
            WINDOW GUIDE
            RIGHT
            from £25.35
            from £25.35
            # 008
            MPN: 4T0837933B
            SEAL
            LEFT A. RIGHT REAR
            from £27.55
            from £27.55
            # 009
            MPN: 4T0837349B
            SEAL
            LEFT A. RIGHT FRONT
            from £15.44
            from £15.44
            # 010
            MPN: 4T0831619
            WINDOW GUIDE
            WARNING UP TO VIN CLA00425 USE ALSO RIF. 2-LEFT
            from £25.35
            from £25.35
            # 010
            MPN: 4T0831620
            WINDOW GUIDE
            WARNING UP TO VIN CLA00425 USE ALSO RIF. 2-RIGHT
            from £25.35
            from £25.35
            # 011
            MPN: 8V0837267
            COVER
            LEFT A. RIGHT FRONT
            from £1.60
            from £1.60
            # 012
            MPN: 8S0837249
            DOOR CATCH
            LEFT A. RIGHT FRONT
            from £11.53
            from £11.53
            # 013
            MPN: WHT000778
            WASHER
            30X36X1
            from £0.51
            from £0.51
            # 014
            MPN: N10459201
            HEXAGON SOCKET HEAD BOLT
            M5X12
            from £0.47
            from £0.47
            # 015
            MPN: 4H0839111
            COVER CAP
            16,2
            from £0.53
            from £0.53
            # 016
            MPN: 1Z0971904A
            BUNGS
            from £0.53
            from £0.53
            # 017
            MPN: N90663602
            HEX. NUT WITH WASHER
            M5
            from £0.53
            from £0.53
            This part replaces part number N90663601
            # 018
            MPN: N91203201
            FLAT HEAD MULTI-POINT SOCKET BOLT
            M8X22
            from £1.47
            from £1.47
            # 019
            MPN: 4T0831431
            DOOR SEAL
            LEFT
            from £3.69
            from £3.69
            # 019
            MPN: 4T0831432
            DOOR SEAL
            RIGHT
            from £3.69
            from £3.69
            # 020
            MPN: 4T0831121A
            REINFORCEMENT FOR DOOR HANDLE
            LEFT
            from £18.65
            from £18.65
            # 020
            MPN: 4T0831122A
            REINFORCEMENT FOR DOOR HANDLE
            RIGHT
            from £18.65
            from £18.65
            # 021
            MPN: 8L3837199B
            CLIP
            from £0.62
            from £0.62
            # 022
            MPN: N91084201
            SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)
            M8X25
            from £1.84
            from £1.84
            # 023
            MPN: WHT003237
            HEXAGON SOCKET FLAT HEAD BOLT
            M6X12
            from £0.72
            from £0.72
            # 024
            MPN: N01166623
            WASHER
            6,4X18X1,6
            from £0.86
            from £0.86
            This part replaces part number 008400510 - and 2 more. Click to view details
            # 025
            MPN: N10124308
            OVAL HEXAGON SOCKET HEAD BOLT
            M6X20
            from £1.16
            from £1.16
            This part replaces part number N10124303
            # 026
            MPN: WHT000127
            HEXAGON NUT
            M8
            from £10.59
            from £10.59
            # 027
            MPN: 8Z0837691C
            HEXAGON SOCKET HEAD PANEL BOLT
            5X22
            from £0.90
            from £0.90
            # 028
            MPN: 4G0831401A
            DOOR HINGE
            LEFT UPPER
            from £15.20
            from £15.20
            # 028
            MPN: 4G0831402A
            DOOR HINGE
            RIGHT UPPER
            from £27.63
            from £27.63
            # 029
            MPN: 4G0831401B
            DOOR HINGE
            LEFT LOWER
            from £28.06
            from £28.06
            # 029
            MPN: 4G0831402B
            DOOR HINGE
            RIGHT LOWER
            from £15.43
            from £15.43
            # 030
            MPN: 4T0831329B
            HINGE REINFORCEMENT
            LEFT UPPER
            from £49.03
            from £49.03
            # 030
            MPN: 4T0831330B
            HINGE REINFORCEMENT
            RIGHT UPPER
            from £49.03
            from £49.03
            # 031
            MPN: 4T0831333B
            HINGE REINFORCEMENT
            LEFT LOWER
            from £49.03
            from £49.03
            # 031
            MPN: 4T0831334B
            HINGE REINFORCEMENT
            RIGHT LOWER
            from £49.03
            from £49.03
            # 032
            MPN: 8H0831701
            HEX SOCKET HEAD COLLARED BOLT
            M10X34
            from £1.21
            from £1.21
            # 033
            -
            TRIM FOR DOOR WINDOW FRAME
            ONLY FOR SPYDER VERSION-LEFT
            # 033
            -
            TRIM FOR DOOR WINDOW FRAME
            ONLY FOR SPYDER VERSION-RIGHT
            # 034
            -
            HEXAGON COLLARED BOLT WITH HEXAGON SOCKET HEAD (DUO)
            ONLY FOR SPYDER VERSION-M5X30
            # 035
            -
            ROUND HD. SCREW
            ONLY FOR SPYDER VERSION-M5X18
            # 036
            -
            BUSH
            ONLY FOR SPYDER VERSION
            # 037
            MPN: 433857445C
            INSULATION STRIP
            55X1X25
            from £11.72
            from £11.72
            # 038
            MPN: 8E0837485C
            CLIP
            from £0.74
            from £0.74
            # 039
            MPN: 4T7868382
            SEAL
            from £10.99
            from £10.99
            # 040
            MPN: 8T0837947
            COVER CAP
            from £0.70
            from £0.70
