lamborghini lp610-4 coupe (2015) engine cover parts diagram

863.07.00 - ENGINE COVER

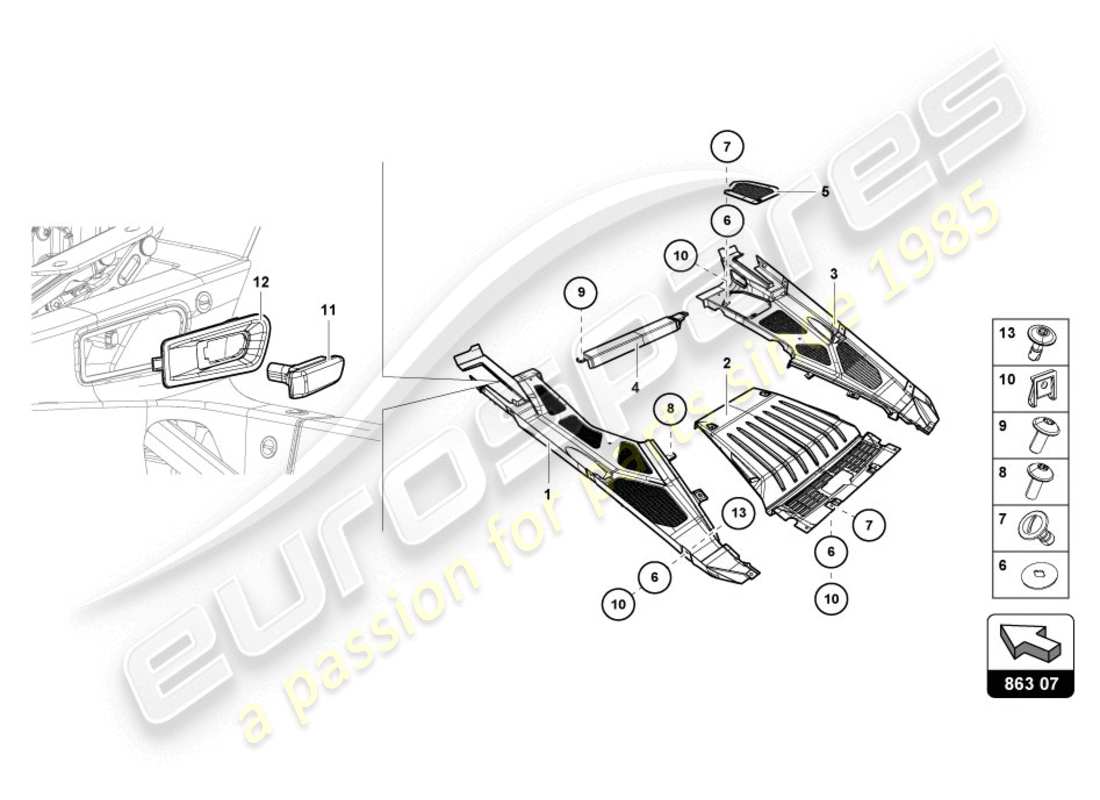

Lamborghini LP610-4 Coupe (2015) ENGINE COVER Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Price
              # 001
              MPN: 4T0863081D
              COVER
              WITHOUT ENGINE ILLUMINATION
              from £415.64
              from £415.64
              # 002
              MPN: 4T0864211B
              COVER
              from £581.91
              from £581.91
              # 003
              MPN: 4T0863082H
              COVER
              from £1,002.99
              from £1,002.99
              # 004
              MPN: 4T0863505B
              COVER
              from £212.28
              from £212.28
              # 005
              -
              COVER
              CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.:- 3
              # 006
              MPN: 4A0805137A
              RETAINING WASHER
              6,6X25X1,2
              from £0.94
              from £0.94
              # 007
              MPN: 470805121
              GRIP PIN
              from £4.48
              from £4.48
              # 008
              MPN: N10632003
              OVAL SOCKET HEAD BOLT WITH HEX DRIVE
              from £0.47
              from £0.47
              # 009
              MPN: N91188301
              HEXAGON SOCKET HEAD BOLT
              M6X20
              from £0.78
              from £0.78
              # 010
              MPN: 8D0805960
              SPEED NUT
              6,0MM
              from £2.10
              from £2.10
              # 011
              -
              LIGHT
              NOT FOR STANDARD COVER-CLEAR GLASS LEFT
              # 011
              -
              LIGHT
              NOT FOR STANDARD COVER-CLEAR GLASS RIGHT
              # 012
              -
              INSERT
              NOT FOR STANDARD COVER-LEFT
              # 012
              -
              INSERT
              NOT FOR STANDARD COVER-RIGHT
              # 013
              MPN: 470805121A
              GRIP PIN
              from £4.37
              from £4.37
