863.09.00 - SECURING PARTS FOR ENGINE

Lamborghini LP610-4 Coupe (2015) SECURING PARTS FOR ENGINE Parts Diagram

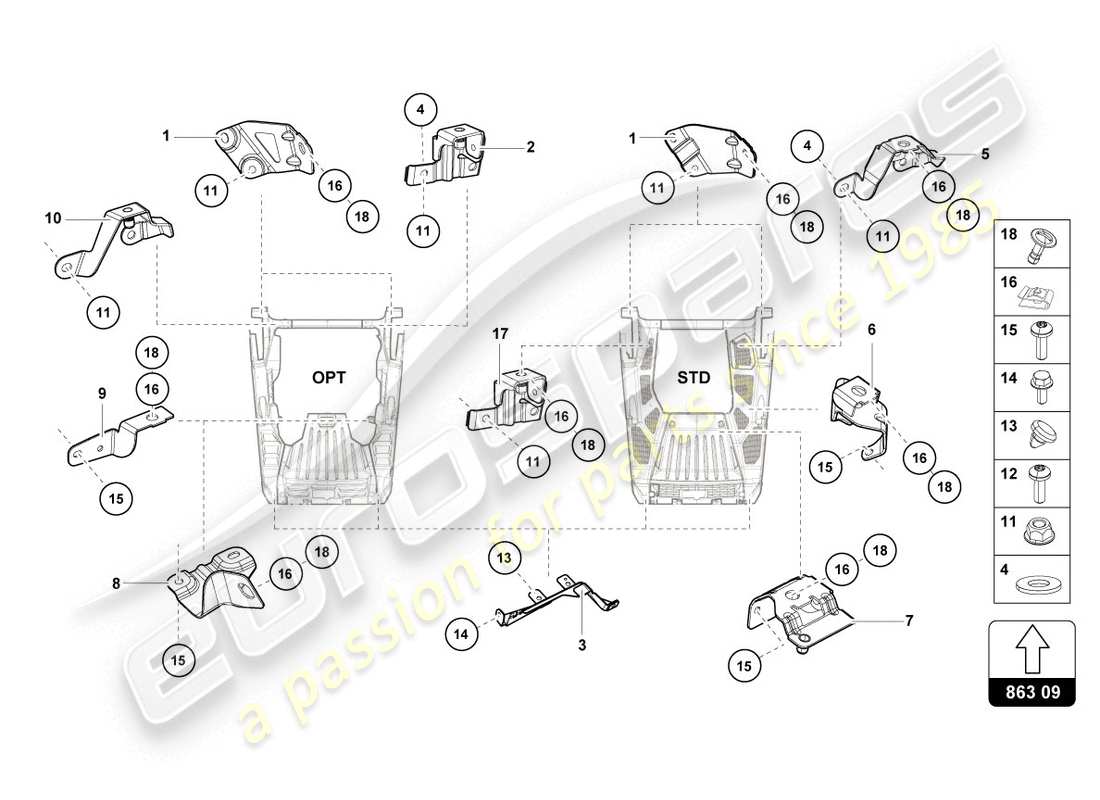

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 4T8863843A
ARM
LEFT
from £12.71
from £12.71
# 001
MPN: 4T8863844A
ARM
RIGHT
from £12.71
from £12.71
# 002
MPN: 4T8863974B
ARM
OPT-RIGHT
from £32.64
from £32.64
# 003
MPN: 4T0813285
ARM
LEFT
from £11.30
from £11.30
# 003
MPN: 4T0813286
ARM
RIGHT
from £61.58
from £61.58
# 004
MPN: N01166623
WASHER
ONLY ON THE RIGHT SIDE FOR FIXING THE BRACKET, 4T8863974A-6,4X18X1,6
from £0.94
from £0.94
This part replaces part number WHT000909
# 005
MPN: 4T8863974A
ARM
STANDARD-RIGHT
from £26.30
from £26.30
# 006
MPN: 4T8864287C
ARM
STANDARD-LEFT
from £26.42
from £26.42
# 006
MPN: 4T8864288C
ARM
RIGHT
from £26.42
from £26.42
# 007
MPN: 4T8864851B
ARM
STANDARD-LEFT
from £26.42
from £26.42
# 007
MPN: 4T8864852B
ARM
STANDARD-RIGHT
from £14.53
from £14.53
# 008
MPN: 4T0864287
ARM
OPT CARBON-LEFT
from £18.64
from £18.64
# 008
MPN: 4T0864288
ARM
OPT CARBON-RIGHT
from £18.64
from £18.64
# 009
MPN: 4T0864473
ARM
OPT CARBON-LEFT
from £9.69
from £9.69
# 009
MPN: 4T0864474
ARM
OPT CARBON-RIGHT
from £9.69
from £9.69
# 010
MPN: 4T8863973B
ARM
OPT CARBON-LEFT
from £26.94
from £26.94
# 011
MPN: N01508210
HEXAGON COLLAR NUT
M6-M6
from £1.21
from £1.21
# 012
MPN: N91188301
HEXAGON SOCKET HEAD BOLT
M6X20-M6X20
from £0.78
from £0.78
# 013
MPN: 470861147
STOP BUFFER
4,5X2,2X8,6
from £8.70
from £8.70
This part replaces part number N91092001
# 014
MPN: N91042302
OVAL HEXAGON SOCKET HEAD BOLT
M6X16-M6X16
from £0.63
from £0.63
# 015
MPN: WHT003841
FLAT ROUND HEAD BOLT
M6GFX14-M6GFX14
from £0.98
from £0.98
# 016
MPN: 8D0805960
SPEED NUT
6,0MM
from £2.10
from £2.10
# 017
MPN: 4T8863973A
ARM
LEFT
from £28.25
from £28.25
# 018
MPN: 8D0805121B
GRIP PIN
6X20MM BLACK
from £3.77
from £3.77
Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
