199.02.00 - SECURING PARTS FOR ENGINE

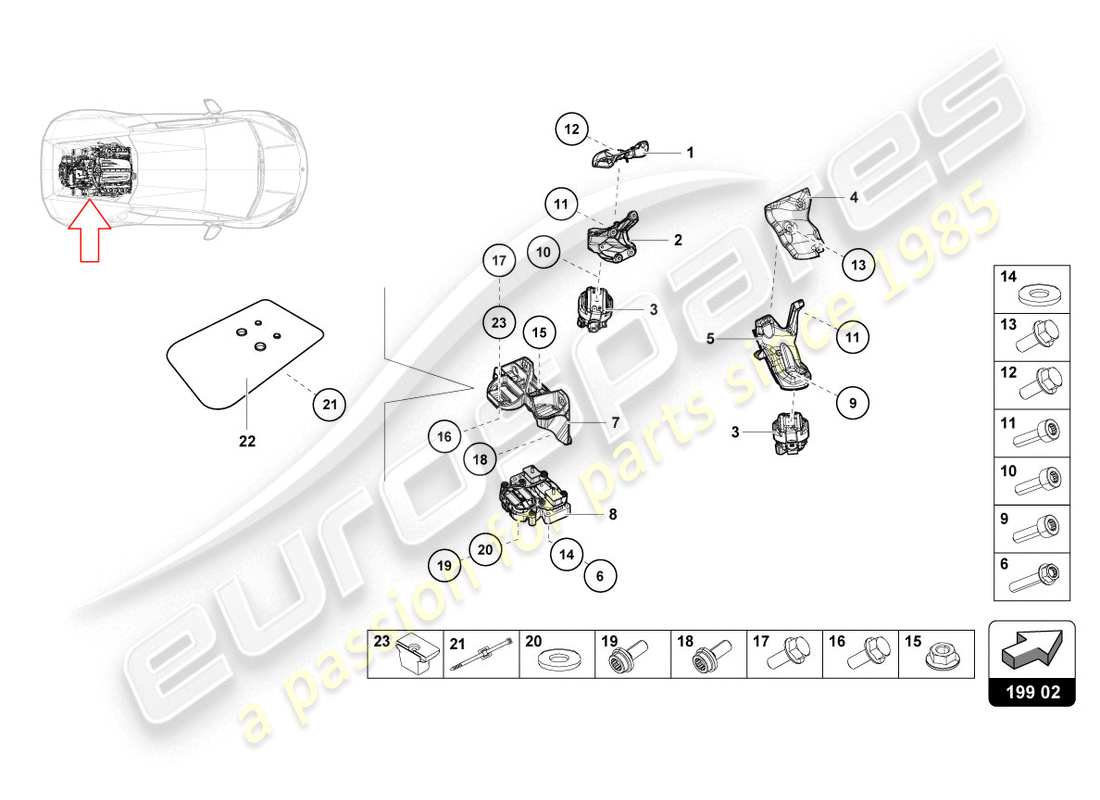

Lamborghini LP610-4 Coupe (2019) SECURING PARTS FOR ENGINE Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 420199387E
GUARD PLATE
LEFT
from £7.85
from £7.85
# 002
MPN: 420199307H
SUPPORT
LEFT
from £94.88
from £94.88
# 003
MPN: 420199381AA
Engine Mounting
from £189.27
from £189.27
This part replaces part number 420199381Q - and 3 more. Click to view details
# 004
MPN: 4S0199388A
GUARD PLATE
RIGHT
from £7.85
from £7.85
# 005
MPN: 4S0199308C
SUPPORT
RIGHT
from £120.32
from £120.32
# 006
MPN: N10683301
HEXAGON COLLARED BOLT WITH MULTI-POINT SOCKET HEAD (DUO)
M10X115
from £3.90
from £3.90
# 007
MPN: 420399115E
GEARBOX SUPPORT
from £230.00
from £230.00
# 008
MPN: 420399419D
gearbox mounting
from £397.74
from £397.74
# 009
MPN: N10702603
SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD
M10X35
from £2.42
from £2.42
# 010
MPN: N91146901
SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD
M10X30
from £2.33
from £2.33
# 011
MPN: N10702701
HEXAGON BOLT
M10X40
from £2.73
from £2.73
# 012
MPN: N10305302
HEXAGON HEAD BOLT (COMBI)
M6X20
from £1.34
from £1.34
# 013
MPN: N10718801
HEX COLLARED BOLT
M6X17
from £0.59
from £0.59
# 014
MPN: N90315204
WASHER
10,5X34X4
from £0.98
from £0.98
# 015
MPN: N91157402
HEXAGON COLLAR NUT
M8
from £1.34
from £1.34
# 016
MPN: N10640801
HEXAGON BOLT
M8X50
from £2.01
from £2.01
# 017
MPN: N10626603
HEX COLLARED BOLT
M8X30
from £1.43
from £1.43
# 017
MPN: N91073401
HEX COLLARED BOLT
M8X75
from £2.15
from £2.15
# 018
MPN: N10720402
SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD
M10X40
from £2.47
from £2.47
# 019
MPN: N10689301
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
M8X25
from £1.96
from £1.96
# 020
MPN: N90033308
WASHER
8.4X20X2.5
from £0.77
from £0.77
# 021
MPN: 5M0971838
CABLE TIE WITH TERMINAL SOCKET
4,6X200MM
from £1.70
from £1.70
# 022
MPN: 420825773
HEAT SHIELD PLATE
from £39.47
from £39.47
# 023
MPN: 4S0199503
BALANCE WEIGHT
800G
from £86.32
from £86.32
