lamborghini lp610-4 coupe (2019) shock absorber parts diagram

511.01.00 - SHOCK ABSORBER

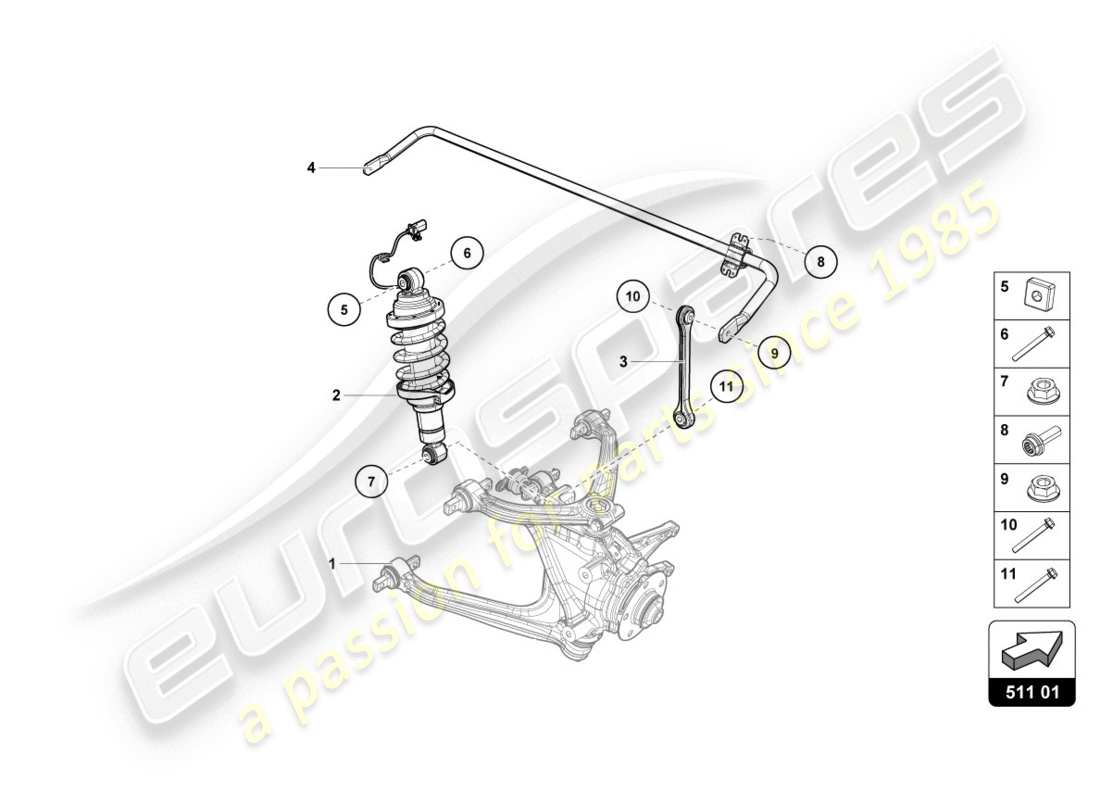

Lamborghini LP610-4 Coupe (2019) SHOCK ABSORBER Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      -
      WHEEL BEARING HOUSING
      # 002
      MPN: 4T0512019AE
      Shock Absorbers
      MAGNETIC RIDE
      from £3,797.33
      from £3,797.33
      This part replaces part number 4T0512019L
      # 002
      MPN: 4T0512019N
      Shock Absorbers
      STANDARD
      from £634.26
      from £634.26
      # 003
      MPN: 4S0505465A
      COUPLING ROD
      from £60.40
      from £60.40
      # 004
      MPN: 4S0511409C
      ANTI-ROLL BAR
      from £113.89
      from £113.89
      # 005
      MPN: 4E0803171B
      THREADED PLATE
      M12X1,5-M12X1,5
      from £7.23
      from £7.23
      # 006
      MPN: N10784702
      HEXAGON FLANGE SCREW
      AM12X1,5X85-M12X1.5X85
      from £3.90
      from £3.90
      # 007
      MPN: N10106402
      HEXAGON COLLAR NUT SELF-LOCKING
      M12X1,5-M12X1,5
      from £1.34
      from £1.34
      # 008
      MPN: N10689301
      SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
      M8X25
      from £1.96
      from £1.96
      # 009
      MPN: N10272302
      HEXAGON COLLAR NUT SELF-LOCKING
      M10-M10
      from £1.32
      from £1.32
      # 010
      MPN: N10425302
      HEX COLLARED BOLT
      M10X62X45-M10X62X45
      from £3.68
      from £3.68
      # 011
      MPN: 4S0512041
      HEXAGON FLANGE SCREW
      M12X1, 5X175X90-M12X1.5X175X90
      from £8.51
      from £8.51
