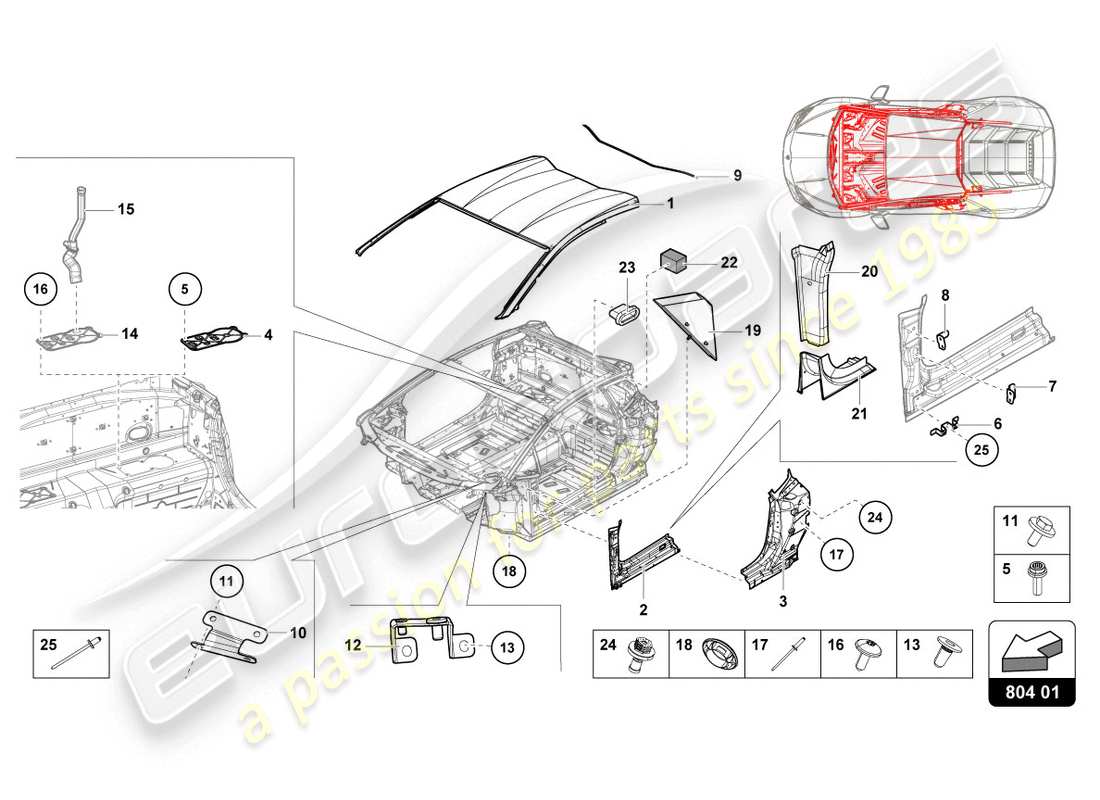

804.01.00 - ROOF

Lamborghini LP610-4 Coupe (2019) ROOF Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Price
                # 001
                MPN: 4T8817021B
                ROOF
                CONTACT YOUR AREA MANAGER-IT REFERS TO RIF.14
                from £1,802.78
                from £1,802.78
                # 002
                MPN: 4T8810575
                Door Frame
                LEFT
                from £528.30
                from £528.30
                # 002
                MPN: 4T8810576
                Door Frame
                RIGHT
                from £555.11
                from £555.11
                # 003
                MPN: 4T8810245F
                B-PILLAR, OUTER
                LEFT
                from £1,647.14
                from £1,647.14
                # 003
                MPN: 4T8810246F
                B-PILLAR, OUTER
                RIGHT
                from £1,789.81
                from £1,789.81
                This part replaces part number 4T8810246E
                # 004
                MPN: 4S0803960C
                COVER FOR SENDER
                RIGHT
                from £9.46
                from £9.46
                # 004
                MPN: 4S0803961C
                COVER FOR SENDER
                LEFT
                from £9.46
                from £9.46
                # 005
                MPN: N91042301
                OVAL HEXAGON SOCKET HEAD BOLT
                M6X16
                from £0.63
                from £0.63
                # 006
                MPN: 4T0805363B
                BRACKET
                CONTACT YOUR AREA MANAGER
                from £9.18
                from £9.18
                # 007
                MPN: 4T0803641B
                BRACKET - FENDER
                LEFT LOWER
                from £4.88
                from £4.88
                # 007
                MPN: 4T0803642B
                BRACKET - FENDER
                RIGHT LOWER
                from £4.88
                from £4.88
                # 008
                MPN: 4T0810659B
                BRACKET - FENDER
                LEFT UPPER
                from £11.72
                from £11.72
                # 008
                MPN: 4T0810660B
                BRACKET - FENDER
                RIGHT UPPER
                from £6.83
                from £6.83
                # 009
                MPN: 4T8817245B
                ROOF FRAME SEAL
                from £57.68
                from £57.68
                # 010
                MPN: 4T0000302B
                BRACKET
                from £5.97
                from £5.97
                # 011
                MPN: N10009507
                HEXAGON HEAD BOLT (COMBI)
                M6X18
                from £0.54
                from £0.54
                # 012
                MPN: 4T0805543B
                ANGLE
                LEFT
                from £7.26
                from £7.26
                # 012
                MPN: 4T0805544B
                ANGLE
                RIGHT
                from £7.26
                from £7.26
                # 013
                MPN: N90533005
                HEXAGON HEAD BOLT (COMBI)
                M6X20
                from £1.21
                from £1.21
                This part replaces part number N90533002
                # 014
                -
                COVER FOR SENDER
                # 015
                -
                WATER DRAIN PIPE
                # 016
                -
                OVAL HEXAGON SOCKET HEAD BOLT
                # 017
                MPN: 4S0843658
                POP RIVET
                from £2.95
                from £2.95
                # 018
                MPN: 7P0899183
                BUNGS
                from £1.73
                from £1.73
                # 020
                MPN: 4T8802123B
                A-PILLAR, INNER
                LEFT LOWER
                from £73.40
                from £73.40
                # 020
                MPN: 4T8802124B
                A-PILLAR, INNER
                RIGHT LOWER
                from £73.40
                from £73.40
                # 021
                MPN: 4T8809071C
                REINFORCEMENT FOR A-PILLAR
                LEFT
                from £108.52
                from £108.52
                # 021
                MPN: 4T8809072C
                REINFORCEMENT FOR A-PILLAR
                RIGHT
                from £108.52
                from £108.52
                # 022
                MPN: 893201365A
                UNDERLAY
                from £1.09
                from £1.09
                # 023
                MPN: 4T0853593A
                SEAL
                from £5.28
                from £5.28
                # 024
                MPN: 4S0806221
                ADJUSTMENT ELEMENT
                from £7.83
                from £7.83
                # 025
                MPN: 4D0803217N
                POP RIVET ORDER QTY.50
                3,35X5,0 4D0 803 217 N
                from £0.52
                from £0.52
