809.01.00 - FUEL FILLER FLAP

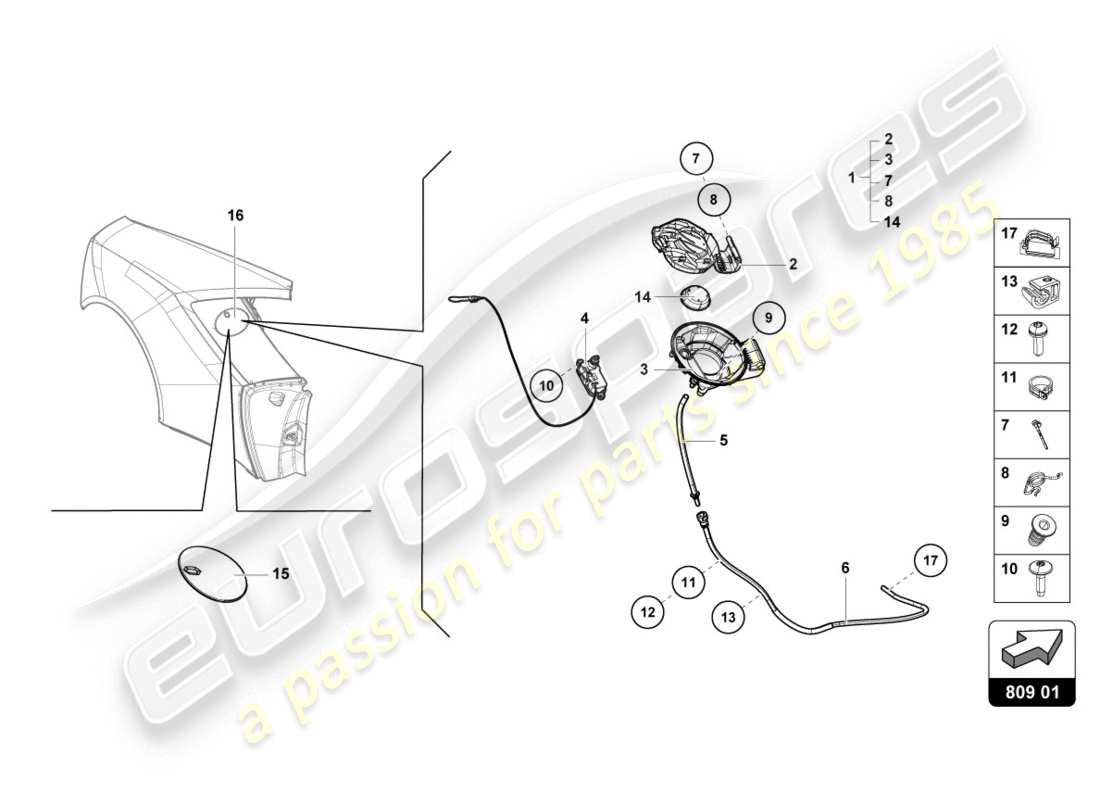

Lamborghini LP610-4 Coupe (2019) FUEL FILLER FLAP Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 4T0809906C
FUEL FILLER NECK
from £26.82
from £26.82
# 002
MPN: 4T0809905C
FUEL FILLER FLAP
CAN BE INSTALLED ONLY ON VEHICLES EQUIPPED WITH PN 4T0809906C
from £28.15
from £28.15
# 003
MPN: 4T0809999C
FUEL FILLER FLAP
CAN BE INSTALLED ONLY ON VEHICLES EQUIPPED WITH PN 4T0809906C
from £35.11
from £35.11
# 004
MPN: 8V0862153A
THROTTLE CONTROL ELEMENT
CAN BE INSTALLED ONLY ON VEHICLES EQUIPPED WITH PN 4T0809906C
from £11.75
from £11.75
# 005
MPN: 4T0809937
VENT HOSE
from £5.10
from £5.10
# 006
MPN: 4T0809978
VENT HOSE
from £18.98
from £18.98
# 007
MPN: 4T0809910
SOCKET PIN
from £7.23
from £7.23
# 008
MPN: 4T0809931
SPRING
from £4.85
from £4.85
# 009
MPN: 470103226
HOSE CONNECTOR
from £3.25
from £3.25
# 010
MPN: N90732103
HEXAGON SOCKET OVAL HEAD BOLT
4X16
from £0.53
from £0.53
# 011
MPN: N0206015
CLAMP
12X15
from £1.39
from £1.39
# 012
-
BALL SCREW
# 012
MPN: N10347103
HEXAGON SOCKET OVAL HEAD BOLT (COMBI)
M6X20
from £0.81
from £0.81
# 013
MPN: 1H9609738A
CLIP
from £3.55
from £3.55
# 014
MPN: 4T0809974A
SEAL
CAN BE INSTALLED ONLY ON VEHICLES EQUIPPED WITH PN 4T0809906C
from £18.37
from £18.37
# 015
MPN: 4T0809907B
FUEL FILLER FLAP
CAN BE INSTALLED ONLY ON VEHICLES EQUIPPED WITH PN 4T0809906C-OUTER
from £112.83
from £112.83
# 016
-
WING
# 017
MPN: 420853139
CLIP
from £1.27
from £1.27
