823.01.00 - BONNET

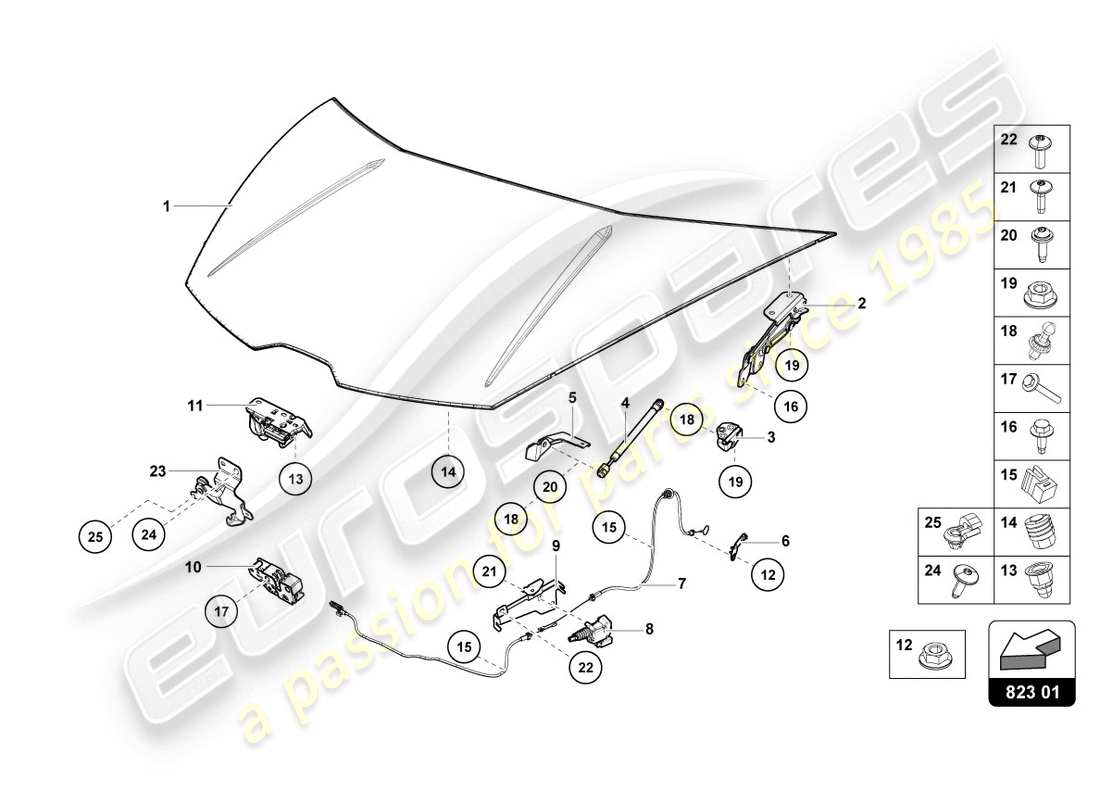

Lamborghini LP610-4 Coupe (2019) BONNET Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 4T0823021C
BONNET
CONTACT YOUR AREA MANAGER
from £2,956.76
from £2,956.76
# 002
MPN: 4T0823301B
HINGE
LEFT
from £144.40
from £144.40
# 002
MPN: 4T0823302B
HINGE
RIGHT
from £144.40
from £144.40
# 003
MPN: 4T0823351B
ARM
from £27.06
from £27.06
# 004
MPN: 4T0823359
GAS FILLED STRUT
from £44.53
from £44.53
# 005
MPN: 4T0805669C
ATTACHMENT BARS
LEFT
from £36.62
from £36.62
This part replaces part number 4T0805669B
# 005
MPN: 4T0805670C
ATTACHMENT BARS
RIGHT
from £49.89
from £49.89
# 006
MPN: 4T0819549
BRACKET
from £10.08
from £10.08
# 007
MPN: 4T0823531B
BOWDEN CABLE
(EUROPE, UK spec vehicles)
from £92.52
from £92.52
# 007
MPN: 4T0823531C
BOWDEN CABLE
(USA spec vehicles)
from £92.52
from £92.52
# 008
MPN: 420959782
SERVOMOTOR
from £14.15
from £14.15
# 009
MPN: 4T0819967
ARM
LEFT
from £33.59
from £33.59
# 009
MPN: 4T0819968
ARM
RIGHT
from £32.42
from £32.42
# 010
MPN: 1K1823509E
BONNET LOCK-LOWER PART
WITH WIRING HARNESS
from £32.77
from £32.77
# 011
MPN: 1Q0823480
CATCH HOOK
FRONT (EUROPE, UK spec vehicles)
from £24.35
from £24.35
# 011
MPN: 475823480
CATCH HOOK
FRONT (USA spec vehicles)
from £78.95
from £78.95
# 012
MPN: N91205301
HEXAGON FLANGE NUT, SELF-LOCKING
M6
from £1.43
from £1.43
# 013
MPN: WHT001308
CAP NUT, SELF-LOCKING
from £1.52
from £1.52
# 014
MPN: 4E0823481
STOP BUFFER
LEFT A. RIGHT
from £1.69
from £1.69
# 015
MPN: 3D0971497D
CABLE TIE WITH TERMINAL SOCKET
1-3MM VERTICAL OUTER
from £1.65
from £1.65
# 016
MPN: N90863802
HEXAGON HEAD BOLT (COMBI)
M8X25
from £0.95
from £0.95
HEXAGON HEAD BOLT M8X22-S1 Genuine Lamborghini - New (other) In stock
KIT. 4X (M8X25) WITH THREADLOCK
KIT. 4X (M8X25) WITH THREADLOCK
# 017
MPN: N10553804
HEXAGON HEAD BOLT (COMBI)
M6X45
from £1.28
from £1.28
This part replaces part number N10553801
# 018
MPN: 895827439D
BALL STUD
from £4.45
from £4.45
This part replaces part number 895827439B
# 019
MPN: N90798805
HEXAGON COLLAR NUT
M8
from £1.42
from £1.42
# 020
MPN: N90900401
HEX SOCKET OVAL HEAD COLLARED
M6X20
from £0.84
from £0.84
# 021
MPN: N90739704
PANEL SCREW
5X22
from £0.57
from £0.57
# 022
MPN: N91042302
OVAL HEXAGON SOCKET HEAD BOLT
M6X16
from £0.63
from £0.63
# 023
MPN: 4T0805211B
MOUNTING BAR
(USA spec vehicles)
from £184.17
from £184.17
# 024
MPN: N90900402
HEX SOCKET OVAL HEAD COLLARED
M6X20 (USA spec vehicles)
from £0.81
from £0.81
# 025
MPN: 410837230
SECURING ELEMENT
(USA spec vehicles)
from £0.52
from £0.52
# 026
MPN: 6H0862247
CONNECTING PIECE
from £0.83
from £0.83
