lamborghini lp610-4 coupe (2019) front end cover parts diagram

863.03.00 - FRONT END COVER

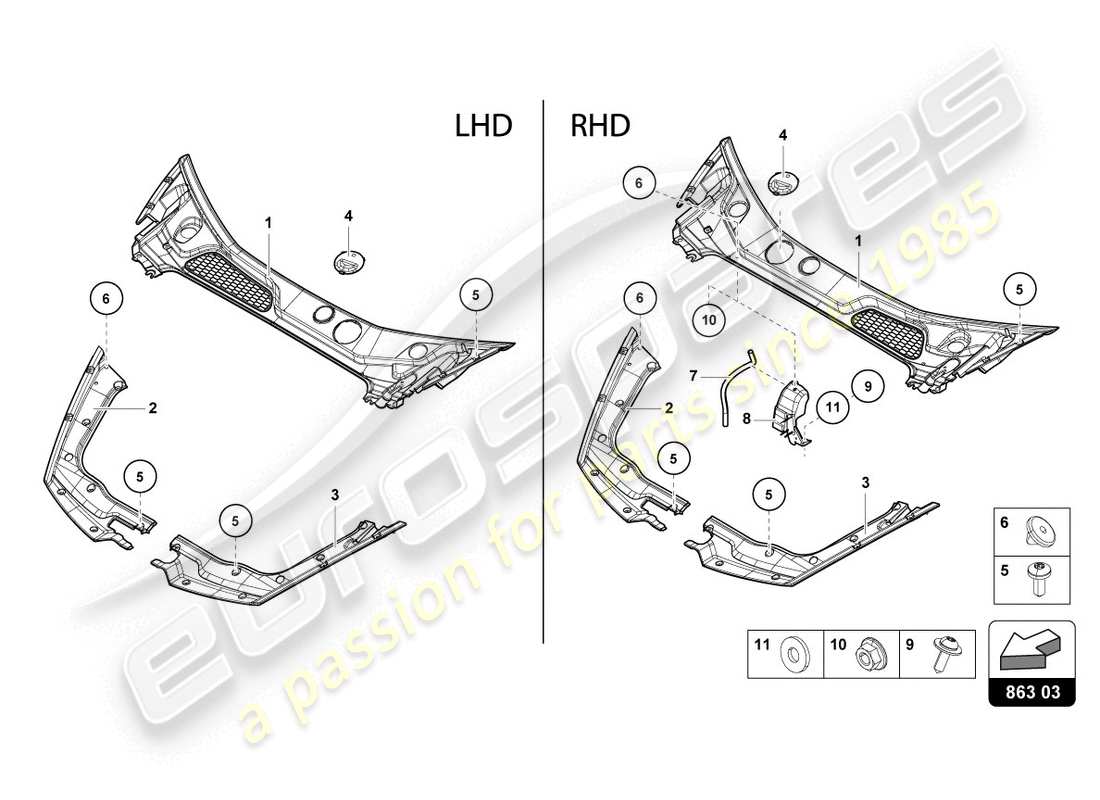

Lamborghini LP610-4 Coupe (2019) FRONT END COVER Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 4T1819426C
    COVER
    LHD (EUROPE, USA spec vehicles)
    from £142.24
    from £142.24
    # 001
    MPN: 4T2819426E
    COVER
    RHD (UK spec vehicles)
    from £149.58
    from £149.58
    # 002
    MPN: 4T0821170D
    COVER
    RIGHT
    Supersession
    Supersession
    # 003
    MPN: 4T0821169D
    COVER
    LEFT
    Supersession
    Supersession
    # 004
    MPN: 4T0815715E
    COVER FOR BRAKE FLUID CONTAINER
    from £14.19
    from £14.19
    # 005
    MPN: N10738101
    HEX SOCKET HEAD BOLT (COMBI)
    M5X16
    from £0.49
    from £0.49
    # 006
    MPN: N0200241
    BUNGS
    10X1X12
    from £0.71
    from £0.71
    # 007
    MPN: 4T2819975
    WATER DRAIN PIPE
    VALID ONLY WITH LIFTING SYSTEM (UK spec vehicles)
    from £2.05
    from £2.05
    # 008
    MPN: 4T2819421
    COVER
    VALID ONLY WITH LIFTING SYSTEM (UK spec vehicles)
    from £52.55
    from £52.55
    # 009
    MPN: N10738101
    HEX SOCKET HEAD BOLT (COMBI)
    M5X16 (UK spec vehicles)
    from £0.55
    from £0.55
    # 010
    MPN: N10017307
    HEXAGON COLLAR NUT
    VALID ONLY FOR RHD WITHOUT LIFTING SYSTEM (UK spec vehicles)
    from £1.27
    from £1.27
    # 011
    MPN: N90033308
    WASHER
    VALID ONLY FOR RHD WITH LIFTING SYSTEM (UK spec vehicles)
    from £0.81
    from £0.81
