lamborghini sto (2022) air duct for brake cooling front parts diagram

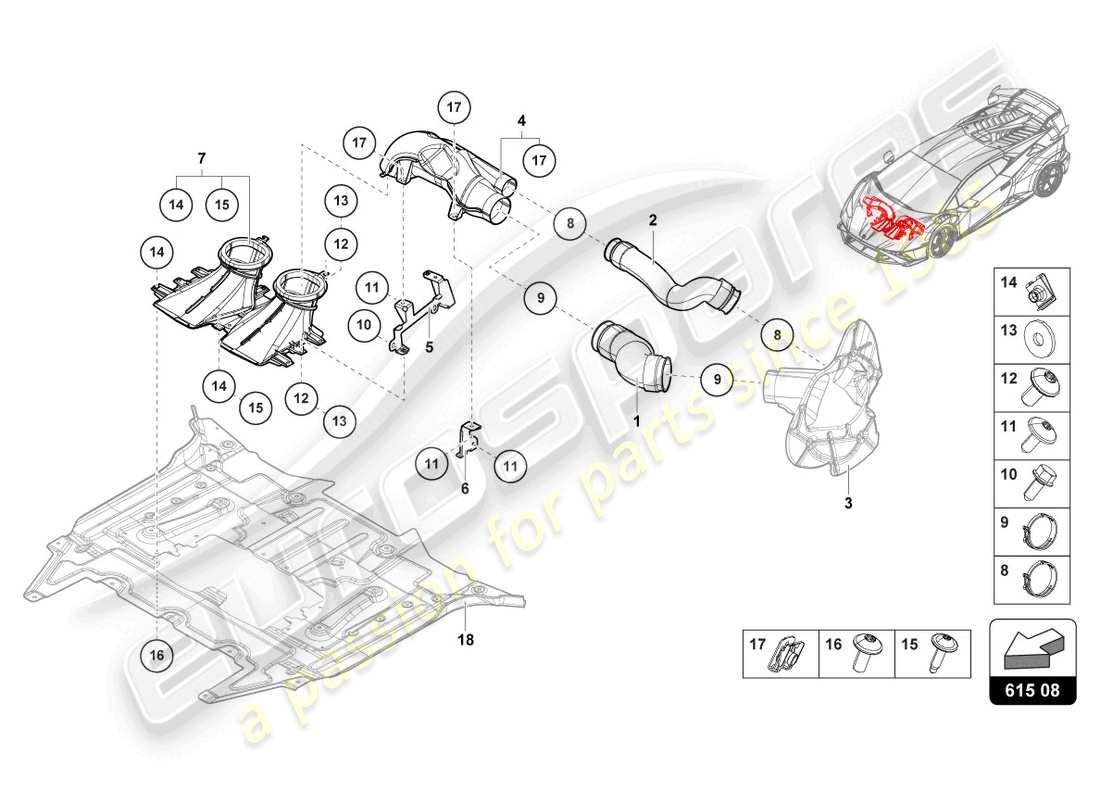

615.08.00 - AIR DUCT FOR BRAKE COOLING FRONT

Lamborghini STO (2022) AIR DUCT FOR BRAKE COOLING FRONT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 4T3615187
    COOLING PIPE
    D=70 MM-FRONT
    from £185.66
    from £185.66
    FLEX PIPE FRONT COOLING 70 MM Genuine Lamborghini - New (to order)
    # 002
    MPN: 4T3615188
    COOLING PIPE
    D=50 MM-FRONT
    from £135.56
    from £135.56
    FLEX PIPE FRONT COOLING 50 MM Genuine Lamborghini - New (to order)
    # 003
    -
    COVER PLATE FOR BRAKE DISC
    SEE ILLUSTRATION : 615.06
    # 004
    MPN: 4T3825325
    AIR DUCT FOR BRAKE COOLING
    LEFT
    from £54.54
    from £54.54
    AIR CHANNEL POST Genuine Lamborghini - New (to order)
    # 004
    MPN: 4T3825326
    AIR DUCT FOR BRAKE COOLING
    RIGHT
    from £54.54
    from £54.54
    AIR CHANNEL POST Genuine Lamborghini - New (to order)
    # 005
    MPN: 4T3825331
    BRACKET
    LEFT
    from £477.38
    from £477.38
    SUPPORTO Genuine Lamborghini - New (to order)
    # 005
    MPN: 4T3825332
    BRACKET
    RIGHT
    from £477.38
    from £477.38
    SUPPORTO Genuine Lamborghini - New (to order)
    # 006
    MPN: 4T3825199
    BRACKET
    LEFT
    from £350.71
    from £350.71
    SUPPORTO Genuine Lamborghini - New (to order)
    # 006
    MPN: 4T3825200
    BRACKET
    RIGHT
    from £350.71
    from £350.71
    SUPPORTO Genuine Lamborghini - New (to order)
    # 007
    MPN: 4T3825352
    AIR DUCT
    LOWER CENTRE
    from £192.94
    from £192.94
    SUPPORTO Genuine Lamborghini - New (to order)
    # 008
    MPN: 8E0145917
    CLAMP
    40-60X12
    from £5.11
    from £5.11
    SPRING CLAMP 58X12X2,5 Genuine Lamborghini - New (to order)
    # 009
    MPN: N10296001
    CLAMP
    75X12
    from £6.86
    from £6.86
    FASCETTA SERRATUBOA75X12 Genuine Lamborghini - New (to order)
    # 010
    MPN: N10714101
    HEXAGON FLANGE SCREW
    from £2.25
    from £2.25
    HEXAGON FLANGE Genuine Lamborghini - New (to order)
    HEXAGON FLANGE SCREW Genuine Porsche Part - New (to order)
    # 011
    MPN: N91042302
    OVAL HEXAGON SOCKET HEAD BOLT
    M6X16
    from £0.63
    from £0.63
    HEXALOBULAR SOCKET M6 X 16 Genuine Lamborghini - New In stock
    OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New In stock
    # 012
    MPN: N10586401
    OVAL HEXAGON SOCKET HEAD BOLT
    M5X10
    from £0.47
    from £0.47
    HEXALOBULAR SOCKETM5X10 Genuine Lamborghini - New (to order)
    OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
    # 013
    MPN: WHT000778
    WASHER
    30X36X1
    from £0.53
    from £0.53
    WASHER 5.3X15X1.5 ISO7093-1 Genuine Lamborghini - New In stock
    # 014
    MPN: N90475903
    SPEED NUT
    M5X13,6X11,5
    from £0.76
    from £0.76
    SNAP NUT CLAMP M5X13.6X11.5 Genuine Lamborghini - New In stock
    SPEED NUT Genuine Porsche Part - New (to order)
    # 015
    MPN: N91180901
    FLAT HEAD MULTI-POINT SOCKET BOLT
    M5X20
    from £0.89
    from £0.89
    HEXALOBULAR SOCKET M5X20 Genuine Lamborghini - New In stock
    Flat head multi-point Genuine Porsche Part - New In stock
    # 016
    MPN: N90944604
    OVAL HEXAGON SOCKET HEAD BOLT
    M5X12
    from £0.95
    from £0.95
    HEXALOBULAR SOCKETM5X12 Genuine Lamborghini - New In stock
    OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
    # 017
    MPN: N90342503
    SPEED NUT
    M6X19,5X18
    from £1.06
    from £1.06
    SNAP NUT CLAMP M6X19.5X18 Genuine Lamborghini - New In stock
    SPEED NUT Genuine Porsche Part - New (to order)
