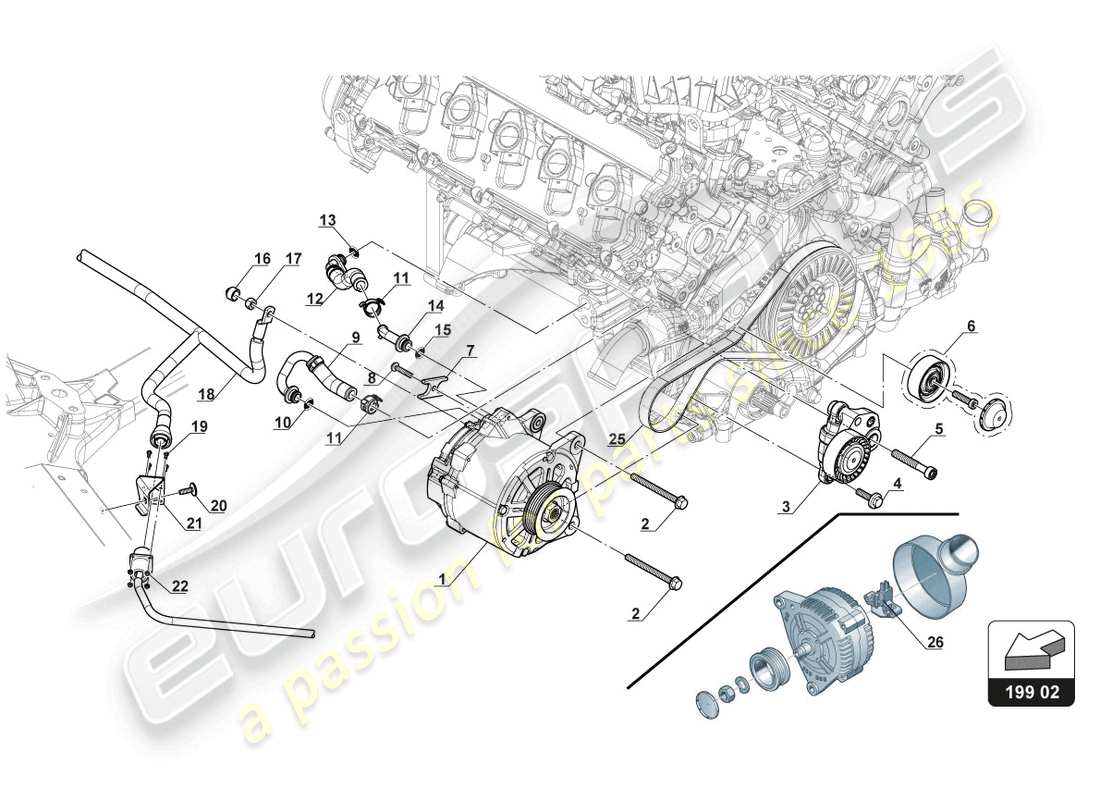

199.02.00 - ALTERNATOR
Lamborghini GT3 Evo (2018) ALTERNATOR Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 4TA903021
ALTERNATOR
#12 Bulletin 2019
# 002
MPN: N0103917
HEXAGON FLANGE
M8X100
from £3.19
from £3.19
# 002
MPN: N90226404
FLANGE NUT
from £1.26
from £1.26
# 003
MPN: 07L903133G
belt tensioner
from £97.52
from £97.52
# 004
MPN: N90440003
HEXAGON HEAD BOLT M8X35-S1
Loctite FF Medium 243
from £1.54
from £1.54
# 005
MPN: N91057501
TRIPLE SQUARE BOLT M10X65X45
Loctite FF Medium 243
from £1.00
from £1.00
# 006
MPN: 07L903389B
IDLER PULLEY W17+
Supersession
Supersession
# 007
MPN: 07C121077H
RETAINING PART
from £25.81
from £25.81
# 008
MPN: N10156206
HEXALOBULAR SOCKETM6X30 8.8
from £0.87
from £0.87
# 009
MPN: 07L121030B
COOLANT HOSE GEN.RUECKL.W17+ B2
from £46.00
from £46.00
# 010
MPN: WHT001011
O-RING
12,2X1,65
from £2.68
from £2.68
# 011
MPN: N90926401
SPRING CLAMP B19X12
from £2.43
from £2.43
# 012
MPN: 07L121030C
COOLANT HOSE GEN.VORL.W17+ VFF
from £40.30
from £40.30
# 013
MPN: WHT001011
O-RING 12,2X1,65
from £2.68
from £2.68
# 014
MPN: 07L121131K
ADAPTER GEN.VORL.W17+ VFF
from £28.28
from £28.28
# 015
MPN: WHT001011
O-RING
12,2X1,65
from £2.68
from £2.68
# 016
MPN: N90403002
PROTECTIVE CAP
from £0.69
from £0.69
# 017
MPN: WHT005309
PREV. TORQUE M8
# 018
MPN: 4SA971224A
HARNESS ALTERNATOR STARTER
# 019
MPN: V31613003A
FILLISTER HEAD
M3 X 10 - 10.9
# 020
MPN: N90900402
HEXALOBULAR SOCKET M6X20 - 8.8
from £0.76
from £0.76
# 021
MPN: 4SA971796
BRACKET
# 022
MPN: V31600025
LOCKING NUT M3 - 8.8
# 025
MPN: 07L903137T
POLY-V-BELT W17HDZ
from £119.81
from £119.81
# 026
MPN: 079903803C
VOLTAGE REGULATOR
