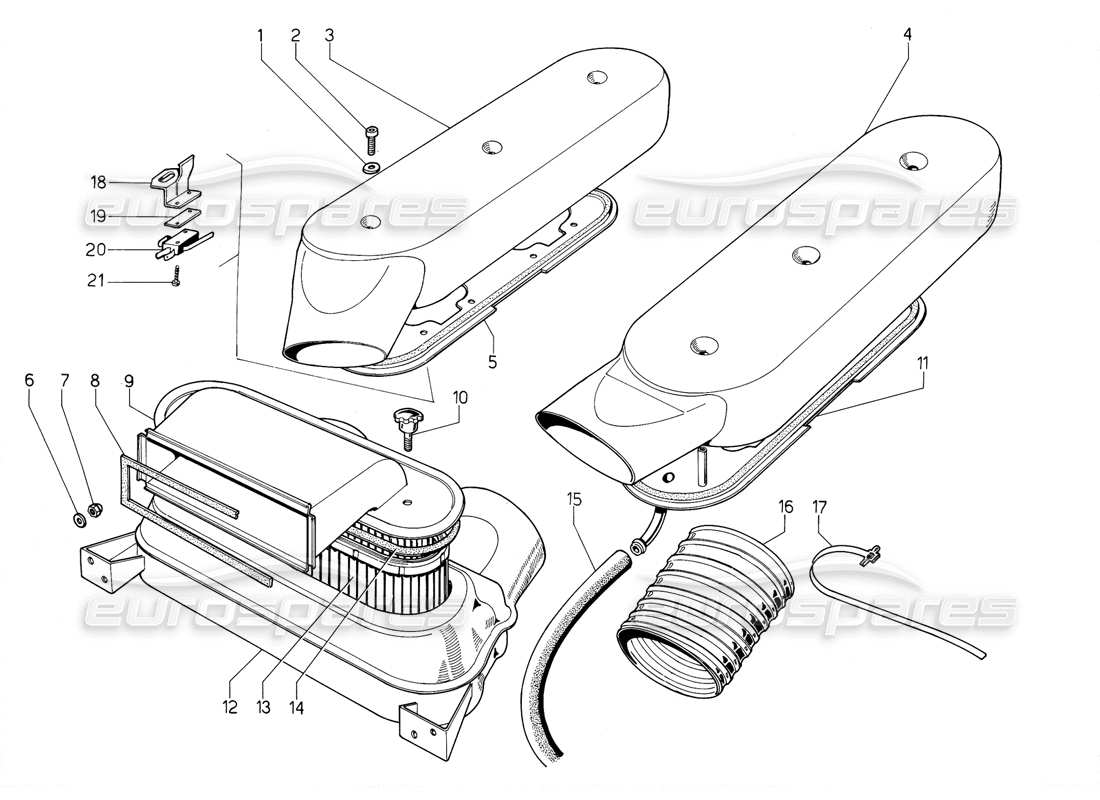

Lamborghini Jalpa 3.5 (1984) Fuel System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      MPN: 008400801
      WASHER
      Rond. 8,4 UNI 1734 8G
      Supersession
      Supersession
      # 002
      MPN: 008700804
      SCREW
      VITE BRUGOLA 8x1,25x25
      from £1.06
      from £1.06
      # 003
      MPN: 001320140

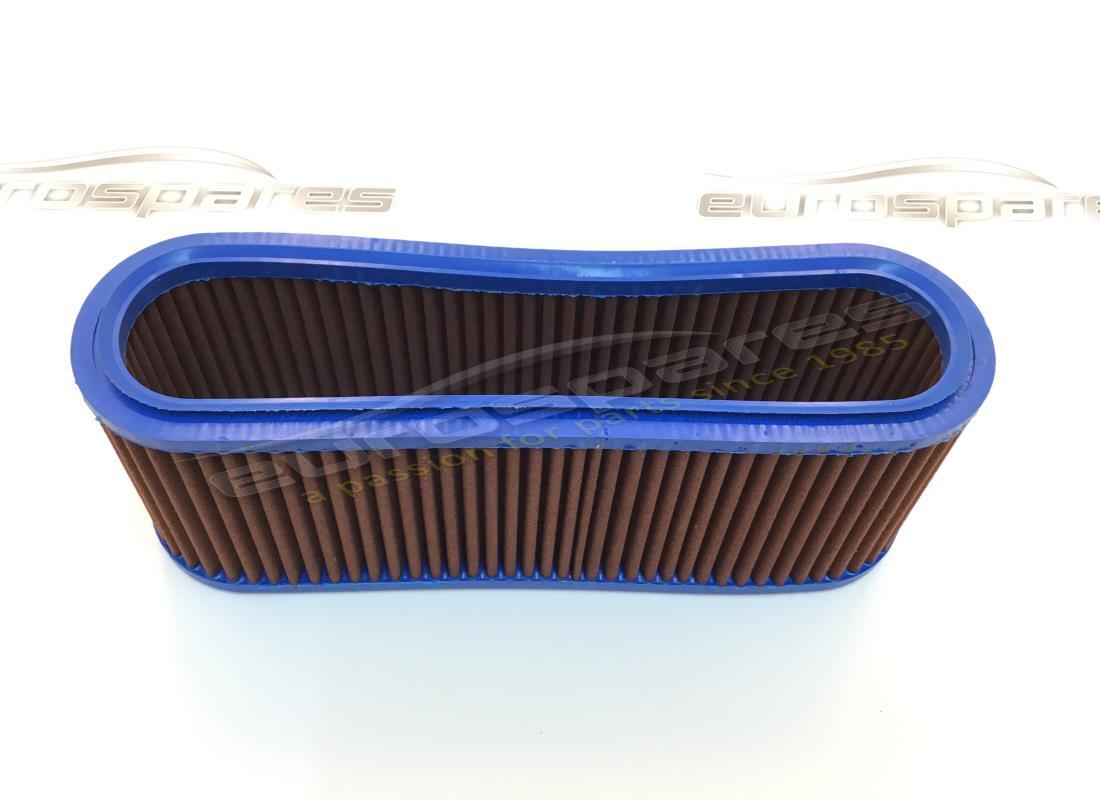

      AIR FILTER R
      Right air filter
      from £3,142.32
      from £3,142.32
      # 004
      MPN: 001320141
      AIR FILTER L
      Left air filter
      from £451.34
      from £451.34
      # 005
      MPN: 001320138
      FILT-SUPP.
      Supp. filtro sin. sui carbur
      from £17.20
      from £17.20
      # 006
      MPN: 008400606
      WASHER
      Rond. 6,4 UNI 1734
      Supersession
      Supersession
      # 007
      MPN: 008200606
      NUT
      DADO N/70/106M
      Supersession
      Supersession
      # 008
      MPN: 001310836
      JOINT
      Guam, x convogl. aria
      # 009
      MPN: 001310810
      COVER
      Cop. conv. depur. aria/U
      from £179.09
      from £179.09
      # 010
      MPN: 001309421
      FILTER KNOB
      Volantino VH 153/35PM8x25
      from £40.20
      from £40.20
      # 011
      MPN: 001320139
      FILT. SUPP.
      Supp. filtro dex. sui carbur
      from £20.98
      from £20.98
      # 013
      MPN: 001310375

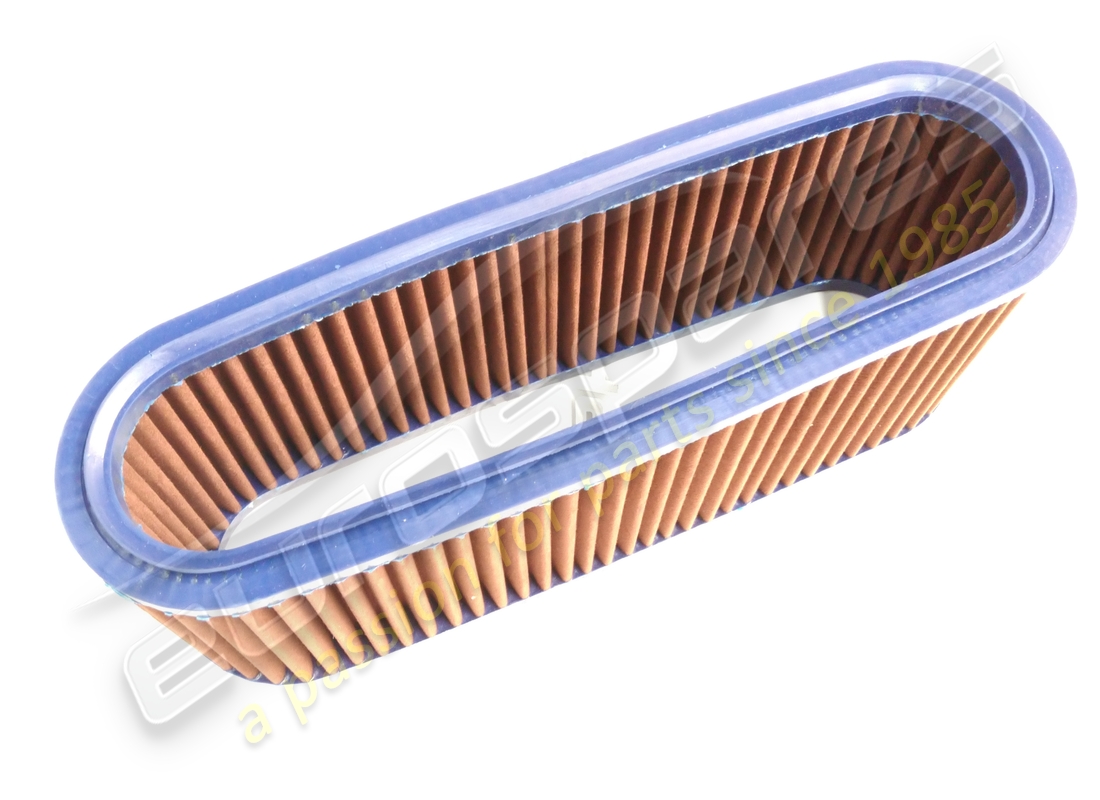

      AIR FILTER
      from £107.60
      from £107.60
      # 014
      MPN: 001310835
      FILTER GASK
      Guam, filtri e dep. aria/U
      # 015
      MPN: 001120142
      COUPLING
      Manic, coll. supp. filtro al coperchio x sfiato olio
      from £16.04
      from £16.04
      # 016
      MPN: 001310487
      FILTER PIPE
      Tubo colleg. depur. aria/U
      from £27.33
      from £27.33
      # 017
      MPN: 008830205

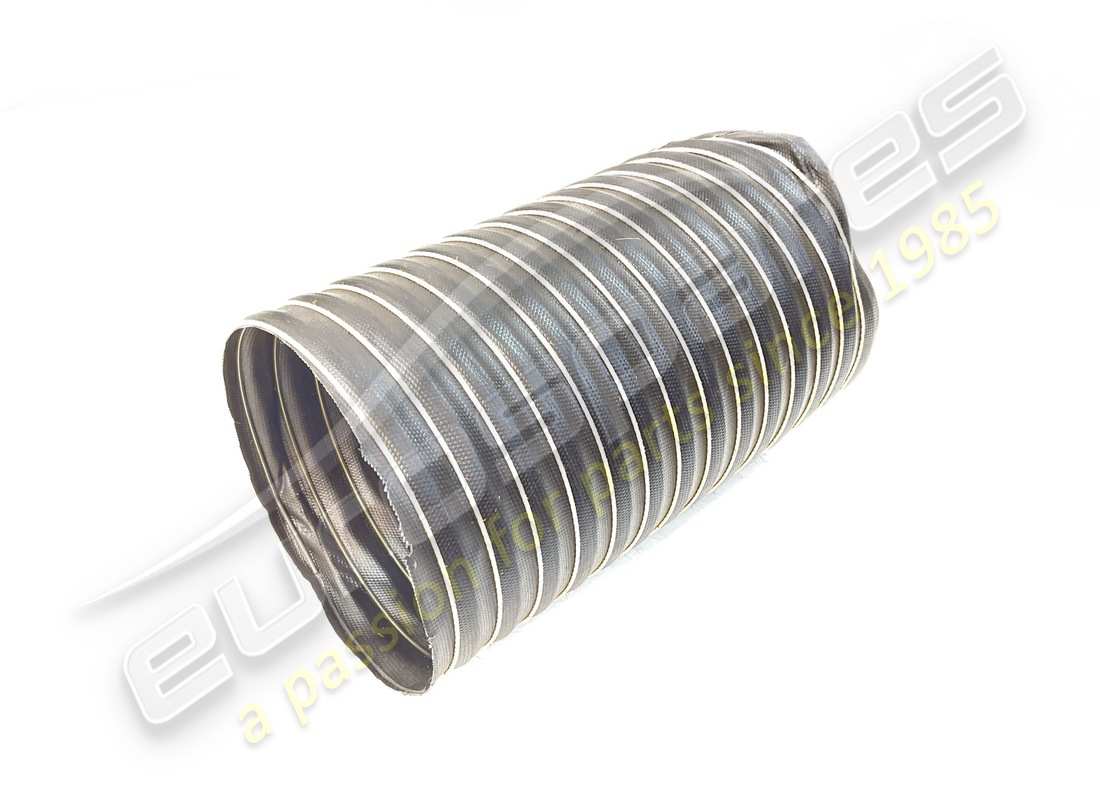

      CLAMP RING
      FASC. ROYAL 000/9 14/24
      from £4.27
      from £4.27
      # 018
      MPN: 004621313
      FIX. PLATE
      (Valid for Switzerland only September 1984) Piastrino fiss. micro x starter
      # 019
      MPN: 001320576
      JOINT
      (Valid for Switzerland only September 1984) Guarnizione
      from £8.96
      from £8.96
      # 020
      MPN: 001320574
      MICROSWITCH
      (Valid for Switzerland only September 1984) Interruttore micro
      from £86.65
      from £86.65
      # 021
      MPN: 008700322
      PLATE SCREW
      (Valid for Switzerland only September 1984) Vite fiss. micro alia piastrina
      from £1.67
      from £1.67
