lamborghini jalpa 3.5 (1984) radiator and coolant system (valid for switzerland - 1985) parts diagram

010A - Radiator and Coolant System (Valid for Switzerland - 1985)

Lamborghini Jalpa 3.5 (1984) Radiator and Coolant System (Valid for Switzerland - 1985) Parts Diagram

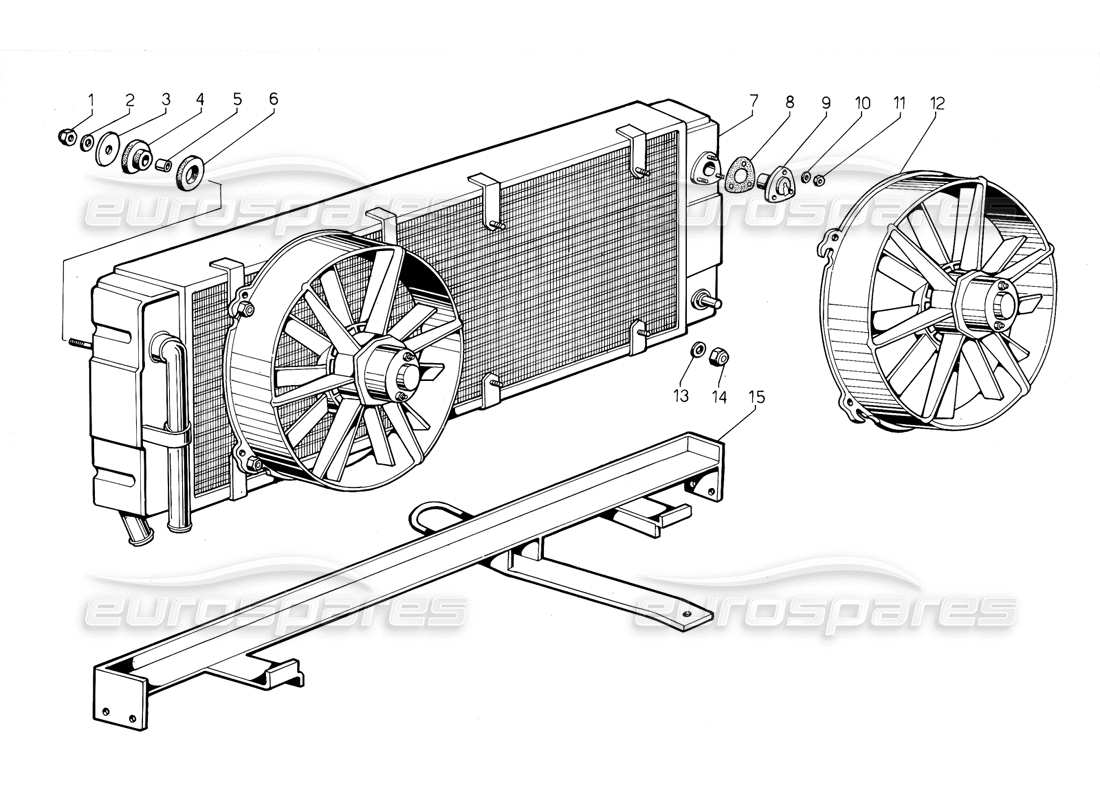

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 008200804
    NUT
    (Valid for U.S.A - May 1985) Dado N/70/108M
    from £0.75
    from £0.75
    NUT Genuine Lamborghini - New In stock
    # 002
    MPN: WHT001514
    LOCK WASHER
    (Valid for U.S.A - May 1985) Ros. el. 8,4x17x0,8
    from £15.57
    from £15.57
    This part replaces part number 008410805
    SPRING WASHER Genuine Lamborghini - New (to order)
    # 003
    MPN: 008400814
    WASHER
    (Valid for U.S.A - May 1985) Rond. 8,25x22x2 AQ 35
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 004
    MPN: 001701495
    RAD. SUPPOR
    (Valid for U.S.A - May 1985) Anello x supp. serb. suppl. e radiatore
    from £33.98
    from £33.98
    SUPPLEMENTARY RESERVOIR BRACKE T RING & Genuine Lamborghini - New In stock
    # 005
    MPN: 001701592
    SPACER
    (Valid for U.S.A - May 1985) Distan. gomm. radiatore
    from £12.06
    from £12.06
    RADIATOR SHIM Genuine Lamborghini - New In stock
    # 006
    MPN: WHT001189
    RUBBER RING
    from £3.93
    from £3.93
    This part replaces part number 001707163
    WASHER Genuine Lamborghini - New In stock
    # 007
    MPN: 001721526
    WATER RADIATOR
    (Valid for U.S.A - May 1985) Radiatore acqua
    from £2,010.59
    from £2,010.59
    COOLANT RADIATOR Genuine Lamborghini - New (to order)
    # 008
    MPN: 001705504
    GASKET
    (Valid for U.S.A - May 1985) Guam, termocont. mot.
    from £16.91
    from £16.91
    ENGINE THERMAL CONTACT SEAL Genuine Lamborghini - New In stock
    # 009
    MPN: 001724565
    TEMPERATURE SENDER UNIT
    (Single terminal)
    from £125.00
    from £125.00
    FAN MOTOR THERMAL CONTACT Genuine Lamborghini - New In stock
    FAN MOTOR THERMAL CONTACT (3 bolt single pin) Eurospares Approved Part - New In stock
    # 010
    MPN: 008410403
    LOCK WASHER
    (Valid for U.S.A - May 1985) Ros. el. 4,3x7,3x0,9
    from £4.23
    from £4.23
    WASHER D.4.3 UNI 1751/Z Genuine Lamborghini - New (to order)
    # 011
    MPN: 008200402
    NUT
    (Valid for U.S.A - May 1985) Dado 4MA ottone
    from £1.81
    from £1.81
    M4 BRASS SPECIAL NUT Genuine Lamborghini - New In stock
    # 012
    MPN: 001721203
    ELECTRIC FAN
    (Valid for U.S.A - May 1985) Elettroventilatore
    from £40.00
    from £40.00
    FAN Genuine Lamborghini - New In stock
    FAN Genuine Lamborghini - Used In stock
    # 013
    MPN: 008400606
    WASHER
    (Valid for U.S.A - May 1985) Rond. 6,4 UNI 1734
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 014
    MPN: 008200606
    NUT
    (Valid for U.S.A - May 1985) Dado N/70/1 06M
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 015
    MPN: 004121324
    CROSS MEMBER
    (Valid for U.S.A - May 1985) Traversa supp. radiatore acqua
    from £160.02
    from £160.02
    RADIATOR FRONT CROSSMEMBER Genuine Lamborghini - New (to order)
