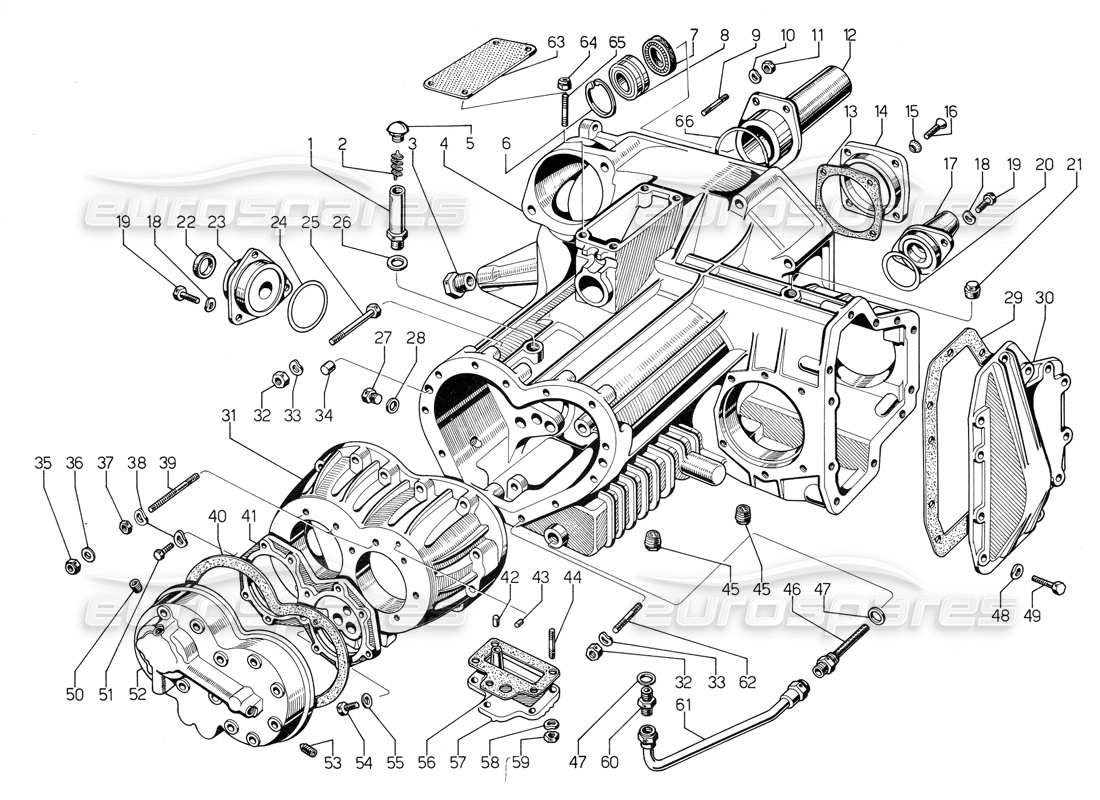

lamborghini jalpa 3.5 (1984) gerbox (castings) parts diagram

017 - Gerbox (Castings)

Lamborghini Jalpa 3.5 (1984) Gerbox (Castings) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 802305118
    PIPE
    Differential breather pipe
    PIPE Genuine Lamborghini - New (to order)
    # 002
    MPN: 001108412
    OIL MESH
    Oil breather flame arrester
    from £8.76
    from £8.76
    OIL BREATHER FLAME TRAP Genuine Lamborghini - New (to order)
    # 003
    MPN: 004108896
    FITTIN BOLT
    Riduz. supp. mot. cambio/U
    from £37.77
    from £37.77
    ENGINE-GEARBOX MOUNTADAPTER Genuine Lamborghini - New (to order)
    # 004
    MPN: 002411167
    Gear Box
    (Valid For the first 104 cars only) Scatola cambio diff./U
    GEARBOX AND DIFFERENTIAL Genuine Lamborghini - New (to order)
    # 004
    MPN: 002420960
    GEARBOX
    SCATOLA CAMBIO
    from £858.13
    from £858.13
    GEARBOX & DIFFERENTIAL Genuine Lamborghini - New (to order)
    # 005
    MPN: 002302182
    PIPE
    Sfiato olio differ.
    from £143.54
    from £143.54
    DIFFERENTIAL OIL BREATHER PIPE Genuine Lamborghini - New (to order)
    # 006
    MPN: 008575001
    LOCK RING
    SEEGER AA 47 I
    from £0.57
    from £0.57
    O-RING I 47 UNI 3654 Genuine Lamborghini - New In stock
    # 007
    MPN: 008613001
    SEAL RING
    (Valid For the first 104 cars only) Paraolio Smim 3047/6
    from £9.66
    from £9.66
    OIL SEAL 30X47X6 MM Genuine Lamborghini - New (to order)
    # 007
    MPN: 008613004
    SEALRING
    Seal ring 0 30 x 42 x 7
    from £9.66
    from £9.66
    OIL SEAL 30X42X7 MM Genuine Lamborghini - New (to order)
    # 008
    MPN: 008523511
    ROLLER BEAR
    CUSCINETTO A RULLI
    from £45.36
    from £45.36
    BEARING Genuine Lamborghini - New (to order)
    # 009
    MPN: 008300604
    BOLT
    Prig. M6x13 ric. UNI 5914 8G
    from £12.15
    from £12.15
    STUD M6X13 UNI 5914/8G/ZD Genuine Lamborghini - New (to order)
    # 010
    MPN: 008410603
    LOCK WASHER
    Rond. A6,4 UNI 1751 C72
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 011
    MPN: N01100637
    NUT
    Dado M6 UNI 5588 65/8G
    from £0.53
    from £0.53
    This part replaces part number 003303099 - and 1 more. Click to view details
    HEX.NUT Genuine Lamborghini - New In stock
    # 012
    MPN: 002406364
    RING SUPPOR
    (Valid For the first 104 cars only) Supp. manic. reggisp./U
    from £193.19
    from £193.19
    THRUST SLEEVE BRACKET Genuine Lamborghini - New (to order)
    # 012
    MPN: 002420112
    SLEEVE
    CLUTCH THRUST BEARING SLEEVE
    from £204.80
    from £204.80
    BRACKET Genuine Lamborghini - New (to order)

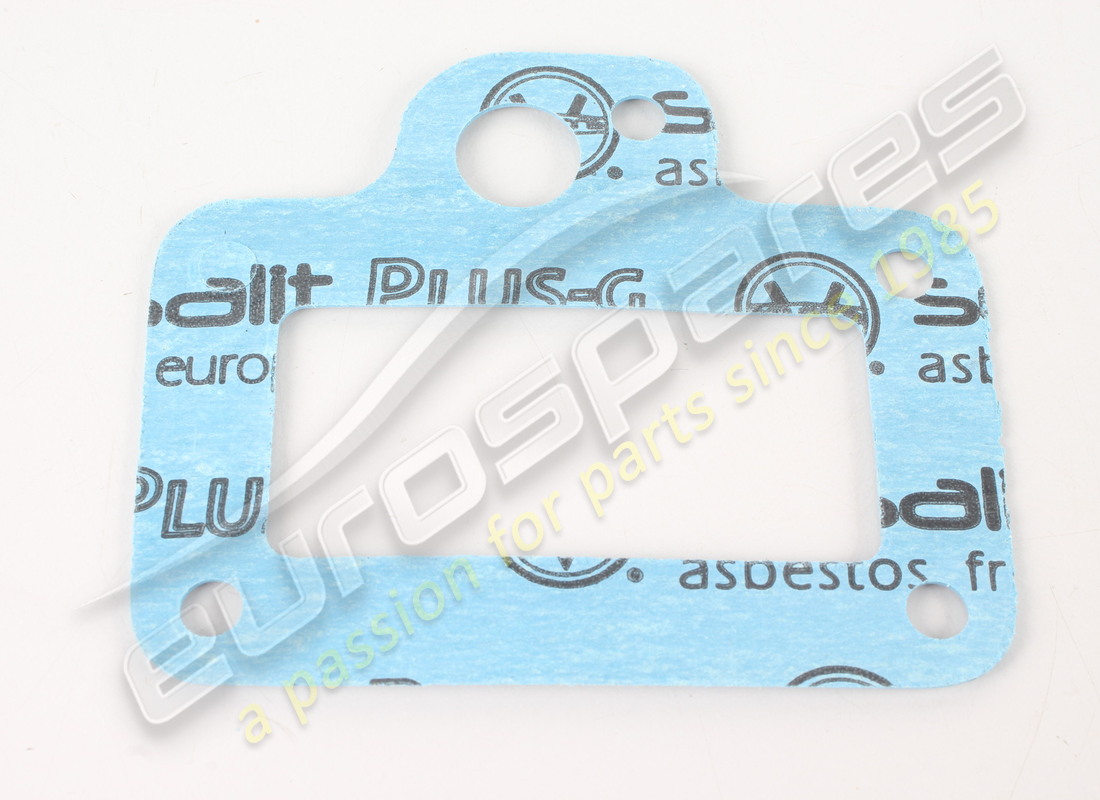

    # 013
    MPN: 002407496
    GASKET
    Guam. cop. ritegno CSN est.
    from £13.66
    from £13.66
    GASKET Genuine Lamborghini - New (to order)
    # 014
    MPN: 002407495
    COVER
    Coper, ant. scat. cambio/U
    from £13.93
    from £13.93
    GEARBOX FRONT COVER Genuine Lamborghini - New (to order)
    # 015
    MPN: 008410605
    LOCK WASHER
    Rond. dent. D 6 svas.
    from £1.58
    from £1.58
    CORRUGATED WASHER D 6 Genuine Lamborghini - New (to order)
    # 016
    MPN: 008700603
    SCREW
    Vite M 6x20 UNI 5933 12K
    from £1.58
    from £1.58
    SCREW M6X20 UNI 593312K/Z Genuine Lamborghini - New (to order)
    # 017
    MPN: 002406672
    SUPPOR
    Supp. asta selez. marce/U
    from £22.60
    from £22.60
    GEAR SELECTOR LEVER BRACKET Genuine Lamborghini - New (to order)
    # 018
    MPN: 008410602
    LOCK WASHER
    Ros. el. 6,4x12x0,5
    from £26.95
    from £26.95
    WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New (to order)
    # 019
    MPN: 008100603
    BOLT
    Bull. M6x25 UNI 5739 65A 8G
    from £0.90
    from £0.90
    SCREW M6X25 UNI 5739-8G ZG Genuine Lamborghini - New In stock
    # 020
    MPN: 008604202
    SEAL RING
    ANELLO OR 3168
    from £1.08
    from £1.08
    RING 43 MM OR Genuine Lamborghini - New In stock
    # 021
    MPN: 01S409965
    PLUG
    Cap 18x1,5conico
    from £105.93
    from £105.93
    This part replaces part number 008931802
    PLUG Genuine Lamborghini - New In stock
    # 022
    MPN: 008611706
    SEAL RING
    from £5.58
    from £5.58
    LIP SEAL Genuine Lamborghini - New (to order)
    # 023
    MPN: 002406654
    SUPPOR
    Supp. asta com. cambio/U
    from £47.68
    from £47.68
    GEAR ROD BRACKET Genuine Lamborghini - New (to order)
    # 024
    MPN: 008605001
    SEAL RING
    ANELLO OR 3200
    from £0.82
    from £0.82
    OR RING Genuine Lamborghini - New In stock
    # 025
    MPN: 008100822
    BOLT
    Bull. M8x60 UNI 5737 8G
    from £3.70
    from £3.70
    SCREW M8X60 UNI 57378G/ZD Genuine Lamborghini - New (to order)
    # 026
    MPN: 008401414
    WASHER
    Rond. rame 14x24x1,5
    from £1.65
    from £1.65
    COPPER WASHER 14X24X0,04513888 8889 Genuine Lamborghini - New In stock
    # 027
    MPN: 008931201
    PLUG
    Tappo D. 12x1,25x9 oil 5S
    from £22.68
    from £22.68
    PLUG D.12X1.25X9 OIL5S Genuine Lamborghini - New (to order)
    # 028
    MPN: WHT003362
    WASHER
    Rond. d. 12x22x1,5 rame
    from £0.92
    from £0.92
    COPPER WASHER D.12X22X1.5 Genuine Lamborghini - New In stock
    # 029
    MPN: 002408619
    GASKET
    Guam. cop. differenz./U
    from £22.35
    from £22.35
    DIFFERENTIAL COVER SEAL Genuine Lamborghini - New (to order)
    # 030
    MPN: 002408620
    COVER
    Coperchio differ./U
    from £92.45
    from £92.45
    DIFFERENTIAL COVER Genuine Lamborghini - New (to order)
    # 031
    MPN: 002406535
    REAR GEAR B
    Scatola post. cambio/U
    from £200.23
    from £200.23
    REAR GEARBOX Genuine Lamborghini - New (to order)
    # 032
    MPN: 008200806
    NUT
    DADO M8 UNI 5588-65/8G
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 033
    MPN: WHT001514
    LOCK WASHER
    Ros. el. 8,4x17x0,8
    from £15.09
    from £15.09
    This part replaces part number 008410805
    SPRING WASHER Genuine Lamborghini - New In stock
    # 034
    MPN: 008851101
    DOWEL
    Bocc. D 8,5x11x14
    from £23.35
    from £23.35
    BUSHING 8.5X11X14 MM Genuine Lamborghini - New (to order)
    # 035
    MPN: 008200605
    NUT
    DADO NCM/70/106M
    from £1.72
    from £1.72
    M6 NCM 70 URAMA SIMMON NUT Genuine Lamborghini - New In stock
    # 036
    MPN: WHT003041
    WASHER
    ROND. 6,4x13x1,5 RAME
    from £0.51
    from £0.51
    This part replaces part number 008400609 - and 1 more. Click to view details
    SOFT COPPER WASHER 6.4X12X1.5 Genuine Lamborghini - New In stock
    # 037
    MPN: N01100637
    NUT
    DADO M6 UNI 5588-65/8G
    from £0.51
    from £0.51
    This part replaces part number 003303099 - and 1 more. Click to view details
    HEX.NUT Genuine Lamborghini - New In stock
    # 038
    MPN: 008410602
    LOCK WASHER
    Ros. el. 6,4x12x0,5
    from £26.77
    from £26.77
    WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New (to order)
    # 039
    MPN: 008300620
    BOLT
    PRIG. 6x1x46 8G
    from £0.78
    from £0.78
    SPECIAL STUD M6X46 Genuine Lamborghini - New (to order)
    # 040
    MPN: 002407515
    GASKET
    Guam. cop. post. cambio/U
    from £12.82
    from £12.82
    GEARBOX REAR COVER SEAL Genuine Lamborghini - New (to order)
    # 041
    MPN: 002406502
    FLANGE
    Flangia supp. CSN cambio/U
    from £53.73
    from £53.73
    FLANGE Genuine Lamborghini - New (to order)
    # 042
    MPN: 008850610
    DOWEL
    Grano scat, cambio
    from £4.73
    from £4.73
    REFERENCE PIN 6H6X19.5 C40 Genuine Lamborghini - New (to order)
    # 043
    MPN: 008850502
    DOWEL
    GRANO 5x11 C40
    from £3.70
    from £3.70
    DOWEL 5X11 MM Genuine Lamborghini - New (to order)
    # 044
    MPN: 008300610
    BOLT
    PRIG. 6x1x16 8G
    from £15.47
    from £15.47
    STUD 6X1X16 8G UNI5911 Z. Genuine Lamborghini - New In stock
    # 045
    MPN: 086301141A
    PLUG
    Tappo magnet. 22x1,5
    from £22.53
    from £22.53
    MAGNETIC PLUG 22X1.5 Genuine Lamborghini - New (to order)
    # 046
    MPN: 002408636
    OIL FIL UNI
    Race, filtro olio cambio/U
    from £16.41
    from £16.41
    GEARBOX OIL FILTER UNION Genuine Lamborghini - New (to order)
    # 047
    MPN: 008401408
    WASHER
    ROND. 14,5x21x1,5 RAME
    from £1.29
    from £1.29
    ANNEALED COPPER WASHER 21X14X1 .5 Genuine Lamborghini - New In stock
    # 048
    MPN: 008410602
    LOCK WASHER
    Ros. el. 6,4x12x0,5
    from £26.95
    from £26.95
    WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New (to order)
    # 049
    MPN: 008100603
    BOLT
    Bull. M6x25 UNI 5739-65A 8G
    from £0.90
    from £0.90
    SCREW M6X25 UNI 5739-8G ZG Genuine Lamborghini - New In stock
    # 050
    MPN: 008930901
    PLUG
    TAPPO 1/8 GAS CONICO
    from £6.43
    from £6.43
    TAPER GAS PLUG 1/8 Genuine Lamborghini - New (to order)
    # 051
    MPN: 008100603
    BOLT
    Bull. M6x25 UNI 5739-65A 8G
    from £0.93
    from £0.93
    SCREW M6X25 UNI 5739-8G ZG Genuine Lamborghini - New In stock
    # 052
    MPN: 002408621
    COVER
    Coper, con pompa olio/U
    from £158.78
    from £158.78
    COVER & OIL PUMP Genuine Lamborghini - New (to order)
    # 053
    MPN: 008700606
    SCREW
    Vite El M6x1x10 12K
    from £0.51
    from £0.51
    SCREW EI M6X1X10 12KD Genuine Lamborghini - New In stock
    SCREW EI M6X1X10 12KD Genuine Lamborghini - New (other) In stock
    (Valid for June 1992 version) GRAND (dalla 12678)
    # 054
    MPN: 008100839
    BOLT
    Bull. M8/10 UNI 5739/8G
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 055
    MPN: 008400802
    WASHER
    Rond. 8x16x1,5 rame
    from £1.03
    from £1.03
    COPPER WASHER 8.4X16X1.5 Genuine Lamborghini - New In stock
    # 056
    MPN: 002407480
    GASKET
    Guam. cop. inf. cambio/U
    from £2.33
    from £2.33
    GEARBOX LOWER COVER SEAL Genuine Lamborghini - New In stock
    # 057
    MPN: 002407479
    COVER
    Coper, inf. scat. cambio/U
    from £23.18
    from £23.18
    GEARBOX LOWER COVER Genuine Lamborghini - New (to order)
    # 058
    MPN: 008410602
    LOCK WASHER
    Ros. el. 6,4x12x0,5
    from £28.09
    from £28.09
    WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New (to order)
    # 059
    MPN: N01100637
    NUT
    DADO M6 UNI 5588-65/8G
    from £0.52
    from £0.52
    This part replaces part number 003303099 - and 1 more. Click to view details
    HEX.NUT Genuine Lamborghini - New In stock
    # 060
    MPN: 002408627
    OIL PIPE
    Race, tubo asp. olio cambio
    from £9.63
    from £9.63
    GEARBOX OIL INLET UNION PIPE Genuine Lamborghini - New (to order)
    # 061
    MPN: 002408634
    PIPE
    Tubo pompa olio cambio/U
    from £74.27
    from £74.27
    GEARBOX OIL PUMP PIPE Genuine Lamborghini - New (to order)
    # 062
    MPN: 008300808
    BOLT
    use : WHT003027
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 063
    MPN: 002407502
    GUARD, COVER
    Lamiera prot. foro friz.
    from £7.55
    from £7.55
    CLUTCH HOLE GUARD COVER Genuine Lamborghini - New (to order)
    # 064
    MPN: 008200809
    NUT
    DADO B/70/208M
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 065
    MPN: 008300822
    BOLT
    Prig. 8x1,25x18 8G
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 066
    MPN: 008605601
    SEAL RING
    ANELLO OR 3225
    from £31.31
    from £31.31
    OR RING Genuine Lamborghini - New In stock
    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
