lamborghini jalpa 3.5 (1984) front brakes parts diagram

020 - Front Brakes

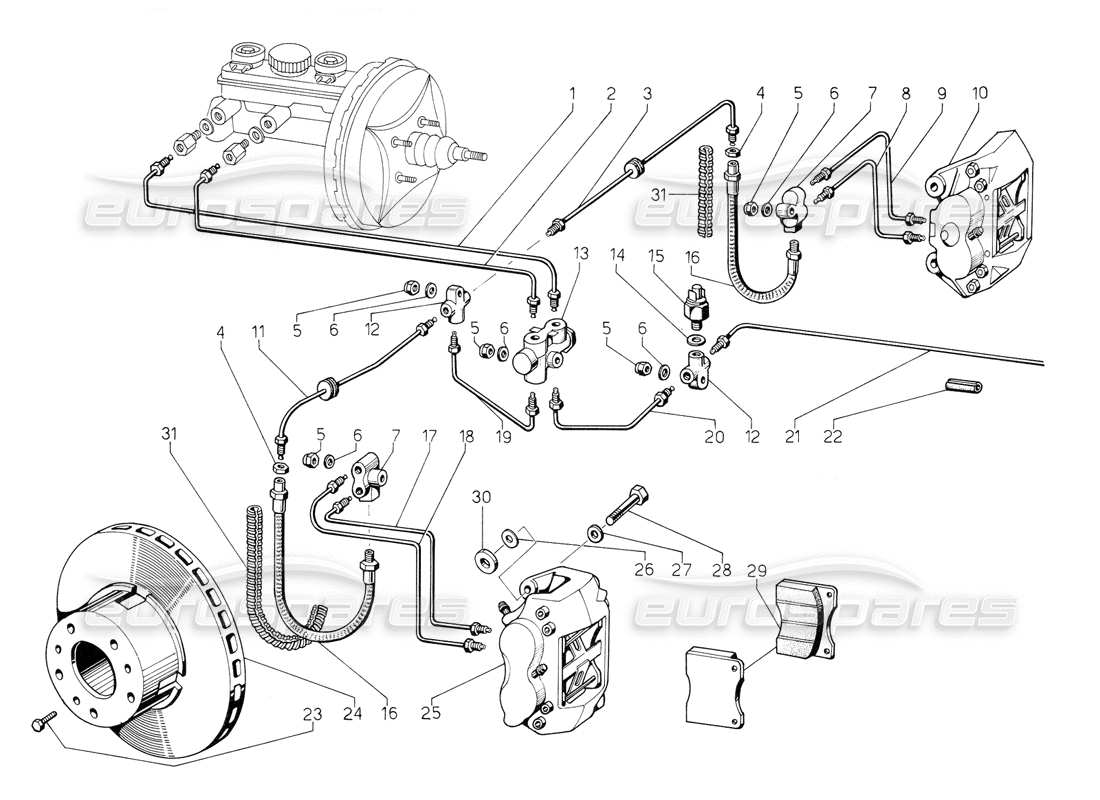

Lamborghini Jalpa 3.5 (1984) Front Brakes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 003221094
    PIPE
    Tubo dal servofr. al disp. sicur. post.
    from £14.77
    from £14.77
    BRAKE BOOSTER PIPE/SAFETY DEVI CE Genuine Lamborghini - New (to order)
    # 002
    MPN: 003121090
    PIPE
    Tubo coll. dal servofr. al disp. sicur. ant.
    from £14.80
    from £14.80
    MANIFOLD PIPE FROM BRAKE BOOST ER Genuine Lamborghini - New (to order)
    # 003
    MPN: 003121109
    PIPE
    (Valid for RH D.) Tubo dal 3 vie ant. alia ruota destra
    Lamborghini PART 003121109 Genuine Lamborghini - New (to order)
    # 003
    MPN: 003121241
    PIPE
    Tubo dal 3 vie ant. alia ruota des.
    from £14.77
    from £14.77
    PIPE FROM THREE-WAY TO WHEEL Genuine Lamborghini - New (to order)
    # 004
    MPN: 008201004
    NUT
    Dado M1 0x1, 25x6/80
    from £0.58
    from £0.58
    M10X1.25X6 UNI 5589 NUT Genuine Lamborghini - New (to order)
    # 005
    MPN: 008200606
    NUT
    DADO N/70/106M
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 006
    MPN: 008400606
    WASHER
    Bond. 6,4 UNI 1734
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 007
    MPN: 003108672
    GROSS PIPE
    Race. 3 vie freni/U
    from £36.67
    from £36.67
    BRAKE THREE-WAY UNION Genuine Lamborghini - New (to order)
    # 008
    MPN: 003120223
    TUBE
    Tubo x imp. freni coll. pinza ds. al 3 vie
    from £12.77
    from £12.77
    BRAKE SHOE SYSTEM PIPE Genuine Lamborghini - New (to order)
    # 009
    MPN: 003108674
    BRAKE PIPE
    Tubo pinza des./3 vie
    from £12.74
    from £12.74
    RH SHOE PIPE/THREE-WAY Genuine Lamborghini - New (to order)
    # 010
    MPN: 003112007
    RIGHT FRONT BRAKE CALIPER
    (exchange required)
    from £1,185.64
    from £1,185.64
    RH FRONT BRAKE CALIPER Genuine Lamborghini - New (to order)
    # 011
    MPN: 003121110
    PIPE
    (Valid for RH D.) Tubo dal 3 vie ant. alia ruota sinistra
    PIPE Genuine Lamborghini - New (to order)
    # 011
    MPN: 003121240
    PIPE
    Tubo dal 3 vie ant. alia ruota sin.
    from £37.19
    from £37.19
    PIPE FROM THREE-WAY TO WHEEL Genuine Lamborghini - New (to order)
    # 012
    MPN: 003208682
    GROSS PIPE
    Raccordo 3.3513.1000.1/02
    from £34.66
    from £34.66
    UNION Genuine Lamborghini - New (to order)
    # 013
    MPN: 003111243
    BRAKE VALVE
    Disp. sic. freni 14-07988/U
    from £131.87
    from £131.87
    BRAKE SAFETY DEVICE Genuine Lamborghini - New (to order)
    # 014
    MPN: 008401008
    WASHER
    Rond. rame 15x10x1
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 015
    MPN: 003208693
    BRAKE SWITC
    Cont. stop fr. 33526081 03/U
    from £85.39
    from £85.39
    BRAKE LIGHT CHECK Genuine Lamborghini - New In stock
    # 016
    MPN: 003208683
    BRAKE PIPE
    Tubo fless. vs. rif. 0.63244.10
    from £31.20
    from £31.20
    HOSE Genuine Lamborghini - New In stock
    HOSE Genuine Lamborghini - Used In stock
    # 017
    MPN: 003120224
    TUBE
    Tubo x imp. freni coll. pinza Sin. al 3 vie
    from £12.77
    from £12.77
    BRAKE SHOE SYSTEM PIPE Genuine Lamborghini - New (to order)
    # 018
    MPN: 003108676
    BRAKE PIPE
    Tubo pinza sin./3 vie
    from £12.74
    from £12.74
    LH SHOE PIPE/THREE-WAY Genuine Lamborghini - New (to order)
    # 019
    MPN: 003121091
    PIPE
    Tubo dal disp. sicur al 3 vie
    PIPE Genuine Lamborghini - New (to order)
    # 020
    MPN: 003121095
    PIPE
    Tubo dal disp. sicur. al 3 vielidrostop
    PIPE Genuine Lamborghini - New (to order)
    # 020
    MPN: 003221108
    PIPE
    (Valid for RH D.)Tubo dal dispositive di sicurezza al 3 vie idrostop
    from £39.22
    from £39.22
    TUBE FROM SAFETY DEVICE TO THR EE-WAY Genuine Lamborghini - New (to order)
    # 021
    MPN: 003221096
    PIPE
    Tubo coll. idrostop al 3 vie post.
    from £39.22
    from £39.22
    IDROSTOP PIPE/THREE-WAY Genuine Lamborghini - New (to order)
    # 022
    MPN: 410721493
    RUBBER
    Gomm. prot. tubo freni
    from £32.77
    from £32.77
    BRAKE PIPE PROTECTION RUBBER W ASHER Genuine Lamborghini - New In stock
    # 023
    MPN: N01029315
    BOLT
    Bull. M8x16 UNI 5739/8G
    from £0.80
    from £0.80
    HEXAGON HEAD BOLT Genuine Lamborghini - New In stock
    # 024
    MPN: 003106919
    BRAKE DISC.
    Disco freni ant. /post. vent.
    from £985.69
    from £985.69
    VENTILATED FRONT/REAR BRAKE DI SC Genuine Lamborghini - New (to order)
    # 025
    MPN: 003112008
    LEFT FRONT BRAKE CALIPER
    (exchange required)
    from £889.23
    from £889.23
    LH FRONT BRAKE CALIPER Genuine Lamborghini - New (to order)
    LH FRONT BRAKE CALIPER Genuine Lamborghini - Reconditioned In stock
    # 026
    MPN: 008401305
    WASHER
    Rond. 13x22x* C72
    from £0.54
    from £0.54
    WASHER 13X22X* C 72 Genuine Lamborghini - New (to order)
    # 027
    MPN: 008411303
    LOCK WASHER
    Rond. el. a 13 UNI 1751
    from £1.80
    from £1.80
    SNAP RING 21X13X2.5 UNI 175 1 C72/Z Genuine Lamborghini - New (to order)
    # 028
    MPN: 008101252
    BOLT
    Bullone fiss pinze freni
    from £12.90
    from £12.90
    SPECIAL SCREW M12X1X40 Genuine Lamborghini - New (to order)
    # 029
    MPN: 003135292
    FRONT BRAKE PADS
    from £89.25
    from £89.25

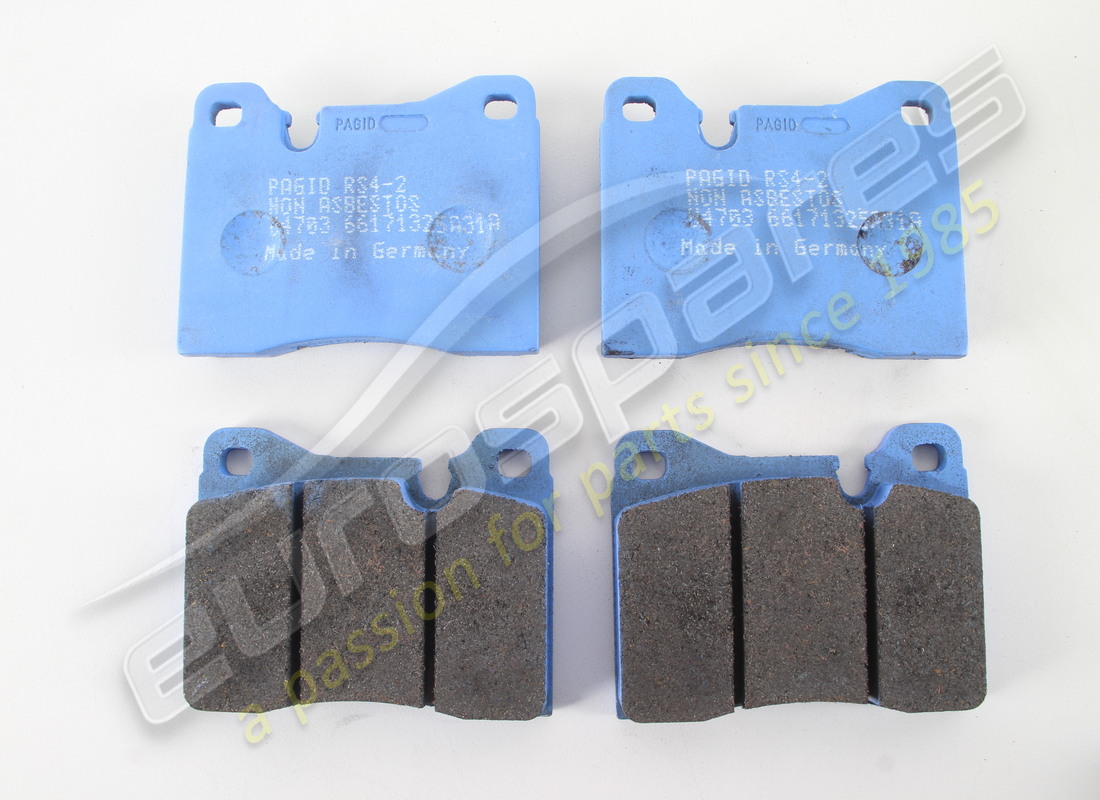

    FRONT BRAKE SINGLE PAD Genuine Lamborghini - New (to order)

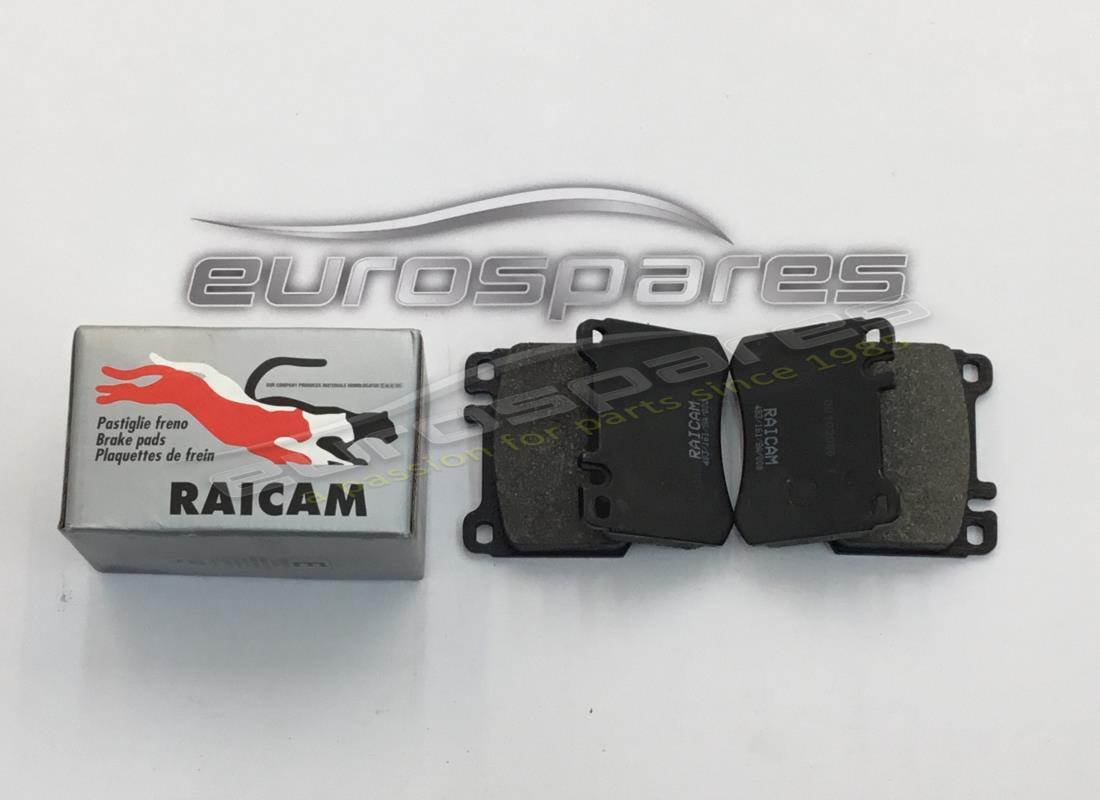

    FRONT BRAKE PAD Eurospares Approved Part - New (to order)
    FRONT BRAKE SINGLE PAD Genuine Lamborghini - New (other) In stock
    PRICE EACH PAD
    FRONT BRAKE PAD Eurospares Approved Part - New (other) In stock
    Set of 4
    # 030
    MPN: 003121719
    SPACER
    Distanziale fiss. pinze freni
    from £2.95
    from £2.95
    HUB & SHOE SHIM Genuine Lamborghini - New (to order)
    # 031
    MPN: 003121766
    SHEATING
    Protezione tubo fless. freni ant.
    SHEATING Genuine Lamborghini - New (to order)
