lamborghini jalpa 3.5 (1984) chassis parts diagram

023 - CHASSIS

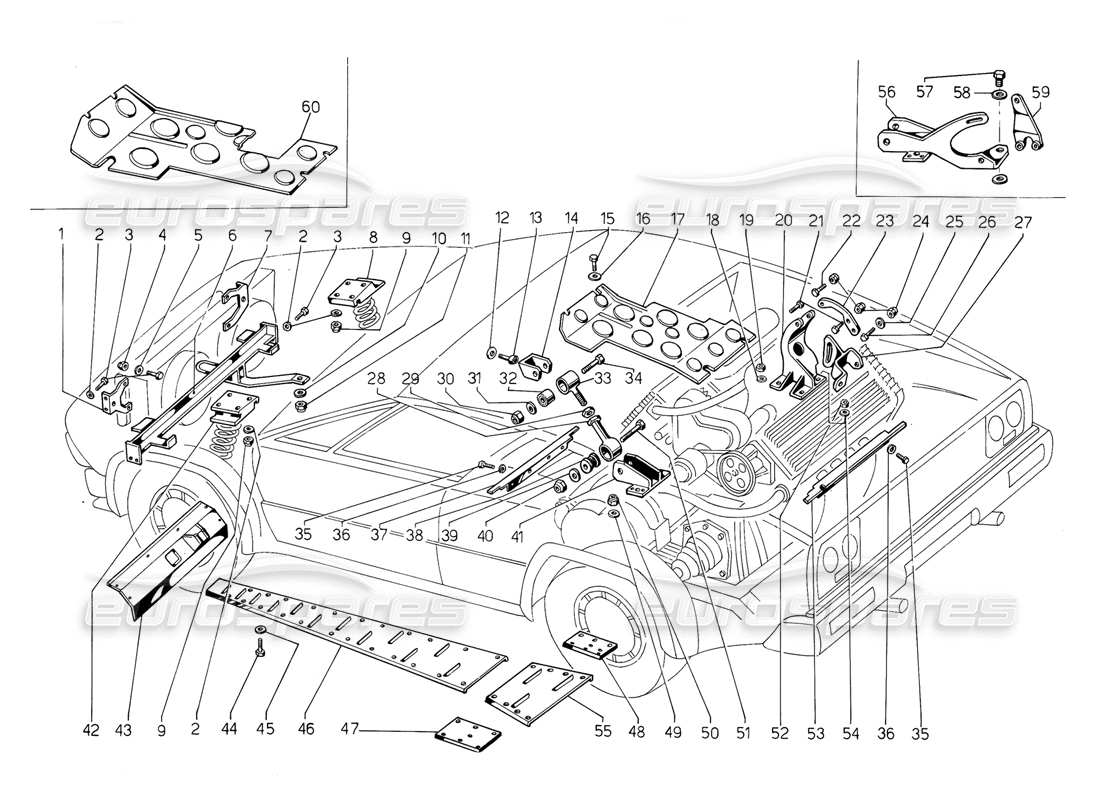

Lamborghini Jalpa 3.5 (1984) Chassis Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      MPN: 004113488
      SUPPOR
      Supp. rad. aoqua e cond. sin.
      from £113.59
      from £113.59
      # 002
      MPN: 008410806
      LOCK WASHER
      Rond. Fl. A8,4 UNI 1751
      Supersession
      Supersession
      # 003
      MPN: N01029315
      BOLT
      Bull. M8x16 UNI 5739/8G
      from £0.75
      from £0.75

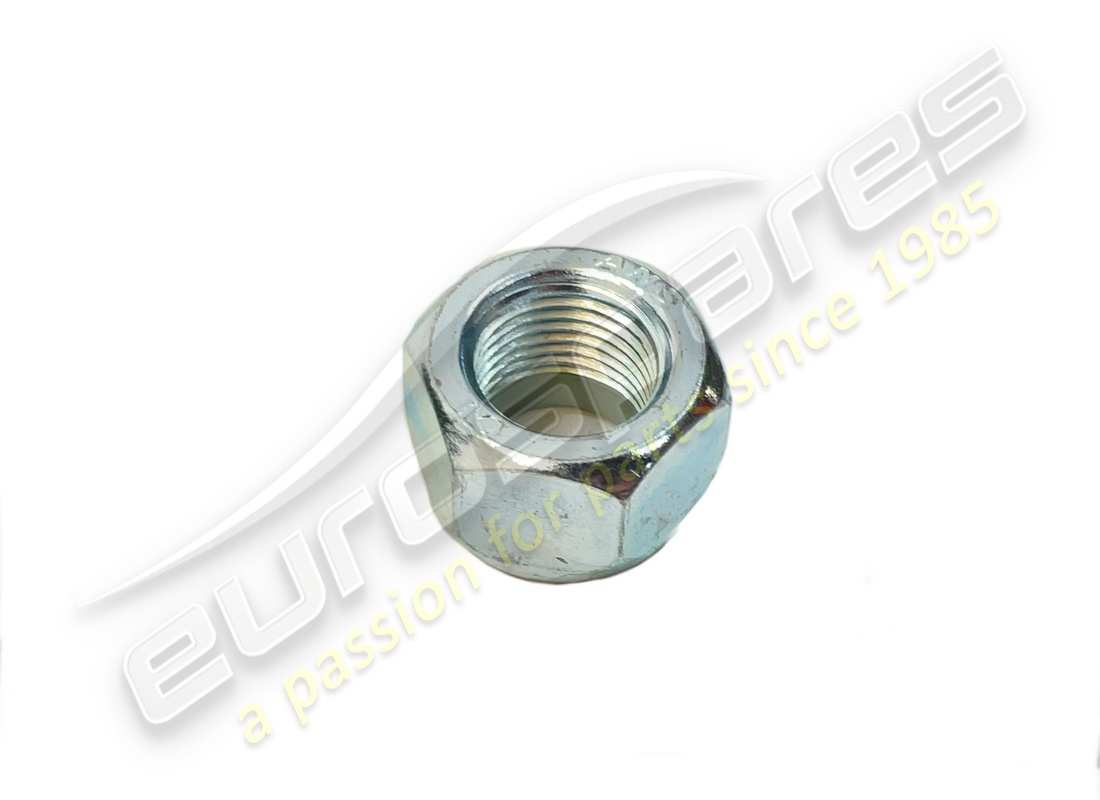

      # 004
      MPN: 008200809
      NUT
      DADO B/70/208M
      Supersession
      Supersession
      # 005
      MPN: 008400801
      WASHER
      Rond. 8,4 UNI 1734 8G
      Supersession
      Supersession
      # 006
      MPN: 004120244
      MOUNTING
      Trav. ant. sostegno radiatore acqua
      from £111.10
      from £111.10
      # 007
      MPN: 004113493
      SUPPOR
      Supp. rad. acpua e cond. des./S
      from £113.59
      from £113.59
      # 008
      MPN: 004120669
      SPACER
      Dist. x ammortizz. ant. dex.
      from £90.38
      from £90.38
      # 009
      MPN: 008200808
      NUT
      DADO M8 UNI 5587-65/8G
      Supersession
      Supersession
      # 010
      MPN: 008401006
      WASHER
      Rond. A10.5 UNI 1734
      from £0.54
      from £0.54
      # 011
      MPN: 008201010
      NUT
      DADO N/70/110M
      from £0.89
      from £0.89
      # 012
      MPN: 008400801
      WASHER
      Rond. 8,4 UNI 1734 8G
      Supersession
      Supersession
      # 013
      MPN: 008700815
      SCREW
      VITE 8x1,25x19 UNI 5931 8G
      from £0.53
      from £0.53
      # 014
      MPN: 004111845
      ATACH
      Attacco punT. reaz./U
      from £37.77
      from £37.77
      # 015
      MPN: 008100840
      BOLT
      Bull. M8x18 UNI 5739/8G
      from £0.53
      from £0.53
      # 016
      MPN: WHT001942
      WASHER
      Rond. 0.8,5x32x2,5
      from £2.06
      from £2.06
      # 017
      MPN: 006113501
      SHIELD
      Engine compartment bulkhead
      from £261.99
      from £261.99
      # 018
      MPN: WHT001514
      LOCK WASHER
      Ros. el. 8,4x17x0,8
      from £15.09
      from £15.09
      This part replaces part number 008410805
      # 019
      MPN: 008200806
      NUT
      DADO M8 UNI 5588-65/8G
      Supersession
      Supersession
      # 020
      MPN: 004513465
      SUPPOR
      Supp. compress. abacus/U
      from £164.62
      from £164.62
      # 021
      MPN: 008101008
      BOLT
      Bull. M10x30 UNI 5739 8G
      from £9.69
      from £9.69
      # 022
      MPN: 008101048
      BOLT
      Bull. M10x35 UNI 5737 8G
      from £2.29
      from £2.29
      # 023
      MPN: 004513467
      CLAMP
      Cavall. Regolaz. abacus/U
      from £36.82
      from £36.82
      # 024
      MPN: 008201008
      NUT
      DADO B/70/210M
      from £0.55
      from £0.55
      # 025
      MPN: 008401007
      WASHER
      ROND. 10x20x2 5S
      from £0.53
      from £0.53
      # 026
      MPN: 008101031
      BOLT
      Bull. M10x25 UNI 5739/8G
      Supersession
      Supersession
      # 027
      MPN: 004519673
      SUPPORT
      Supportini x compress, rotative Jalpa
      from £94.11
      from £94.11
      # 028
      MPN: 004111842
      REGUL
      Registro punt. reaz./U
      # 029
      MPN: 008201807
      NUT
      Dado 18x1 5S
      from £14.98
      from £14.98
      # 030
      MPN: 008201603
      NUT
      Dado 8/70/216x1, 5M
      from £2.25
      from £2.25
      # 031
      MPN: 008401611
      WASHER
      Rond. 17x29x3 5S UNI 16592
      from £8.84
      from £8.84
      # 032
      MPN: 008921607
      SILENT BLOC
      Supp. el. sutuco F. 82015/1
      from £22.19
      from £22.19
      # 033
      MPN: 004111843
      BUSH
      Boccolo punt. reaz./U
      from £54.73
      from £54.73
      # 034
      MPN: 008101609
      BOLT
      Bull. 16x1,5x80 CH24 10K
      from £105.81
      from £105.81
      # 035
      MPN: 008100508
      BOLT
      Bull. M5X10 UNI 5739-65/A5S
      from £3.65
      from £3.65
      # 036
      MPN: 008410502
      LOCK WASHER
      Rond. A5.3 UNI 1751 C72
      Supersession
      Supersession
      # 037
      MPN: 006111456
      HEAD GUARD
      Paratia testa des./U
      from £26.37
      from £26.37
      # 038
      MPN: 0B9501144
      SUPPORT MOUNT
      from £115.28
      from £115.28
      This part replaces part number 008921408 - and 1 more. Click to view details
      # 038
      MPN: 0B9501144
      SUPPORT MOUNT
      from £115.28
      from £115.28
      This part replaces part number 008921408 - and 1 more. Click to view details
      # 039
      MPN: 008401413
      WASHER
      Rond. 14,4x26x3
      from £0.64
      from £0.64
      # 040
      MPN: 008201406
      NUT
      Dado B/10/214x1, 5M
      from £0.60
      from £0.60
      # 041
      MPN: 004111951
      ATACH
      Attacco punt. cambio/U
      from £56.63
      from £56.63
      # 042
      MPN: 004120668
      SPACER
      Dist. x ammortizz. ant. sin.
      from £90.38
      from £90.38
      # 043
      MPN: 004120291
      AIR DOOR
      Portella x convogliatore aria
      # 044
      MPN: 008100620
      BOLT
      Bull. M6x1 2 UNI 5739/59
      from £3.65
      from £3.65
      # 045
      MPN: 008400607
      WASHER
      Rond. 6,5x18x1,5
      Supersession
      Supersession
      # 046
      MPN: 004120246
      TUNNEL DOOR
      lamiera inf. ant. chiusura tunnel
      from £576.24
      from £576.24
      # 047
      MPN: 004120236
      TANK GUARD
      Left tank guard door
      from £76.78
      from £76.78
      # 048
      MPN: 004120235
      TANK GUARD
      Portella riparo serbatoio des.
      from £76.78
      from £76.78
      # 049
      MPN: 008400801
      WASHER
      Rond. 8,4 UNI 1734 8G
      Supersession
      Supersession
      # 050
      MPN: 008200804
      NUT
      DADO N/70/108M
      from £0.71
      from £0.71
      # 051
      MPN: 008101409
      BOLT
      Bull. 14x1,5x75 8G CH22
      from £18.04
      from £18.04
      # 052
      MPN: 008201013
      NUT
      DADO M10 UNI 5588-8G
      # 053
      MPN: 006111456
      HEAD GUARD
      Paratia testa des./U
      from £26.37
      from £26.37
      # 054
      MPN: WHT000768
      LOCK WASHER
      from £1.28
      from £1.28
      This part replaces part number 008410806 - and 1 more. Click to view details
      # 055
      MPN: 004120292
      TUNNEL DOOR
      Lamiera inf. post, chiusura tunnel
      from £406.38
      from £406.38
      # 056
      MPN: 004613682
      SUPPOR
      (Valid for Switzerland only September 1984) Supporto pompa aria
      # 057
      MPN: 008101802
      BOLT
      (Valid for Switzerland only September 1984) Bull. Fiss. Supp. pompa aria
      from £6.70
      from £6.70
      # 058
      MPN: 008401804
      WASHER
      (Valid for Switzerland only September 1984) Rond. rame 18,2x30x1
      from £2.53
      from £2.53
      # 059
      MPN: 004613683
      SUPPOR
      (Valid for Switzerland only September 1984) Supportino pompa aria
      # 060
      MPN: 006121513
      ENGINE GUARD
      (Valid for Switzerland only September 1984) Paratia vano motore
