026 - Pedals

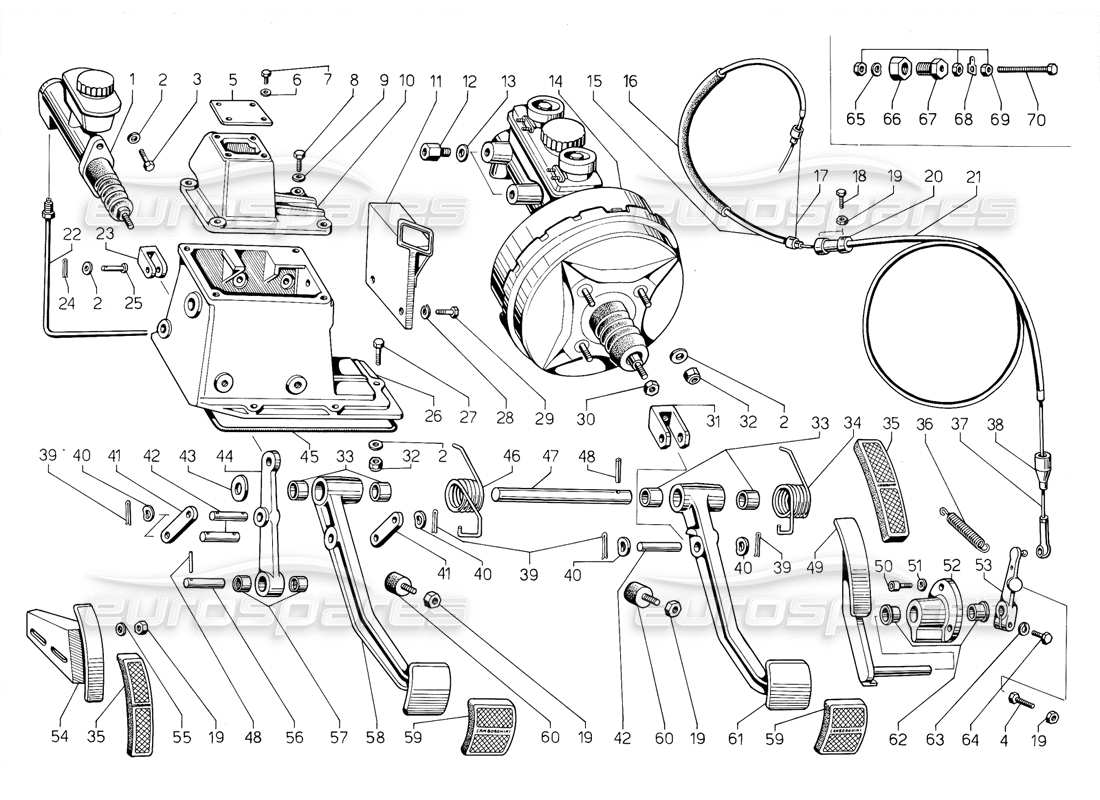

Lamborghini Jalpa 3.5 (1984) Pedals Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      MPN: 004220939
      Clutch Pump
      Clutch control pump
      from £118.89
      from £118.89
      # 002
      MPN: 008400801
      WASHER
      Rond. 8,4 UNI 1734 8G
      Supersession
      Supersession
      # 003
      MPN: 008100841
      BOLT
      Bull. M8x30 UNI 5737/10K
      Supersession
      Supersession
      # 004
      MPN: 008100632
      BOLT
      Bull. M6x30 UNI 5739-65A 5S
      from £1.71
      from £1.71
      # 005
      MPN: 004220948
      COVER
      Coperchietto sul suppor. pompa frizione
      from £9.37
      from £9.37
      # 006
      MPN: 008400606
      WASHER
      Rond. 6,4 UNI 1734
      Supersession
      Supersession
      # 007
      MPN: 008100508
      BOLT
      Bull. M5x10 UNI 5739-65/A55
      from £3.65
      from £3.65
      # 008
      MPN: 008100803
      SCREW
      Vite fissa pinat. al supporto
      Supersession
      Supersession
      # 009
      MPN: 008400806
      WASHER
      Rond. 8,4x16
      from £0.53
      from £0.53
      # 010
      MPN: 004220940
      PUMP SUPP
      Clutch pump support
      from £104.06
      from £104.06
      # 011
      MPN: 004113503
      WHEEL SUPP
      Supp. ruota scorta fissatori al supp. pedaliera
      from £56.63
      from £56.63
      # 012
      MPN: 003219278
      TUBE
      Race, di riduz. pompa freni M10x1,25
      from £146.33
      from £146.33
      # 013
      MPN: 008401018
      WASHER
      Rondella raccordo pompa freni
      from £0.53
      from £0.53
      # 014
      MPN: 004220949
      BRK BOOSTER
      Brake booster with pump
      from £1,341.07
      from £1,341.07
      # 015
      MPN: 004221085
      SHEAFING
      Guaina per cavo accel. dalla boccola al carbur.
      from £12.19
      from £12.19
      # 016
      MPN: 004221086
      SHEATING
      Final accelerator cable protection
      from £10.95
      from £10.95
      # 017
      MPN: 004221087
      SHEATEND
      End of sheath on bushing and carburettor.
      from £10.95
      from £10.95
      # 018
      MPN: 008100617
      BOLT
      Bull. M6x18 UNI 5739 5S
      from £3.65
      from £3.65
      # 019
      MPN: N01100637
      NUT
      Dado M6 UNI 5588 65/8G
      from £0.53
      from £0.53
      This part replaces part number 008200604
      # 020
      MPN: 004221183
      BUSHING
      Rear bushing, x accelerator cable
      from £92.95
      from £92.95
      # 021
      MPN: 004221083
      PIPE
      Tubo x cavo accel. dal pedale alia boccola
      from £32.91
      from £32.91
      # 022
      MPN: 002121184
      PIPE
      Tubo rigido x colleg. tubo fless. a pompa friz.
      # 023
      MPN: 004208713
      FBRK
      Forcella x pedale friz. Urraco
      from £25.25
      from £25.25
      # 024
      MPN: 008820201
      SPLINI PIN
      Coppigl. 2x15 UNI 1336
      from £4.11
      from £4.11
      # 025
      MPN: 004220945
      PIN
      Clutch pump control pin
      from £18.25
      from £18.25
      # 026
      MPN: 004220935
      PEDAL SUPP
      Supp. pedale freno e frizione
      from £281.08
      from £281.08
      # 027
      MPN: 008100827
      BOLT
      Bull. M8x25 UNI 5739/8G
      Supersession
      Supersession
      # 028
      MPN: 008410806
      LOCK WASHER
      Rond. EL. A8,4 UNI 1751
      Supersession
      Supersession
      # 029
      MPN: 008100830
      BOLT
      Bull. M8x20 UNI 5739/8G
      from £0.53
      from £0.53
      # 030
      MPN: 008200811
      NUT
      DADO M8 UNI 5589-65/8G
      from £3.65
      from £3.65
      # 031
      MPN: 004220947
      BOOST FORK
      Fore, brake booster control on the brake pedal
      from £69.82
      from £69.82
      # 032
      MPN: 008200804
      NUT
      DADO N/70/108M
      from £0.65
      from £0.65
      # 033
      MPN: 008801802
      BUSH
      Boccola MB 18-15 DU
      from £28.86
      from £28.86
      # 034
      MPN: 004208710
      SPRING
      Molla rit. pedale freno/U
      from £18.86
      from £18.86
      # 035
      MPN: 004203128
      PEDAL COVER
      Copert. pedale acceleratore
      from £45.00
      from £45.00
      # 036
      MPN: 002104216
      CLUTCH SPRI
      Molla rit. leva frizione
      from £27.58
      from £27.58
      # 037
      MPN: 004220814
      CABLE
      Compl. cavo carbur. al pedale accel.
      from £4.50
      from £4.50
      # 038
      MPN: 003307535
      GUARD, RUBBE
      Protez. cavo FM/U/C
      from £18.62
      from £18.62
      # 040
      MPN: WHT000768
      LOCK WASHER
      from £1.24
      from £1.24
      This part replaces part number 008410806 - and 1 more. Click to view details
      # 041
      MPN: 004220941
      LEVER ROD
      Biella x leva rinvio
      from £5.85
      from £5.85
      # 042
      MPN: 004220943
      ROD PIN
      Perno x biella sulla leva rinvio
      from £18.25
      from £18.25
      # 043
      MPN: 008401710
      WASHER
      Rond. ras. bracci-ammort./C
      from £26.12
      from £26.12
      # 044
      MPN: 004220936
      PEDAL LEVER
      Clutch pedal return lever
      from £48.75
      from £48.75
      # 045
      MPN: 004206788
      GASKET
      Guam. supp. pedali/U
      # 046
      MPN: 004220938
      PDL SPRING
      Clutch pedal return spring
      from £45.52
      from £45.52
      # 047
      MPN: 004220946
      PEDAL PIN
      Brake and clutch pedal holder pin
      from £15.43
      from £15.43
      # 048
      MPN: 008900302
      PIN
      Spina el. S. 3x32
      # 049
      MPN: 004208705
      THROTT PEDA
      Pedale acceleratore/U
      from £126.00
      from £126.00
      # 050
      MPN: 008700611
      SCREW
      Vite brugola 6x1x15
      from £0.53
      from £0.53
      # 051
      MPN: 008410602
      LOCK WASHER
      Ros. El. 6,4x1 2x0,5
      from £28.47
      from £28.47
      # 052
      MPN: 004209247
      SUPPOR
      Supporto pedale acceleratore/U
      from £43.12
      from £43.12
      # 053
      MPN: 004208709
      LEVER
      Leva com. cavo accel. Urraco
      from £21.15
      from £21.15
      # 054
      MPN: 004210467
      RESO PEDAL
      Pedale riposo Urraco
      from £109.04
      from £109.04
      # 055
      MPN: 008400607
      WASHER
      Rond. 6,5x18x1,5
      Supersession
      Supersession
      # 056
      MPN: 004220944
      LEVER PIN
      Perno x fiss. leva rinvio al Supporto
      from £17.04
      from £17.04
      # 057
      MPN: 008521203
      ROLLER CAGE
      ASTUCCIO A RULLINI
      from £13.14
      from £13.14
      # 058
      MPN: 004220937
      CLTCH PEDAL
      PEDALE FRIZIONE
      from £228.01
      from £228.01
      # 059
      MPN: 004201212
      BRAKE PEDAL COVER
      from £30.00
      from £30.00
      # 060
      MPN: 008922501
      MUFLER SUPP.
      Supp. 781063 scar. post.
      from £4.36
      from £4.36
      # 061
      MPN: 004220942
      BRAKE PEDAL
      PEDALE FRENO
      from £228.01
      from £228.01
      # 062
      MPN: 008801204
      BUSH
      Bocc. 12F7/16/18X10-2
      from £5.85
      from £5.85
      # 063
      MPN: 008410603
      LOCK WASHER
      Rond. A6,4 UNI 1751 C72
      Supersession
      Supersession
      # 064
      MPN: 008100618
      BOLT
      Bull. M6x20 UNI 5739 8G
      Supersession
      Supersession
      # 065
      MPN: 008410602
      LOCK WASHER
      (Valid for Switzerland only September 1984) Ros. el. 6,4x12x0,5
      from £28.85
      from £28.85
      # 066
      MPN: 001612232
      NUT
      (Valid for Switzerland only September 1984) Dado race. isol. interr.
      from £4.36
      from £4.36
      # 067
      MPN: 001612234
      BOLT
      (Valid for Switzerland only September 1984) Race. isol. cavo interr. USA
      from £79.60
      from £79.60
      # 068
      MPN: 001612233
      CONECT ATAC
      (Valid for Switzerland only September 1984) Faston cavo interr. U/USA
      from £1.71
      from £1.71
      # 069
      MPN: 008200601
      NUT
      (Valid for Switzerland only September 1984) Dado M6 UNI 5588-65/A
      from £2.24
      from £2.24
      # 070
      MPN: 008100644
      BOLT
      (Valid for Switzerland only September 1984) Bull 6x1x55 inox
      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
