lamborghini jalpa 3.5 (1984) rhd pedals parts diagram

028 - Rhd Pedals

Lamborghini Jalpa 3.5 (1984) Rhd Pedals Parts Diagram

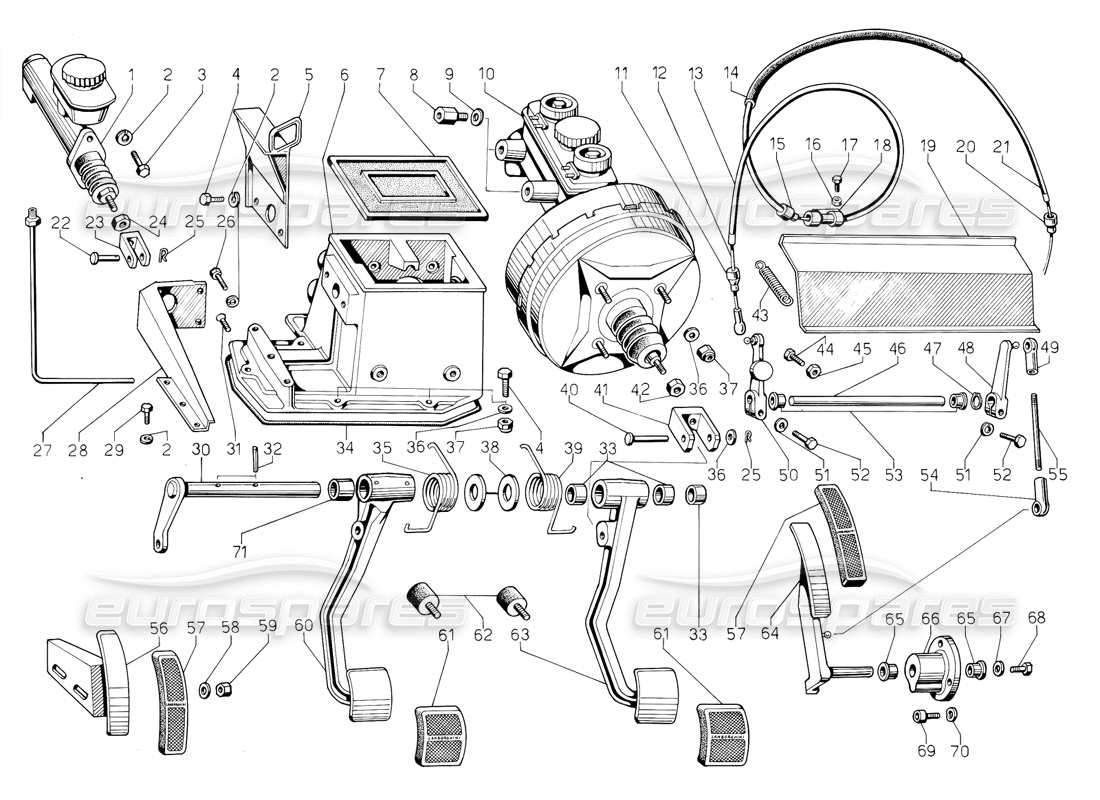

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      MPN: 004219984
      Clutch Pump
      Pompa friz. 7/8 14 06834
      from £198.44
      from £198.44
      # 002
      MPN: 008410806
      LOCK WASHER
      Rond. EL. A8,4 UNI L751
      Supersession
      Supersession
      # 003
      MPN: 008100812
      PUMP SCREW
      Vite fiss. pompa frizione
      from £0.53
      from £0.53
      # 004
      MPN: 008100830
      BOLT
      Bull. M8x20 UNI 5739/8G
      from £0.53
      from £0.53
      # 005
      MPN: 004120600
      MOUNTING
      Supp. ruota di scorta
      from £20.86
      from £20.86
      # 006
      MPN: 004221532
      PEDAL MOUNT
      Supp. pedali freno 6 friz.
      from £132.70
      from £132.70
      # 007
      MPN: 004206703
      COVER
      Cop. supp. pedaliera/U
      # 008
      MPN: 003219278
      TUBE
      Race, di riduz. pompa freni M10x1,25
      from £146.33
      from £146.33
      # 009
      MPN: 008401018
      WASHER
      Rondella raccordo pompa freni
      from £0.53
      from £0.53

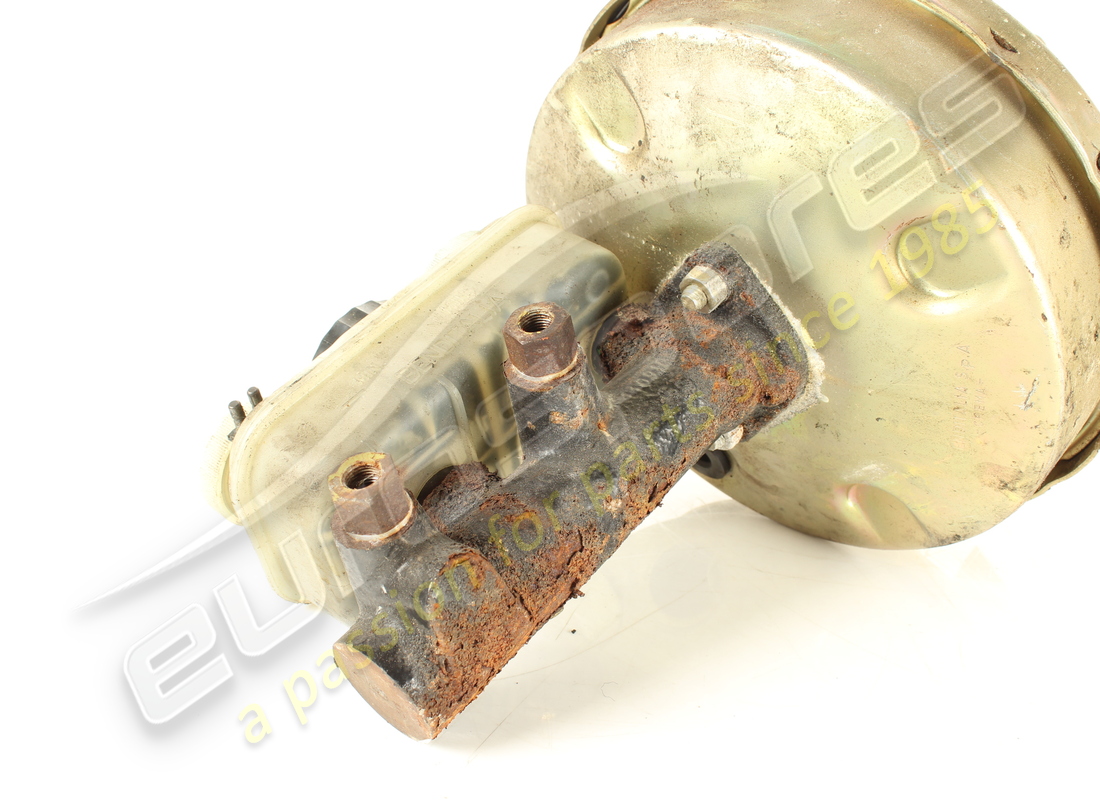

      # 010
      MPN: 004220949
      POWER BRAKES
      SERVOFRENO
      from £1,341.07
      from £1,341.07
      # 011
      MPN: 003307535
      GUARD, RUBBE
      Protez. cavo FM/U/C
      from £18.62
      from £18.62
      # 012
      MPN: 004211194
      CABLE
      Cavo Bowden accel. C/Gad
      Supersession
      Supersession
      # 012
      MPN: 004211408
      ACCELERATOR CABLE
      RHD
      from £16.87
      from £16.87
      This part replaces part number 004211194
      # 013
      MPN: 004211407
      PIPE
      Tubo cavo acceleratore U/gad
      # 014
      MPN: 004221086
      SHEATING
      Protez. finale x cavo accel.
      from £10.95
      from £10.95
      # 015
      MPN: 004221087
      Sheat end
      End of sheath
      from £10.95
      from £10.95
      # 016
      MPN: N01100637
      NUT
      Dado M6 UNI 5588 65/8G
      from £0.53
      from £0.53
      This part replaces part number 003303099 - and 1 more. Click to view details
      # 017
      MPN: 008100610
      BOLT
      Bull M6x20 UNI 5739 8G
      # 018
      MPN: 004221183
      BUSH
      BOCCOLA
      from £92.95
      from £92.95
      # 019
      MPN: 004210310
      GUARD
      Paratia rinvio accel. U/gad
      # 020
      MPN: 004221087
      Sheat end
      End of sheath
      from £10.95
      from £10.95
      # 021
      MPN: 004221085
      SHEATING
      Guaina x cavo accel
      from £12.19
      from £12.19
      # 022
      MPN: 004208714
      PIN
      Perno pompa frenoOFriz./U
      from £242.10
      from £242.10
      # 023
      MPN: 004208713
      FORK
      Forcella x pedale friz. Urraco
      from £25.25
      from £25.25
      # 024
      MPN: 008200806
      NUT
      Dado M8 UNI 5588 65/8G
      Supersession
      Supersession
      # 025
      MPN: 004207085
      LEVER
      Fermo perno pompa freno/friz.
      from £48.26
      from £48.26
      # 026
      MPN: N01029315
      SCREW M8X16 UNI 5739/8G/Z
      from £0.85
      from £0.85
      # 027
      MPN: 002121184
      PIPE
      Tubo rigido colleg. pompa friz, al fless.
      # 028
      MPN: 004221529
      PUMP MOUNT
      Supp. pompa friz.
      from £34.84
      from £34.84
      # 029
      MPN: 008100827
      BOLT
      Bull. M8x25 UNI 5739/8G
      Supersession
      Supersession
      # 030
      MPN: 004221537
      PUMP LEVER
      Compl. leva con pompa frizione
      from £66.58
      from £66.58
      # 031
      MPN: 008700809
      SREW
      Vite brugola 8x25
      from £0.56
      from £0.56
      # 032
      MPN: 008900403
      PIN
      Spina elast. D 4x30
      from £1.67
      from £1.67
      # 033
      MPN: 008801802
      BUSH
      Boccola MB 18-15 DU
      from £28.86
      from £28.86
      # 034
      MPN: 004206788
      GASKET
      Guam. supp. pedali/U
      # 035
      MPN: 004209702
      SPRING
      Molla pedale friz. U/Gad
      from £18.86
      from £18.86
      # 036
      MPN: 008400801
      WASHER
      Rond. 8,4 UNI 1734 8G
      Supersession
      Supersession
      # 037
      MPN: 008200804
      NUT
      DADO N/70/108M
      from £0.65
      from £0.65
      # 038
      MPN: 008401816
      WASHER
      Rondel, di spessorazione
      from £1.71
      from £1.71
      # 039
      MPN: 004209703
      SPRING
      Wlolla pedale freno U/Gad
      from £10.37
      from £10.37
      # 040
      MPN: 004221538
      FORK PIN
      Perno x forcella
      from £9.79
      from £9.79
      # 041
      MPN: 004221539
      BOOST FORK
      Forcella x servofreno
      from £12.98
      from £12.98
      # 042
      MPN: 008200811
      NUT
      Dado M8 UNI 5589 65/8G
      from £3.65
      from £3.65
      # 043
      MPN: 002104216
      CLUTCH SPRI
      Molla rit. leva frizione
      from £27.58
      from £27.58
      # 044
      MPN: 008100632
      BOLT
      Bull M6x30 UNI 5739 35A 5S
      from £1.71
      from £1.71
      # 045
      MPN: N01100637
      NUT
      Dado M6 UNI 5588 65/8G
      from £0.54
      from £0.54
      This part replaces part number 003303099 - and 1 more. Click to view details
      # 046
      MPN: 004209708
      THROTT LEVE
      Perno rinvio accel. U/Gad
      from £11.40
      from £11.40
      # 047
      MPN: 008581101
      LOCK RING
      Seeger AA 12 E
      from £3.65
      from £3.65
      # 048
      MPN: 004209705
      THROTT LEVE
      Leva alb. com. carbur./U
      from £25.75
      from £25.75
      # 049
      MPN: 001308539
      LEVER
      Corpo test, leve arbur./U
      # 050
      MPN: 004210185
      LEVER
      Accelerator pedal lever
      from £65.17
      from £65.17
      # 051
      MPN: 008410603
      LOCK WASHER
      Rond. A 6,4 UNI 1751 C72
      Supersession
      Supersession
      # 052
      MPN: 008100618
      BOLT
      Bull. M6x20 UNI 5739 8G
      Supersession
      Supersession
      # 053
      MPN: 008801204
      BUSH
      Bocc. 12F7/16/18x10-2
      from £5.85
      from £5.85
      # 054
      MPN: 001300804
      BALL HOUSIN
      Corpo test. sfer. cavo
      from £7.38
      from £7.38
      # 055
      MPN: 004209706
      THROTT TRAC
      Tirante acceler. U/Gad.
      from £24.17
      from £24.17
      # 056
      MPN: 004210467
      RESO PEDAL
      Pedale riposo Urraco
      from £109.04
      from £109.04
      # 057
      MPN: 004203120
      PEDAL COVER
      Copert. pedale acceleratore
      # 058
      MPN: 008400606
      WASHER
      Rond. 6,4 UNI 1734
      Supersession
      Supersession
      # 059
      MPN: N01100637
      NUT
      Dado M6 UNI 5588 65/8G
      from £0.53
      from £0.53
      This part replaces part number 003303099 - and 1 more. Click to view details
      # 060
      MPN: 004221534
      CLUTCH PEDA
      PEDALE FRIZIONE
      from £228.01
      from £228.01
      # 061
      MPN: 004201212
      BRAKE PEDAL COVER
      from £30.00
      from £30.00
      # 062
      MPN: 008922501
      MUFLER SUPP.
      Supp. 781063 scar. post.
      from £4.36
      from £4.36
      # 063
      MPN: 004221533
      BRAKE PEDAL
      PEDALE FRENO
      from £158.70
      from £158.70
      # 064
      MPN: 004209707
      THROTT PEDA
      Pedale acceleratore U/Gad.
      from £239.61
      from £239.61
      # 065
      MPN: 008801204
      BUSH
      Bocc. 12F7/16/18X1/ 2
      from £5.85
      from £5.85
      # 066
      MPN: 004209704
      SUPPOR
      Supp. pedale accel. U/Gad
      from £43.12
      from £43.12
      # 067
      MPN: 008400607
      WASHER
      Rond. 6,5x18x1,5
      Supersession
      Supersession
      # 068
      MPN: 008100607
      BOLT
      Bull. M6x10 UNI 5739 5S
      from £3.65
      from £3.65
      # 069
      MPN: 008700611
      SCREW
      Vite brugola 3x1x15
      from £0.53
      from £0.53
      # 070
      MPN: 008410602
      LOCK WASHER
      Ros. el. 6,4x12x0,5
      from £28.47
      from £28.47
      # 071
      MPN: 008801807
      BUSHING
      Boccola autolubrif.
