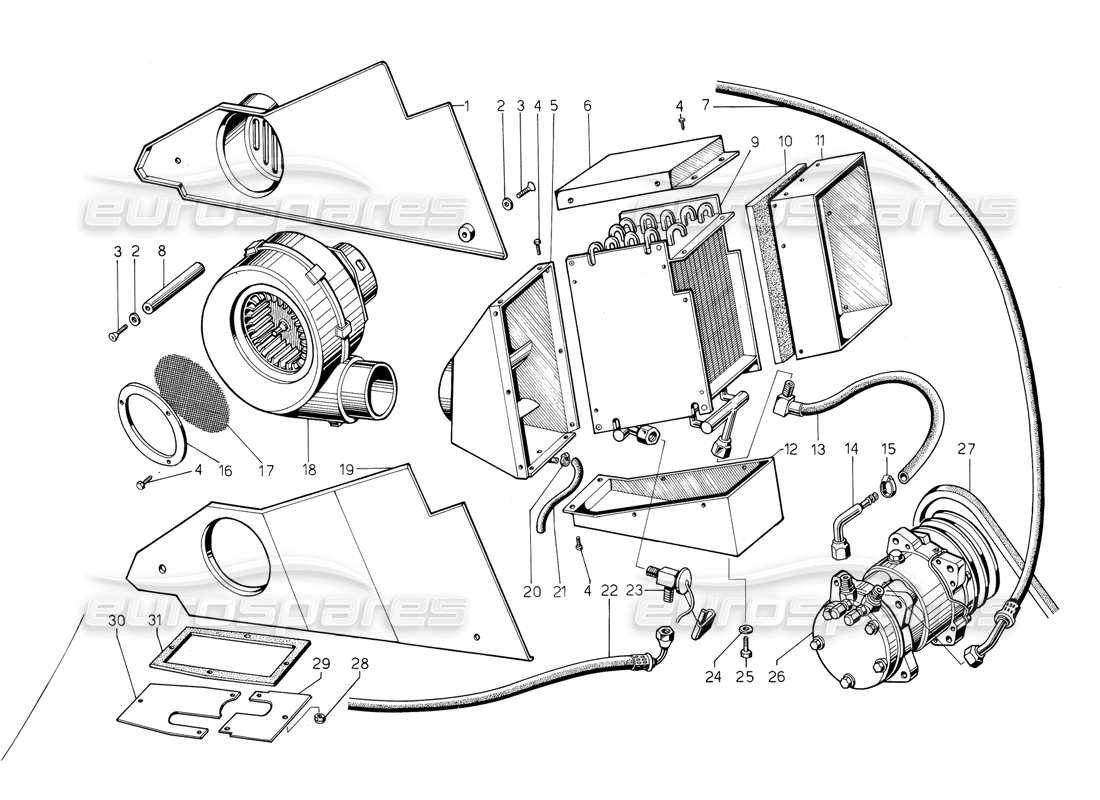

Lamborghini Jalpa 3.5 (1984) Air Conditioning Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 007858083
EVAP COVER
Coper, lat. sin. gruppo evaporatore
from £109.45
from £109.45
# 002
MPN: 008410606
WASHER
Rond. fis/Sfiato olio differ. D/S
from £1.58
from £1.58
# 003
MPN: 008700630
SCREW
Vite TGS 6x20
from £1.58
from £1.58
# 004
MPN: 008700414
SCREW
Vite 4,2x9,5 DIN 7976/BZ
from £1.55
from £1.55
# 005
MPN: 004520369
AIRCONVEYOR
Convogliatore fra chiocciola e evapor.
from £56.47
from £56.47
# 006
MPN: 004508820
SUPPOR COVE
Cop. sup. evaporatore/U
from £79.81
from £79.81
# 007
MPN: 004513144
FAN
Elettrov. sin. riscald. SIC
# 008
MPN: 004520423
SPACER
Dist. x fiss. cop. lat.
from £15.25
from £15.25
# 009
MPN: 004508816
COND. RADIA
Evaporator 01-12952
from £455.18
from £455.18
# 010
MPN: 004508824
CONDEN GASK
Feltro per condensa evap.
# 011
MPN: 004520029
HOLDER
Convogliatore aria AIA dal condiz. al tunn.
from £11.95
from £11.95
# 012
MPN: 004508819
RADI HOUSIN
Conten. gruppo evap./U
from £134.46
from £134.46
# 013
MPN: 004519897
TUBE UNTON
Tubo colleg. evapor. alia valv. isobar
from £196.09
from £196.09
# 014
MPN: 004520597
UNION
Race, x tubo coll. evap. al cmpr
# 015
MPN: 008830209
CLAMP
0 20 0 30 cable tie
# 016
MPN: 004513145
RING
Anello fermo rete chiocc./C
from £38.98
from £38.98
# 017
MPN: 004513146
MESH
Rete x chiocciola/C
from £63.65
from £63.65
# 018
MPN: 004513144
FAN
Elettrov. sin. riscald.OS/C
# 019
MPN: 007858082
EVAP. COVER
Cop. lat dex gruppo evap.
# 020
MPN: 008830901
CLAMP RING
Fasc. royal 0000/9
from £4.07
from £4.07
# 021
MPN: 004509386
PIPE
Tubo scar. condensa/U
# 022
MPN: 004519900
TUBE UNION
Tubo colleg. depurat. alia valv. espans.
from £66.67
from £66.67
# 023
MPN: 004506860
CONDIT VALV
Valv. Esp. EV. Egelhof TEC-2
from £59.40
from £59.40
# 024
MPN: 008400606
WASHER
Rond. 6,4 UNI 1734
Supersession
Supersession
# 025
MPN: 008100604
BOLT
Bull. M6x14 UNI 5739 5S
from £1.67
from £1.67
# 026
MPN: 004513470
COMPR
Compress, rot. abacus 508/U
from £1,081.99
from £1,081.99
# 027
MPN: 004513469
BELT
Cinghia compress. IS
from £23.34
from £23.34
# 028
MPN: N0211963
NUT
DADO N/70/105M
from £0.51
from £0.51
# 029
MPN: 004508832
COVER
Cop. post. tunnel/U
from £9.95
from £9.95
# 030
MPN: 004508831
FRONT COVER
Cop. ant. tunnel/U
from £8.96
from £8.96
# 031
MPN: 004108891
GASKET
Guam, x cop. sul tunnel pass, tub! condizion.
from £18.91
from £18.91
