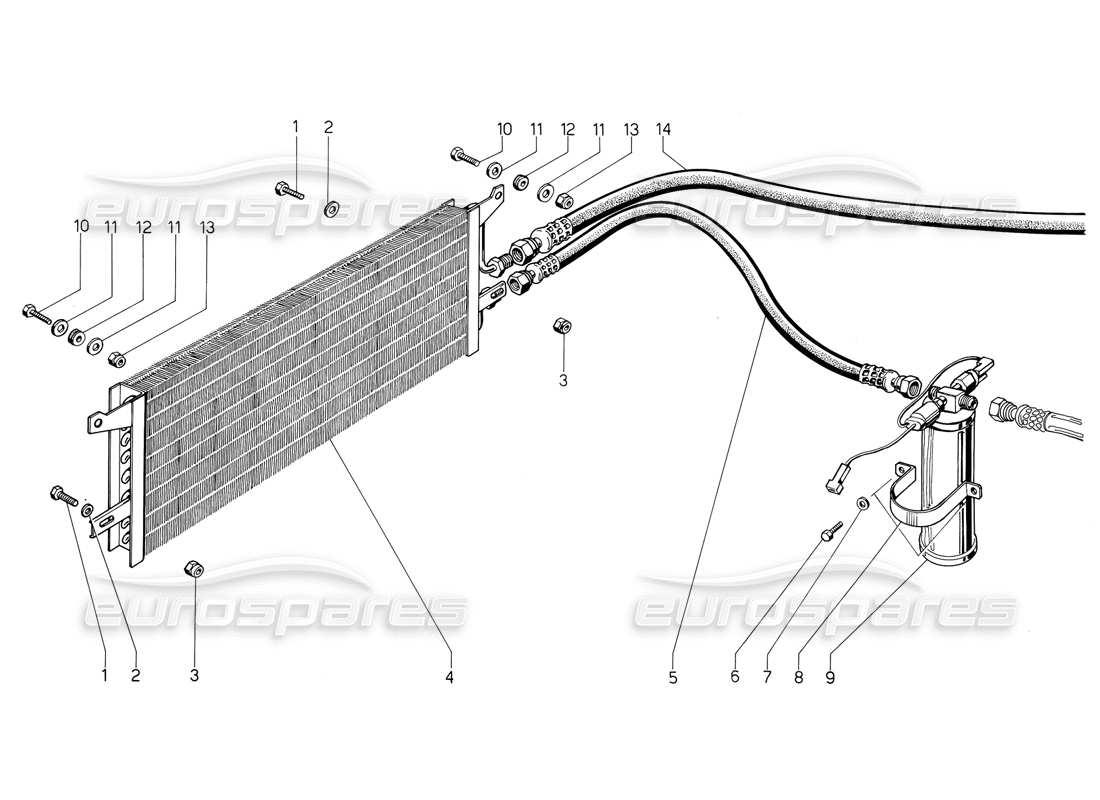

Lamborghini Jalpa 3.5 (1984) Air Conditioning Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008100840
BOLT
Bull. M8x18 UNI 5739/8G
from £0.53
from £0.53
# 002
MPN: 008400801
WASHER
Rond. 8,4 UNI 1734 8G
Supersession
Supersession
# 003
MPN: 008200804
NUT
DADO N/70/108M
from £0.73
from £0.73
# 004
MPN: 004508810
COND. RADIA
Condens. SP-15339/U
from £623.42
from £623.42
# 005
MPN: 004519902
TUBE UNION
Tubo colleg. condens. al depuratore
from £52.07
from £52.07
# 006
MPN: 008100616
BOLT
Bull M6x16 UNI 5739/55
from £0.53
from £0.53
# 007
MPN: 008400606
WASHER
Rond. 6,4 UNI 1734
Supersession
Supersession
# 008
MPN: 004508813
CLAMP
Fasc. fiss. depur./U
from £8.58
from £8.58
# 009
MPN: 004535411
FILTER
FILTRO DEIDRATORE
from £220.49
from £220.49
This part replaces part number 004534692
# 010
MPN: 008100618
BOLT
Bull. M6x20 UNI 5739-8G
Supersession
Supersession
# 011
MPN: 008400607
WASHER
Bond. 6,5x18x1,5
Supersession
Supersession
# 012
MPN: 008610701
SEAL RING
Commino 0.7x13x10
from £18.62
from £18.62
# 013
MPN: 008200606
NUT
DADO N/70/106M
Supersession
Supersession
# 014
MPN: 004519901
TUBE UNION
Tubo colleg. compr. al condens.
from £174.95
from £174.95
