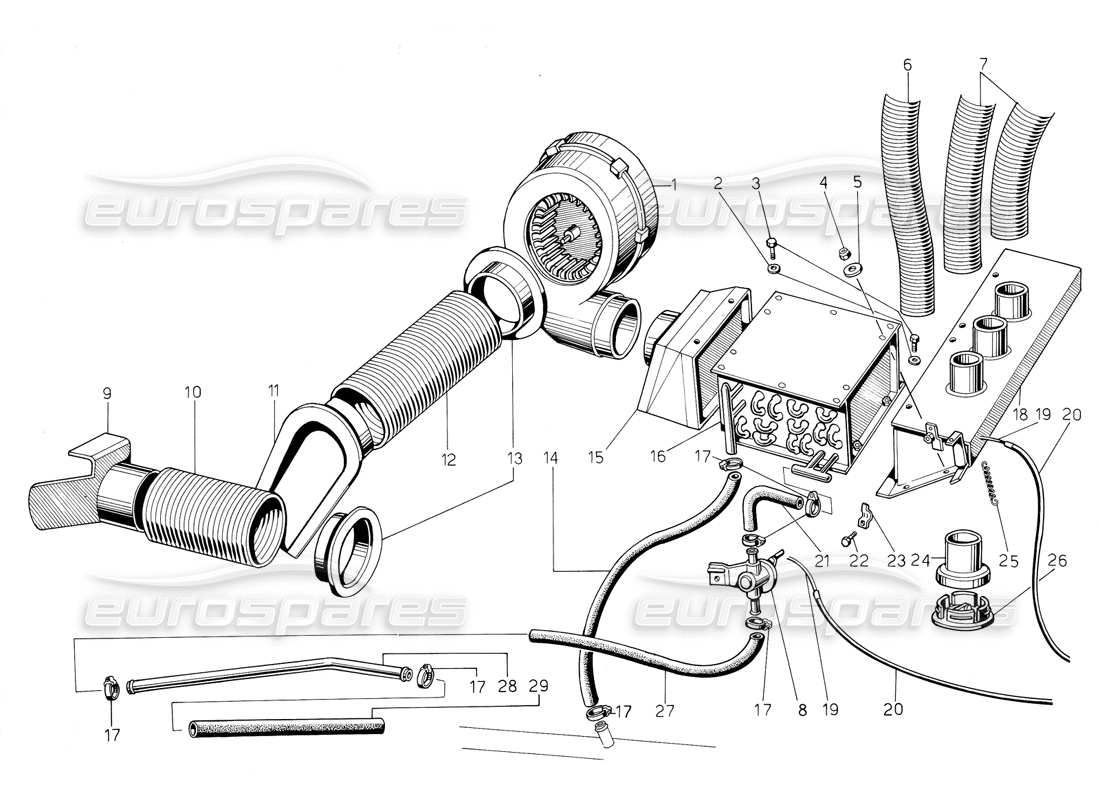

034 - HEATER

Lamborghini Jalpa 3.5 (1984) Heater Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 004513144
FAN
Elettrov. sin. riscald. SIC
Lamborghini PART 004513144 Genuine Lamborghini - New (to order)
# 002
MPN: 008410502
WASHER
Rondel. 0 5,3x8,9x1,2
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 003
MPN: N01020717
BOLT
Bull. M5x12 UNI 5739/5S
from £0.51
from £0.51
This part replaces part number 008100504
HEXAGON HEAD BOLT Genuine Lamborghini - New In stock
screw, hex. hd. - M5 X 12 - D - MJ 1973>> Genuine Porsche Part - New (to order)
# 004
MPN: 008200606
NUT
DADO N/70/106M
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 005
MPN: 008400607
WASHER
Rond. 6,5x18x1,5
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 006
MPN: 004718971
PIPE
Tubo conv. cruscotto lat.
PIPE Genuine Lamborghini - New (to order)
# 007
MPN: 004718970
PIPE
Tubo conv. cruscotto centr.
PIPE Genuine Lamborghini - New (to order)
# 008
MPN: 004710786
HEATIN TAP
Rubin. rise, rico 2282
from £89.04
from £89.04
Lamborghini PART 004710786 Genuine Lamborghini - New (to order)
# 009
MPN: 007853001
AIR INLET
Presa d'aria x convogliatore ant.
from £208.10
from £208.10
AIR INTAKE DUCT Genuine Lamborghini - New (to order)
# 010
MPN: 004713250
PIPE
Tubo aria spoiler/ventil./S
from £58.53
from £58.53
SPOILER/FAN AIR PIPE Genuine Lamborghini - New (to order)
# 011
MPN: 004713309
AIR DUCT
(Valid for Right hand drive units only) Convogl. mand. aria/chiocc./S
from £159.96
from £159.96
SCROLL AIR DELIVERY MANIFOLD Genuine Lamborghini - New (to order)
# 011
MPN: 004721047
CONVEYOR
Convogl. mandata aria alia chiocciola
from £48.08
from £48.08
SCROLL AIR DELIVERY MANIFOLD Genuine Lamborghini - New (to order)
# 012
MPN: 004713250
PIPE
Tubo aria spoiler/ventil/S
from £58.53
from £58.53
SPOILER/FAN AIR PIPE Genuine Lamborghini - New (to order)
# 013
MPN: 004713248
FLANGE
Flangia rac. cond. aria/S
from £63.90
from £63.90
AIR CONDENSER FLANGE Genuine Lamborghini - New (to order)
# 014
MPN: 004720833
PIPE
(Valid for RH D.) Tubo uscita riscal. a tubo ant. uscita acqua
PIPE Genuine Lamborghini - New (to order)
# 014
MPN: 004720838
PIPE
Tubo uscita riscal a tubo ant. uscita acqua
PIPE Genuine Lamborghini - New (to order)
# 015
MPN: 004713249
PANEL
Convogl. chiocc. pacco rad/S
from £286.88
from £286.88
RADIATOR SCROLL MANIFOLD Genuine Lamborghini - New (to order)
# 016
MPN: 004708847
HEATIN RADI
Radiatore riscald. U/C
from £1,642.83
from £1,642.83
HEATER RADIATOR Genuine Lamborghini - New (to order)
# 016
MPN: 004713653
RADIAT
(Valid for RH D.) Radiatore riscald. Gad
from £537.27
from £537.27
HEATER RADIATOR Genuine Lamborghini - New (to order)
# 017
MPN: 008830206
CLAMP RING
FASC. ROYAL 00/12 18/30
from £12.56
from £12.56
CLAMP Genuine Lamborghini - New In stock
# 018
MPN: 004713258
ROTR CON VE
(Valid for Right hand drive units only) Convogl. pacco rad. bocc.
from £358.18
from £358.18
RADIATOR/VENT MANIFOLD Genuine Lamborghini - New (to order)
# 018
MPN: 004713547
DUCT
Convogl. pacco rad. bocc./S
from £358.18
from £358.18
RADIATOR/VENT AIR MANIFOLD Genuine Lamborghini - New (to order)
# 019
MPN: 004711710
CABLE
Cavo x rubinetto acqua
Lamborghini PART 004711710 Genuine Lamborghini - New (to order)
# 020
MPN: 004711709
PIPE
Tubo nylon cavo rubin./U
from £39.06
from £39.06
COCK WIRE NYLON PIPE Genuine Lamborghini - New (to order)
# 021
MPN: 004709604
COOLAN PIPE
Manicotto rubin/termost. S.
from £79.76
from £79.76
COCK/THERMOSTAT SLEEVE Genuine Lamborghini - New (to order)
# 022
MPN: 008100401
BOLT
Bull. M4x10 UNI 5739/5S
from £0.54
from £0.54
SCREW M4X10 UNI 5739/5S/Z Genuine Lamborghini - New In stock
# 023
MPN: 008830120
CLAMP RING
Fasc. RS 1100,2x6/12
from £1.71
from £1.71
CLAMP Genuine Lamborghini - New In stock
# 024
MPN: 004720933
FIXING CONE
Cone in ABS x with interlocking air vents
from £96.41
from £96.41
AIR VENT CLIP-ON ABSCONE Genuine Lamborghini - New (to order)
# 025
MPN: 004708856
HEATIN DOOR
Molla rit. portella rise.
from £22.68
from £22.68
HEATER DOOR RETURN SPRING Genuine Lamborghini - New (to order)
# 026
MPN: 004520404
AIR FINS
Alette x bocchette aria
from £30.53
from £30.53
AIR INTAKE BLACK FLAP Genuine Lamborghini - New (to order)
# 027
MPN: 004720831
PIPE
(Valid for Right hand drive units only) Tubo da tubo centrale a rubinetto
Lamborghini PART 004720831 Genuine Lamborghini - New (to order)
# 027
MPN: 004720836
PIPE
Hose from center pipe to faucet
PIPE Genuine Lamborghini - New (to order)
# 028
MPN: 004720830
PIPE
(Valid for RH D.) Tubo centrale uscita acqua motore a rubin.
from £29.77
from £29.77
ENGINE COOLANT OUTLET/RADIATOR CENTRAL Genuine Lamborghini - New (to order)
# 028
MPN: 004720839
PIPE
Tubo centr. uscita acqua motore al rubin,
Lamborghini PART 004720839 Genuine Lamborghini - New (to order)
# 029
MPN: 004720832
PIPE
(Valid for RH D.) Tubo uscita acqua motore a tubo centrale
Lamborghini PART 004720832 Genuine Lamborghini - New (to order)
# 029
MPN: 004720837
PIPE
Water outlet pipe from engine to central pipe.
PIPE Genuine Lamborghini - New (to order)
