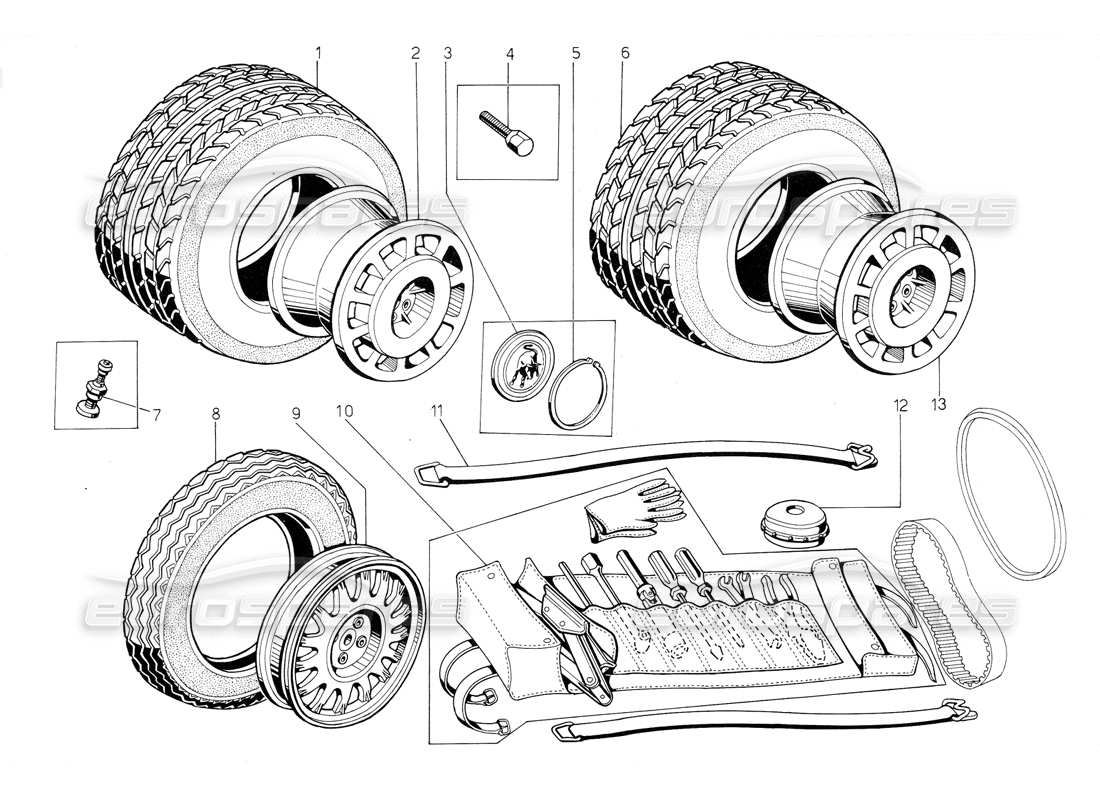

lamborghini jalpa 3.5 (1984) tools kit, tyres and rims parts diagram

035 - Tools Kit, Tyres and Rims

Lamborghini Jalpa 3.5 (1984) Tools Kit, Tyres and Rims Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 005319864
    TYRE
    Coperture 225 Sovr 16 P7 ant. Jalpa
    TYRE Genuine Lamborghini - New (to order)
    # 002
    MPN: 005119561
    FRONT RIM
    Cerchio ruota ant. Jalpa
    from £1,046.23
    from £1,046.23
    FRONT WHEEL RIM Genuine Lamborghini - New (to order)
    # 002
    MPN: 005119561S
    FRONT RIM
    Bravo Style -Silhouette (8x15)
    FRONT RIM Genuine Lamborghini - New (to order)
    # 003
    MPN: 005219588
    DISC, COVER
    Dischetto con stemma cerchio ruota
    from £22.48
    from £22.48
    WHEEL BADGE Genuine Lamborghini - New (to order)
    WHEEL BADGE Eurospares Approved Part - New In stock
    # 004
    MPN: 005234416
    SCREW
    from £49.70
    from £49.70
    WHEEL BOLT Genuine Lamborghini - New In stock
    WHEEL BOLT Genuine Lamborghini - Used In stock
    # 005
    MPN: 005219587
    RING
    Seeger fermo cerchio ruota auto D.56
    from £24.36
    from £24.36
    FRONT WHEEL RIM STOPPER O-RING Genuine Lamborghini - New (to order)
    LOCK RING Eurospares Approved Part - New In stock
    # 006
    MPN: 005319865
    TYRE
    Coperture 225 50 VR16 P7 post. Jalpa
    TYRE Genuine Lamborghini - New (to order)
    # 007
    MPN: 400601361
    VALVE
    use part number: 400601361
    from £31.23
    from £31.23
    TYRE VALVE Genuine Lamborghini - New In stock
    # 008
    MPN: 005313101
    TYRE
    Copert. 10SR18 radial 117
    from £267.75
    from £267.75
    Lamborghini PART 005313101 Genuine Lamborghini - New (to order)
    # 009
    MPN: 005112970
    RIM
    CERCHIO 18X3/4 B.-117
    from £806.71
    from £806.71
    BLACK RIM Genuine Lamborghini - New (to order)
    # 010
    MPN: 004819092
    Tool Kits
    TRUS COMPLETA
    Lamborghini PART 004819092 Genuine Lamborghini - New (to order)
    # 011
    MPN: 004820579
    SECUR BELT
    Cinghia x fiss. ruota scorta a telaio
    from £58.31
    from £58.31
    SECUR BELT Genuine Lamborghini - New (to order)
    # 012
    MPN: 004809054
    SPARE LAMP
    Conten. lamp, fusibili
    SPARE LAMP Genuine Lamborghini - New (to order)
    # 013
    MPN: 005219562
    REAR RIM
    Cerchio ruota post. Jalpa
    from £1,052.97
    from £1,052.97
    REAR RIM Genuine Lamborghini - New (to order)
    # 013
    MPN: 005219562S
    REAR RIM
    Bravo Style -Silhouette (11x15)
    from £1,650.00
    from £1,650.00
    REAR RIM Genuine Lamborghini - New (to order)
    Eurospares PART 005219562S Eurospares Approved Part - New (to order)
    Eurospares PART 005219562S Eurospares Approved Part - New (other) In stock
    price each (sold in pairs)
    # 013
    MPN: LWHE009
    WHEEL SET
    WHEEL SET Genuine Lamborghini - New (to order)
