037 - Front Suspension

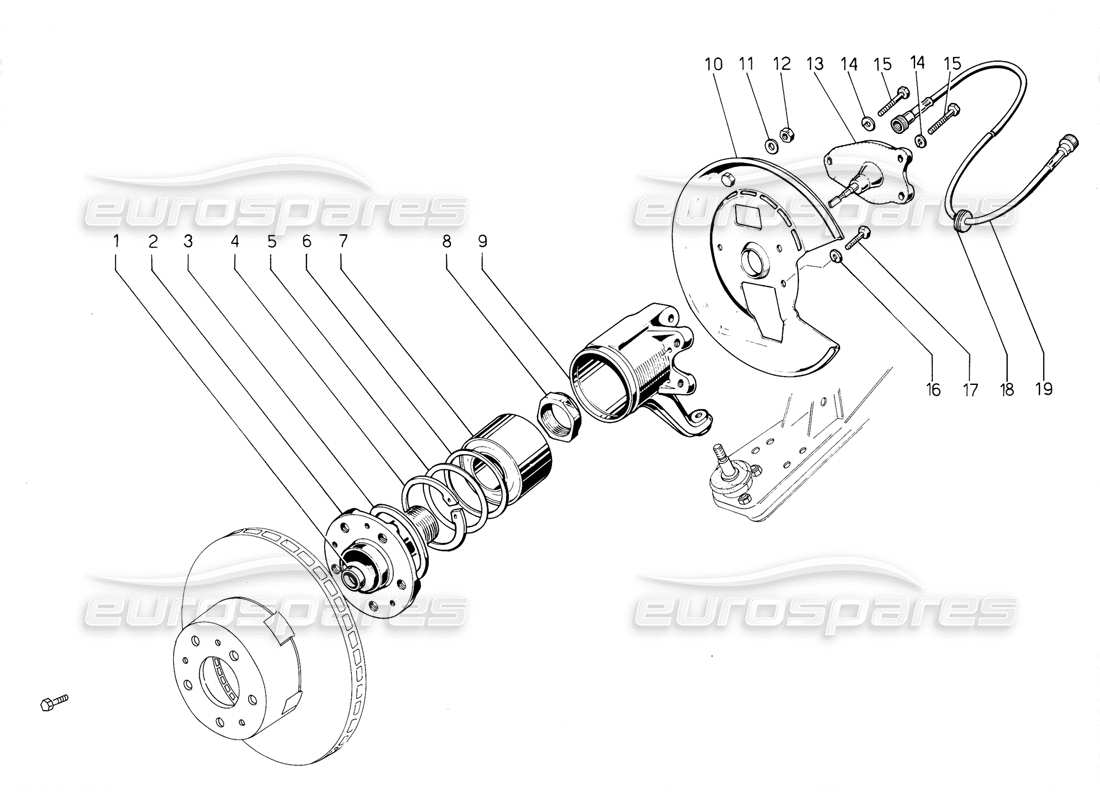

Lamborghini Jalpa 3.5 (1984) Front Suspension Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 005108654
SPEED DRIVE
Presa moto rinvio contach.
from £9.25
from £9.25
# 002
MPN: 005106968
REAR HUB
Mozzo ruota ant./U
from £773.56
from £773.56
# 003
MPN: 005112242
GUARD.
Protez. est. CSN ruote
from £145.26
from £145.26
# 004
MPN: 008578201

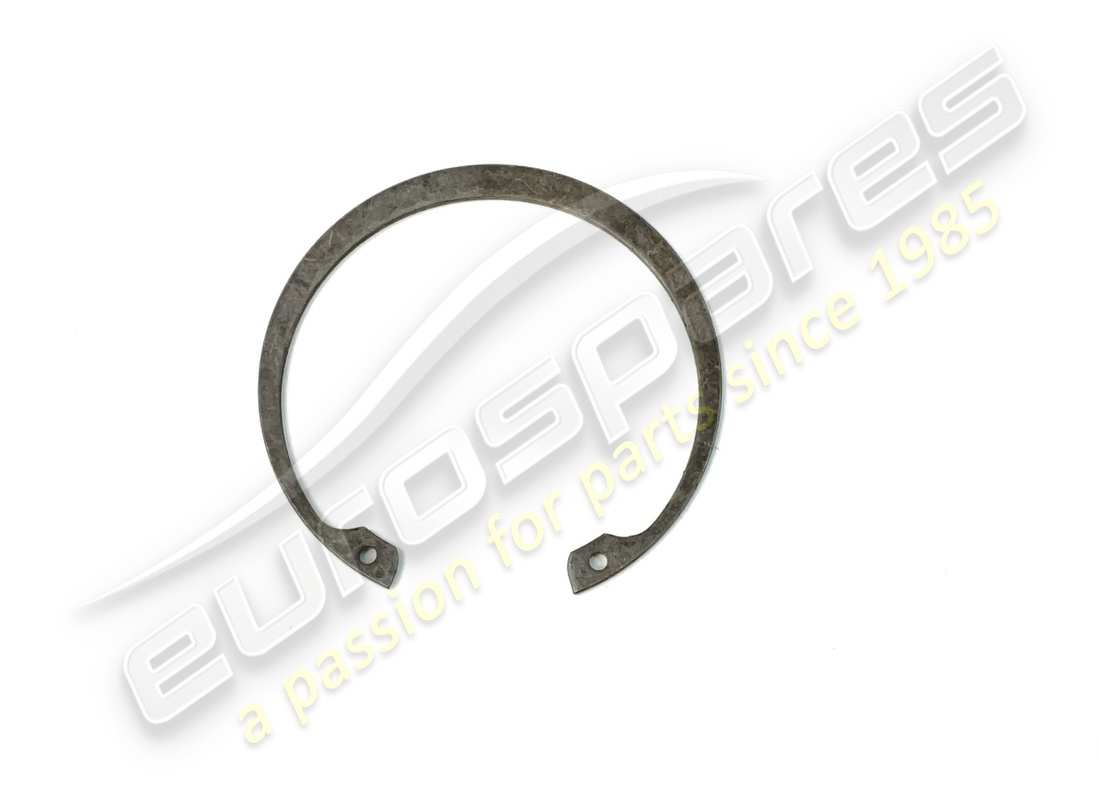

LOCK RING
Seeger 82 I cusc. ruota
from £2.28
from £2.28
# 005
MPN: 008407502

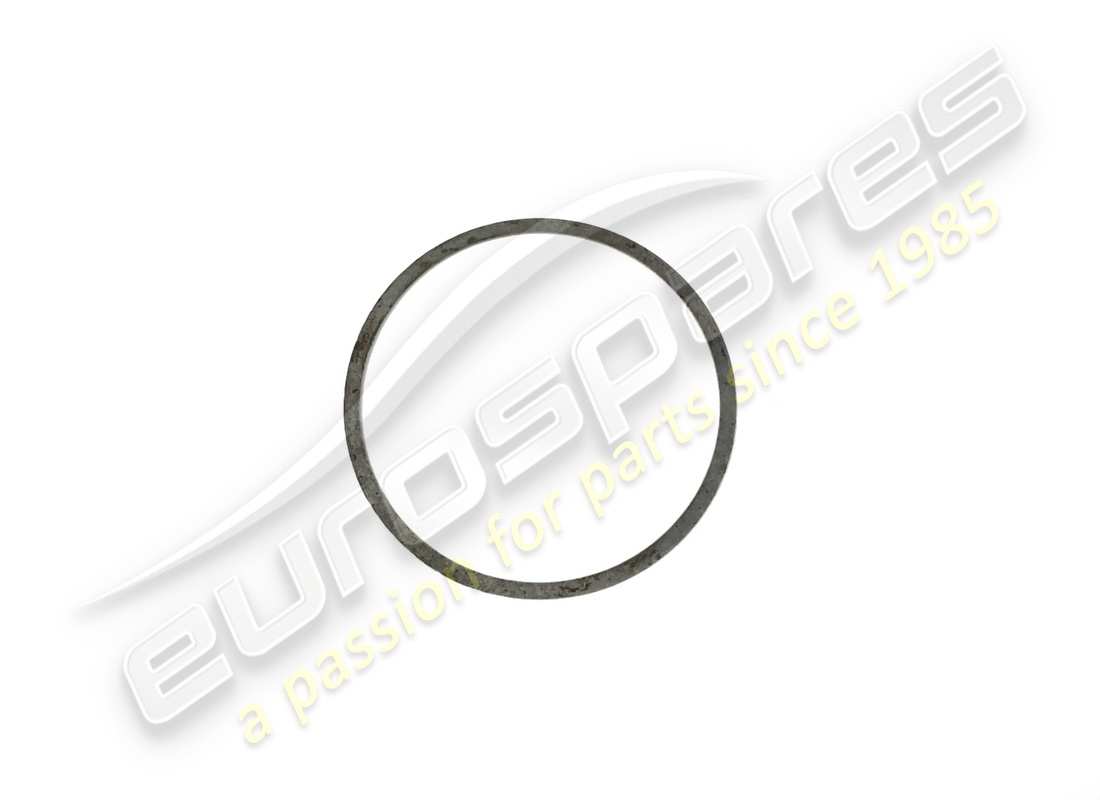

WASHER
Rond. 75x82, 5x0,05
from £10.87
from £10.87
# 006
MPN: 008407501
WASHER
Rond. 75x82,5x0,5
from £3.70
from £3.70
# 007
MPN: 008504502

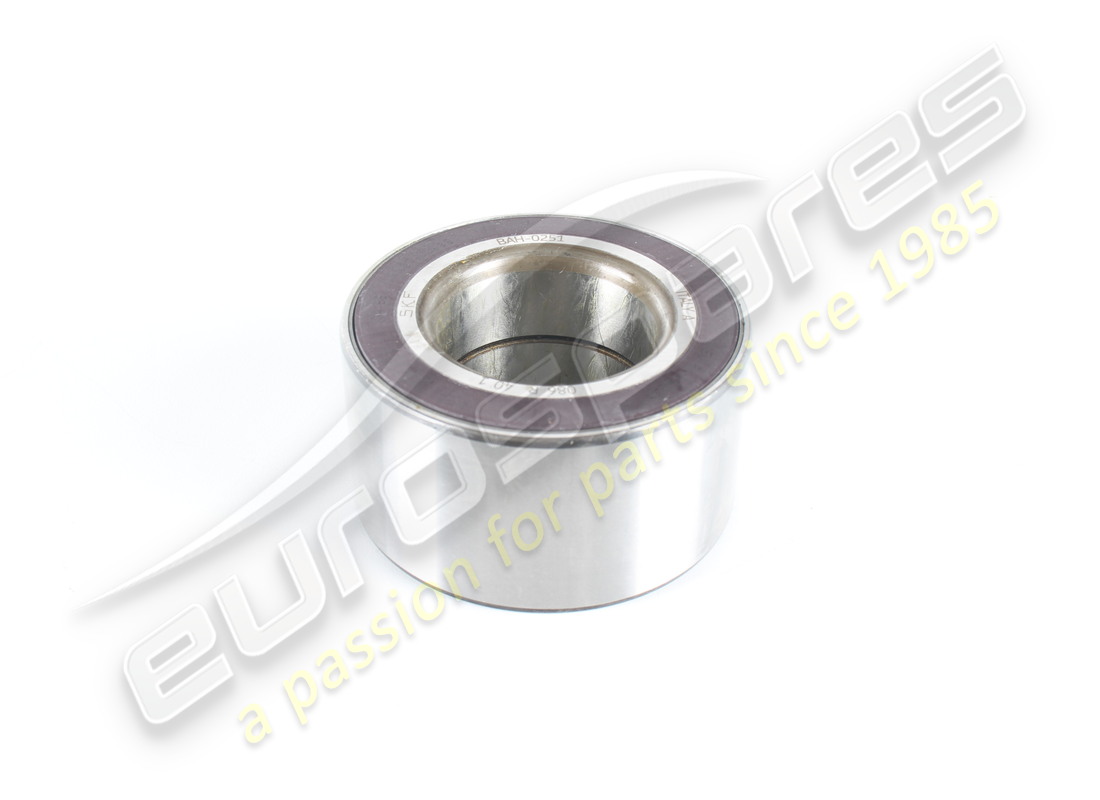

BALL BEARIN
Cusc. Riv. 615645 A
from £519.75
from £519.75
# 008
MPN: 008204501
NUT
DADO M45x1,5 UNI 4535-64
from £78.52
from £78.52
# 009
MPN: 005106975
HUB CARRIR
(Valid for the first 97 cars only) Porta mozzo ant. des./U
from £315.00
from £315.00
# 009
MPN: 005106976
HUB CARRIR
(Valid for the first 97 cars only) Porta mozzo ant. sin./U
from £315.00
from £315.00
# 009
MPN: 005121688
HUBCARRIER
Portamozzo ant. dex.
from £155.06
from £155.06
# 009
MPN: 005121689
HUBCARRIER
Portamozzo ant. Sin
from £155.06
from £155.06
# 010
MPN: 005120977
DISC GUARD
Prot. x disco freno ant. dex.
from £15.47
from £15.47
# 010
MPN: 005120978
DISC GUARD
Prot. x disco freno ant. sin.
from £34.00
from £34.00
# 011
MPN: 008400606
WASHER
Rond. 6,4 UNI 1734
Supersession
Supersession
# 012
MPN: 008200606
NUT
DADO N/70/106M
Supersession
Supersession
# 013
MPN: 005108046
SPEED GEAR
Rinvio contach. el 592/U
from £1,768.20
from £1,768.20
# 014
MPN: 008410602
LOCK WASHER
Ros. el. 6,4x12x0,5
from £26.77
from £26.77
# 015
MPN: 008100624
BOLT
Bull. M6x25 UNI 5737 8G
from £0.51
from £0.51
# 016
MPN: 008410602
LOCK WASHER
Ros. el. 6,4x12x0,5
from £27.90
from £27.90
# 017
MPN: 008100622
BOLT
Bull. M6x12 UNI 5739/8G
from £3.65
from £3.65
# 018
MPN: 008610801
RUBBER GROMMET
Gomm. x cavo contach.
# 019
MPN: 005109581
SPEED CABLE
(Valid for RH D.) Cavo com. contach. esp./Jar
from £208.94
from £208.94
# 019
MPN: 005113543
SPEEDO CABLE
LHD CABLE
from £234.33
from £234.33
