lamborghini jalpa 3.5 (1984) rear suspension parts diagram

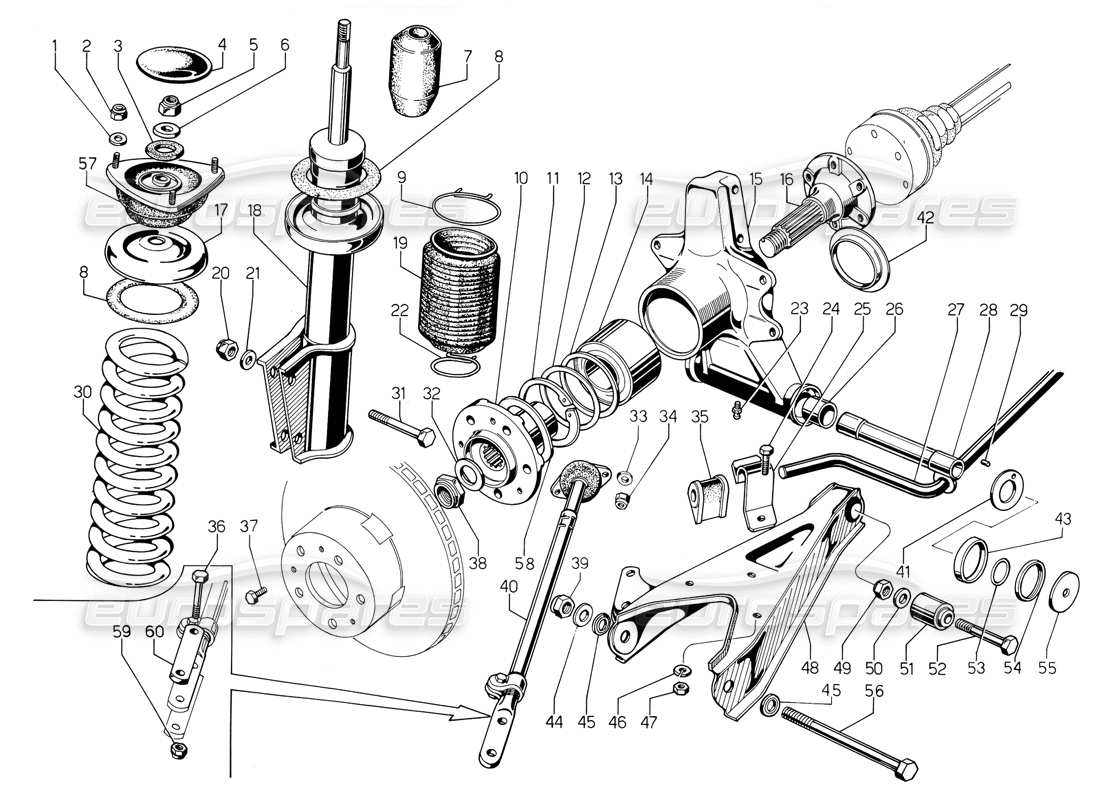

038 - Rear Suspension

Lamborghini Jalpa 3.5 (1984) Rear Suspension Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 008400801
WASHER
Rond. 8,4 UNI 1734 8G
Supersession
Supersession
# 002
MPN: 008200809
NUT
DADO 8/70208M
Supersession
Supersession
# 003
MPN: 005207464
GUARD
Protez. grasso snodo sup./U
from £5.27
from £5.27
# 004
MPN: 005206948
CAP
Cappellotto rit. grasso/U
from £27.63
from £27.63
# 005
MPN: 008201406
NUT
DADO B/10/214x1,5M
from £0.59
from £0.59

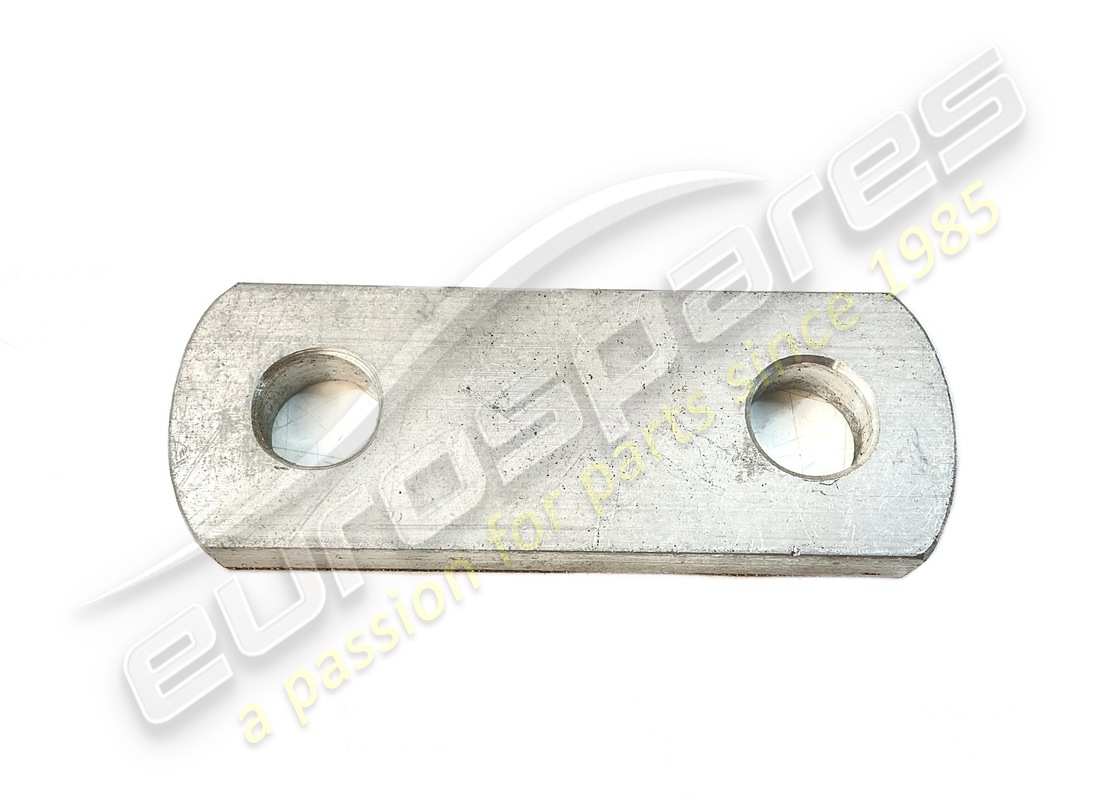

# 006
MPN: 005207465
NUT RETAIN
Fermo dado ammoetizz./U
from £6.81
from £6.81

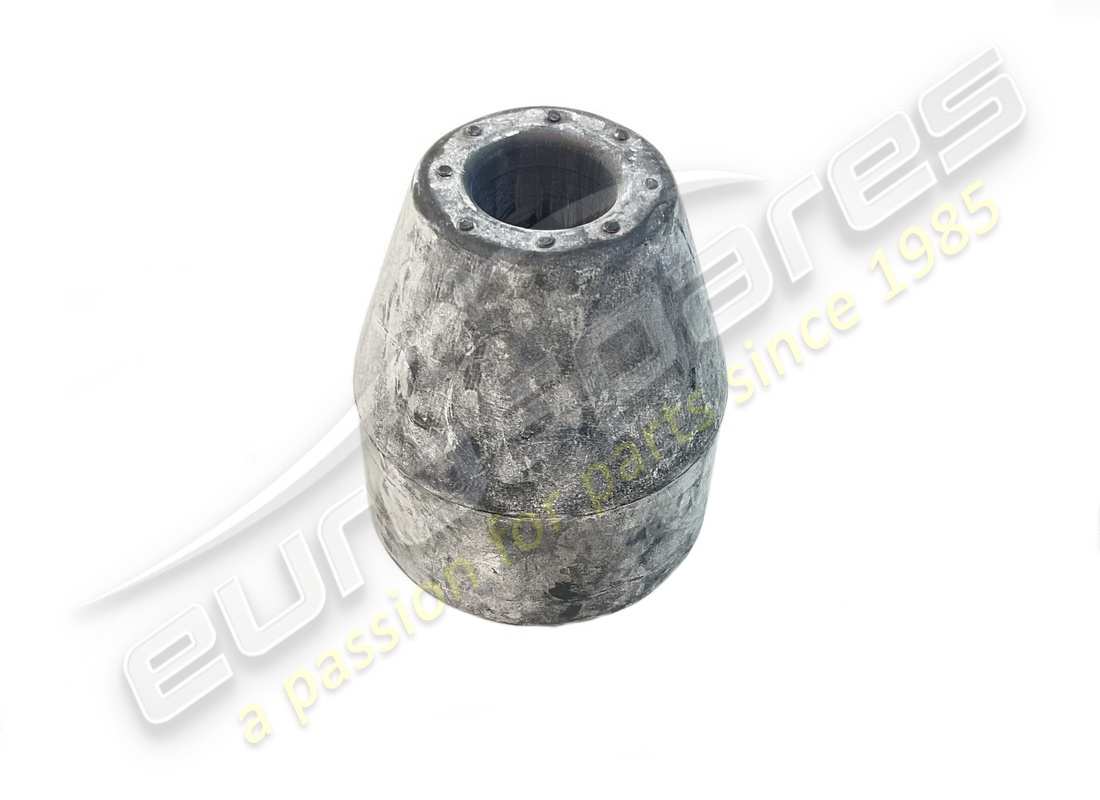

# 007
MPN: 005208239
PLUG
Tampone FC ammortizz. post.
from £129.27
from £129.27
# 008
MPN: 005207451
SPRING RING
Anello supp. molla ammort.
from £35.61
from £35.61
# 009
MPN: 008830107
CLAMP RING
Clamp D.68/U
from £12.90
from £12.90
# 010
MPN: 005206929
REAR HUB
Mozzo ruote post./U
from £190.16
from £190.16
# 011
MPN: 008578201
LOCK RING
Seeger 82 I cusc. ruota
from £2.28
from £2.28
# 012
MPN: 008407502
WASHER
Rond. 75x82,5x0,05
from £10.87
from £10.87
# 013
MPN: 008407501
WASHER
Rond. 75x82,5x0,5
from £3.70
from £3.70
# 014
MPN: 008564502
BALL BEARIN
Cusc. Riv. 615645 A
# 015
MPN: 005219578
HUB. CARRIER
Portamozzo x sosp. post.
from £7,578.59
from £7,578.59
# 016
MPN: 005208235
FLANGE
Flangia semiasse/U
from £271.12
from £271.12
# 017
MPN: 005266915
SUPPOR
Supp. Sup. molle post./U
# 018
MPN: 005220589

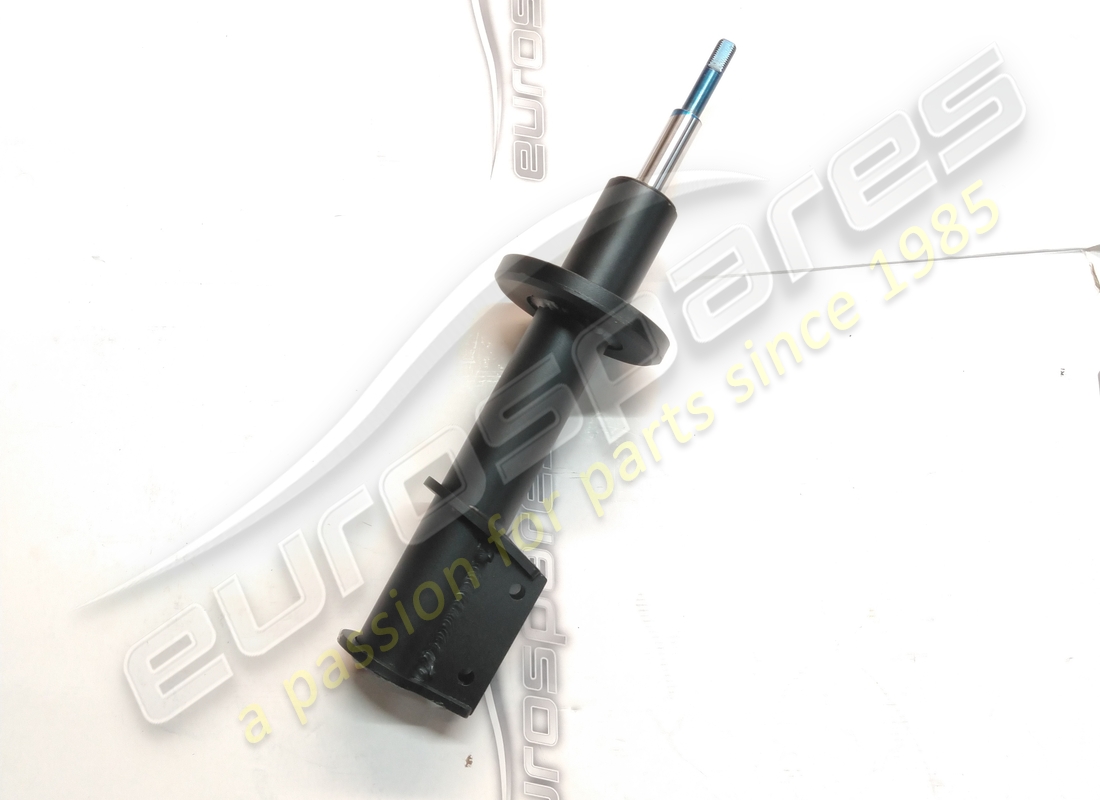

SHOCK ABS
Ammortizz. post.
from £1,495.00
from £1,495.00
# 019
MPN: 005108120
BOOT
Soffietto stelo ammortizz.
from £70.39
from £70.39
# 020
MPN: 008201008
NUT
DADO B/70/210M
from £0.55
from £0.55
# 021
MPN: 008401006
WASHER
Rond. A10.5 UNI 1734
from £0.53
from £0.53
# 022
MPN: 008830119
CLAMP RING
Fasc. soffietto ammort. /U
from £11.37
from £11.37
# 023
MPN: 008880601
GREASE NIPP
Ingras. hydraulic 273 A
from £0.95
from £0.95
# 024
MPN: N01029315
BOLT
Bull M8x16 UNI 5739/8G
from £0.84
from £0.84
# 025
MPN: 005107110
SUPPOR
Sostegno supp. att. barra/U
from £29.14
from £29.14
# 026
MPN: 008802203
BUSH
Boccola autol. glacier M8 22x30 DU
from £6.96
from £6.96
This part replaces part number 008802201
# 027
MPN: 005213361
ROLL BAR
Barra torsions post./S
from £74.46
from £74.46
# 028
MPN: 005208662
SPACER
Distanz. braccio inf./U
from £227.41
from £227.41
# 029
MPN: 008850302
DOWEL
Grano rif. D3
# 030
MPN: 005213359
SPRING
Molla sosp. post./S
from £225.53
from £225.53
# 031
MPN: 008101032
BOLT
Bull. 10x1,5x55 CH17 10K
from £4.73
from £4.73
# 032
MPN: 008402502
WASHER
Rond. 25x39x4 UNI 1750 5S
from £1.45
from £1.45
# 033
MPN: 008400801
WASHER
Rond. 8,4 UNI 1734 8G
Supersession
Supersession
# 034
MPN: 008200804
NUT
DADO N/70/108M
from £0.71
from £0.71
# 035
MPN: 008922002

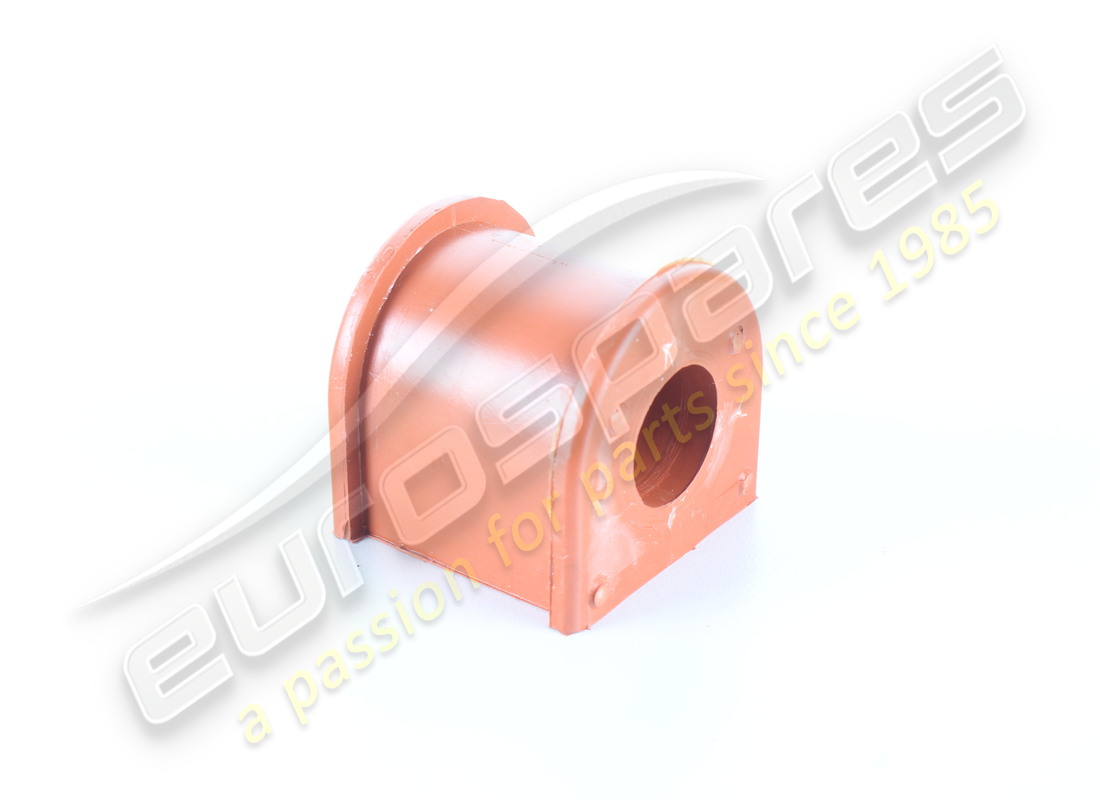

ANTI ROLL BAR BUSH
20 mm diameter
from £36.02
from £36.02
# 036
MPN: 008101015
BOLT
Bull. M10x40 UNI 5737/8G
from £8.17
from £8.17
# 037
MPN: N01029315
BOLT
Bull. M8x16 UNI 5739/8G
from £0.80
from £0.80

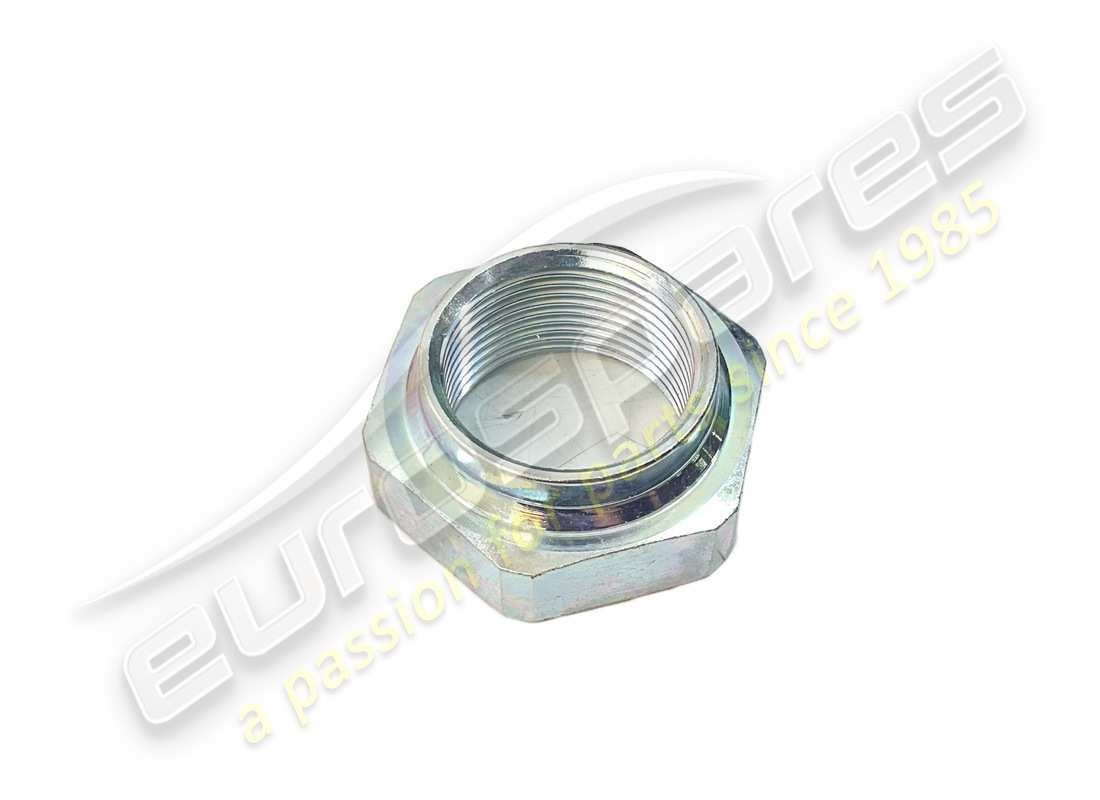

# 038
MPN: 008202502
NUT
DADO M25x1,5 UNI 4535-64
from £52.05
from £52.05
# 039
MPN: 008201406
NUT
Dado 8/10/214x1, 5M
from £0.59
from £0.59
# 040
MPN: 005207821
ROD
Tir. sosp. 027024503251 2/U
from £769.42
from £769.42
# 041
MPN: 008402603
WASHER
Rond. autolubrif. WC 24 DU
from £9.05
from £9.05
# 042
MPN: 005209248
BEARIN RING
Protez. cusc. ruote post./U
from £3.94
from £3.94
# 043
MPN: 005219576
BUSH
Boccola C portamozzo post.
from £14.14
from £14.14
# 044
MPN: 008401413
WASHER
Rond. 14,5x26x3
from £0.63
from £0.63
# 045
MPN: 008401506
WASHER
Rondella di ten. orig. polypac
from £6.43
from £6.43
# 046
MPN: 008410806
LOCK WASHER
Rond. EL. A8,4 UNI 1751
Supersession
Supersession
# 047
MPN: 008200806
NUT
DADO M8 UNI 5588-65/8G
Supersession
Supersession
# 048
MPN: 005219579
WELDING KIT
Comp. di saldatura braccio inf. sin.
from £236.30
from £236.30
# 048
MPN: 005219580
WELDING KIT
Compl. di saldatura braccio inf. des.
from £178.50
from £178.50
# 049
MPN: 008201603
NUT
Dado 8/70/21 6x1, 5M
from £2.25
from £2.25
# 050
MPN: 008401611
WASHER
Rond. 17x29x3 5S UNI 16592
from £8.84
from £8.84
# 051
MPN: 008921608
ARM
Estendbloc 16x38x62x54
from £58.05
from £58.05
# 052
MPN: 008101624
BOLT
Bullone x fissaggio braccio inf.
from £34.03
from £34.03
# 053
MPN: 008612203
RING
Anello tenuta est. x portam post.
from £5.23
from £5.23
# 054
MPN: 008613802
RING
Cuscinetto comp. da OR 5150 RP 4150
from £13.28
from £13.28
# 055
MPN: 005219574
SUPPORT
Supp. x OR sul portamozzo post.
from £16.67
from £16.67
# 056
MPN: 008101415
BOLT
Bull. 14x1,5x185 CH22 8G
from £25.22
from £25.22
# 057
MPN: 005213401
SUPPOR
Supp. al telaio x ammort./S
# 058
MPN: 005112242
GUARD
Protez. est CSN ruote
from £145.26
from £145.26
# 059
MPN: 008201008
NUT
Dado 8/70/21 OM
from £0.55
from £0.55
# 060
MPN: 005206679
SPACER
Distanz. braccio inf./O
from £14.55
from £14.55
