lamborghini jalpa 3.5 (1984) headlamps and direction indicators parts diagram

042 - Headlamps and direction indicators

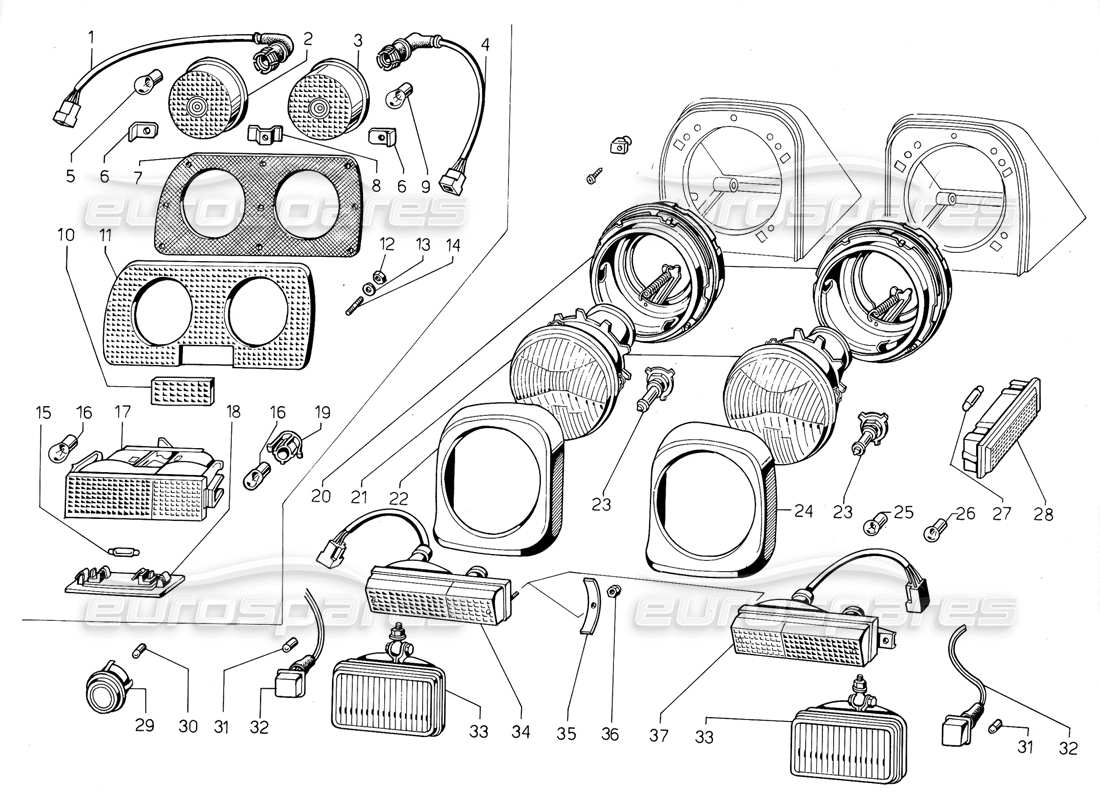

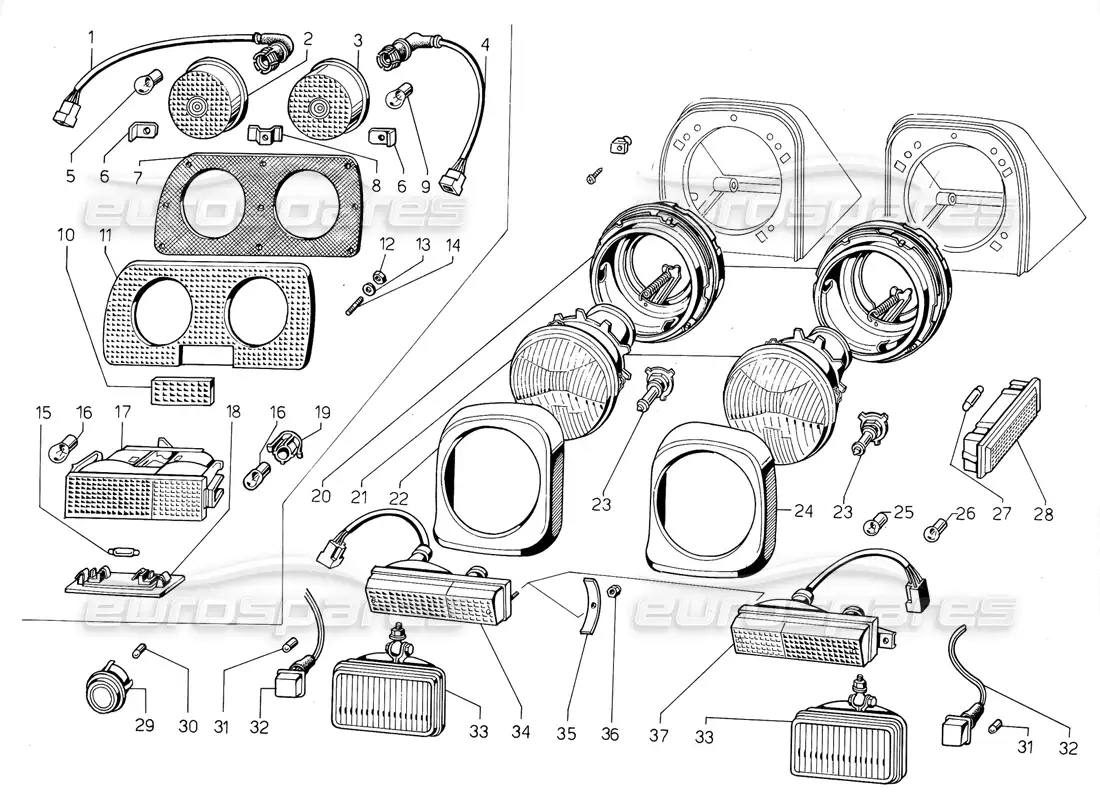

Lamborghini Jalpa 3.5 (1984) Headlamps and Direction Indicators Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price

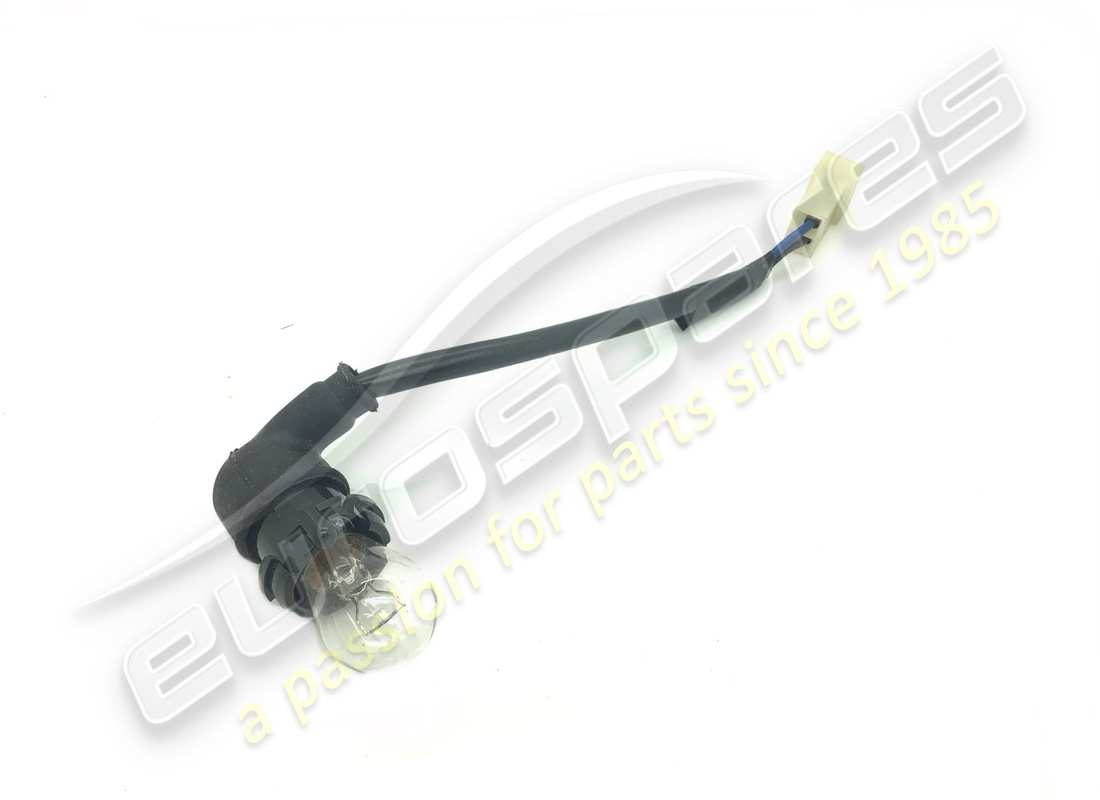

        # 001
        MPN: 006320640
        WIRING
        Gruppo cavi e portalamp. vs. 12.310.846
        from £41.96
        from £41.96
        BULB HOLDER & WIRES INDICATOR Genuine Lamborghini - New In stock
        # 002
        MPN: 006320638
        LIGHT
        Post light, orange from the front. vs. 12.310.816
        from £61.53
        from £61.53
        ORANGE LIGHT Genuine Lamborghini - New (to order)
        # 003
        MPN: 006320639
        LIGHT
        Fanale rosso di arr. e pos. Vs. 12.311.816
        from £43.45
        from £43.45
        RED LIGHT Genuine Lamborghini - New (to order)

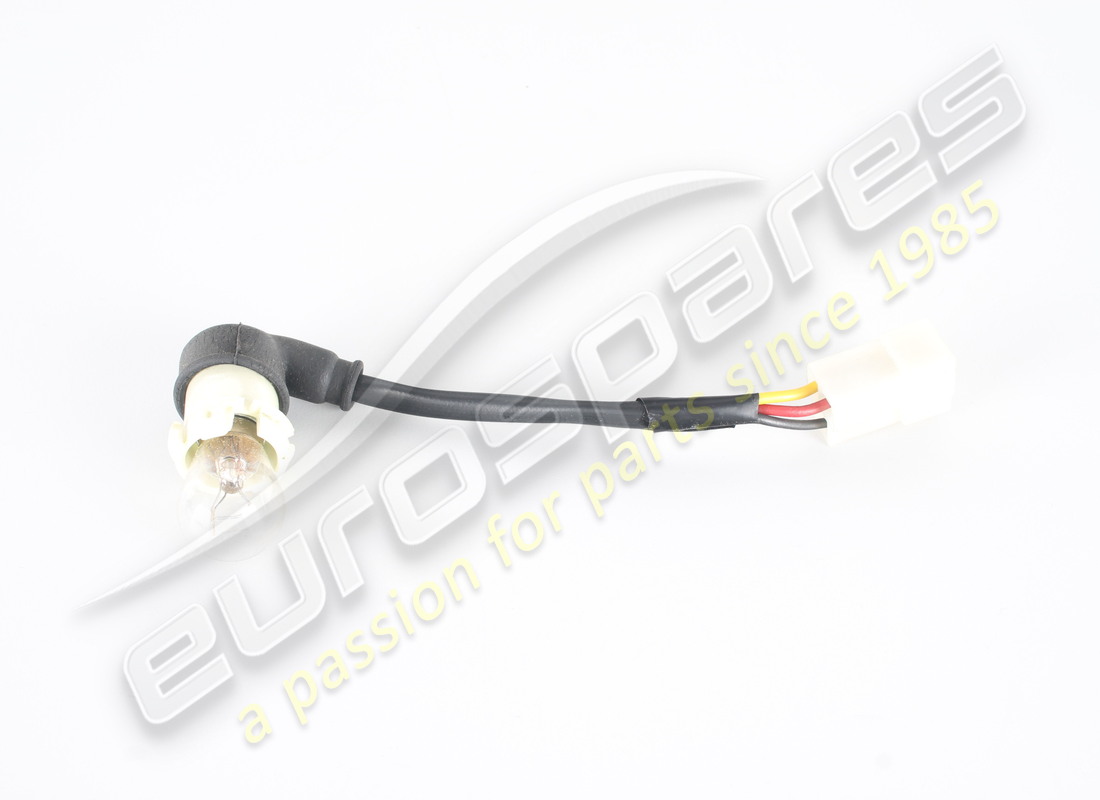

        # 004
        MPN: 006320641
        LIGHT
        Gruppo cavi e portalampada x f. rosso 6320639
        from £61.11
        from £61.11
        BULB HOLDER & WIRES. Genuine Lamborghini - New In stock
        # 005
        MPN: 006617094
        LAMP
        Lamp. BA 155/12498 21 W
        from £5.52
        from £5.52
        BULB Genuine Lamborghini - New (to order)
        # 006
        MPN: 006320649
        BRACKET
        Right bracket. and sin. x fixed. headlight and stop
        from £5.06
        from £5.06
        INDICATOR RH/LH BRACKET Genuine Lamborghini - New (to order)
        # 007
        MPN: 006320653
        ALL SHEET
        Alluminio x fanale post. sin.
        from £70.90
        from £70.90
        RH TAIL CLUSTER ALUMINIUM FRAM E Genuine Lamborghini - New (to order)
        # 007
        MPN: 006320654
        ALL SHEET
        Alluminio x fanale post dex.
        from £70.90
        from £70.90
        LH TAIL CLUSTER ALUMINIUM FRAM E Genuine Lamborghini - New (to order)
        # 008
        MPN: 006320650
        BRACKET
        Central fixing bracket headlight and stop
        from £5.06
        from £5.06
        INDICATOR CENTRAL BRACKET Genuine Lamborghini - New (to order)
        # 009
        MPN: 006617091
        LAMP
        Lamp, bay 15 D/12499 5/21 W
        from £7.55
        from £7.55
        21W BULB Genuine Lamborghini - New (to order)
        # 010
        MPN: 006319022
        LIGHT
        Catarifrangente 34390718
        from £132.66
        from £132.66
        REFLECTOR Genuine Lamborghini - New (to order)
        # 011
        MPN: 006320650
        Frame
        Cornice in pleigas x fanale post. sin.
        from £5.06
        from £5.06
        INDICATOR CENTRAL BRACKET Genuine Lamborghini - New (to order)
        # 011
        MPN: 006320652
        Frame
        Cornice in pleigas x fanale post. dex.
        from £153.39
        from £153.39
        RH TAIL CLUSTER PLEXIGLAS FRAM E Genuine Lamborghini - New (to order)
        # 012
        MPN: 008200501
        NUT
        DADO M5 UNI 5588-65/8G
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 013
        MPN: 008400607
        WASHER
        Rond. 6,5x18x1,5
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 014
        MPN: 008300510
        BOLT
        Prig. M5x14 UNI 5911 5S
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 015
        MPN: 006319660
        LAMP
        Lampada x fanalino targa
        LAMP Genuine Lamborghini - New (to order)
        # 016
        MPN: 006617094
        LAMP
        Lamp. BA 15S/12498 21 W
        from £5.52
        from £5.52
        BULB Genuine Lamborghini - New (to order)
        # 017
        MPN: 006319661
        UPP LIGHT
        Fanalino retrom/vs. 20801601 Jalpa
        from £91.62
        from £91.62
        REVERSE LIGHT Genuine Lamborghini - New (to order)
        # 018
        MPN: 006319664
        UPP. LIGHT
        Fanale targa con lamp. VS. 04004600
        from £89.93
        from £89.93
        NUMBER PLATE LIGHT Genuine Lamborghini - New (to order)
        # 019
        MPN: 006319933
        P. LAMP
        Portalampade per fan. retrom. vs. 20803601
        from £18.58
        from £18.58
        REVERSING LIGHT BULBHOLDER Genuine Lamborghini - New (to order)
        # 020
        MPN: 006309403
        BEAM HOUSIN
        Corpo proiet. 07626805/U
        from £165.00
        from £165.00
        HEADLIGHT UNIT Genuine Lamborghini - New (to order)
        # 021
        MPN: 006309404
        BEAM
        Light unit 0.39.10.816/U
        from £194.44
        from £194.44
        LIGHT CLUSTER Genuine Lamborghini - New (to order)
        # 021
        MPN: 006310287
        LIGHT BEAM
        (Valid for RH D.) Gruppo ott. 05485816 Gad
        from £162.09
        from £162.09
        LIGHT CLUSTER Genuine Lamborghini - New (to order)

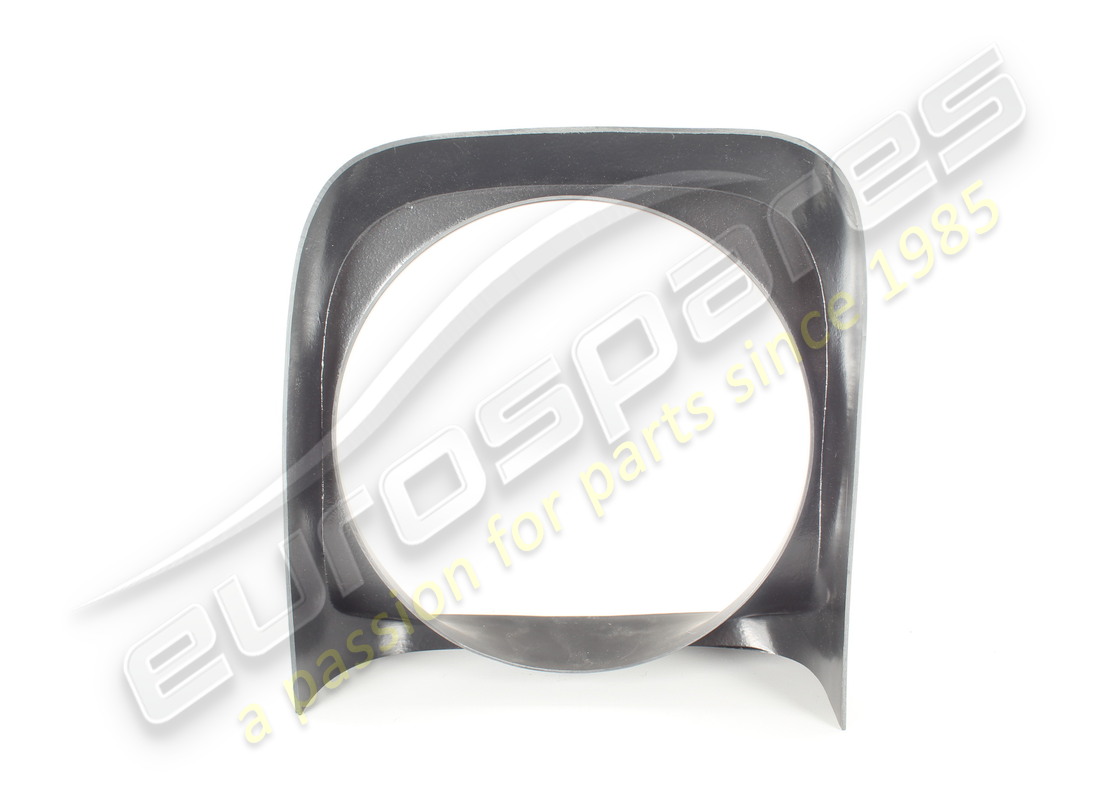

        # 022
        MPN: 006990030
        RH HEADLIGHT TRIM SURROUND
        from £87.77
        from £87.77
        RH HEADLAMP BEZEL Genuine Lamborghini - New In stock
        # 023
        MPN: 006320588
        BULB
        (Valid for French only September 1984)Lampadina x proiettore 12v. H4 gialle
        from £5.10
        from £5.10
        LAMP.X PROIETT.ANT.12V H4 Genuine Lamborghini - New (to order)
        # 023
        MPN: 006617106
        LAMP
        Lamp. P43T/12342 60/55W
        from £47.51
        from £47.51
        12V 60/55W BULB Genuine Lamborghini - New (to order)

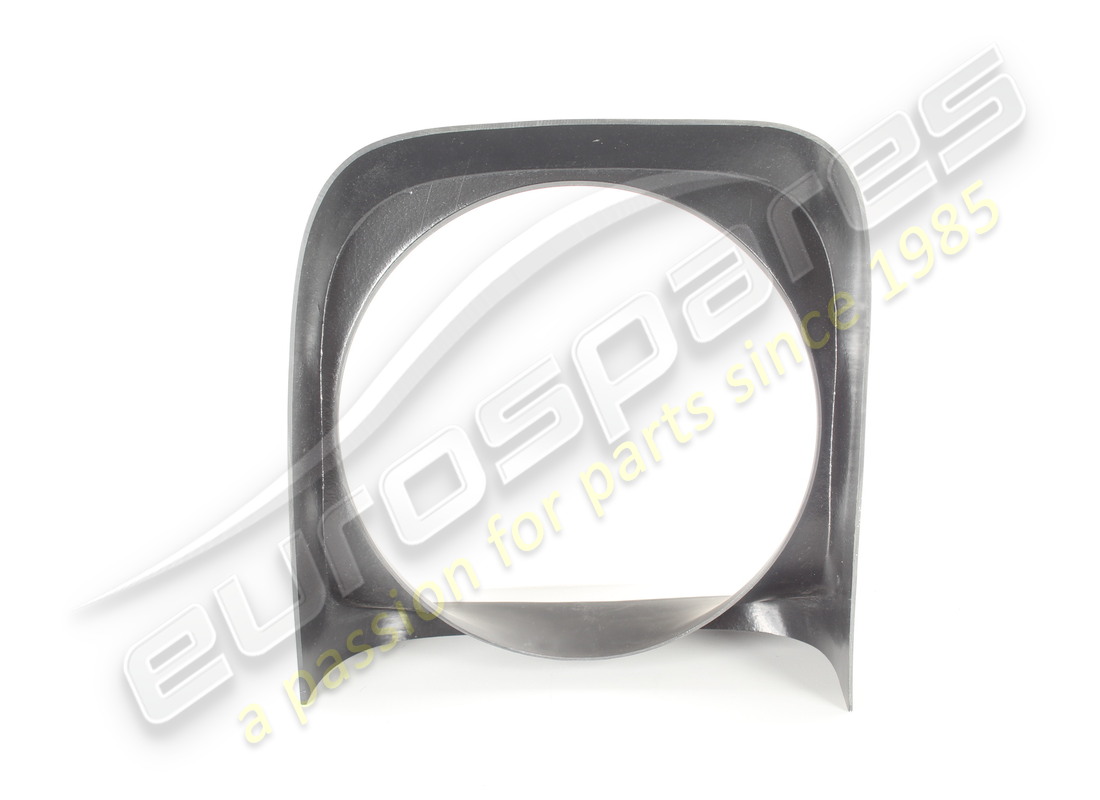

        # 024
        MPN: 006990031
        LH HEADLIGHT TRIM SURROUND
        from £212.71
        from £212.71
        LH HEADLAMP BEZEL Genuine Lamborghini - New (to order)
        # 025
        MPN: 006617093
        LAMP
        Lamp. BA 155/12821 5W
        from £11.28
        from £11.28
        12V 5W BULB Genuine Lamborghini - New (to order)
        # 026
        MPN: 006617094
        LAMP
        Lamp. BA 155/12498 21 W
        from £5.52
        from £5.52
        BULB Genuine Lamborghini - New (to order)
        # 027
        MPN: 006309758
        LAMP
        Lamp. 6411/12V lOWsiluro
        from £6.59
        from £6.59
        CYLINDER BULB 6411/12V 10W Genuine Lamborghini - New In stock
        # 028
        MPN: 006319367
        DOME LAMP
        Plafoniera 08422002 basse e nere
        from £46.43
        from £46.43
        LOW ENERGY CEILING LIGHT Genuine Lamborghini - New (to order)
        # 029
        MPN: 006319330
        LIGHT P.
        Plafoniera bagagliaio e abitacolo
        Lamborghini PART 006319330 Genuine Lamborghini - New (to order)
        # 030
        MPN: 006319331
        LAMP
        Lamp, x plaf. vano mot. e bagagl.
        from £3.62
        from £3.62
        12V 4W BULB Genuine Lamborghini - New (to order)
        # 031
        MPN: 006617092
        LAMP
        Lamp BA 95/1 2384 3 W
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 032
        MPN: 006335225
        WING REPEATER
        from £124.94
        from £124.94
        SIDE DIRECTION INDICATOR Genuine Lamborghini - New In stock
        # 033
        MPN: 006309411
        FOG LIGHT
        Fog lights 06311000/U
        from £284.48
        from £284.48
        FOGLIGHT Genuine Lamborghini - New (to order)
        # 034
        MPN: 006318972
        LH LIGHT
        Fanale ant. posiz. 1 1298000
        from £326.72
        from £326.72
        LH FRONT INDICATOR LAMP ASSY Genuine Lamborghini - New (to order)
        # 035
        MPN: 006320050
        SUPPORT
        Supp. x fiss. fanalini ant. a paraurti
        from £13.48
        from £13.48
        FRONT LIGHT BRACKET Genuine Lamborghini - New (to order)
        # 036
        MPN: N0211963
        NUT
        DADO N/70/105M
        from £0.54
        from £0.54
        HEX.HEAD CLAMPING Genuine Lamborghini - New In stock
        HEX. NUT - M5 Genuine Porsche Part - New (to order)
        # 037
        MPN: 006318973
        RH LIGHT
        FANALE ANT. POS. 11299000
        from £326.72
        from £326.72
        RH FRONT INDICATOR LAMP Genuine Lamborghini - New (to order)
