lamborghini jalpa 3.5 (1984) front bonnet and removable hard top parts diagram

043 - Front Bonnet and Removable Hard Top

Lamborghini Jalpa 3.5 (1984) Front Bonnet and Removable Hard Top Parts Diagram

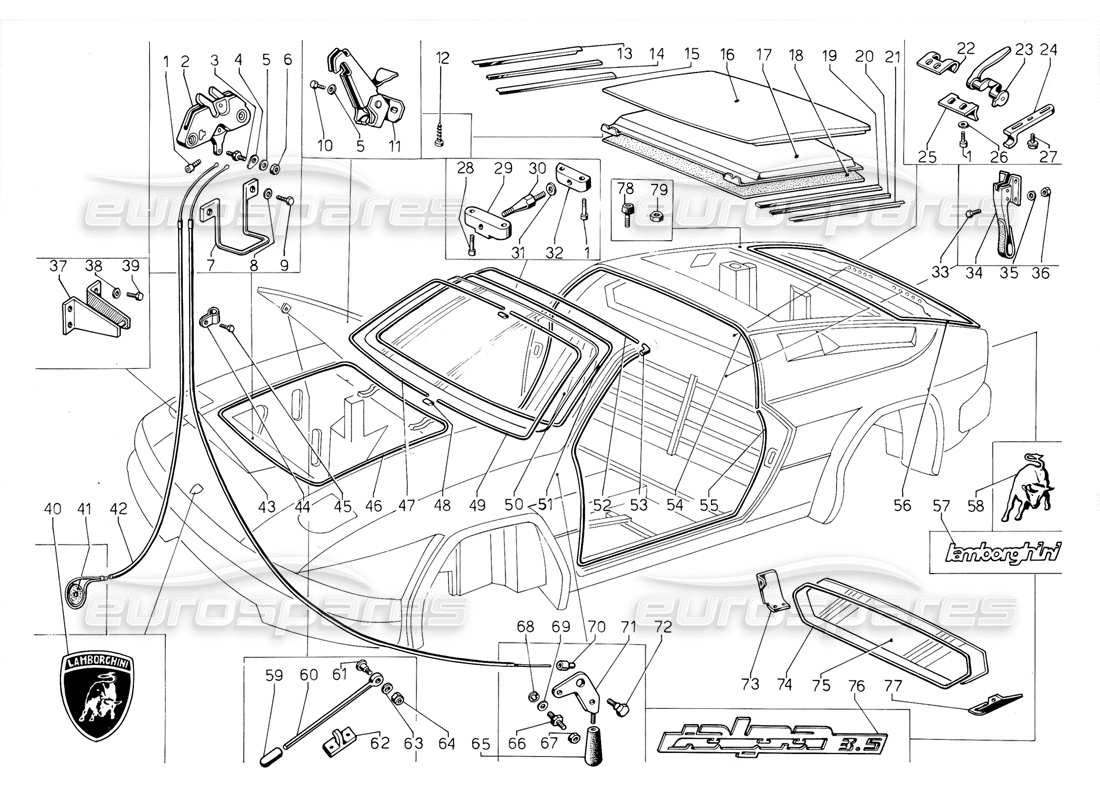

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Price
          # 001
          MPN: 008100623
          BOLT
          Bull. M6x30 UNI 5737/8G
          Supersession
          Supersession
          # 002
          MPN: 006959110
          DONNET LOCK
          Serr. cofani 1587 des.
          from £41.54
          from £41.54
          # 003
          MPN: 006959298
          PIN
          Perno fiss. cavo serr. cof.
          from £18.91
          from £18.91
          # 004
          MPN: 007059012
          BONNET CABL
          Rond. fiss. cavi cofani
          from £13.14
          from £13.14
          # 005
          MPN: 008400607
          WASHER
          Rond. 6,5x18x1,5
          Supersession
          Supersession
          # 006
          MPN: 008200607
          NUT
          Dado D 6x1 sin. 8G
          from £8.05
          from £8.05
          # 007
          MPN: 004113498
          SUPPORT
          Supp. sul parafiamma x ruota scorta (support)
          # 008
          MPN: 008400607
          WASHER
          Rond. 6,5x18x1,5
          Supersession
          Supersession
          # 009
          MPN: 008100601
          BOIT
          Bull. M6x18 UNI 5739 8G
          Supersession
          Supersession
          # 010
          MPN: 008100625
          BOLT
          Bull. M6x16 UNI 5739/8G
          from £85.73
          from £85.73
          # 011
          MPN: 007859005
          LEVER
          Gancio cofano vs. dis. 5958932
          from £32.04
          from £32.04
          # 012
          MPN: 008700313
          SCREW
          Vite TS Din. 7982 nichel
          from £1.62
          from £1.62
          # 013
          MPN: 007807010
          R. DRIP
          Right drip for roof
          # 014
          MPN: 007807023
          TOP SHEET
          Lamierino x imperiale
          from £13.14
          from £13.14
          # 015
          MPN: 007807038
          LH/RH SIDE OPEN ROOF RUBBER SEAL
          from £75.28
          from £75.28
          # 016
          MPN: 007807025
          INSULATING
          Glass wool insulation
          # 017
          MPN: 007807040
          SHIELD
          Pavilion fairing
          from £656.65
          from £656.65
          # 018
          MPN: 007807024
          LINING
          RIVESTIMENTO
          # 019
          MPN: 007807038
          LH/RH SIDE OPEN ROOF RUBBER SEAL
          from £75.28
          from £75.28
          # 020
          MPN: 007807023
          TOP SHEET
          Lamierino x imperiale
          from £13.14
          from £13.14
          # 021
          MPN: 007807011
          L DRIP
          Left drainer for pavilion
          # 022
          MPN: 007807034
          PLATE
          Piastra sui supp. x maniglia serr. tettuc.
          from £108.62
          from £108.62
          # 023
          MPN: 007807029
          HINGE
          Assieme maniglia des. fiss. tettuccio
          from £218.89
          from £218.89
          # 023
          MPN: 007807030
          HINGE
          Assieme maniglia sin. fiss. tettuccio
          from £218.89
          from £218.89
          # 024
          MPN: 007807033
          HINGE
          Asta x maniglia serr. tettuccio mobile
          from £77.13
          from £77.13
          # 025
          MPN: 007807031
          SUPPORT
          Roof tightening handle support D.
          from £87.89
          from £87.89
          # 025
          MPN: 007807032
          SUPPORT
          Roof tightening handle support S
          from £87.89
          from £87.89
          # 026
          MPN: 008400817
          WASHER
          Washer 8,4x14x1,5 5S
          from £0.53
          from £0.53
          # 027
          MPN: 008700825
          SCREW
          Allen screw M8x1, 25x25
          from £1.58
          from £1.58
          # 028
          MPN: 008700824
          SCREW
          Allen screw M8x1, 25x16
          from £1.58
          from £1.58
          # 029
          MPN: 007807035
          SUPPORT
          Staffa su carrozz. gancio tettuccio mob.
          from £107.22
          from £107.22
          # 030
          MPN: 007807036
          PIRN
          Perno conico aggancio ant. tettuccio
          from £80.16
          from £80.16
          # 031
          MPN: 008401020
          WASHER
          ROSETTA
          from £1.58
          from £1.58
          # 032
          MPN: 007807037
          BRAKERT
          Staffa ant. su tettuccio mob. x aggancio
          from £94.93
          from £94.93
          # 033
          MPN: 008700430
          SCREW
          Vite fiss. consolle portaini al telaio
          Supersession
          Supersession
          # 034
          MPN: 007807039
          PIN
          Fixing hook roof behind seat type B
          from £171.20
          from £171.20
          # 035
          MPN: 008400401
          WASHER
          Rond. 4,3x9x0,8 UNI 1734
          Supersession
          Supersession
          # 036
          MPN: 008200405
          NUT
          DADO
          from £1.58
          from £1.58
          # 037
          MPN: 007859006
          BRAKERT
          Assieme staffa arr. gancio sig. cof. ant.
          from £131.42
          from £131.42
          # 038
          MPN: 008410602
          LOCK WASHER
          Ros. 6,4x12x0,5
          from £28.28
          from £28.28
          # 039
          MPN: 008100631
          BOLT
          Bullone M6x1
          from £0.53
          from £0.53
          # 040
          MPN: 006119379
          PLATE TORO
          Stemmi Lamborghini appl. tape nere
          Supersession
          Supersession
          # 041
          MPN: 008611602
          SEAL RING
          Gommino passatubo 8213
          from £8.84
          from £8.84
          # 042
          MPN: 006959120
          CABLE
          Cavo sic. cof. ant. mm. 1815
          from £37.77
          from £37.77
          # 043
          MPN: 006959114
          RLS CABLE
          Cavo aper. cof. ant.
          from £37.77
          from £37.77
          # 044
          MPN: 008830120
          CLAMP RING
          Fasc. RS 1100,2x6x12
          from £1.71
          from £1.71
          # 045
          MPN: 008700506
          SCREW
          Vite knip 4,8x16 DIN 7971
          from £0.54
          from £0.54
          # 046
          MPN: 007859008
          GASKET
          Guarniz. cofano anteriore
          # 047
          MPN: 006915120
          WINDSC GASK
          Guam. des. sigil. parabr.
          from £566.29
          from £566.29
          # 048
          MPN: 006915150
          FRAME JOINT
          Coprigiunto corn. parabr./U
          from £37.77
          from £37.77
          # 049
          MPN: 006915121
          WINDSC GASK
          Guarniz. sin. sigil. parabr.
          from £566.29
          from £566.29
          # 050
          MPN: 007115001
          FRONT WINDSCREEN
          Will require rubber No: 007890011
          from £1,576.00
          from £1,576.00
          This part replaces part number 006915050
          # 051
          MPN: 007890011
          STRIPPING
          Guarnizione parabrezza (GAC)
          from £440.97
          from £440.97
          # 052
          MPN: 007890013
          FRONT AND REAR ROOF SEAL
          (included n.54 as well)
          from £39.00
          from £39.00
          # 053
          MPN: 007890003
          PLUG
          Rubber stopper x prof, doorway
          # 054
          MPN: 007890005
          FRONT AND REAR ROOF SEAL
          (included n.52 as well)
          from £54.56
          from £54.56
          # 055
          MPN: 006758118
          RUBBER
          from £70.64
          from £70.64
          # 056
          MPN: 007890001
          RUBBER
          Prof, gomma x cofano baule
          # 057
          MPN: 006111397
          Lamborghini NAME PLATE
          SCRITTA Lamborghini /C BLACK - FOR FLATE CHROME USE: 006128566
          from £78.75
          from £78.75
          # 058
          MPN: 006121271
          BLACK BULL
          FREGIO (TORO) For Silver use part number : 006128588
          from £110.57
          from £110.57
          # 059
          MPN: 006956046
          ROD. CAP.
          Cappuccio x asta reggicofano ant.
          # 060
          MPN: 007859010
          BONNET ROD
          Asta reggicofano
          from £87.89
          from £87.89
          # 061
          MPN: 006935114
          LEVER PIN
          Perno x leva apri cof. ant. e fiss. asta regg. cof.
          from £7.60
          from £7.60
          # 062
          MPN: 006959186
          SUPPOR
          Supp. asta cofano ant.
          from £26.46
          from £26.46
          # 063
          MPN: WHT001514
          LOCK WASHER
          Ros. el. 8,4x17x0,8
          from £15.09
          from £15.09
          This part replaces part number 008410805
          # 064
          MPN: N0211963
          NUT
          DADO N/70/105M
          from £0.53
          from £0.53
          # 065
          MPN: 007859003
          KNOB
          Pomello x leva apri cofano ant.
          from £21.89
          from £21.89
          # 066
          MPN: 006959298
          PIN
          Perno fiss. cavo serr. cof.
          from £18.91
          from £18.91
          # 067
          MPN: 008200607
          NUT
          Dado D6x1 sin. 8G
          from £8.05
          from £8.05
          # 068
          MPN: 008580401
          LOCK RING
          Seeger 5 4 din. 6799
          from £1.71
          from £1.71
          # 069
          MPN: 008400606
          WASHER
          Rond. 6,4 UNI 1734
          Supersession
          Supersession
          # 070
          MPN: 006960123
          BUSHING
          SHEATH STOPPING BUSH
          # 071
          MPN: 007859002
          LEVER
          Leva apri cofano ant.
          from £109.04
          from £109.04
          # 072
          MPN: 006959160
          BOLT
          Bull. fiss. leva apricofano ant.
          from £37.77
          from £37.77
          # 073
          MPN: 007818002
          GUARD
          Parat. sin. lung.
          from £92.95
          from £92.95
          # 074
          MPN: 007818004
          TUBE
          Rear window contour profile
          from £247.29
          from £247.29
          # 075
          MPN: 007818003
          Glass
          CRISTALLO LUNOTTO
          from £461.82
          from £461.82
          # 077
          MPN: 007818001
          GUARD.
          Parat. dex. lun.
          from £136.81
          from £136.81
          # 078
          MPN: 006929145
          BONNET
          Tassello riscontro cof.
          from £7.60
          from £7.60
          # 079
          MPN: N10690001
          NUT
          Dado 5x0,8 sin. CH8 8G
          from £318.19
          from £318.19
