lamborghini jalpa 3.5 (1984) engine and luggage comp hoods parts diagram

046 - Engine and Luggage Comp Hoods

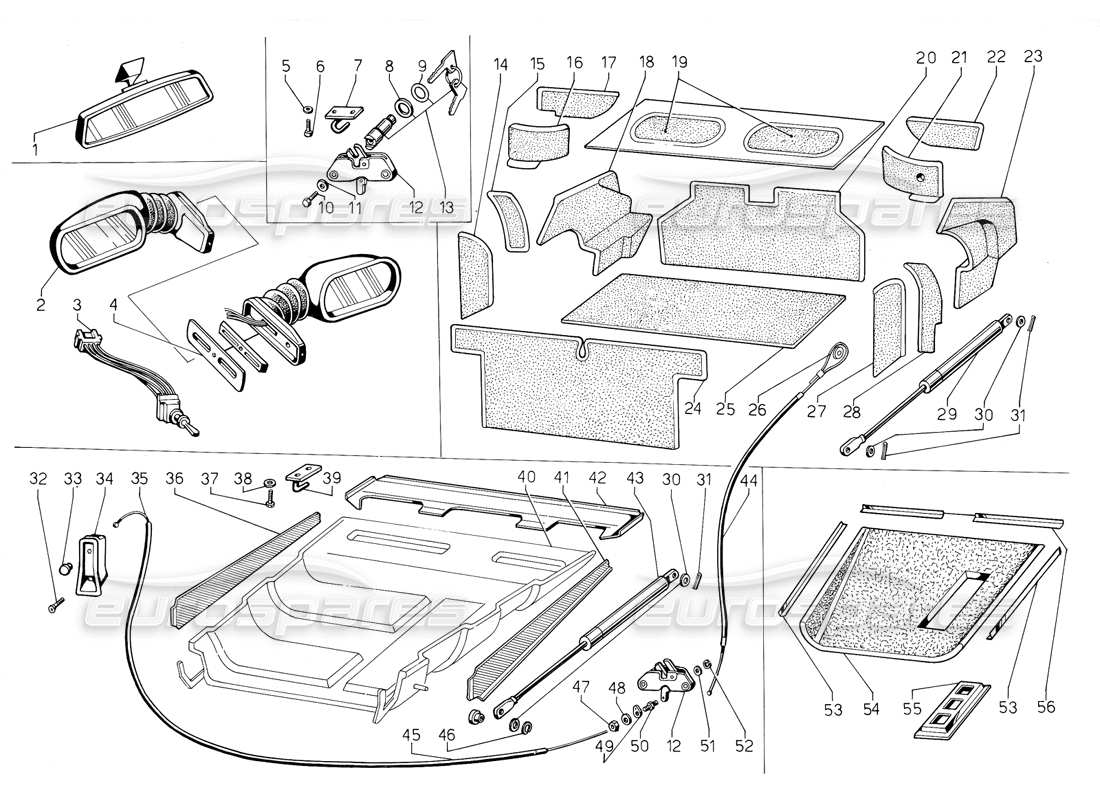

Lamborghini Jalpa 3.5 (1984) Engine and Luggage Comp Hoods Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price

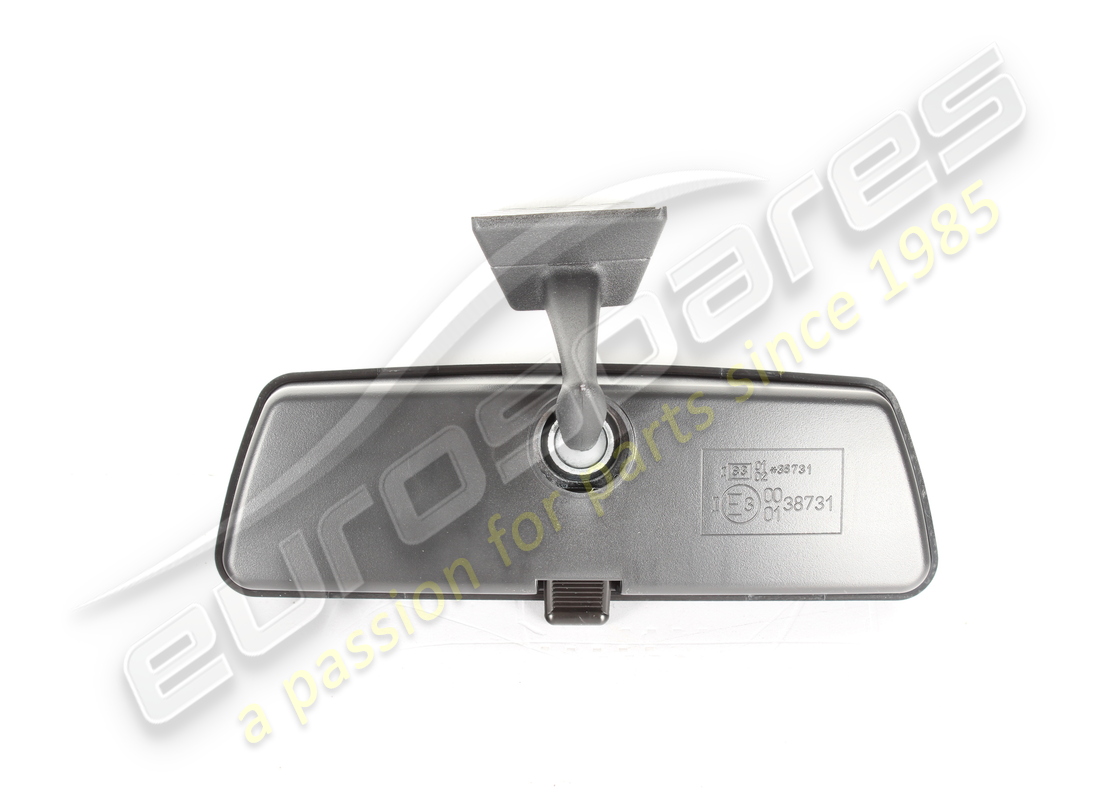

      # 001
      MPN: 007058002
      INTER, MIRRO
      Retrov. int. 1301028/C
      from £593.22
      from £593.22
      This part replaces part number 007058052
      # 002
      MPN: 006119375
      LH OUTER MIRROR
      # 003
      MPN: 006119118
      SWITCH
      Interr. x visiom. 162.2.824
      from £363.98
      from £363.98
      # 004
      MPN: 006119374
      RH OUTER MIRROR
      from £1,327.05
      from £1,327.05
      # 005
      MPN: 008400607
      WASHER
      Rond. 6,5x18x1,5
      Supersession
      Supersession
      # 006
      MPN: 008100502
      BOLT
      Bull. M5x16 UNI 5739/8G
      from £0.53
      from £0.53
      # 007
      MPN: 007829004
      HOOK
      Gancio x chiusura serr. cof. post.
      from £43.78
      from £43.78
      # 008
      MPN: 007829006
      WASHER
      Rondel
      from £8.79
      from £8.79
      # 009
      MPN: 007829002
      RUBBER RING
      Gomm. circolare 0 esterno 40
      # 010
      MPN: 008100607
      BOLT
      Bull. M6x18 UNI 5739 5S
      from £3.65
      from £3.65
      # 011
      MPN: 008400607
      WASHER
      Rond. 6,5x18x1,5
      Supersession
      Supersession
      # 012
      MPN: 006959110
      BONNET LOCK
      Serr. cofani 1587 des.
      from £41.54
      from £41.54
      # 013
      MPN: 006929115
      lock
      Serr. cofano baule
      # 014
      MPN: 007858026
      CARPET.
      Tappeto x passaruota post. dex. parte lat.
      # 015
      MPN: 007858024
      CARPET
      Tapp. x pas. post. dex. parte sup.
      # 016
      MPN: 007858035
      SIDE PANEL
      Fianch. vano baule coprifanalino dex.
      from £123.64
      from £123.64
      # 017
      MPN: 007858063
      CARPET
      Tappeto sup. coprifanalino dex.
      # 018
      MPN: 007858059
      SIDE PANEL
      Fianch. lat. dex. vano baule
      from £166.66
      from £166.66
      # 019
      MPN: 007858031
      CARPET
      Tappeto x cofano baule
      # 020
      MPN: 007858027
      CARPET
      Tappeto x fondo baule
      # 021
      MPN: 007858036
      SIDE PANEL
      Fianch. vano baule coprifan. sin.
      from £123.64
      from £123.64
      # 022
      MPN: 007858064
      CARPET
      Tapp. sup. coprifan. sin.
      # 023
      MPN: 007858060
      SIDE PANEL
      Fianch. lat. sin. vano baule grezzo
      # 024
      MPN: 007858065
      REAR PANEL
      Post panel, x div. wall
      # 025
      MPN: 007858027
      CARPET
      Tappeto x fondo baule

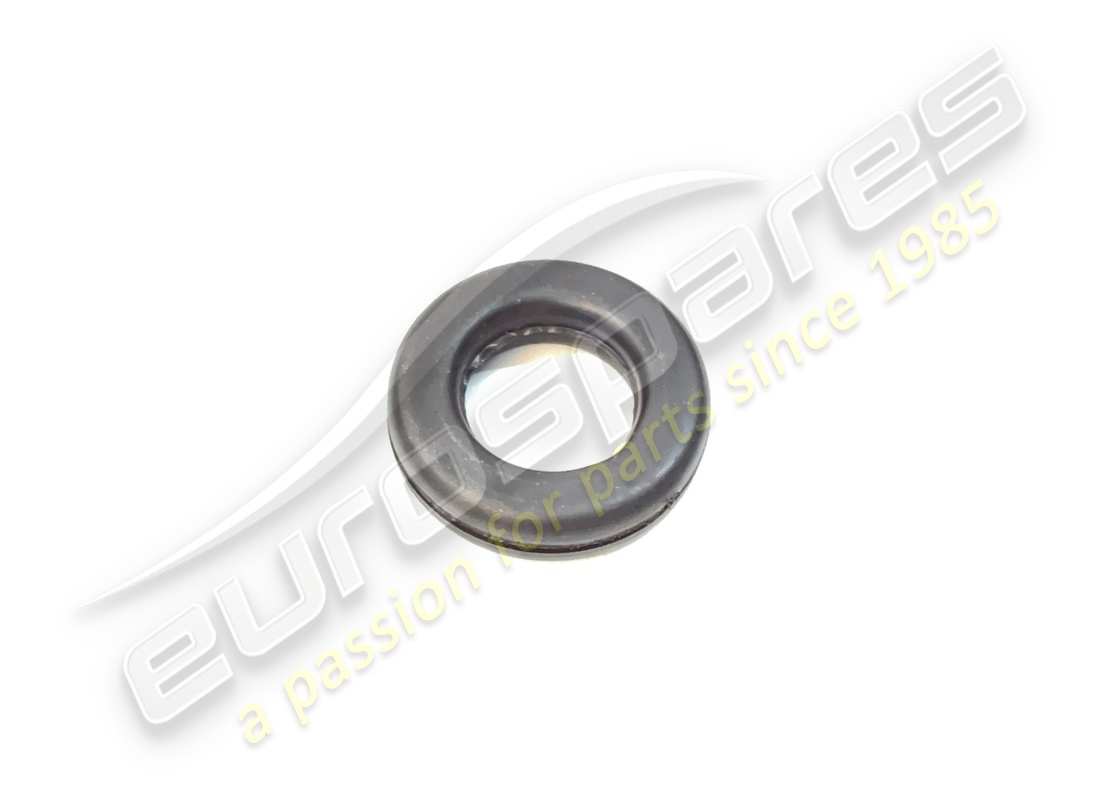

      # 026
      MPN: 008611602
      SEAL RING
      Gommino passatubo 8213
      from £8.84
      from £8.84
      # 027
      MPN: 007858025
      CARPET
      Tappeto x passaruota post. sin. parte lat.
      # 028
      MPN: 007858023
      CARPET.
      Tapp. x passaruota post. sin. parte sup.
      # 029
      MPN: 007029005
      SHOCK ABS
      SOLLEVATORE BAULE
      from £62.11
      from £62.11
      # 030
      MPN: 008400801
      WASHER
      Rond. 8,4 UNI 1734 8G
      Supersession
      Supersession
      # 031
      MPN: 008820101
      SPLINT PIN
      Copp. B 1,5x12 UNI 1336
      from £1.62
      from £1.62
      # 032
      MPN: 008700630
      SCREW
      Vite TGS 6x20
      from £1.71
      from £1.71
      # 033
      MPN: 006921965
      PLUG
      Tappo x fori porte/U
      from £3.78
      from £3.78
      # 034
      MPN: 006960116
      HANDLE
      Engine bonnet handle
      from £189.05
      from £189.05
      # 035
      MPN: 007860032
      RLS CABLE
      Cavo bauden x aper. cofano motore
      # 036
      MPN: 007860024
      SHEETING
      Lam. chiusura cof. mot. parte lat. dex.
      from £123.64
      from £123.64
      # 037
      MPN: 008100616
      BOLT
      Bull. M6x16 UNI 5739/5S
      from £0.53
      from £0.53
      # 038
      MPN: 008400607
      WASHER
      Rond. 6,5x18x1,5
      Supersession
      Supersession
      # 039
      MPN: 007860026
      STRIKER
      Riscontro x serr. cofano motore
      from £65.67
      from £65.67
      # 040
      MPN: 007860023
      BONNET
      COFANO MOTORE COMPLETO
      from £5,687.70
      from £5,687.70
      # 041
      MPN: 007860025
      SHETING
      Lam. chiusura cof. mot. parte lat. sin.
      from £123.64
      from £123.64
      # 042
      MPN: 007860005
      SHIELD
      Riparo cofanb mot. parte post.
      from £131.42
      from £131.42
      # 043
      MPN: 007060018
      SHOCK ABS
      USE 007060026
      from £93.69
      from £93.69
      # 044
      MPN: 006959119
      CABLE
      Cavo sic. cof. ant. mm. 760
      from £56.63
      from £56.63
      # 045
      MPN: 007860033
      SHEATING
      Guaina x cavo e per cofano motore
      # 046
      MPN: 008580502
      CIRCLP
      Seeger 6 5 SIN 6799
      from £1.71
      from £1.71
      # 047
      MPN: N01100637
      NUT
      DADO M6 UNI 5588-65/8G
      from £0.54
      from £0.54
      This part replaces part number 008200604
      # 048
      MPN: 008410601
      WASHER
      Rond. el RDE - 6
      from £0.54
      from £0.54
      # 049
      MPN: 007059012
      BONNET CABL
      Rond. fisse cavi cofani
      from £13.14
      from £13.14
      # 050
      MPN: 006959298
      PIN
      Perno fiss. cavo serr. cof.
      from £18.91
      from £18.91
      # 051
      MPN: 008400606
      WASHER
      Rond. 6,4 UNI 1734
      Supersession
      Supersession
      # 052
      MPN: 008580402
      RING
      SEEGER
      from £1.71
      from £1.71
      # 053
      MPN: 007855054
      BRACKET
      (Valid for Switzerland only September 1984) Staffetta reggisol cof. port. lat.
      from £43.78
      from £43.78
      # 054
      MPN: 007855032
      NUISE INS.
      (Valid for Switzerland only September 1984) sol acus x cofano motore
      # 055
      MPN: 007855052
      Frame
      (Valid for Switzerland only September 1984) Tel. sost isol su presa aria cof. mot.
      from £218.89
      from £218.89
      # 056
      MPN: 007855053
      BRACKET
      (Valid for Switzerland only September 1984) Staffetta reggi isol mot. part. sup.
      from £56.89
      from £56.89
