048B - Bumpers and Spoiler (Valid for USA - May 1985)

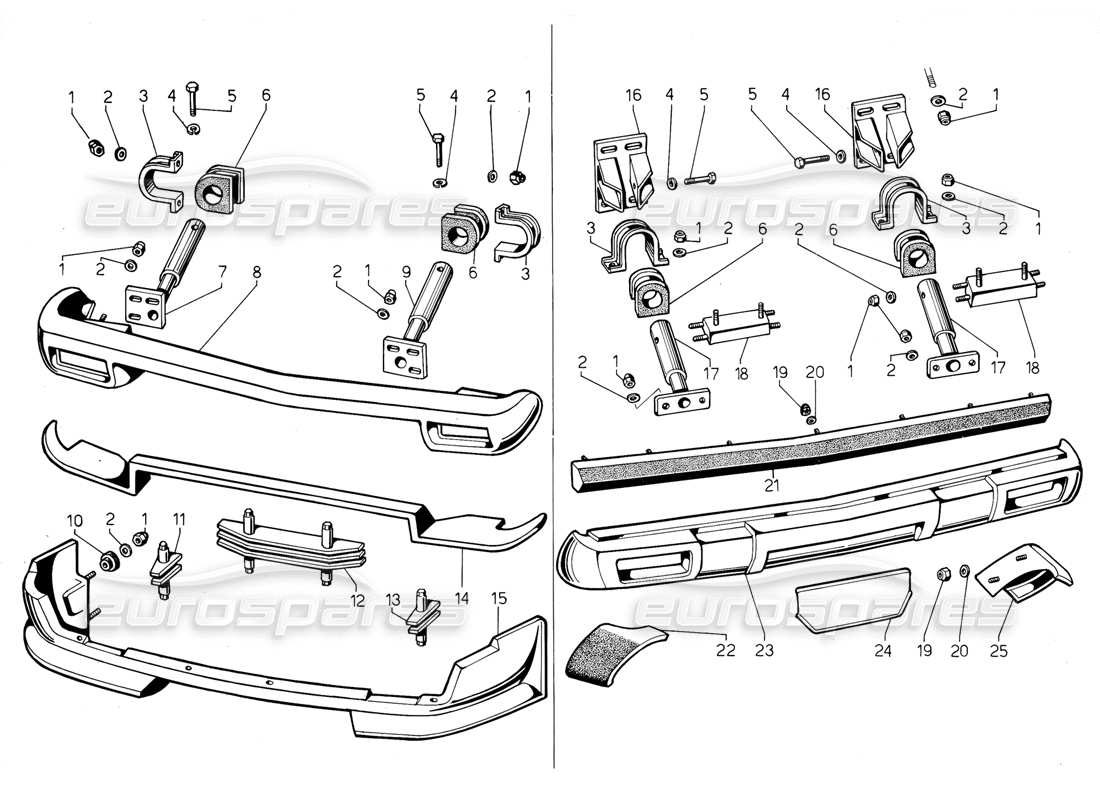

Lamborghini Jalpa 3.5 (1984) Bumpers and Spoiler (Valid for USA - May 1985) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008200809
NUT
(Valid for U.S.A - May 1985) Dado B/70/208M
Supersession
Supersession
# 002
MPN: WHT001942
WASHER
(Valid for U.S.A - May 1985) Rond. D. 8,5x32x2,5
from £2.00
from £2.00
# 003
MPN: 006111506
PLATE
(Valid for U.S.A - May 1985) Cavall. supp. paraurti USA
from £22.14
from £22.14
# 004
MPN: 008411502
LOCK WASHER
(Valid for U.S.A - May 1985) Rond. el. A15 UNI 1751
from £1.49
from £1.49
# 005
MPN: 008101425
BOLT
(Valid for U.S.A - May 1985) Bull. M14x70 UNI 5738 8G
from £3.70
from £3.70
# 006
MPN: 006111507
BUMPER SUPP
(Valid for U.S.A - May 1985) Supp. ammort. paraurti USA
from £22.14
from £22.14
# 007
MPN: 006111511
FRONT BUMPER
(Valid for U.S.A - May 1985) Ammort. des. paraurti ant.
from £199.40
from £199.40
# 008
MPN: 006963000
BUMPER
(Valid for U.S.A - May 1985) Paraurto ant. compl. 117
from £2,739.19
from £2,739.19
# 009
MPN: 006111512
FRONT BUMPER
(Valid for U.S.A - May 1985) Ammort. sx paraurti ant.
from £199.40
from £199.40
# 010
MPN: 001701495
RAD. SUPPORT
(Valid for U.S.A - May 1985) Anello x supp. Serb, suppl. e rad. 135680020
from £32.99
from £32.99
# 011
MPN: 007830020
AIR INTAKE
(Valid for U.S.A - May 1985) Presa aria dx USA
from £308.69
from £308.69
# 012
MPN: 007830019
AIR INTAKE
(Valid for U.S.A - May 1985) Presa aria oentr. USA
# 013
MPN: 007830021
AIR INTAKE
(Valid for U.S.A - May 1985) Presa aria sx USA
from £308.69
from £308.69
# 014
MPN: 007863014
AIR VENT TR
(Valid for U.S.A - May 1985) Cornice x presa aria
from £617.36
from £617.36
# 015
MPN: 007863023
FRONT SPOIL
(Valid for U.S.A - May 1985) Spoyler ant. Jalpa
# 016
MPN: 007863020
BRACKET
(Valid for U.S.A - May 1985) Staffa fiss. ammort. x paraurto pos. USA
from £133.59
from £133.59
# 017
MPN: 006111510
BUMPER ADSO
(Valid for U.S.A - May 1985) Ammort. paraurti post. USA
from £172.87
from £172.87
# 018
MPN: 006111509
PLATE
(Valid for U.S.A - May 1985) Piastra cavall. supp. par.
from £66.00
from £66.00
# 019
MPN: 008200606
NUT
(Valid for U.S.A - May 1985) Dado N/70/1 06M
Supersession
Supersession
# 020
MPN: 008400607
WASHER
(Valid for U.S.A - May 1985) Rond. 6,5x18x1,5
Supersession
Supersession
# 021
MPN: 007863016
GASKET
(Valid for U.S.A - May 1985) Guarnizione supp. paraurti post.
from £118.98
from £118.98
# 022
MPN: 007863015
COATING
(Valid for U.S.A - May 1985) Riporto dx paraurti post.
from £65.67
from £65.67
# 023
MPN: 007863022
REAR BUMPER
(Valid for U.S.A - May 1985) Paraurto post. Jalpa
from £1,824.04
from £1,824.04
# 024
MPN: 007866002
PLATE SUPPORTER
(Valid for U.S.A - May 1985) Portatarga
# 025
MPN: 007863014
AIR VENT TR
(Valid for U.S.A - May 1985) Cornice x presa aria
from £617.36
from £617.36
