051 - Special Fitting (Valid for Switzerland)

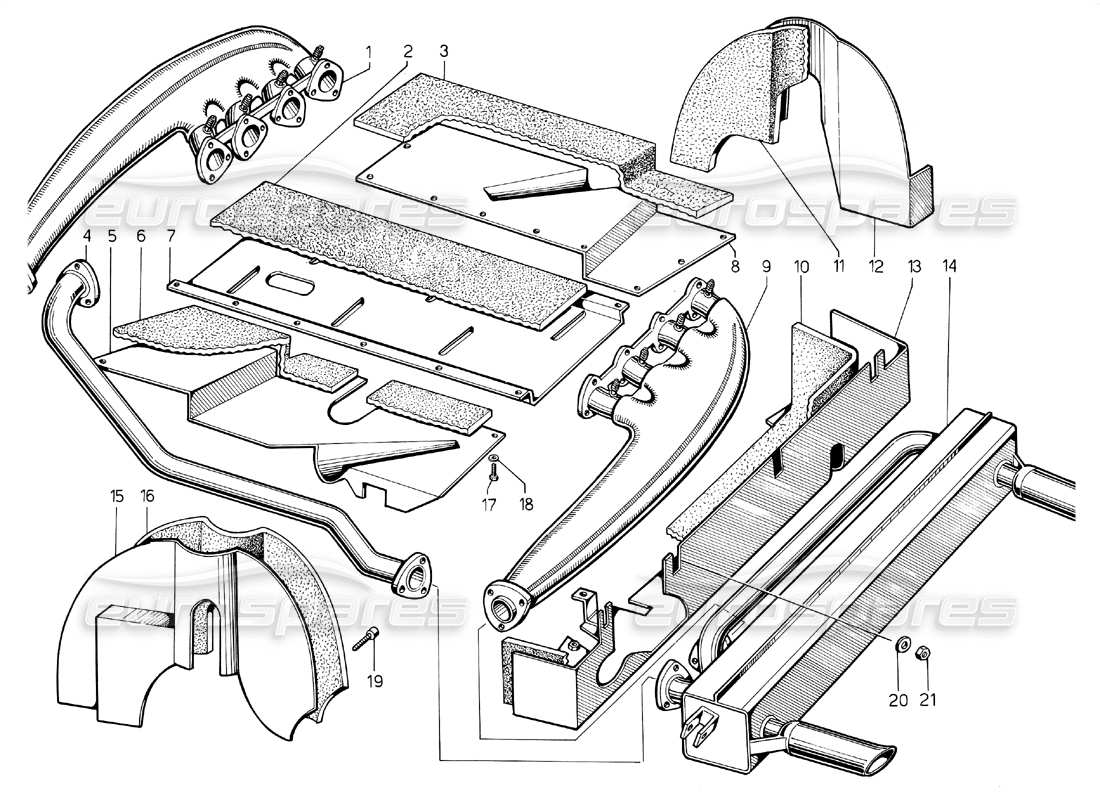

Lamborghini Jalpa 3.5 (1984) Special Fitting (Valid for Switzerland) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 004421156
REACTOR
Front thermal reactor
from £8,336.70
from £8,336.70
# 002
MPN: 007855040
INSULATING
Isol. basalin (8 mm.) x paratia inf. mot. sottoscocca
# 003
MPN: 007855044
ISULATING
Isol. x paratia inf. lato dex.
# 004
MPN: 004421158
TUBE
Tubo int. coll. collett. ant. a marmitte
from £138.88
from £138.88
# 005
MPN: 007855036
SHIELD
Paratia inf. lat. sin.
from £131.42
from £131.42
# 006
MPN: 007855045
INSULATING
Isol parat. inf. lato sin.
# 007
MPN: 007855034
SHIELD
Paratia inf. motore sotto-scocca
from £131.42
from £131.42
# 008
MPN: 007855035
SHIELD
Paratia inf. lat. dex.
from £88.19
from £88.19
# 009
MPN: 004421157
REACTOR
Rear thermal reactor
from £2,421.00
from £2,421.00
# 010
MPN: 007855041
INSULATING
Isol basalin (8 mm.) x par inf. sotto marmitta
# 011
MPN: 007855046
INSULATING
Isol x passaruota post. dex.
# 012
MPN: 007855038
SHIELD
Parat. passaruota post. dex. (vetroresina)
# 013
MPN: 007855037
SHIELD
Parat. inf. sotto marmitta
from £208.10
from £208.10
# 014
MPN: 004421160
MUFFLER
Marmitta x Jalpa tipo svizzera
from £1,227.08
from £1,227.08
# 015
MPN: 007855039
SHIELD
Pahrt. passa-ruota pos. sin. (vetroresina)
# 016
MPN: 007855047
INSULATING
Isol. passaruota post. sin.
# 017
MPN: 008100620
BOLT
Bull. M6x12 UNI 5739/5S
from £3.65
from £3.65
# 018
MPN: 008400607
WASHER
Bond. 6,5x18x1,5
Supersession
Supersession
# 019
MPN: 008700524
SCREW
Vite fiss. plancia portastrumenti
from £1.37
from £1.37
# 020
MPN: 008400607
WASHER
Bond. 6,5x18x1,5
Supersession
Supersession
# 021
MPN: N01100637
NUT
DADO M6 UNI 5588-65/8G
from £0.53
from £0.53
This part replaces part number 008200604
