lamborghini lm002 (1988) cylinder heads parts diagram

001 - Cylinder Heads

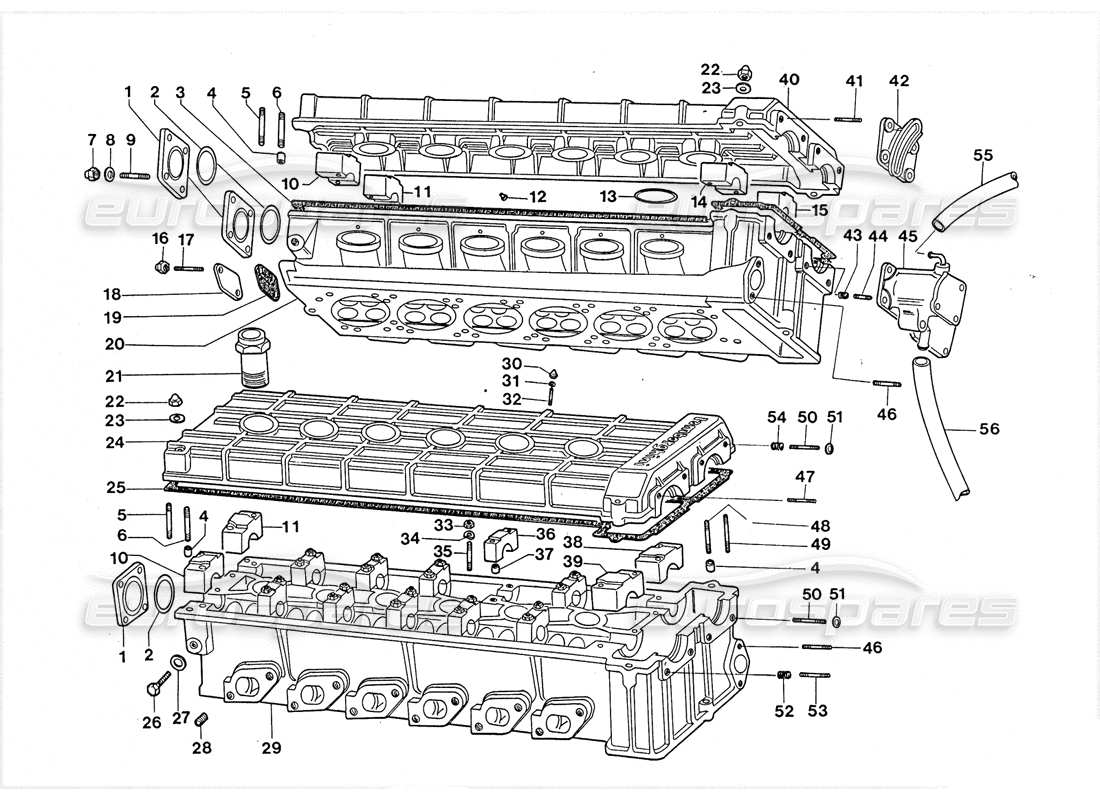

Lamborghini LM002 (1988) Cylinder Heads Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search

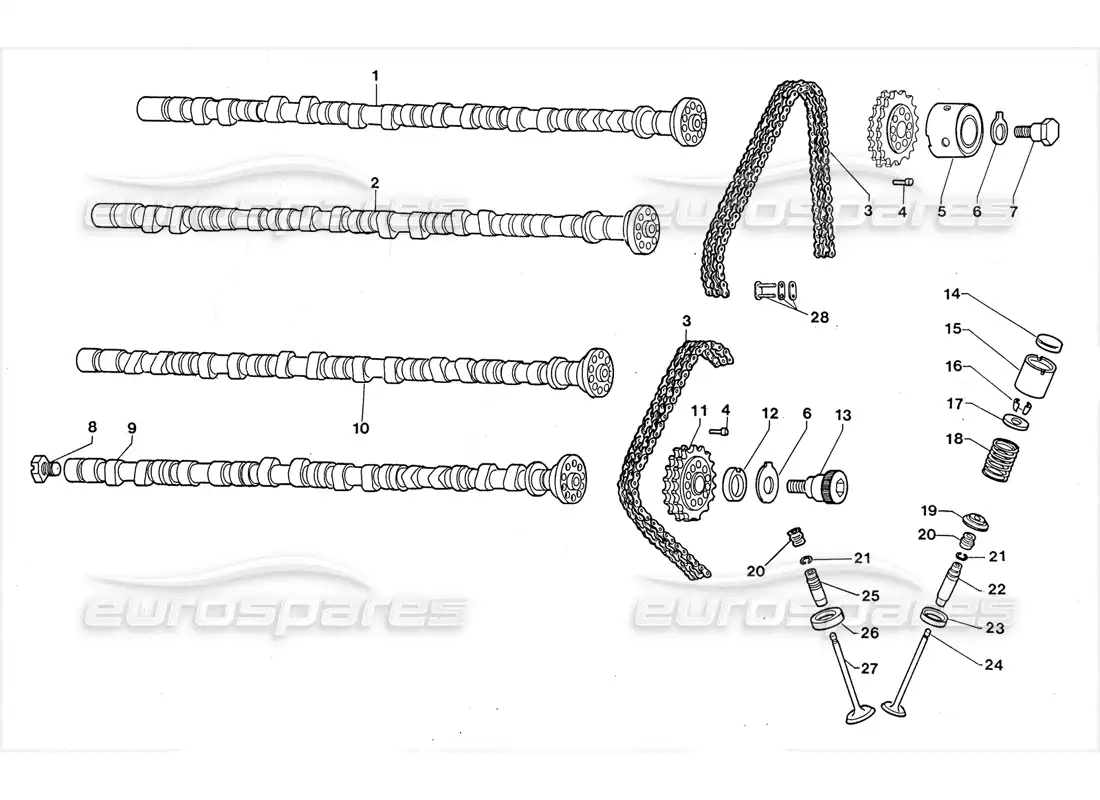

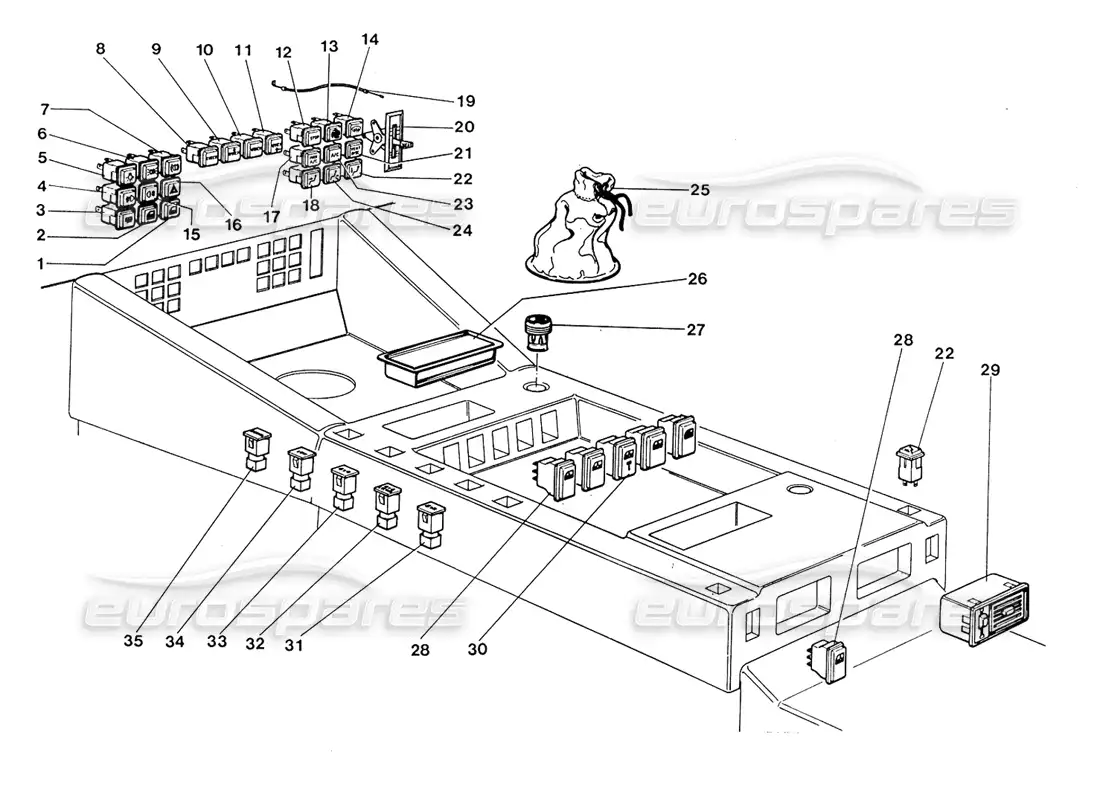

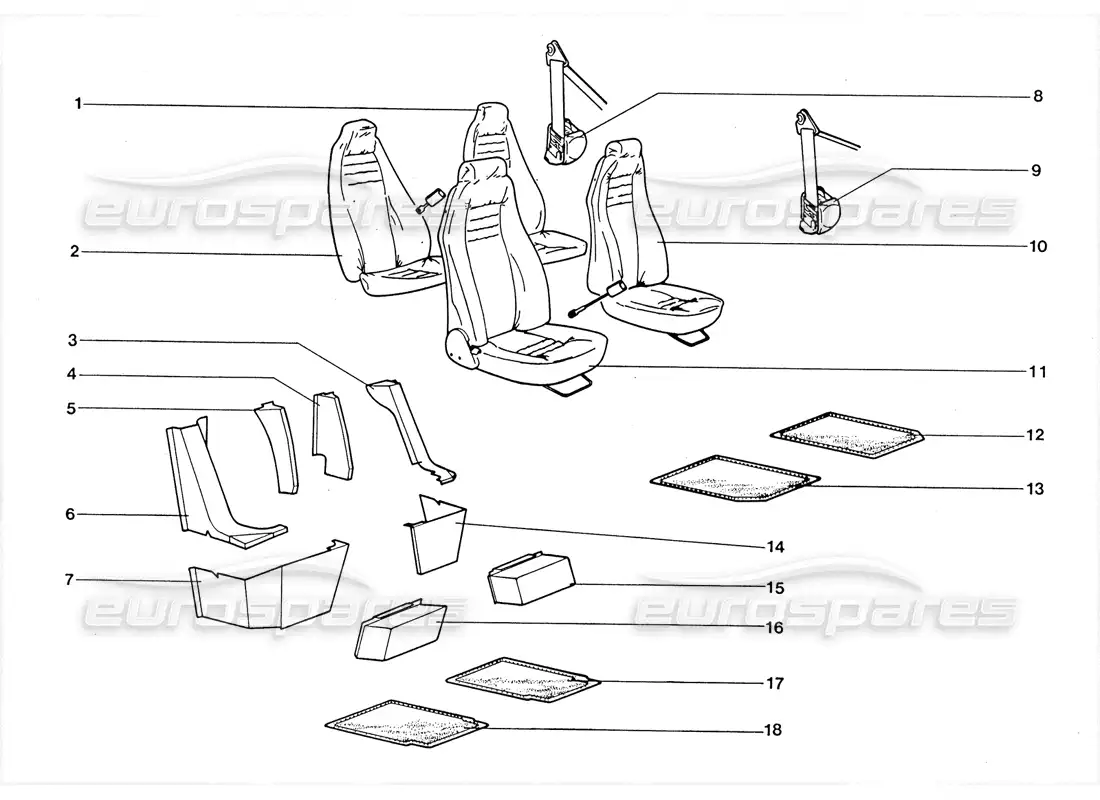

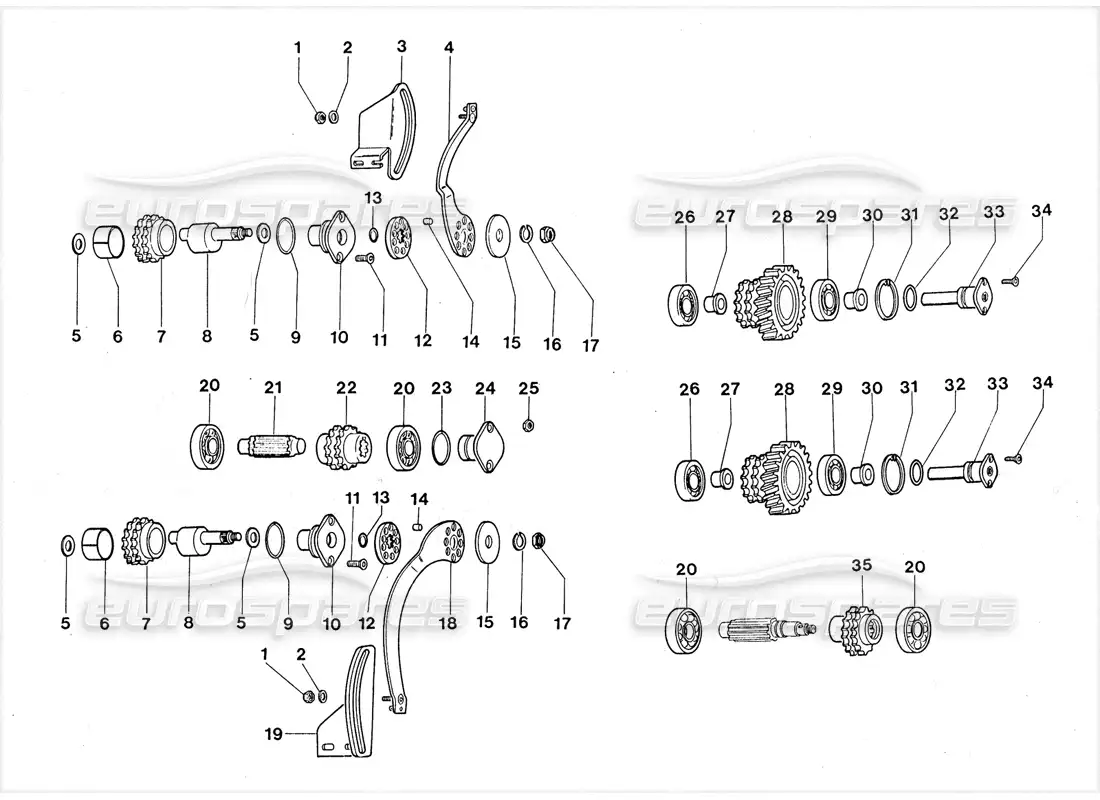

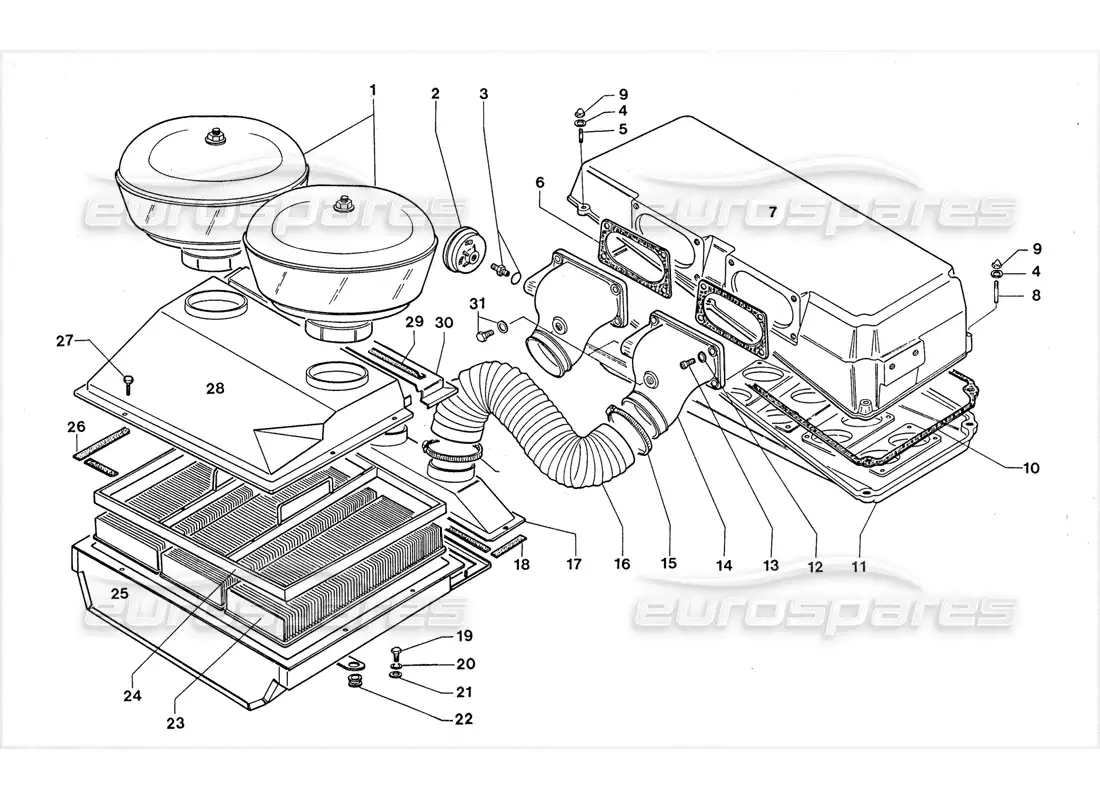

Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Price
        # 000
        MPN: LCCG002
        CAM COVER GASKET SET
        from £77.96
        from £77.96
        # 001
        MPN: 001114502
        F/R COVER
        COPERCHIO POST.E ANT.TESTA DES
        from £118.98
        from £118.98
        # 002
        MPN: 008606205
        O RING
        ANELLO OR 3243
        from £4.04
        from £4.04
        This part replaces part number 008606201
        # 003
        MPN: 001120813
        GASKET
        GUARN.TRA COP.SUP.E TESTA CIL.
        from £78.35
        from £78.35
        # 004
        MPN: 008800604
        BUSH
        BOCCOLA
        Supersession
        Supersession
        # 005
        MPN: 008300649
        STUD
        PRIGIONIERO
        from £5.94
        from £5.94
        # 006
        MPN: 008300650
        STUD
        PRIGIONIERO
        from £7.55
        from £7.55
        # 007
        MPN: 008200605
        NUT
        DADO ORIG.URAMA VS.RIF.NCM70 1
        from £1.74
        from £1.74
        # 008
        MPN: WHT001197
        LOCK WASHER
        RONDELLA DI FERMO DIN 137/B
        Supersession
        Supersession
        # 009
        MPN: 008300641
        STUD
        PRISONER .
        from £0.59
        from £0.59
        # 010
        MPN: 001120855
        REAR SUPPOR
        SUPP.POST.X TESTA DES.SCAR.E S
        # 011
        MPN: 001120856
        REAR SUPPOR
        SUPP.POST.X TESTA DES.ASPIR.E
        # 012
        MPN: 001122089
        DOWEL
        GRAND DI CENTRAGGIO COLLETT.DI
        from £10.57
        from £10.57
        # 013
        MPN: 008604703
        O RING
        ANELLO OR 152
        from £5.15
        from £5.15
        This part replaces part number 008604701
        # 014
        MPN: 001120852
        FRONT SUPPO
        SUPP.ANTER.PER TESTA SINISTRA
        # 015
        MPN: 001120853
        FRONT SUPPO
        SUPP.ANTER.PER TESTA SINISTRA
        # 016
        MPN: 008200605
        NUT
        DADO ORIG.URAMA VS.RIF.NCM70 1
        from £1.84
        from £1.84
        # 017
        MPN: 008300610
        STUD
        PRIG.6X1X16 8G
        from £15.47
        from £15.47
        # 018
        MPN: 001121252
        FLANGE
        FLANGIA CHIUS.FORI USCITA ACQ.
        from £16.65
        from £16.65
        # 019
        MPN: 001121252
        GASKET
        GUARNIZIONE X FLANGIA
        from £16.65
        from £16.65
        # 020
        MPN: 460005452
        LH cylinder head
        from £9,414.54
        from £9,414.54
        # 021
        MPN: 001120857
        PIPE GASKET
        BOCCHETTONE PER FISS.COPERCHI
        from £96.19
        from £96.19
        # 022
        MPN: 008200605
        NUT
        DADO ORIG.URAMA VS.RIF.NCM70 1
        from £1.74
        from £1.74
        # 023
        MPN: WHT001197
        LOCK WASHER
        RONDELLA DI FERMO DIN 137/B
        Supersession
        Supersession
        # 024
        MPN: 001124242
        HEAD COVER
        COPERCHIO BUPERIORE TESTA DEBT
        # 025
        MPN: 001120811
        CAM COVER GASKET
        from £113.59
        from £113.59
        # 026
        MPN: 008100839
        BOLT
        BULL.M8X10 UNI 5739/6G
        Supersession
        Supersession
        # 027
        MPN: 008400802
        WASHER
        ROND.8X16X1,5 RAME
        from £0.95
        from £0.95
        # 028
        MPN: 008840802
        HELI COIL
        HELI-COIL 8X1,25 INOX
        from £2.01
        from £2.01
        # 029
        MPN: 460005402
        RIGHT HEAD
        testa cilindri destra
        from £9,414.54
        from £9,414.54
        # 030
        MPN: 008200605
        NUT
        DADO ORIG.URAMA VS.RIF.NCM70 1
        from £1.74
        from £1.74
        # 031
        MPN: 008400606
        WASHER
        ROND.6,4 UNI 1734
        Supersession
        Supersession
        # 032
        MPN: N01100637
        NUT
        PRIG.6X1X14 8G
        from £0.53
        from £0.53
        This part replaces part number 008200604
        # 033
        MPN: N01100637
        NUT
        DADO M6 UNI 5588-65/8G
        from £0.47
        from £0.47
        This part replaces part number 008200604
        # 034
        MPN: WHT001197
        LOCK WASHER
        RONDELLA DI FERMO DIN 137/B
        Supersession
        Supersession
        # 035
        MPN: 008300640
        STUD
        PRIGIONIERO
        from £10.66
        from £10.66
        # 036
        MPN: 001120854
        SUPPORT
        SUPP.INTERM.CENTR.X TESTA DES.
        Supersession
        Supersession
        # 037
        MPN: 008800604
        BUSH
        BOCCOLA
        Supersession
        Supersession
        # 038
        MPN: 07M103286
        FRONT SUPPO
        SUPP.ANTER.PER TESTA DESTRA LA
        from £131.00
        from £131.00
        # 039
        MPN: 001120851
        FRONT SUPPO
        SUPP.ANTER.PER TESTA DESTRA LA
        # 040
        MPN: 001120812
        CAP
        COPERCHIO SUPERIORE TESTA SINI
        from £2,723.63
        from £2,723.63
        # 041
        MPN: 008300625
        STUD
        PRIG.M6X20 UNI 5917 8G
        from £10.53
        from £10.53
        # 042
        MPN: 001124922
        SUPPORT
        ASOLA FISS.FORCELLA SUPP.TENDI
        from £142.19
        from £142.19
        # 043
        MPN: 008840801
        HELI COIL
        HELI-COIL 8 MA INOX
        from £1.19
        from £1.19
        # 044
        MPN: 008300801
        STUD
        PRIGIONIERO
        from £4.03
        from £4.03
        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
