![lamborghini lm002 (1988) valve gears parts diagram](/img/CxEAAETdFtt3bjJ0SxlyBiIoqmWIRqFBpvNxLv28iIrGo4R7sbFlAAM%3D/lamborghini-lm002-(1988)-part-diagram-003.webp)

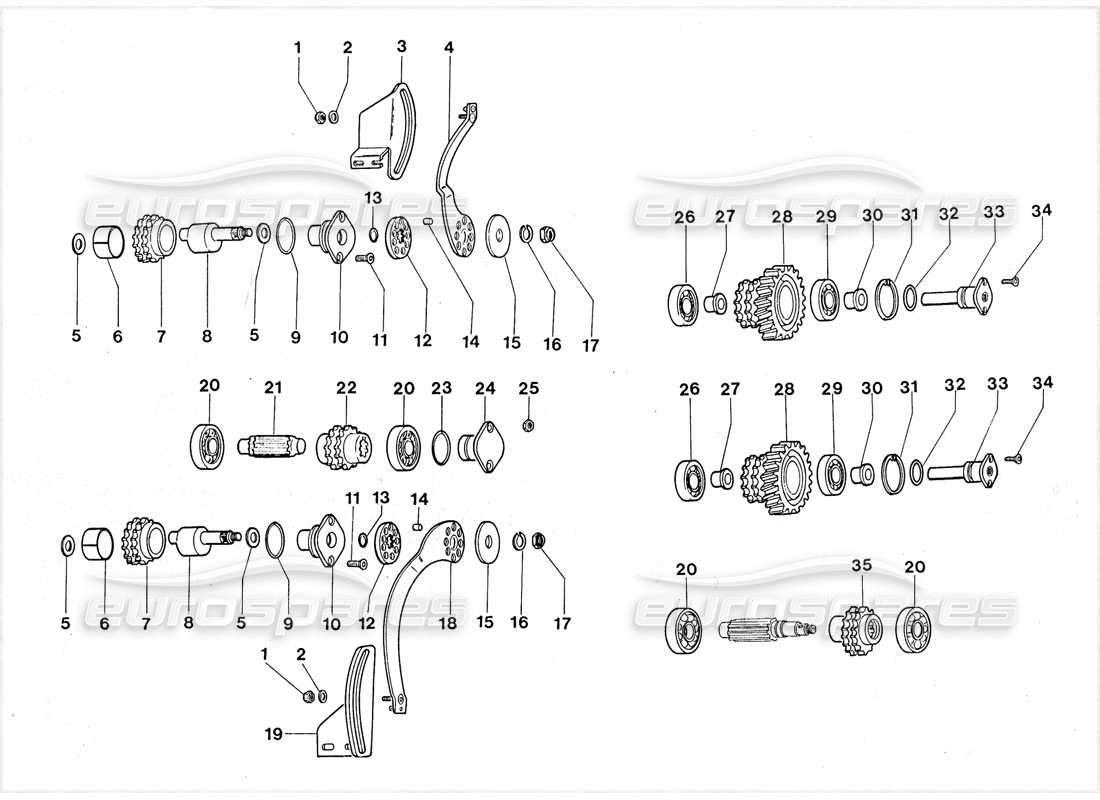

003 - Valve Gears
Lamborghini LM002 (1988) Valve Gears Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008200804
NUT
DADO N/70/108M
from £0.73
from £0.73
# 002
MPN: 008400822
WASHER
ROND.
from £4.27
from £4.27
# 003
MPN: 001226653
BRACKET
STAFFA SUPP.LEVA TENO.TES.SX
from £44.02
from £44.02
# 004
MPN: 001226651
ADJ .LEVER
COMPL.LEVA REG. CAT . TESTA SX
from £191.95
from £191.95
# 005
MPN: 008401813
WASHER
RONDELLA
from £11.53
from £11.53
# 006
MPN: 008803001
BUSH
BOCCOLA X INGR. TENDITORE DU 0
from £41.88
from £41.88
# 007
MPN: 001219423
GEAR
INGRANAGGIO TENDITORE
from £95.77
from £95.77
# 008
MPN: 001219425
PIN
PERNO X TENDITORE
from £137.48
from £137.48
# 009
MPN: 008603903
O RING
ANELLO OR 3156
from £0.53
from £0.53
# 010
MPN: 001226647
BRACKET
SUPP. REG. TEND. CATENA
from £230.49
from £230.49
# 011
MPN: 008700613
SCREW
VITE VSP 6X1X15A
from £0.53
from £0.53
# 012
MPN: 001202447
WASHER
ROND.REG. TENDIT.
# 013
MPN: 008601702
O RING
ANELLO OR 123
from £0.53
from £0.53
# 014
MPN: 001226649
DOWEL
GRAND REG. TENDITORE CAT.
from £12.11
from £12.11
# 015
MPN: 001226648
WASHER
ROND.FERMO GRAND REG. TEND.
from £28.65
from £28.65
# 016
MPN: 001226650
ADJ. LEVER R
COMPL.LEVA REG. CAT. TESTA DX
from £59.69
from £59.69
# 016
MPN: 008411303
LOCK WASHER
ROND.EL.A 13 UNI 1751
from £1.91
from £1.91
# 017
MPN: 008201213
NUT
DADO 12 UNI 210 8G
from £3.36
from £3.36
# 019
MPN: 001226662
BRACKET R
STAFFA SUPP.LEVA TEND.TES.DX
# 020
MPN: 008522202
BEARING
CUSCINETTO NJ2/22 TN9
from £287.23
from £287.23
# 021
MPN: 001219428
SHAFT
ALBERINO X INGRAN. GALOPPINO
from £288.54
from £288.54
# 022
MPN: 001219421
GEAR
INGRANAGGIO GALOPPINO
from £381.40
from £381.40
# 023
MPN: 008604201
O RING
ANELLO OR 147
from £1.19
from £1.19
# 024
MPN: 001200336
BEARING COV
COP.CUSC.GALOPP.
from £228.01
from £228.01
# 025
MPN: 008200605
NUT
DADO ORIG.URAMA VS.RIF.NCM70 1
from £1.84
from £1.84
# 026
MPN: 008521704
BEARING
CU6CINETTO NY 203
from £61.77
from £61.77
# 027
MPN: 001209449
SPACER
DISTANZ.CSN INGR . RIDUTT . /C
from £59.04
from £59.04
# 028
MPN: 001219211
GEAR
INGRANAGGIO RIDUTTORE
from £422.85
from £422.85
# 029
MPN: 008502006
BEARING
CUSC.RIV 6304 5B 20 C3
from £27.53
from £27.53
# 030
MPN: 001209448
BUSH
BDCCOLA CSN INGR . HIDUTT . /C
from £83.32
from £83.32
# 031
MPN: 008575201
CIRCLIP
SEEGER D.52 I UNI 3654
from £0.78
from £0.78
# 032
MPN: 008601801
O RING
ANELLO OR 3075
from £7.01
from £7.01
# 033
MPN: 001209447
PIVOT SHAFT
ALB. SUPP. INGR. RIDUTT. /C
from £437.77
from £437.77
# 034
MPN: 008700613
SCREW
VITE VSP 6X1X1SA
from £0.53
from £0.53
# 035
MPN: 001219424
GEAR
Ingr. galopp. alberino traino
from £397.15
from £397.15
