lamborghini lm002 (1988) crankshaft parts diagram

006 - crankshaft

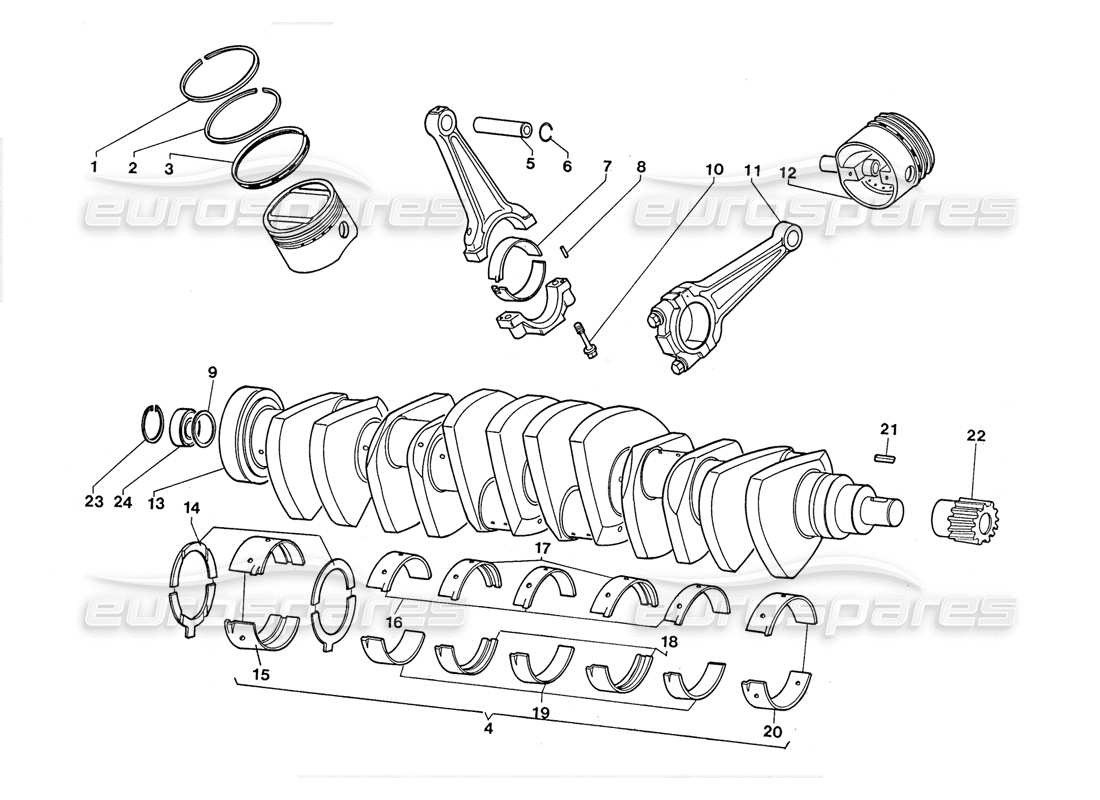

Lamborghini LM002 (1988) Crankshaft Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      MPN: 001422781
      PISTON RING
      Segmento AC crom-bobm B 30
      from £92.86
      from £92.86
      This part replaces part number 001419636
      # 002
      MPN: 001422778
      PISTON RING
      BEGMENTO AC TORBIONALE
      from £70.23
      from £70.23
      This part replaces part number 001419635
      # 003
      MPN: 001422779
      PISTON RING
      SEGMENTO RASCHIAOLIO ROF SPIRA
      from £52.58
      from £52.58
      # 004
      MPN: 001426613
      BEARING SET
      6ERIE SEMICUSC.DI BANCO I MIN.
      # 004
      MPN: 001428614
      BEARING SET
      SERIE SEMICUSC.DI BANCO II MIN
      # 005
      MPN: 001422776
      PISTON PIN
      Spinotto X pistone
      from £100.33
      from £100.33
      # 006
      MPN: 001422777
      RING
      Pin sealing ring
      from £1.01
      from £1.01
      # 007
      MPN: 07M105701
      HALF BEARING
      from £54.90
      from £54.90
      This part replaces part number 001419907
      # 008
      MPN: 006900308
      PIN
      SPIROL 03X12
      # 009
      MPN: 001428128
      SPACER
      DISTANZ.X CSN ALB.MOTORE
      from £16.96
      from £16.96
      # 010
      MPN: 001422563
      ROD. BOLT
      Bullone per biella
      from £46.01
      from £46.01
      # 011
      MPN: 001424474
      CONNECT. ROD
      COMPLETE CONNECTING ROD 01 BOLTS EG
      from £355.69
      from £355.69
      # 012
      MPN: 001420801
      PISTON+RINGS
      from £288.75
      from £288.75
      # 013
      MPN: 001420911
      crankshaft
      Complete crankshaft
      Supersession
      Supersession
      # 014
      MPN: 07M105532
      THRUST WASHER (PRICE EACH)
      use:2x 07M105531A & 2x 07M105532
      from £196.28
      from £196.28
      # 015
      MPN: 001419440
      BEARING
      SEMIGUSCIO DI BANCO POST. INF. S
      from £214.01
      from £214.01
      # 016
      MPN: 001419438
      BEARING
      SEMIGUSCIO DI BANCO INTERMEDIO
      from £85.17
      from £85.17
      # 017
      MPN: 001419437
      BEARING
      SEMIGUSCIO DI BANCO INTERMEDIO
      from £115.66
      from £115.66
      # 018
      MPN: 07M105707C
      BEARING
      SEMIGUSCIO DI BANCO INTERM.SUP
      from £62.77
      from £62.77
      # 019
      MPN: 001419439
      BEARING
      SEMIGUSCIO DI BANCO INTERMEDIO
      from £147.87
      from £147.87
      # 020
      MPN: 001419436
      BEARING
      SEMICUSCIO 01 BANCO SUP. INF. AW
      from £88.31
      from £88.31
      # 021
      MPN: 008860801
      Key
      LINGUETTA 8X7X20 UNIM 92
      from £6.43
      from £6.43
      # 022
      MPN: 001407354
      F.GEAH
      Ingr. ant. alb. motore
      from £146.33
      from £146.33
      # 023
      MPN: 07M109381
      CIRCLIP
      Seeger 35
      from £1.16
      from £1.16
      This part replaces part number 008573501 - and 1 more. Click to view details
      # 024
      MPN: 008501703
      BEARING
      CUSC.RIV 6003-2RS
      from £117.60
      from £117.60
