lamborghini lm002 (1988) oil pump and filter parts diagram

007 - oil pump and filter

Lamborghini LM002 (1988) Oil Pump and Filter Parts Diagram

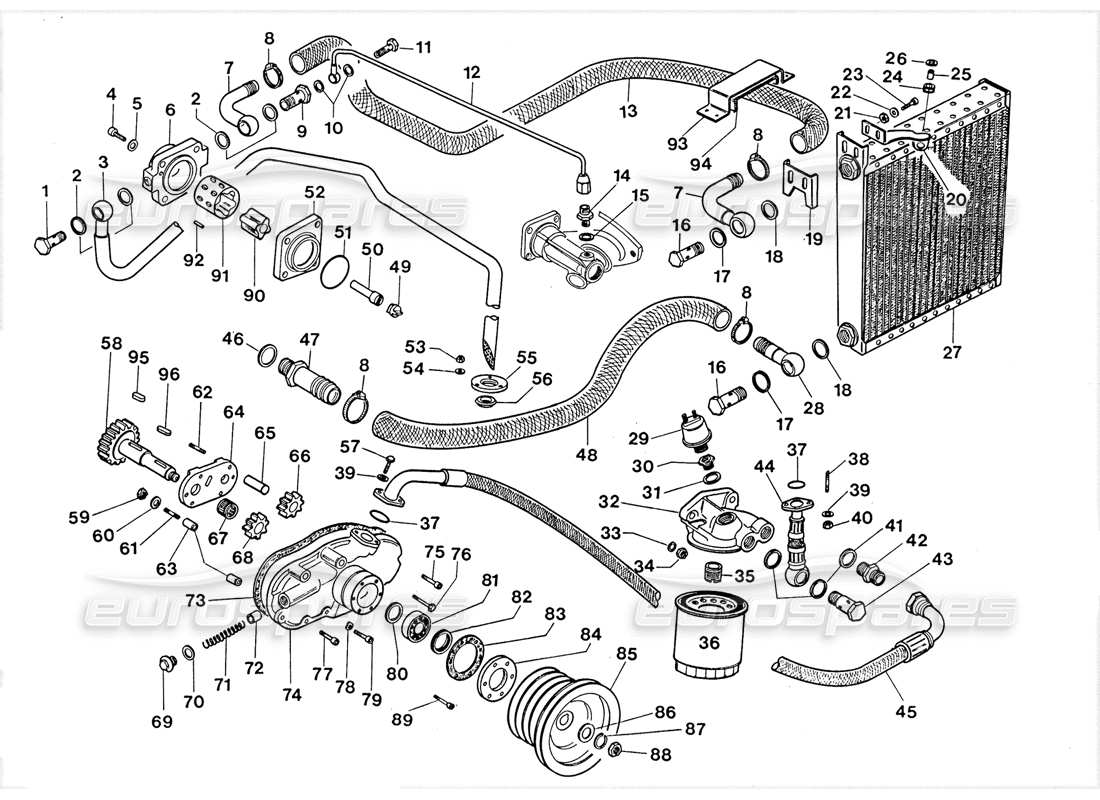

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 002021372
    PIPE
    BOCCHETTONE X RACCOROO ORIENT.
    from £32.92
    from £32.92
    # 002
    MPN: 006402007
    WASHER
    ROND. 0.20, 2X27X1 ,5 RAME
    from £1,962.74
    from £1,962.74
    # 003
    MPN: 001825009
    PIPE
    COMPL.TUBO PESCANTE OLIO X POM
    from £35.87
    from £35.87
    # 004
    MPN: 008700625
    SCREW
    Vite VTCE 6X35 UNI 5931 8G
    from £0.53
    from £0.53
    # 005
    MPN: WHT001197
    LOCK WASHER
    RONDELLA DI FERMO DIN 137/B
    Supersession
    Supersession
    # 006
    MPN: 001521894
    OIL PUMP LP
    CORPO POMPA OLIO B.P.
    from £2,753.89
    from £2,753.89
    # 007
    MPN: 001524908
    UNION
    RACC.AD OCCHIO X MANDATA OLIO
    from £47.01
    from £47.01
    # 008
    MPN: 008832003
    CLAMP
    FASCETTA 19-28
    from £27.78
    from £27.78
    # 009
    MPN: 001522505
    SCREW
    VITE FORATA X FISS. OCCHIO SU P
    from £11.03
    from £11.03
    # 010
    MPN: 008400818
    WASHER
    Washer washer
    Supersession
    Supersession
    # 011
    MPN: 002021372
    PIPE
    BOCCHETTONE X RACCORDO ORIENT.
    from £32.92
    from £32.92
    # 012
    MPN: 001526301
    OIL PIPE
    ASS. MAND. OLIO RINVIO SPINT.
    from £21.48
    from £21.48
    # 013
    MPN: 001524904
    OIL PIPE
    OIL DELIVERY PIPE TO THE RADIATOR
    # 014
    MPN: 001525631
    UNION
    NIPPLO SU CORPO RINVIO SPINTER
    from £30.47
    from £30.47
    # 015
    MPN: 008401024
    WASHER
    RONDELLA
    from £0.54
    from £0.54
    # 016
    MPN: 001525022
    SCREW
    VITE FORATA X FISS. OCCHIO SU P
    from £6.55
    from £6.55
    # 017
    MPN: 008401804
    WASHER
    ROND. RAME 18,2X30X1
    from £2.53
    from £2.53
    # 018
    MPN: 008402007
    WASHER
    Rond. 0.20,2X27X1 ,5 rame
    from £0.53
    from £0.53
    # 019
    MPN: 001526218
    BRACKET
    RINF.X FISS. RAD. OLIO
    from £8.92
    from £8.92
    # 020
    MPN: 001523036
    MOUNTING
    SUPP. FISS. RADIATORE OLIO
    from £13.40
    from £13.40
    # 021
    MPN: 008200606
    NUT
    DADO N/70/106M
    Supersession
    Supersession
    # 022
    MPN: 008400606
    WASHER
    RONO.6,4 UNI 1734
    Supersession
    Supersession
    # 023
    MPN: 008100616
    BOLT
    BULL.M6X16 UNI 5739/5S
    from £0.53
    from £0.53
    # 024
    MPN: 008610701
    OIL SEAL
    RUBBER R. 7X13X10
    from £18.62
    from £18.62
    # 025
    MPN: 006211596
    SPACER
    Distanz. pompa benz./U
    from £2.91
    from £2.91
    # 026
    MPN: 008400620
    WASHER
    RONDELLA FISS . RISC . SERRAT . COFA
    from £1.00
    from £1.00
    # 027
    MPN: 001521884
    OIL RADIAT.
    RADIATORE OLIO
    from £615.21
    from £615.21
    # 028
    MPN: 001522504
    UNION
    EYE FITTING ON THE PUMP
    from £12.15
    from £12.15
    # 029
    MPN: 001524220
    PRES SENDER
    TRASM. PRESS. OLIO
    from £113.18
    from £113.18
    # 030
    MPN: 001824219
    UNION
    RIDUZ. TRASM. PRESS. OLIO /U
    from £20.69
    from £20.69
    # 031
    MPN: 006401024
    WASHER
    RONDELLA
    # 032
    MPN: 001522118
    SUPPORT
    SUPP.FILTRO OLIO
    from £387.20
    from £387.20
    # 033
    MPN: 008400806
    WASHER
    Rond. 8,4X16
    Supersession
    Supersession
    # 034
    MPN: 008200809
    NUT
    DADO B/70/208M
    Supersession
    Supersession
    # 035
    MPN: 001505918
    FILTER BUSH
    Bussola fermo filtro olio
    from £26.66
    from £26.66
    # 036
    MPN: 008300610
    STUD
    PRIG. 6X1X16 8G
    from £15.47
    from £15.47
    # 037
    MPN: 008602304
    O RING
    ANELLO OR 4093
    from £5.71
    from £5.71
    This part replaces part number 008602302
    # 039
    MPN: 008410603
    LOCK WASHER
    ROND.A6,4 UNI 1751 C72
    Supersession
    Supersession
    # 040
    MPN: N01100637
    NUT
    DADO M6 UNI 5588-65/8G
    from £0.53
    from £0.53
    This part replaces part number 008200604
    # 041
    MPN: 008402604
    WASHER
    ROND .26, 25X35X1 ,5 RAME
    from £2.32
    from £2.32
    # 042
    MPN: 001510474
    TERMOS FITT
    RACC. TERMOST.OLIO/C
    from £78.17
    from £78.17
    # 043
    MPN: 001524903
    SCREW
    VITE FORATA X FISS. TUBO OLIO
    from £4.03
    from £4.03
    # 044
    MPN: 001524906
    PIPE
    COMPLETE HOSE FROM OIL FILTER TO
    from £114.42
    from £114.42
    # 045
    MPN: 001526646
    PIPE
    COMPL.TUBO POMPA AL FILTRO
    from £46.76
    from £46.76
    # 046
    MPN: 006402007
    WASHER
    BOND. D. 20, 2X27X1 ,5 RAME
    from £1,962.74
    from £1,962.74
    # 047
    MPN: 001522506
    RUB. HOLDER
    PORTAGOMMA SU POMPA OLIO BP X
    # 048
    MPN: 001524905
    PIPE
    TUBO RITORNO OLIO DAL RADIATOR
    from £71.14
    from £71.14
    # 049
    MPN: 001520335
    CROSS COUPL
    GIUNTO A CROCE
    from £17.91
    from £17.91
    # 050
    MPN: 001522086
    SHAFT
    ALBERO X ROTORE INTERNO
    from £71.14
    from £71.14
    # 051
    MPN: 008605301
    O RING
    ANELLO OR
    from £0.54
    from £0.54
    # 052
    MPN: 001521893
    SUPPORT
    BP OIL PUMP BODY SUPPORT
    from £245.42
    from £245.42
    # 053
    MPN: 008200606
    NUT
    DADO N/70/106M
    Supersession
    Supersession
    # 054
    MPN: 008400606
    WASHER
    ROND.6,4 UNI 1734
    Supersession
    Supersession
    # 055
    MPN: 008611803
    OIL SEAL
    GOMMINI
    from £8.84
    from £8.84
    # 056
    MPN: 001824454
    PLATE
    PIASTRE X TUBO POMPA
    from £52.83
    from £52.83
    # 057
    MPN: 008100601
    BOLT
    BULL.M6X18 UNI 5739 8G
    Supersession
    Supersession
    # 058
    MPN: 001519442
    SHAFT
    ALBERINO USCITA MOTO DAL MOTOR
    from £719.39
    from £719.39
    # 059
    MPN: N01100637
    NUT
    DADO M6 UNI 5588-65/8G
    from £0.52
    from £0.52
    This part replaces part number 008200604
    # 060
    MPN: WHT001197
    LOCK WASHER
    RONDELLA DI FERMO DIN 137/B
    Supersession
    Supersession
    # 061
    MPN: 008300625
    STUD
    PRIG.M6X20 UNI 5917 8G
    from £10.53
    from £10.53
    # 062
    MPN: 008300623
    STUD
    PRIG.M6X16 UNI 5917 8G
    from £10.53
    from £10.53
    # 063
    MPN: 001509939
    GASKET
    GUARN.CONTEN.PARAOLIO/C
    from £15.93
    from £15.93
    # 063
    MPN: 008850605
    DOWEL
    BOCC.C. 6, 25X8X10 040
    # 064
    MPN: 001509933
    PUMP COVER
    COPERCHIO POMPA OLIO/C
    from £251.22
    from £251.22
    # 065
    MPN: 001509938
    GEAR PIN
    PERNO INGH.CONDOTTO/C
    from £27.57
    from £27.57
    # 066
    MPN: 001519445
    GEAR
    INGR.CONDOTTO POMPA OLIO
    from £258.69
    from £258.69
    # 067
    MPN: 008522401
    BEARING
    CUSC.RULLINI NK 24/20
    from £24.26
    from £24.26
    # 068
    MPN: 001519444
    GEAR
    INGR.CONOUTTORE POMPA OLIO
    from £202.32
    from £202.32
    # 069
    MPN: 001509934
    VALVE PLUG
    TAPPO VALV. PRESS. OLIO/C
    from £194.85
    from £194.85
    # 070
    MPN: 008401804
    WASHER
    ROND.HAME 18,2X30X1
    from £2.53
    from £2.53
    # 071
    MPN: 001500927
    SPRING
    MOLLA VALV. PRESS. OLIO
    from £8.50
    from £8.50
    # 072
    MPN: 001519446
    POPPET
    PISTONCINO DI PRESSIONE
    from £45.11
    from £45.11
    # 073
    MPN: 001500898
    GASKET
    from £17.75
    from £17.75
    This part replaces part number 001800898
    # 074
    MPN: 001519443
    oil pump
    Corpo pompa olio
    from £1,552.05
    from £1,552.05
    # 075
    MPN: 008700608
    SCREW
    VITE 8,6X1X40 UNI 2383
    from £0.54
    from £0.54
    # 076
    MPN: 008100615
    BOLT
    BULL.M6X50 UNI 5737/86
    from £3.65
    from £3.65
    # 077
    MPN: 008700612
    SCREW
    VITE 6X1 UNI 5931
    Supersession
    Supersession
    # 078
    MPN: WHT001197
    LOCK WASHER
    RONDELLA DI FERMO OIN 137/B
    Supersession
    Supersession
    # 079
    MPN: 008700624
    SCREW
    VITE M6X20 UNI 5931 8G
    from £0.54
    from £0.54
    # 080
    MPN: 008402003
    WASHER
    ROND.38NCD4 RAS . CSN
    from £8.42
    from £8.42
    # 081
    MPN: 008502001
    BEARING
    CUSCINETTO 3204 BTVH
    from £23.43
    from £23.43
    # 082
    MPN: 008613002
    SEAL RING
    ANELLO SM 30407
    from £2.20
    from £2.20
    # 084
    MPN: 001526051
    PLATE
    CONTENIT .PARAOLIO
    # 085
    MPN: 001527784
    PULLEY
    OIL PUMP PULLEY
    from £351.55
    from £351.55
    # 086
    MPN: 008401801
    WASHER
    ROND.PIANA 18X30X2
    from £14.38
    from £14.38
    # 087
    MPN: 008411901
    WASHER
    RONDELLA DI FEMO UNI 1751
    from £1.71
    from £1.71
    # 088
    MPN: 008201811
    NUT
    DADO M18 UNI 5569 8G
    from £4.73
    from £4.73
    # 089
    MPN: 008700610
    SCREW
    Allen screw
    from £0.52
    from £0.52
    # 090
    MPN: 001520325
    ROTOR
    ROTORE INTERNO POMPA OLIO
    from £250.40
    from £250.40
    # 091
    MPN: 001520320
    BREAKER
    ROTORE ESTERNO POMPA OLIO
    from £250.40
    from £250.40
    # 092
    MPN: 008650615
    DOWEL
    GRAND
    # 093
    MPN: 001525357
    CLIP
    FASC.FISS. TUB! OLIO AL PABSARU
    # 094
    MPN: 001525358
    GASKET
    GUARN.X FASC.FISS. Tubi OLIO
    # 095
    MPN: 006660506
    Key
    LINGUETTA X AL8ERINO USC.MOTO
    # 096
    MPN: 006860602
    Key
    LINGUETTA 6X6X30 UNIM 92
