008 - Alternator Ignition Distrib

Lamborghini LM002 (1988) Alternator Ignition Distrib Parts Diagram

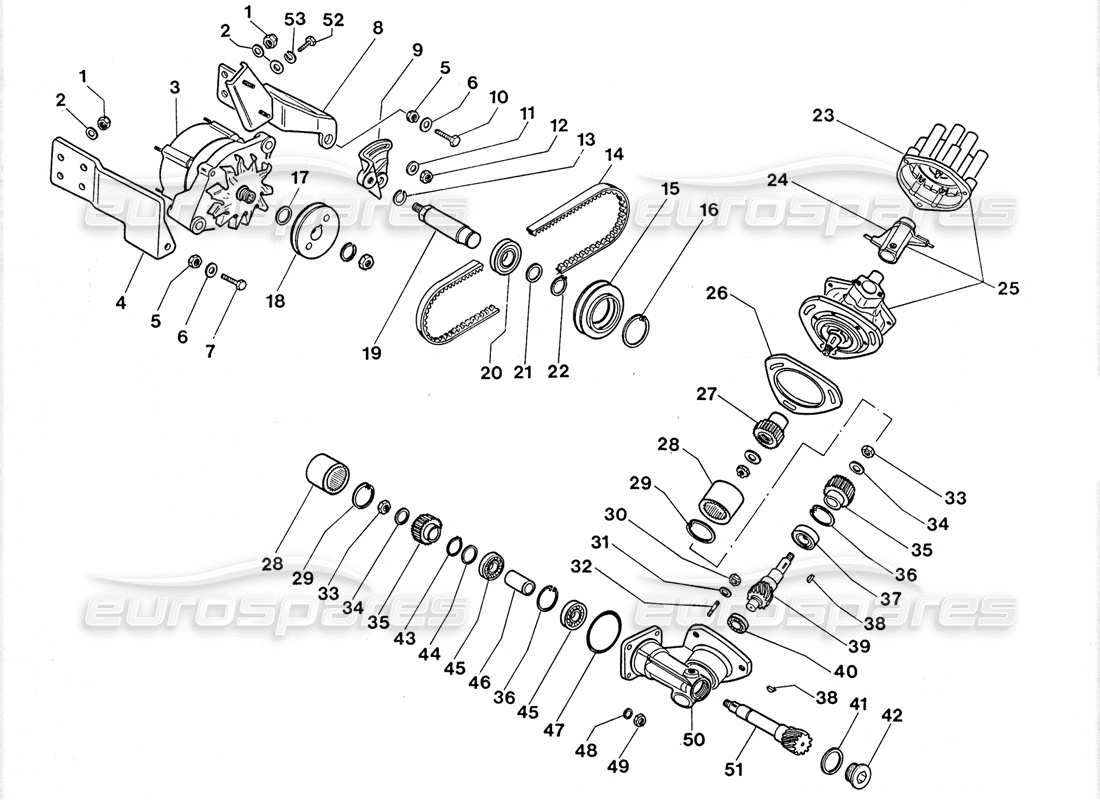

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 001
      MPN: 008200804
      NUT
      DADO N/70/10BM
      from £0.71
      from £0.71
      NUT Genuine Lamborghini - New In stock
      # 002
      MPN: 008400806
      WASHER
      ROND.8,4X16
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 003
      MPN: 001620643
      ALTERNATOR
      ALTERN. COMPL.DI VENT . VS . 0 1 2046
      ALTERNATOR Genuine Lamborghini - New (to order)
      # 004
      MPN: 001624893
      SUPPORT
      ASSIEME SUPP. INFERIORE ALTERNA
      from £109.82
      from £109.82
      LOWER ALTERNATOR BRACKET ASSEM BLY Genuine Lamborghini - New (to order)
      # 005
      MPN: 008201010
      NUT
      DADO N/70/ 1 10M
      from £0.91
      from £0.91
      M10 SELF LOCKING NUT Genuine Lamborghini - New In stock
      # 006
      MPN: 008401021
      WASHER
      WASHERS
      from £1.77
      from £1.77
      WASHER 21X11X2 UNI 6592-69 Genuine Lamborghini - New (to order)
      # 007
      MPN: 008101045
      BOLT
      BULL.M10X8S UNI 5737 8G
      from £0.65
      from £0.65
      SCREW M10X1.5X85 5737 8GZG Genuine Lamborghini - New (to order)
      # 008
      MPN: 001624895
      SUPPORT
      SUPPORTO SUPP . ALTERNATORE
      from £115.43
      from £115.43
      UPPER ALTERNATOR BRACKET Genuine Lamborghini - New (to order)
      # 009
      MPN: 001624197
      BELT ADJUST
      TENDICINGHIA
      from £146.33
      from £146.33
      belt tensioner Genuine Lamborghini - New (to order)
      # 010
      MPN: 008101035
      BOLT
      BULLONE
      from £6.73
      from £6.73
      SCREW 10X1.5X45 UNI 5737/8 Genuine Lamborghini - New (to order)
      # 011
      MPN: 008411005
      WASHER
      RONDEL. A10.5 UNI 1751
      from £0.53
      from £0.53
      WASHER D.10.5 UNI 1751/F Genuine Lamborghini - New In stock
      # 012
      MPN: N10155210
      NUT
      DADO M10 UNI 5588-65A BG
      from £1.37
      from £1.37
      This part replaces part number 008201001
      HEX.NUT Genuine Lamborghini - New In stock
      hex. nut - M 10 DIN 934-8 Genuine Porsche Part - New (to order)
      # 013
      MPN: 008411701
      LOCK WASHER
      ROS.EL. 17X27X3,5
      from £1.81
      from £1.81
      SNAP RING 17X30X1.5 DIN137/B Genuine Lamborghini - New In stock
      # 014
      MPN: 001624201
      BELT
      CINGHIA GOLA 10X8 HC 38 ORIG.P
      from £79.18
      from £79.18
      GROOVED BELT 10X8 HC38 Genuine Lamborghini - New (to order)
      # 015
      MPN: 001624198
      PULLEY
      PULEGGIA X TENDICINGHIA
      from £110.69
      from £110.69
      BELT TENSIONER PULLEY Genuine Lamborghini - New (to order)
      # 016
      MPN: 008575001
      CIRCLIP
      SEEGER AA 47 I
      from £0.59
      from £0.59
      O-RING I 47 UNI 3654 Genuine Lamborghini - New In stock
      # 017
      MPN: 001620645
      SPACER
      ANELLO PRESS. BOSCH 1120140009
      from £4.90
      from £4.90
      RING Genuine Lamborghini - New (to order)
      # 018
      MPN: 001624200
      PULLEY
      PULEGGIA X ALTERNATORE
      from £231.33
      from £231.33
      ALTERNATOR PULLEY Genuine Lamborghini - New (to order)
      # 019
      MPN: 001624199
      PIN
      PERNO PORTA PULEGGIA TENDICING
      from £23.59
      from £23.59
      BELT TENSIONER PULLEY PIN Genuine Lamborghini - New (to order)
      # 020
      MPN: 008502009

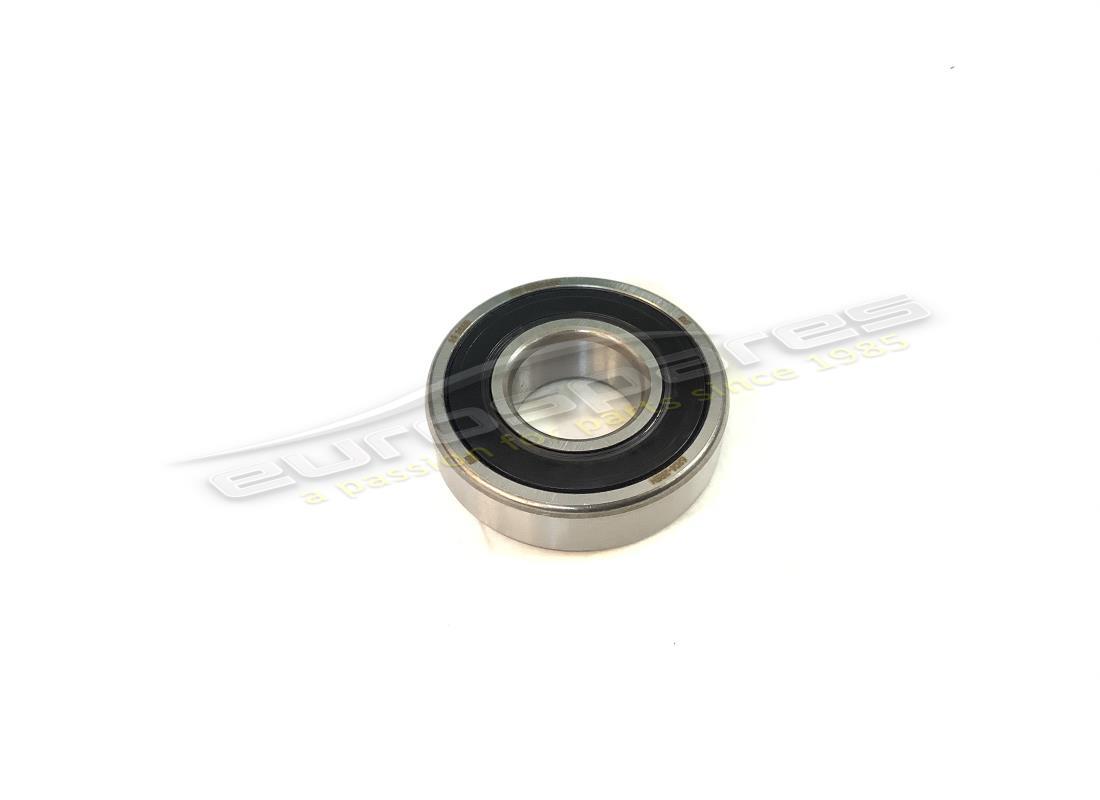

      BEARING
      CSN A SFERA RIV 2RS6204
      from £27.50
      from £27.50
      BEARING Genuine Lamborghini - New In stock
      BEARING Eurospares Approved Part - New In stock
      # 021
      MPN: 008402015
      WASHER
      RONDELLA
      from £15.67
      from £15.67
      WASHER Genuine Lamborghini - New (to order)
      # 022
      MPN: WHT002646
      CIRCLIP
      SEEGER E 20
      from £0.76
      from £0.76
      RETAINING RING Genuine Lamborghini - New In stock
      # 023
      MPN: 001619316
      DISTRIBUTOR CAP
      from £395.00
      from £395.00
      CAP Genuine Lamborghini - New (to order)
      DISTRIBUTOR CAP Eurospares Approved Part - New (to order)
      CAP Genuine Lamborghini - Used In stock
      DISTRIBUTOR CAP Eurospares Approved Part - New (other) In stock
      Made in Italy Exclusively for Eurospares
      # 024
      MPN: 001619315
      ROTOR ARM WITH BRASS BUSH
      from £204.75
      from £204.75
      ROTARY BRUSH Genuine Lamborghini - New In stock
      ROTOR ARM Eurospares Approved Part - New In stock
      # 025
      MPN: 001621836
      DISTRIBUTOR
      DISTR.ACC.VS.515 H8
      Lamborghini PART 001621836 Genuine Lamborghini - New (to order)
      # 026
      MPN: 001600371
      SPACER
      SPESS .SUPP.SPINTEROGENO
      from £51.74
      from £51.74
      DISTRIBUTOR MOUNT SHIM Genuine Lamborghini - New (to order)
      # 027
      MPN: 001624235
      DRIVE GEAR
      TRAINO SUL DISTRIBUTORE DI ACC
      from £37.77
      from £37.77
      SPARK DISTRIBUTOR DRIVE Genuine Lamborghini - New (to order)
      # 028
      MPN: 001313190
      SLEEVE
      MANICOTTO PRESA DI FORZA DEPRE
      from £205.78
      from £205.78
      VACUUM P.T.O. SLEEVE Genuine Lamborghini - New (to order)
      # 029
      MPN: 006573202
      CIRCLIP
      SEEGER AA 30 I
      CIRCLIP Genuine Lamborghini - New (to order)
      # 030
      MPN: 008200809
      NUT
      DADO B/70/208M
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 031
      MPN: 008400801
      WASHER
      ROND.8,4 UNI 1734 BG
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 032
      MPN: 008300818
      STUD
      PRIG.M8X30 UNI 591 1 BG
      from £2.95
      from £2.95
      STUD M8X30 UNI 5911 8G ZD Genuine Lamborghini - New (to order)
      # 033
      MPN: 001624234
      DRIVE
      TRAINO PRESA E RINVIO MOTO X D
      from £94.93
      from £94.93
      DISTRIBUTOR P.T.O. IDLE/DRIVE GEAR Genuine Lamborghini - New (to order)
      # 033
      MPN: 008200801
      NUT
      DADO
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 034
      MPN: 008400801
      WASHER
      ROND.8,4 UNI 1734 BG
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 036
      MPN: 07M109381
      CIRCLIP
      Seeger 35 I
      from £1.13
      from £1.13
      This part replaces part number 008573501 - and 1 more. Click to view details
      SEEGER Ring I 35 UNI 3654 Genuine Lamborghini - New In stock
      # 037
      MPN: 410109264
      BEARING
      CSN 6202 2RS1
      from £17.56
      from £17.56
      This part replaces part number 008501501 - and 2 more. Click to view details
      BEARING Genuine Lamborghini - New (to order)
      # 038
      MPN: 008860301
      Key
      KEY 3X5X13
      from £0.73
      from £0.73
      KEY 3X5X13 Genuine Lamborghini - New (to order)
      KEY 3X5X13 Genuine Lamborghini - New (other) In stock
      LINGUETTA
      # 039
      MPN: 001625799
      SHAFT
      ALBERO INGR. CONDUIT. DISTRIB.
      from £204.38
      from £204.38
      SPARK DISTRIBUTOR DRIVE GEAR S HAFT Genuine Lamborghini - New (to order)
      # 040
      MPN: 008501203
      BEARING
      C.S.N.
      from £13.22
      from £13.22
      BEARING Genuine Lamborghini - New (to order)
      # 041
      MPN: 008403006
      WASHER
      WASHER WASHER 30X40X1,5
      from £6.59
      from £6.59
      COPPER WASHER 30X40X0,04513888 8889 Genuine Lamborghini - New In stock
      # 042
      MPN: 008933002
      CAP
      TAPPO
      from £22.40
      from £22.40
      PLUG Genuine Lamborghini - New (to order)
      # 043
      MPN: 008581502
      CIRCLIP
      Seeger 15 UNI 3653
      from £3.78
      from £3.78
      O-RING E 15 UNI 7435-75 Genuine Lamborghini - New (to order)
      # 044
      MPN: 001624233
      WASHER
      ROND.DI SPESB.FRA CSN E BEEGEH
      from £33.87
      from £33.87
      SHOULDER WASHER BETWEEN BEARIN GS & O-RI Genuine Lamborghini - New (to order)
      # 045
      MPN: 006501504
      BEARING
      CSN INGR.RM ORIG.SKF 15X35X11
      BEARING Genuine Lamborghini - New (to order)
      # 046
      MPN: 001624232
      SPACER
      DISTANZ.FRA CSN SU ALBER.INGR.
      from £74.04
      from £74.04
      SPACER Genuine Lamborghini - New (to order)
      # 047
      MPN: 008605603
      O RING
      ANELLO OR RIF. 162
      O RING Genuine Lamborghini - New (to order)
      # 048
      MPN: WHT001197
      LOCK WASHER
      RONDELLA DI FERMO DIN 137/B
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 049
      MPN: 008200605
      NUT
      DADO ORIG. DRAMA VS.RIF.NCM70 1
      from £1.82
      from £1.82
      M6 NCM 70 URAMA SIMMON NUT Genuine Lamborghini - New In stock
      # 050
      MPN: 001625047
      TRANSMISS.
      CORPO RINVIO SUPP.DISTRIB. D'AC
      from £597.79
      from £597.79
      SPARK DISTRIBUTOR BRACKET DRIV E Genuine Lamborghini - New (to order)
      # 051
      MPN: 001624230
      SPINDLE
      ALBER. INGR.CONDUT..RINVIO MOTO
      from £278.59
      from £278.59
      P.T.O. DRIVE SHAFT Genuine Lamborghini - New (to order)
      # 052
      MPN: 008100809
      BOLT
      BULL.M8X22 UNI 5739/8G
      from £0.53
      from £0.53
      SCREW M8X22 UNI 5739/8G/ZD Genuine Lamborghini - New In stock
      # 053
      MPN: 008410806
      LOCK WASHER
      ROND.EL.A8.4 UNI 1751
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
