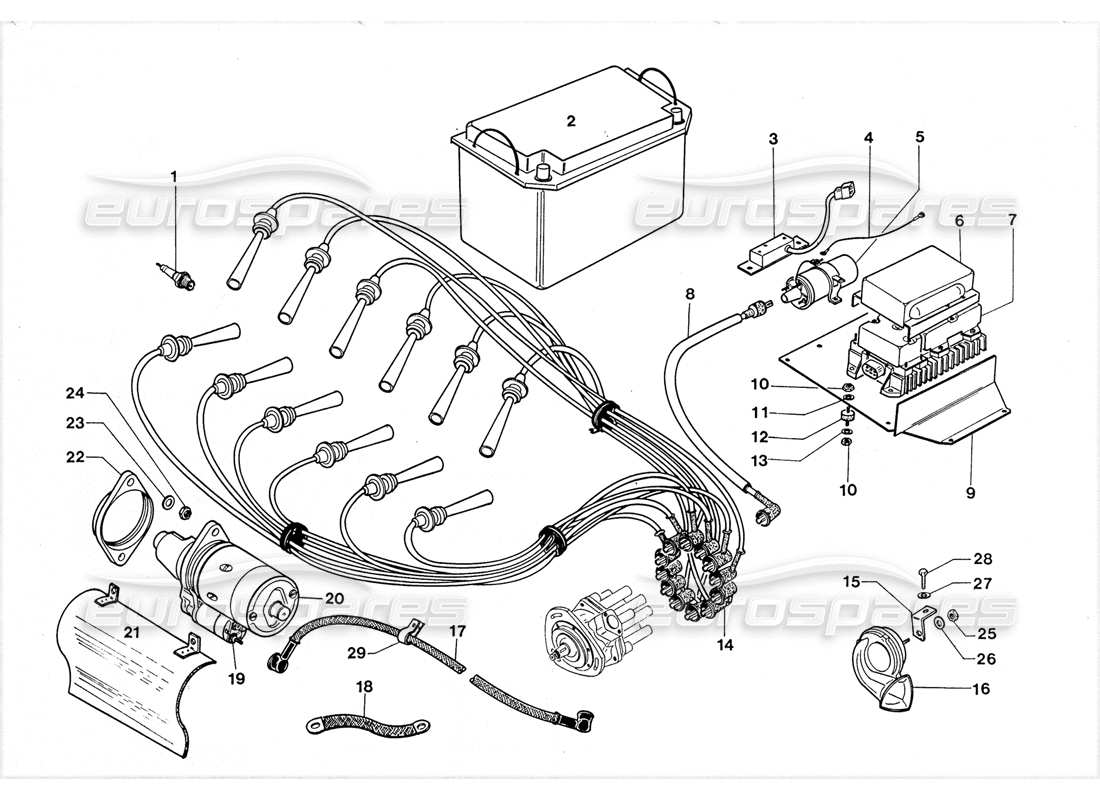

Lamborghini LM002 (1988) Electrical System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 001630009
Spark Plugs
from £14.95
from £14.95
# 002
MPN: 001624317
Battery
BATTERY 395 L 5SM
# 003
MPN: 001619305
REVOL. LIMIT
LIM.GIRI POMPA ARIA 3/85
from £635.94
from £635.94
# 004
MPN: 001612580
CABLE
MASS BRAID C/MS-25
from £5.89
from £5.89

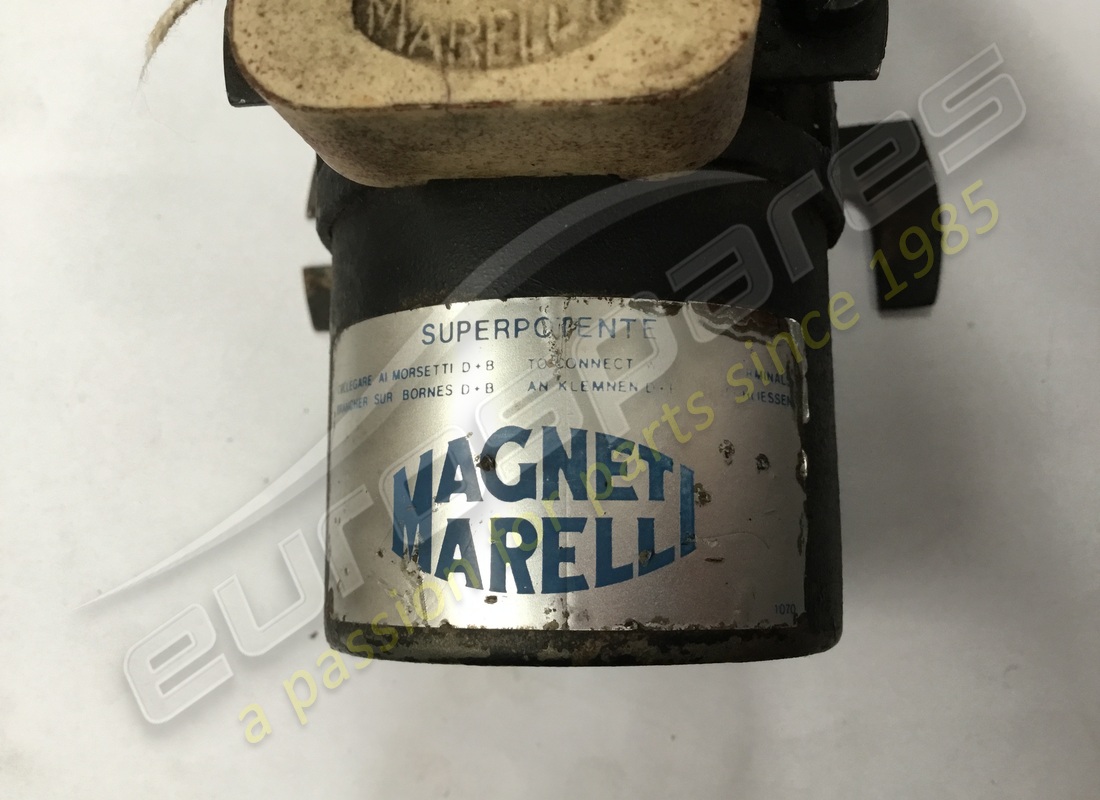

# 005
MPN: 001601335
COIL
BOBINA TRASF.BAE 202 B
from £204.75
from £204.75
# 006
MPN: 001626936
COVER
PROT. CENTRAL. ELETTRONICA
from £40.67
from £40.67
# 007
MPN: 001631621
ELECTR.MODU
from £3,782.82
from £3,782.82
This part replaces part number 001619317 - and 1 more. Click to view details
# 008
MPN: 001625585
CABLE ASS.
COMPLETE CABLE FROM COIL TO S

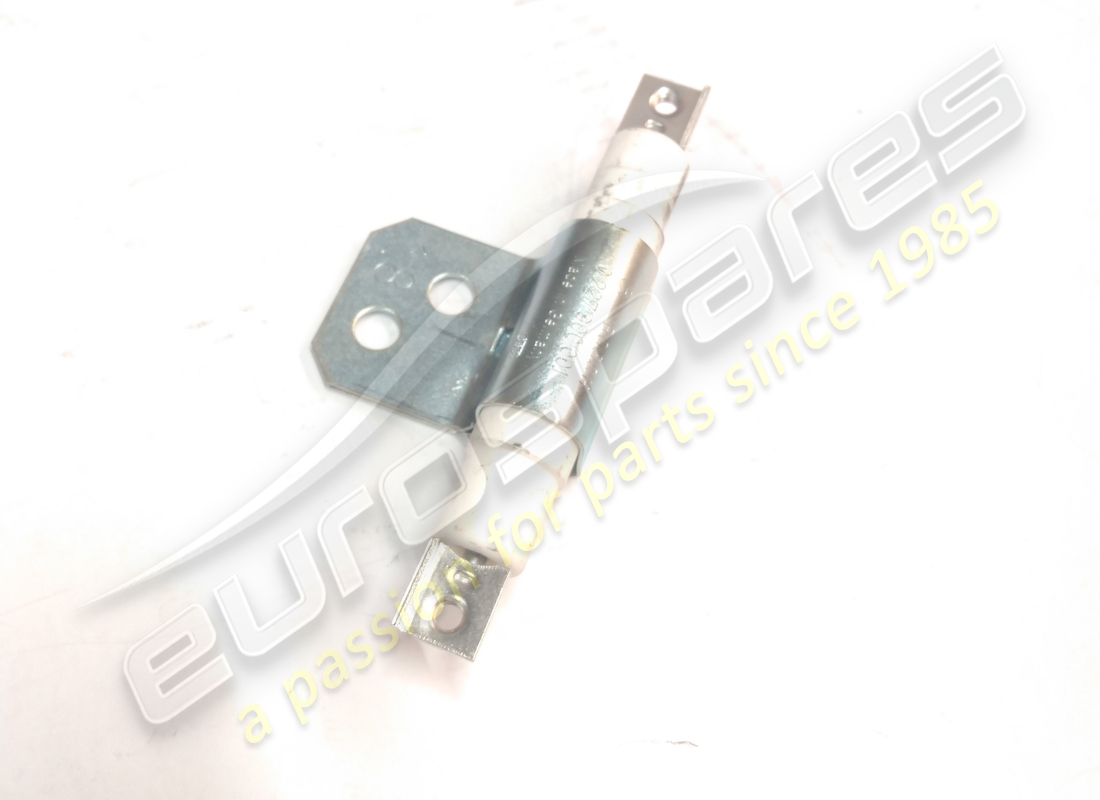

# 009
MPN: 001626237
SUPPORT
SPOOL SUPPORT C.
from £112.76
from £112.76
# 010
MPN: 008200610
NUT
DADO M6 UNI 5588-65/8G
from £1.62
from £1.62
# 011
MPN: WHT001197
LOCK WASHER
RONDELLA DI FERMO DIN 137/B
Supersession
Supersession
# 012
MPN: 001625338
SUPPORT
SUPP.IN GOMMA X CENTR . ELETTRON
from £18.54
from £18.54
# 013
MPN: 008410603
LOCK WASHER
ROND.A6,4 UNI 1751 C72
Supersession
Supersession
# 014
MPN: 001625386

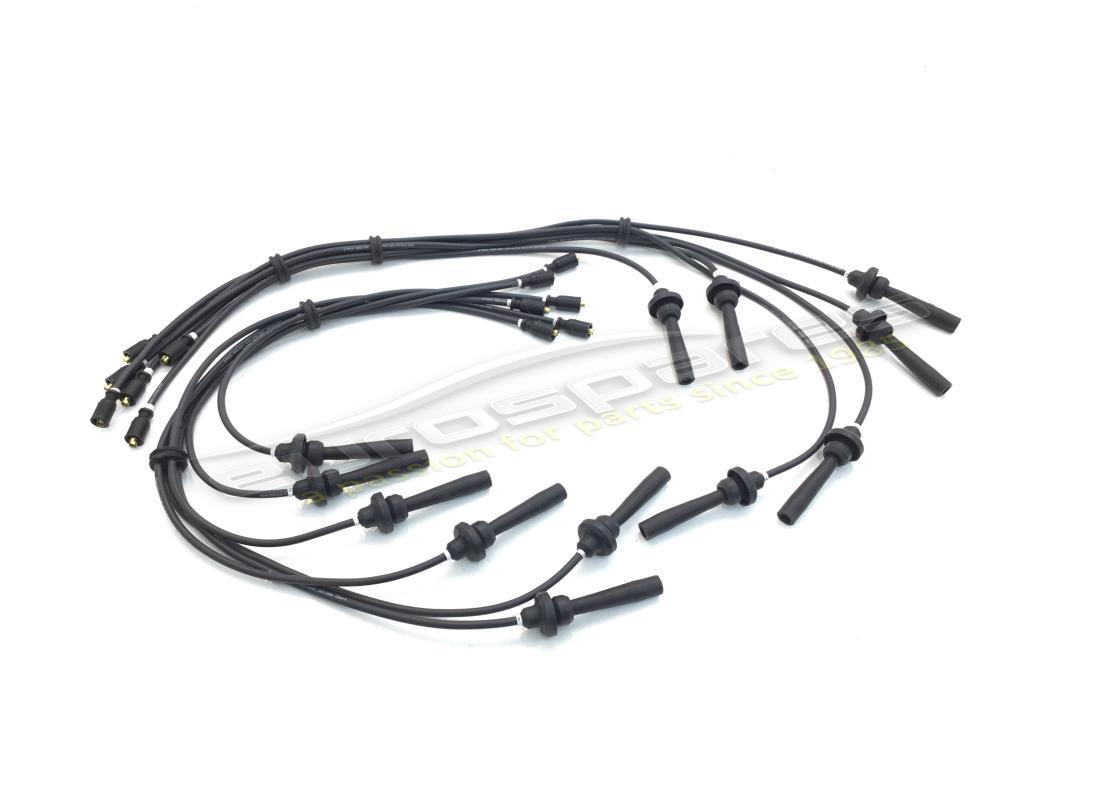

HT LEADS SET (4V.)
from £1,003.23
from £1,003.23

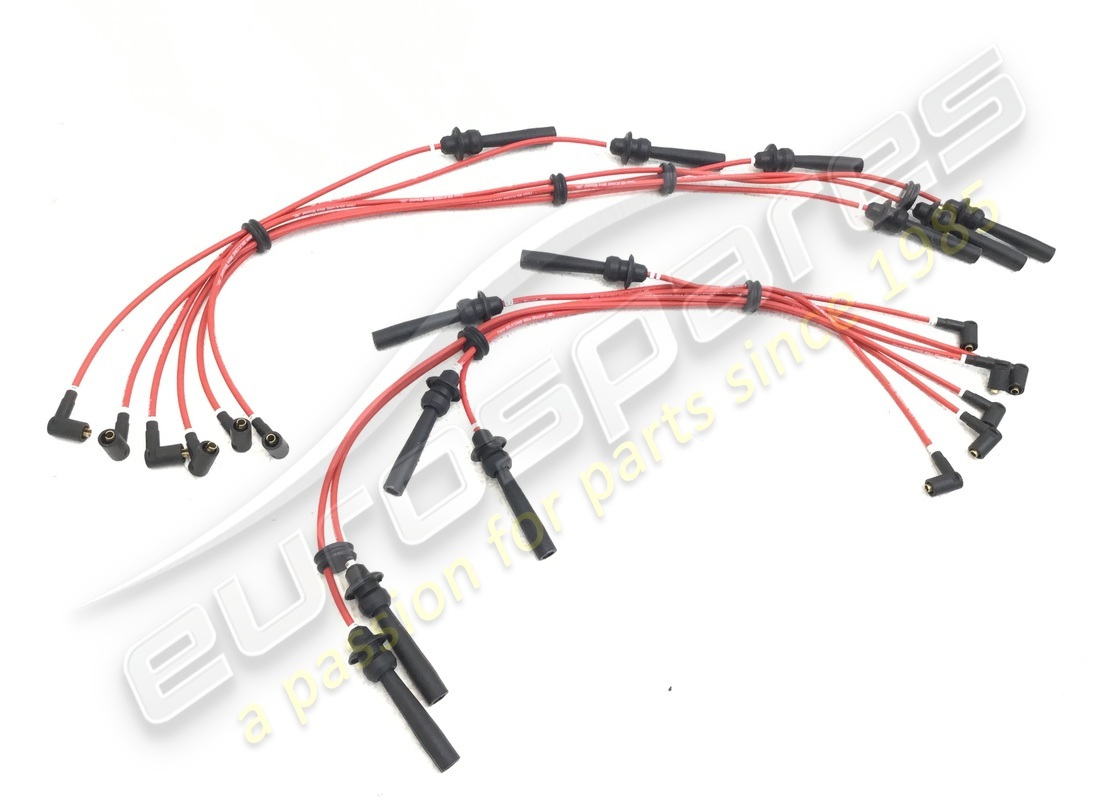

# 014
MPN: LHT009
Complete HT Lead Set
(valid for injection model)
from £595.00
from £595.00
# 014
MPN: LHT012
Complete HT Lead Set
(valid for carburettor model)
from £595.00
from £595.00
# 015
MPN: 001626624
HORN SUPP.
STAFFA FISS.TROMBE
from £50.33
from £50.33
# 016
MPN: 001626625
R.HORN
RIGHT TRUMPET
from £208.10
from £208.10
# 016
MPN: 001626626
L.HORN
LEFT TRUMPET
from £208.10
from £208.10
# 017
MPN: 001627192
WIRE
CAVO
from £86.90
from £86.90
# 018
MPN: 001604328
ST MOTOR CA
CAVO MASSA MOT/TELAIO E MARMIT
Supersession
Supersession
# 019
MPN: 001624318
START RELAY
ELETTROMAGNETE X HOT. AW. TO
# 020
MPN: 001623525
STARTER
MOTORING DI AWIAMENTO 0001362
from £1,356.44
from £1,356.44
# 021
MPN: 001621814
PANEL
PARATIA RIPARO MOTOR . D 'AWIAME
from £234.93
from £234.93
# 022
MPN: 001624246
SPACER
DISTANZIALE X MOTORING D'AVVIA
# 023
MPN: 008411303
LOCK WASHER
ROND.EL.A 13 UNI 1751
from £1.91
from £1.91
# 024
MPN: 008201211
NUT
DADO M12 UNI 55B8-65/8G
from £5.19
from £5.19
# 025
MPN: N01100632
NUT
DADO M6 UNI 5588 5S «
from £2.81
from £2.81
# 026
MPN: 008410601
WASHER
ROND.EL.RDE - 6
from £0.53
from £0.53
# 027
MPN: 008410603
LOCK WASHER
ROND.A6,4 UNI 1751 C72
Supersession
Supersession
# 028
MPN: 008100648
SCREW
VITE SIN. FISS. RINFORZO SPOIL
from £6.43
from £6.43
# 029
MPN: 008830114
CLAMP RING
Fascetta passacavo
from £65.89
from £65.89
