011 - Cooling System

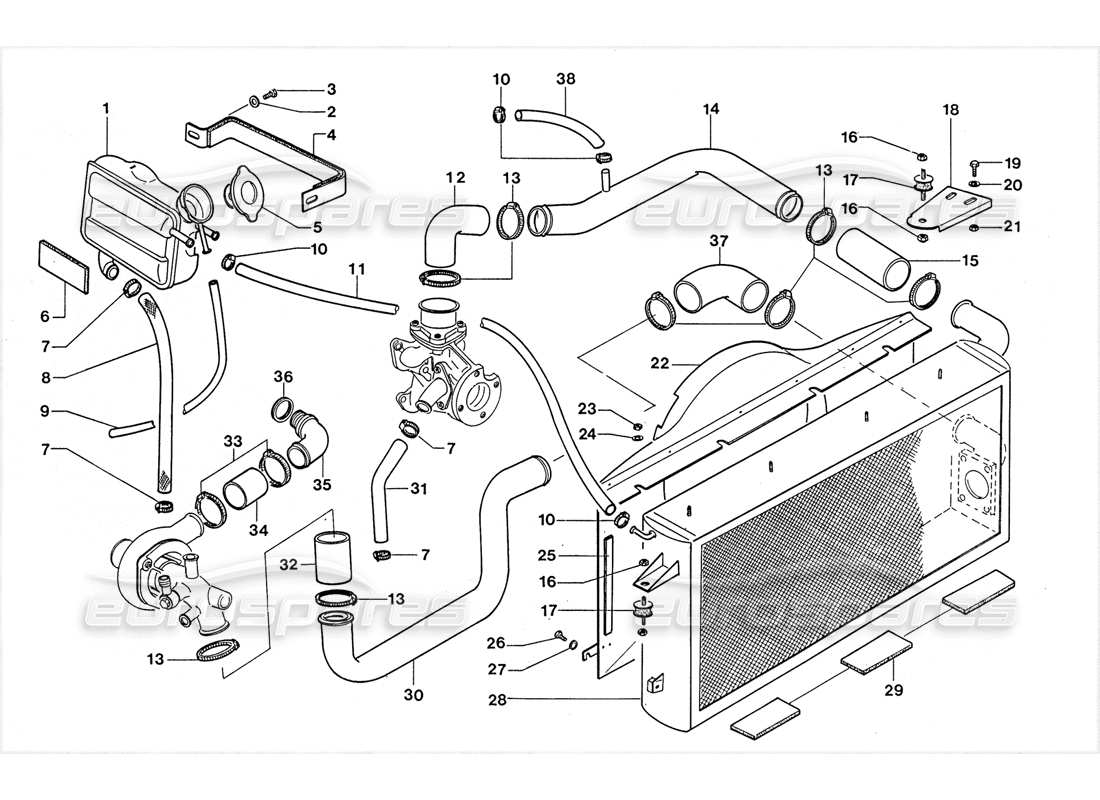

Lamborghini LM002 (1988) Cooling System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 001
      MPN: 001725383
      Tank
      SERBATOIO SUPPLEM . ACQUA
      Lamborghini PART 001725383 Genuine Lamborghini - New (to order)
      # 002
      MPN: 006410602
      LOCK WASHER
      LOCK WASHER Genuine Lamborghini - New (to order)
      # 003
      MPN: 008100613
      BOLT
      BULL.M6X10 UNI 5739 55
      from £0.51
      from £0.51
      SCREW M6X10 UNI 5739/5S/Z Genuine Lamborghini - New (to order)
      SCREW M6X10 UNI 5739/5S/Z Genuine Lamborghini - New (other) In stock
      BULL.M6X10 UNI 5739 5S
      # 004
      MPN: 001725476
      CLIP
      COMPL.FASCETTA X SUPP . SERBAT . S
      from £161.25
      from £161.25
      RESERVOIR CLAMP ASSEMBLY Genuine Lamborghini - New (to order)
      # 005
      MPN: 001704296
      TANK CAP 1,0 BAR
      from £90.36
      from £90.36
      MIURA COOLANT RESERVOIR PLUG Genuine Lamborghini - New In stock
      # 006
      MPN: 001725422
      GASKET
      GUARN.TRA SCAT . CARBURAT . E NOUR
      Lamborghini PART 001725422 Genuine Lamborghini - New (to order)
      # 007
      MPN: 008832003
      CLAMP
      FASCETTA 19-28
      from £28.65
      from £28.65
      FASC.19-28 H.12 Genuine Lamborghini - New In stock
      # 008
      MPN: 001725846
      PIPE
      TUBO DALLA NOURICE AL COPER . PO
      Lamborghini PART 001725846 Genuine Lamborghini - New (to order)
      # 009
      MPN: 001725991
      PIPE
      TUBO SCARICO SERBAT . SUPPLEM .
      Lamborghini PART 001725991 Genuine Lamborghini - New (to order)
      # 010
      MPN: 008831117
      CLAMP
      FASCETTA 11-17
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 011
      MPN: 001725413
      PIPE
      TUBO COLLEG. NOURICE/RADIATORE
      from £49.91
      from £49.91
      NOURICE/RADIATOR UNION PIPE Genuine Lamborghini - New (to order)
      # 012
      MPN: 001725837
      SLEEVE
      MANICOTTO 01 RACC.TUBO SUL RAD
      from £180.75
      from £180.75
      RADIATOR PIPE UNION SLEEVE Genuine Lamborghini - New (to order)
      # 013
      MPN: 008835004
      CLAMP
      FASCETTA STRING. ABA 50-65
      from £6.32
      from £6.32
      This part replaces part number 008830201
      CLAMP Genuine Lamborghini - New In stock
      # 014
      MPN: 001725372
      PIPE
      Tubo
      from £118.98
      from £118.98
      PIPE Genuine Lamborghini - New (to order)
      # 015
      MPN: 001725836
      PIPE
      TUBO DI RACCORDO RADI AT . SULL ' A
      from £61.65
      from £61.65
      RADIATOR UNION PIPE Genuine Lamborghini - New (to order)
      # 016
      MPN: 008200804
      NUT
      DADO N/70/108M
      from £0.73
      from £0.73
      NUT Genuine Lamborghini - New In stock
      # 017
      MPN: 008920801
      SILENT BLOC
      SUPP.ROCAM F. 80728/2 CA
      from £33.79
      from £33.79
      GENUINE SAGA SUPPORTROCAM F.80 728/2 Genuine Lamborghini - New (to order)
      # 018
      MPN: 001726025
      BRACKET
      STAFFA SUP.SX FISS . RADIATORE H
      Lamborghini PART 001726025 Genuine Lamborghini - New (to order)
      # 019
      MPN: 008100803
      SCREW
      VITE FISS.PIANTONE AL SUPPORTO
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 020
      MPN: 008400806
      WASHER
      ROND. 8, 4X16
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 021
      MPN: 008200804
      NUT
      DADO N/70/108M
      from £0.75
      from £0.75
      NUT Genuine Lamborghini - New In stock
      # 022
      MPN: 001725533
      CONVEYOR
      AIR CONVEYOR ON THE RADIATOR
      from £84.16
      from £84.16
      RADIATOR AIR MANIFOLD Genuine Lamborghini - New (to order)
      # 023
      MPN: 001726442
      GASKET
      GUARN. COMMA CONV.ARIA RAD.
      GASKET Genuine Lamborghini - New (to order)
      # 023
      MPN: N02214812
      BOLT
      DADO.
      from £1.10
      from £1.10
      This part replaces part number 008200612
      HEX.HEAD CLAMPING Genuine Lamborghini - New In stock
      hex. nut, self-locking - M6 Genuine Porsche Part - New In stock
      # 024
      MPN: 008400607
      WASHER
      ROND. 6, 5X18X1 ,5
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 026
      MPN: N01020717
      BOLT
      BULL.M5X12 UNI 5739/56
      from £0.47
      from £0.47
      This part replaces part number 008100504
      HEXAGON HEAD BOLT Genuine Lamborghini - New In stock
      screw, hex. hd. - M5 X 12 - D - MJ 1973>> Genuine Porsche Part - New (to order)
      # 027
      MPN: WHT001187
      WASHER
      Rond. 5,3 UNI 1734 5S
      from £0.57
      from £0.57
      This part replaces part number 008400502
      WASHER 10X5.3X1 UNI 6952 CAT-A Genuine Lamborghini - New In stock
      # 028
      MPN: 001723677
      W. RADIATOR
      COMPLETE WATER RADIATOR
      from £3,726.62
      from £3,726.62
      COOLANT RADIATOR COMPLETE Genuine Lamborghini - New (to order)
      # 029
      MPN: 009290010
      GASKET
      GUARNIZ.SOTTO RADIATORE ACQUA -
      from £11.28
      from £11.28
      SEAL UNDER RADIATOR Genuine Lamborghini - New (to order)
      # 030
      MPN: 001725362
      PIPE
      TUBO DAL RADIAT. ALL 'ASP.POMPA
      from £155.06
      from £155.06
      PIPE FROM RADIATOR TO PUMP Genuine Lamborghini - New (to order)
      # 031
      MPN: 001723085
      SLEEVE
      COMMA HOSE TO BE CONNECTED ON THE BODY A
      from £114.42
      from £114.42
      RUBBER HOSE FROM UNION ON CASI NG Genuine Lamborghini - New (to order)
      # 032
      MPN: 001725838
      PIPE
      CONNECTION PIPE ON THE COVER
      from £61.48
      from £61.48
      UNION PIPE ON COVER Genuine Lamborghini - New (to order)
      # 033
      MPN: 008833802
      CLAMP
      FASCETTA 38-50
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 034
      MPN: 001725623
      SLEEVE
      MANICOTTO POMPA ACQUA
      from £24.51
      from £24.51
      COOLANT PUMP SLEEVE Genuine Lamborghini - New (to order)
      # 035
      MPN: 001725618
      PIPE
      TUBO ENTR. ACQUA NEL BASAM .
      from £140.94
      from £140.94
      CRANKCASE COOLANT INLET PIPE Genuine Lamborghini - New (to order)
      # 036
      MPN: 001725414
      PIPE
      TUBO COLLEG. NOURICE/TUBO IN AL
      Lamborghini PART 001725414 Genuine Lamborghini - New (to order)
      # 036
      MPN: 001727388
      GASKET
      GUARNIZIONE SPESS.0,50
      from £0.54
      from £0.54
      SEAL 0.50 MM Genuine Lamborghini - New In stock
      # 036
      MPN: 001727389
      GASKET
      GUARNIZIONE SPESS . 1
      from £0.93
      from £0.93
      SEAL 1 MM Genuine Lamborghini - New In stock
      # 036
      MPN: 001727390
      GASKET
      GUARNIZIONE SPESS. 1,20
      from £8.79
      from £8.79
      SEAL 1.20 MM Genuine Lamborghini - New (to order)
      # 037
      MPN: 001725837
      SLEEVE
      HACC SLEEVE . TUBE ON THE RAD
      from £180.75
      from £180.75
      RADIATOR PIPE UNION SLEEVE Genuine Lamborghini - New (to order)
