lamborghini lm002 (1988) transmission parts diagram

015 - TRANSMISSION

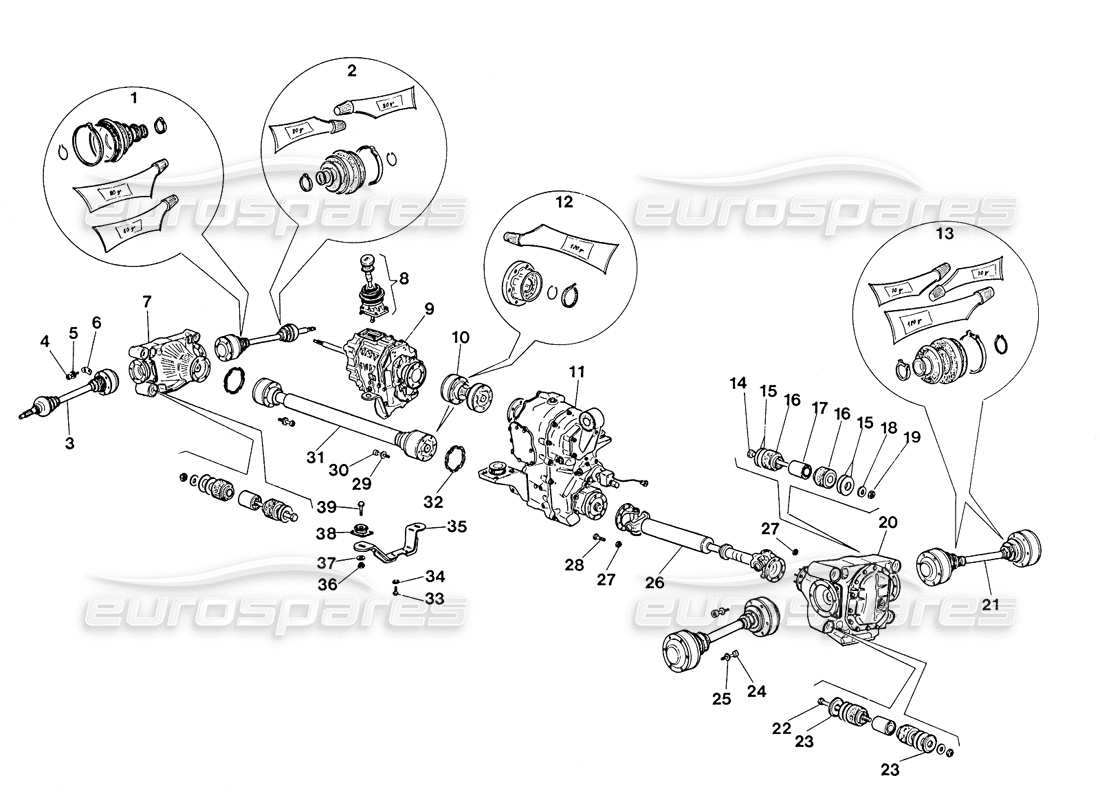

Lamborghini LM002 (1988) Transmission Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 002427217
    repair kit
    KIT.SEMIAS. ANT.LATO DIFF.
    repair kit Genuine Lamborghini - New (to order)
    # 002
    MPN: 002527216
    repair kit
    KIT.SEMIAS.ANT.LATO RUOTA
    from £273.23
    from £273.23
    FRONT DRIVE SHAFT KIT - WHEEL SIDE Genuine Lamborghini - New (to order)
    # 003
    MPN: 002523131
    SHAFT
    SEMIASSE ANT.COMPLETO
    SHAFT Genuine Lamborghini - New (to order)
    # 005
    MPN: 008411302
    LOCK WASHER
    RONDEL. 13X24X1 ,2
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 006
    MPN: 002521874
    PLATE
    PIASTHINA
    from £95.35
    from £95.35
    PLATE Genuine Lamborghini - New (to order)
    # 007
    MPN: 002325716
    FRONT DIFF.
    DIFFERENZ. ANT.COMPLETO 4460SS1
    from £6,806.98
    from £6,806.98
    DIFFERENZ.ANT.COMPLETO 44 Genuine Lamborghini - New (to order)
    # 008
    MPN: 002421808
    Lever Set
    GEAR LEVER ASSEMBLY S5-24/
    Lamborghini PART 002421808 Genuine Lamborghini - New (to order)
    # 009
    MPN: 002425539
    GEARBOX
    CAMBIO Z.F. 1249 003 021
    from £8,461.06
    from £8,461.06
    GEARBOX Genuine Lamborghini - New (to order)
    # 010
    MPN: 002723295
    SHAFT
    TREE 0.153.15.01.72.001
    Lamborghini PART 002723295 Genuine Lamborghini - New (to order)
    # 011
    MPN: 270025201
    TRANS.CASE
    TRANSFER CASE COMPL . X VETT . LMA
    from £19,596.00
    from £19,596.00
    TRANSFER CASE COMPLETE Genuine Lamborghini - New (to order)
    # 012
    MPN: 002227219
    repair kit
    KIT . ALB. TRASM. ANT.DAL TE AL 01
    from £398.81
    from £398.81
    FRONT PROPELLER SHAFT KIT Genuine Lamborghini - New (to order)
    # 012
    MPN: 002727220
    repair kit
    KIT X ALB. TRASM. DAL TC AL TE
    from £84.98
    from £84.98
    PROPELLER SHAFT KIT Genuine Lamborghini - New (to order)
    # 013
    MPN: 002527218
    repair kit
    KIT.SEMIAS.POST.LATO DIFF.RUOT
    from £273.23
    from £273.23
    REAR DRIVE SHAFT KIT Genuine Lamborghini - New (to order)
    # 014
    MPN: 008101639
    SCREW
    BULL . M16X2X175
    Lamborghini PART 008101639 Genuine Lamborghini - New (to order)
    # 015
    MPN: 002323739
    WASHER
    RONDELLE SPESS. 1MM
    from £15.59
    from £15.59
    WASHER 1 MM Genuine Lamborghini - New (to order)
    # 015
    MPN: 002323740
    WASHER
    HONDELLE SPESS. O.SMM
    from £15.59
    from £15.59
    WASHER 0.5 MM Genuine Lamborghini - New (to order)
    # 016
    MPN: 002321941
    SPACER
    TAMPONE REGGISP.COMPLETO
    from £68.82
    from £68.82
    THRUST PAD COMPLETE Genuine Lamborghini - New (to order)
    # 017
    MPN: 008921608
    SILENT BLOC
    ESTENDSLOC X BRACCI INF.SOSP.P
    from £58.05
    from £58.05
    LOWER LH ARM ESTENBLOCK Genuine Lamborghini - New (to order)
    # 018
    MPN: 008401611
    WASHER
    ROND. 17X29X3 SB UNI 16592
    from £8.84
    from £8.84
    WASHER 17X29X3 5S UNI 16592 Genuine Lamborghini - New (to order)
    # 019
    MPN: 008201609
    NUT
    DADO
    from £10.57
    from £10.57
    M16X2 8G/Z NUT Genuine Lamborghini - New (to order)
    # 020
    MPN: 002325717
    REAR DIFFER
    DIFFERENZ. POST. COMPLETO 446055
    Lamborghini PART 002325717 Genuine Lamborghini - New (to order)
    # 021
    MPN: 002523182
    SHAFT
    COMPL .SEMIASSE POST . 0 . 1 53 . 30 . 0
    from £1,426.66
    from £1,426.66
    Rear Drive Shaft Genuine Lamborghini - New (to order)
    # 022
    MPN: 008101636
    SCREW
    BULLONE
    from £10.87
    from £10.87
    SCREW M16X2X190 UNI 5737-6 Genuine Lamborghini - New (to order)
    # 023
    MPN: 002322317
    WASHER
    WASHER
    from £24.96
    from £24.96
    SHIM WASHER Genuine Lamborghini - New (to order)
    # 024
    MPN: 008701209
    SCREW
    VITE A BRU60LA
    from £12.82
    from £12.82
    ALLEN SCREW M12X1.25X7810K Genuine Lamborghini - New (to order)
    # 025
    MPN: 008411302
    LOCK WASHER
    RONDEL. 13X24X1 ,2
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 026
    MPN: 002223345
    SHAFT
    ALBERO 01 TRASMISS. POST. 0.387.
    Lamborghini PART 002223345 Genuine Lamborghini - New (to order)
    # 027
    MPN: 008201006
    NUT
    DADO N/ 10/ 1 10X1 ,25M
    from £4.73
    from £4.73
    M10 SELF LOCKING NUT Genuine Lamborghini - New In stock
    # 028
    MPN: 008101063
    SCREW
    BULLONE
    from £18.99
    from £18.99
    SPECIAL SCREW M10X1.25X31 Genuine Lamborghini - New (to order)
    # 029
    MPN: 008411302
    LOCK WASHER
    RONDEL . 13X24X1 , 2
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 030
    MPN: 008701206
    SCREW
    VITE
    from £15.96
    from £15.96
    SCREW Genuine Lamborghini - New (to order)
    # 031
    MPN: 002224818
    SHAFT
    ALBERO DI TRASMISS. ANT.
    from £1,260.25
    from £1,260.25
    FRONT PROPELLER SHAFT Genuine Lamborghini - New (to order)
    # 032
    MPN: 002224839
    GASKET
    GASKET 2.153.21.24.00.002
    from £3.94
    from £3.94
    SEAL Genuine Lamborghini - New (to order)
    # 033
    MPN: 008101008
    BOLT
    BULL.M10X30 UNI 5739 8G
    from £9.69
    from £9.69
    SCREW M10X30UNI 5739/8G/ZD Genuine Lamborghini - New (to order)
    # 034
    MPN: WHT000768
    LOCK WASHER
    from £1.21
    from £1.21
    This part replaces part number 008410806 - and 1 more. Click to view details
    SPRING WASHER Genuine Lamborghini - New In stock
    # 035
    MPN: 002421813
    MOUNTING
    REAR GEARBOX SUPPORT ZF
    Lamborghini PART 002421813 Genuine Lamborghini - New (to order)
    # 036
    MPN: 008201603
    NUT
    DADO B/70/216X1 , 5M
    from £2.25
    from £2.25
    NUT Genuine Lamborghini - New (to order)
    # 037
    MPN: 008401620
    WASHER
    RONDELLA X DADO AUTBLOCC .
    from £4.32
    from £4.32
    WASHER D.60X16.3X5 Genuine Lamborghini - New (to order)
    # 038
    MPN: 002421809
    BUSH
    ELASTIC BUSHING FOR C MOUNT
    from £26.29
    from £26.29
    ELASTIC BUSH FOR ATTA Genuine Lamborghini - New (to order)
    # 039
    MPN: 008101626
    BOLT
    BULLONE
    from £1.64
    from £1.64
    SCREW M16X1.5X70 UNI5738- Genuine Lamborghini - New (to order)
